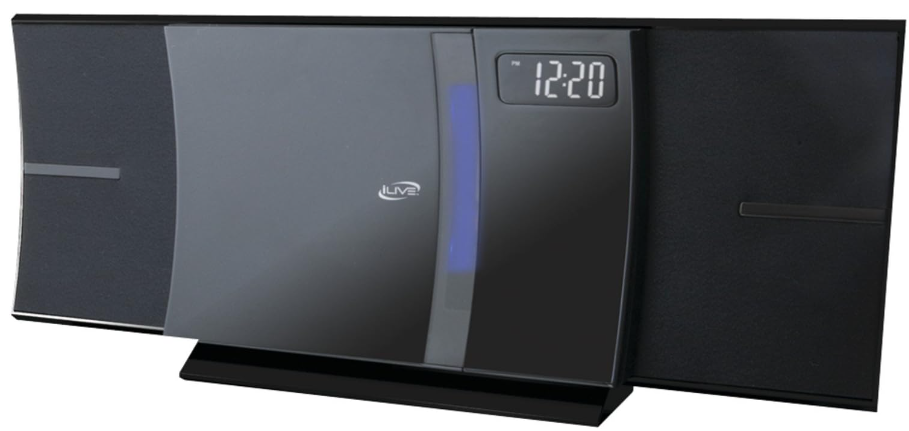

Introduction of iLive Bluetooth CD Radio Music System IHB603B

The iLive Bluetooth CD Radio Music System IHB603B is a versatile and compact audio system designed to enhance your listening experience. It features Bluetooth connectivity for wireless streaming, a built-in CD player, AM/FM radio, USB port, and auxiliary input for various playback options. With an LED display, digital clock, and included remote control, the IHB603B combines modern functionality with ease of use, making it an ideal choice for music enthusiasts.

Detailed Specifications

The i Live Bluetooth CD Radio  Music System IHB603B is a versatile and feature-rich audio device that offers a range of options for listening to music and other audio content. Here are some of its key specifications:

• CD player: The device can play CDs, including CD-R and CD-RW discs.
• Radio: The IHB603B includes a digital AM/FM radio with 40 presets.
• Bluetooth: The speaker can connect wirelessly to Bluetooth-enabled devices such as smartphones and tablets.
• Aux input: The device features a 3.5mm aux input for connecting non-Bluetooth devices.
• Output power: The IHB603B delivers 2 x 5W RMS output power.
• Bass boost: The speaker has a built-in bass boost function for enhanced low-frequency response.
• Remote control: The device comes with a remote control for convenient operation.
• Dimensions: The speaker measures 32.5 x 18.5 x 13 cm (width x height x depth).
• Weight: The IHB603B weighs 2.3 kg.

Features

• Supports Bluetooth v2.1
  • CD player: CD, CD-R/RW
• Digital FM Radio (PLL)
• Digital clock
• Negative LCD display with white backlight
• Ambient blue LED light effects
  • Wireless range: 33 feet
• 2 channel stereo sound
• Station memory presets (10 FM)
• Vertical-load disc player
• Motorized disc door
• Sleep timer
• Alarm
• 3.5mm audio input
• Preset EQ
• Digital volume control
• Last user’s setting memory
• Built-in FM wire antenna
• Full-function remote
• Wall mountable
  • DC power input: requires an AC/
  • DC power adapter (included)

Included

Remote control: requires a CR2025 battery (pre-installed)

Overview

Remote Control

Setup

• Power AC power input: requires an AC/ DC power adapter (included)



• Remote Requires 1, CR2025, battery (pre-installed).



WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste.

Clock

Setting the Clock

1. Press and hold the Power button to turn the music system off.
2. Press and hold the CLK Set/Sleep button on the music system. The hour will begin to blink on the display.
3. Press the Skip/Search buttons to adjust the hour. A “PM” indicator will appear on the display when the time is set to the PM.
4. Press the CLK Set/Sleep button to set the adjusted hour. The minute will begin to blink on the display.
5. Press the Skip/Search buttons to adjust the minute.
6. Press the CLK Set/Sleep button to finish setting the clock.

Setting the Alarm

1. With the unit powered off, press and hold the Alarm/EQ button. The display will flash.
2. Press the Skip/Search buttons to adjust the hour. A “PM” indicator will appear on the display when the time is set to the PM.
3. Press the Alarm/EQ button to set the adjusted hour. The minute will begin to blink on the display.
4. Press the Skip/Search buttons to adjust the minute.
5. Press the Alarm/EQ button to set the adjusted minute. The alarm source will begin to blink on the display.
6. Press the Skip/Search buttons to adjust the alarm source. bu-Buzzer, rad-Radio, Cd-CD
   • Note: Please refer to the Radio and CD sections for additional information on the preferred settings.
7. Press the Alarm/EQ button to finish setting the alarm.
8. The unit will power on when the set time is reached.
9. To cancel the alarm, press the Alarm/ EQ button once. To turn it back on, press the Alarm/EQ button again.

Description

The iLive Bluetooth CD Radio Music System IHB603B is a sleek and stylish audio device that offers a range of listening options for music and other audio content. With its built-in CD player, digital radio, and Bluetooth connectivity, the IHB603B is a versatile and convenient way to enjoy your favorite tunes. The device features a clear and easy-to-read display, as well as intuitive controls for playing music and adjusting settings. The IHB603B also has a bass boost function for enhanced low-frequency response, making it a great choice for bass lovers. The included remote control allows you to operate the speaker from a distance, making it easy to control your music from across the room. Overall, the i Live CD Radio Speaker IHB603B is a high-quality and feature-rich audio device that offers great value for the price.

Bluetooth Setup & Charging

Pairing a Bluetooth Device

1. Power on the unit by pressing the Power button.
2. Press the Source button to switch to Bluetooth Mode. The display will show the flashing letters “bt”.
3. Press and hold the Pair button.
4. “BT”will flash quickly on the display. When pairing, remain within 3 feet of the unit.
5. Using the native controls on your Bluetooth device, select the “IHB603” in your Bluetooth settings to pair. If your device requests a password, enter the default password “ 0 0 0 0 ”. Refer to the user’s manual for your specific device for instructions on pairing and connecting Bluetooth devices.
6. When successfully paired, the pairing indicator will remain solid. After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device. If your device should become unpaired, follow the above steps again. If any pairing issues should occur, unpair the unit on your Bluetooth device and follow the above steps again.

Playing Audio Wirelessly

1. Follow the instructions for Pairing a Bluetooth Device.
2. Use the native controls on the connected Bluetooth Device to select a track.
3. To play, pause or skip the selected track, use the native controls on the connected Bluetooth Device or press the Play/Pause or Skip/Search buttons.
4. Audio played through the connected Bluetooth device will now be heard through the speakers.

Charging a Device

1. Make sure the unit is plugged into the wall.
2. Using the appropriate USB charging cable (not included), connect one end to the device and the other to the Charger on the unit. Refer to the user’s manual for your specific device for manufacturers required charging amperage as well as determining the appropriate cable for your device before charging.
   • Note: This device uses a USB charging port with a 500mA maximum charging capacity, making it unsuitable for charging iPads.
3. The device will now charge.

CD, FM Radio & Line In

• Loading a CD
  1. Open the Disc Door by pressing the Open button.
  2. Place a CD into the unit, label side facing up.
  3. Close the Disc Door.
• Playing a CD
  1. Follow the instructions for Loading a CD.
  2. Press the Source button to switch to CD mode.
  3. Press the Play/Pause button to begin playing the loaded CD.
• Programming a CD
  1. Follow the instructions for Loading a CD and Playing a CD.
  2. Press the Stop button to stop the CD during play.
  3. Press the Prog button on the remote.
  4. Use the Skip/Search buttons to enter the desired track number. Press the Prog button to set the track.
  5. Repeat step 3 until the desired number of CD tracks are programmed.
  6. Press the Play/Pause button on the remote to begin playing the programmed tracks.
• Playing the Radio
  1. Press the Source button to switch to FM Radio mode.
  2. Press the Tune+/- buttons to tune the radio. Press and hold to search for the next available station.
• Radio Reception Adjust the position of the antenna to improve FM radio reception.
• Saving a Radio Station as a Preset
  1. Follow the instructions for Playing the Radio.
  2. Press the Prog button on the remote.
  3. Press the Tune+/- buttons on the remote to select a preset number. Up to 10 stations may be preset.
  4. Press the Prog button to save the current station to the selected preset.
• Tuning to a Saved Preset Station
  1. In FM Radio mode, press the Mem+ button to cycle through saved presets.
• Using the Audio Input Requires a 3.5mm audio cable (not included)
  1. Connect a 3.5mm audio cable to the Line In and the audio output on an MP3 player or other audio device.
  2. Press the Source button to switch to Line In mode.
  3. Use the native controls on the connected MP3 player or other audio source to play your audio through the unit.

Setup Guide

Setting up the iLive Bluetooth CD Radio Music System IHB603B is straightforward and easy. Here are the steps to get started:

1. Unpack the device and all included accessories from the box.
2. Place the speaker in a stable and level location.
3. Connect the power adapter to the speaker and plug it into a power outlet.
4. Turn on the device using the power button.
5. Insert a CD into the CD player and press play to start listening.
6. To listen to the radio, press the radio button and use the tuning controls to find a station.
7. To connect a Bluetooth device, turn on Bluetooth on the device and select "IHB603B" from the list of available devices.
8. Use the remote control to adjust settings and control the speaker from a distance.

Warnings and Precautions

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
• WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or  sensitive finish. As with any rubber compound made withoils, the feet could cause marks or staining where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass between the unit and the surface to reduce the risk of damage and/or staining.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
• WARNING: The battery, batteries, and battery pack shall not be exposed to excessive heat such as sunshine, fire, or the like.
• WARNING: The remote control supplied with this product contains a button-cell battery that could be accidentally ingested by children. Do not leave buttoncell batteries accessible to children. If swallowed, promptly see doctor and call (202) 625-3333.
• WARNING: Lithium batteries, like all rechargeable batteries are recyclable and should be recycled or disposed of in normal household waste. Contact your local government for disposal or recycling practices in your area. They should never be incinerated since they might explode.
• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR

Mains Plug or Direct plug-in adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the Mains Plug or Direct plug-in adapter should be disconnected from the mains socket outlet completely.

• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

• The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
• The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
• This product utilizes a Class 1 laser to read Compact Discs. This laser Compact Disc Player is equipped with safety switches to avoid exposure when the CD door is open and the safety interlocksare defeated.
• Invisible laser radiation is present when the CD Player’s lid is open and the system’s interlock has failed or been defeated. It is very important that you avoid direct exposure to the laser beam at all times. Please do not attempt to defeat or bypass the safety switches.

Important Safety Instructions

1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding  prong. The wide blade or the third prong areprovided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Special note: When placing your unit on a lacquered or natural finish, protect your furniture with a cloth or other protective material.

Troubleshooting

Here are some common issues you may encounter with the iLive Bluetooth CD Radio Music System IHB603B and how to solve them:

• CD won't play: Check that the CD is inserted properly and that the device is turned on.
• Radio won't tune: Make sure the antenna is fully extended and that you are in a location with good radio reception.
• Bluetooth won't connect: Check that Bluetooth is turned on on both the speaker and the device you are trying to connect. Make sure the device is within range of the speaker (up to 10 meters).
• Sound is distorted: Check that the volume is not too high and that the bass boost function is not overused. Make sure the speaker is not obstructed or placed too close to walls or other objects.

Warranty

For Warranty Information and the most up-to-date version of this User’s Guide, go to: https://www.iliveelectronics.com/

Pros & Cons

Pros

• Versatile listening options with CD player, digital radio, and Bluetooth connectivity.
• Clear and easy-to-read display with intuitive controls.
• Bass boost function for enhanced low-frequency response.
• Included remote control for convenient operation.
• Sleek and stylish design.

Cons

• No USB or SD card input for playing digital music files.
• No optical or coaxial digital audio output for connecting to external audio equipment.
• Limited to 40 radio presets.
• No battery power option for portable use.

Customer Reviews about i-Live Bluetooth CD Radio  Music System IHB603B

Customers generally have positive things to say about the iLive Bluetooth CD Radio Music System IHB603B. They praise its versatility, ease of use, and sound quality. Some common complaints include the lack of USB or SD card input, limited radio presets, and no battery power option. However, these issues do not seem to detract significantly from the overall positive experience of using the IHB603B.
