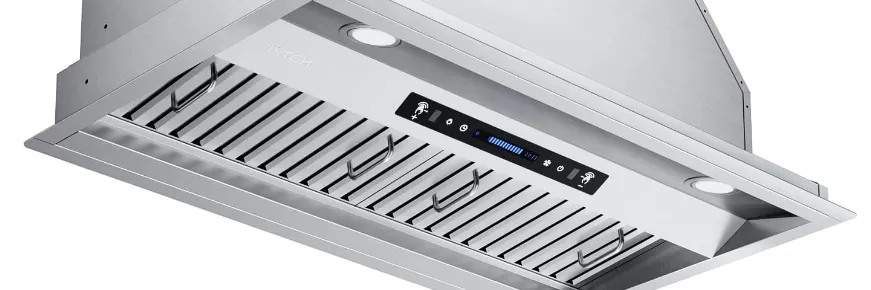

The iktch Mount Range Hood IKB02 is a sleek and powerful kitchen appliance designed to enhance your cooking experience while maintaining a stylish aesthetic. With a robust 900 CFM suction power, this range hood effectively eliminates smoke, odors, and grease, ensuring a clean and fresh kitchen environment. Its stainless steel construction not only adds durability but also complements modern kitchen decor. This range hood is priced at approximately $299.99. The IKB02 is easy to install and operate, making it an ideal choice for any home chef.

SPECIFICATIONS

• MODEL: IKB02
• COLOR: Stainless Steel
• CONSUMPTION I AMPERE: 230W/2.5A
• NUMBER OF BLOWERS: 1
• DESIGN: Seamless / Satin Finish
• BLOWER TYPE: Single Horizontal Squirrel Cage
• EXHAUST: Top 6″ Round
• CONTROLs: 4 Speeds Electronic Switch
• LIGHTS: 3-watt LED Lights x 2
• SPEED Air Capacity (cfm) Sone (dB): 1300 420 550 900 2.2 4.5 6

One sone is equivalent to the sound of a refrigerator at 40 decibels.

Specifications are subject to change without notice.

Test before installing

1. Please unpack the range hood and accessories carefully.
2. Remove the baffle filters, check any dent or damage inside and outside.
3. If found any loosing parts, please remove them.
4. Place the range hood on a flat stable surface, plug in 120V AC power source. Press the power button and the speed buttons to turn on.
5. Check if any unusual metal touching noise, check the speed variation, and press the Light button to check the lights.
6. Verify all functions per Section 9 RANGE HOOD OPERATIONS.
7. Refer to Section 10 TROUBLESHOOTING if any malfunction was fou
8. The plastic protective film was removed for sanding polish finishing.

IMPORTANT:
Read and save these instructions.

NOTICE:

• Installer: Leave this guide with the homeowner
• Homeowner: Keep this guide for future referenc

IKB02 Series

Model No.

• IKBO2-(30″)

• IKBO2-(36″)




IMPORTANT READ THIS FIRST

READ BEFORE INSTALLATION

1. Carefully check all contents of packages.
2. Thoroughly inspect the unit for any shipping damages, cosmetic damages or defects.
3. Have a certified contractor/ electrician test the unit before installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and the product serial number ready.
3. Contact your merchant for product replacement due to shipping damages, cosmetic damages, or defects.

PLEASE READ THIS SECTION CAREFULLY BEFORE THE INSTALLATION

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, OBSERVE THE FOLLowING:

1. Installation and electrical wiring must be done by qualified professionals and in accordance with all applicable codes and standards, including fire-rated construction.
   When cutting or driling into wall or ceiling, be careful not to damage electrical wiring or other hidden utilities.
2. Ducted fans must be vented to the outside.
   1. Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE PANEL.
   2. Clean all grease-laden surfaces frequently. To reduce the risk of fire and to disperse properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or garages.

NOTE

• This warranty is invalid without an authorized agent’s receipt or if the unit is damaged due to misuse, poor installation, improper use, mistreatment, negligence or any other circumstances beyond the control of IKTCH RANGE HOODS authorized agents. Any repair carried out without the supervision of IKTCH RANGE HOODS authorized agents will automatically void the warranty.
• IKTCH RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE TOP GREASE FIRE:

1. Keep all fans, baffle/spacer/filter/oil tunnels/oil containers, and grease-laden surfaces clean. Grease should not be allowed to accumulate on the fan, baffle/spacer/filter/oil tunnel/oil container.
2. Always turn the hood ON when cooking.
3. Use high settings on cooking range ONLY when necessary.
4. Do not leave cooking range unattended when cooking.
5. Always use cookware and utensils appropriate for the type and amount of food prepared.
6. Use this unit only in the manner intended by the manufacturer.
7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent power from switching on accidentally.
8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner
• KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
• NEVER PICK UP A BURNING PAN You May Get Burned.
• DO NOT USE WATER, including wet dishcloths or towels a violent steam blast will result. Use an extinguisher ONLY if
• a) You have a Class A, B, or C extinguisher and know how to operate it.
• b) The fire is small and contained in the area where it started.
• The fire department has been called.
• d) You can fight the fire with your back to an exit.

What to DO If You Smell Gas

• Extinguish any open flame.
• Do not try to turn on the lights or any type of appliance.
• Open all doors and windows to disperse the gas. If you still smell gas, cal the Gas Company and
• Fire Department right away.

CAUTION

1. For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) to prevent back drafting.
3. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4. Turning any switch on may cause ignition or an explosion.
5. Due to the size and weight of this hood, two people installation is recommended.

WARNING: ELECTRICAL SHOCK HAZARD
Can result in serious injury or death. Disconnect appliance from electric power before servicing. If equipped, the fluorescent light bulb contains small amounts of mercury, which must be recycled or disposed of according to Local, State, and Federal Codes.

Description

The iktch Mount Range Hood IKB02 boasts a sleek and modern design that complements any kitchen décor. Its stainless steel body is not only aesthetically pleasing but also durable and resistant to rust. The range hood features a touch control panel and remote control, making it easy to adjust settings without having to physically interact with the unit. The LED lights provide excellent illumination over your cooking area, ensuring you can see every detail of your meal preparation.

The hood is designed with a powerful 600 CFM motor that can handle heavy-duty cooking tasks, and its three-speed control allows you to customize the ventilation according to your needs. Additionally, it is compatible with charcoal filters for recirculating air, making it versatile for different kitchen setups.

INSTALLATION

PLEASE READ THE ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation
To calculate installation, please refer to TABLE 1. (All calculations in inches).

FOR BUILT-IN / INSERT

SAFETY WARNING

• HOOD MAY HAVE SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING ANY PARTS FOR INSTALLING, CLEANING, OR SERVICING.
• BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY
• OCCUR. USING HAND TOOLS IS RECOMMENDED. DO NOT OVER TIGHTEN SCREWs.
• MAKE SURE TO PREVENT ANY DEBRIS FROM ENTERING THE VENT OPENING TO
• AVOID DAMAGE OR MALFUNCTION.

INSERT INSTALLATION

Before Installation

1. Read any provided document(s).
2. Test the range hood by temporarily connecting it to an outlet and turning the fan and lights ON.
3. If you run into any problems, contact IKTCH Range Hoods.
   Venting Requirements
4. This range hood has a top 6″ Round exhaust (default).
5. Decide the location of the venting pipe from the hood to the outside. A straight, short vent run will allow the hood to perform more efficiently. Try to avoid elbows, transitions, and long run as much as possible as this may reduce the performance of the hood. Make sure that the duct work leads to the outside.
6. It is recommended to use metal/aluminum duct/pipe with a uniform size (ex. 6′ round pipe from range hood to the outside.)
7. If an elbow is necessary, a minimum of 12″ straight run is necessary before the elbow.
   Clearance
8. Clearance is the distance between the cooktop and the bottom of the range hood. The recommended minimum clearance for this model is 26″ and the maximum clearance is 30″.

9. It is important to install the hood at the recommended clearance. Installing too low could result in damage and/or fire hazard while installing too high may result in reduced performance and efficiency.



Important: Peel protective film off the hood, if any. Use duct tape to seal joints between pipe sections.
CAUTION: If moving the cooking range is necessary to install the hood, turn off the power in an electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS RANGE. And use a protective covering to protect cooktop and/or countertop from damage.

IKB02 SERIES INSTALLATION

Custom Hood Preparation:

1. The custom hood frame must be designed according to the shape and the weight of the insert. Refer to Measurements and Diagrams
2. A sturdy base (3/4 inch thick plywood recommended) is needed to sustain the weight of insert.
3. Please install the insert hood left & right stud support (not included)
4. Determine and mark the centerlines on the base of the wood frame where the insert will be installed.
5. Determine the proper location for the Power Supply Cable. Make a wiring access hole using a drill bit. Install the wire cable and seal the gap around hole.

6. Cut out the opening where the insert will be installed. (Figure 1)



Hood Installation
NOTE: USE HAND TOOLS ONLY. DO NOT OVER-TIGHTEN SCREWs. IT MIGHT BE CAUSED DAMAGE TO THE HOOD.

1. Remove 5 screws located at the bottom of the insert (Refer to Figure 2 and figure 3).



2. Disconnect the 2pcs LED lights wire and switch wire, then carefully remove the light support panel from hood body refer to figture 4



3. Position the insert inside the custom wood frame, refer to figture 5, Secure the insert to the left and right stud support (Refer to Figure 5) by using the left and right mounting holes (Screws included, 2 holes each side ).



4. Make sure insert is secure before releasing.

5. Re-install the light support panel. (Do not over tighten screws.) Refer to figure 6



Final Assembly

1. Install the oil tunnel into the recess support near the rear of the hood, and assemble the handle to stainless steel baffle filters Refer to Figure 7.
2. Install baffle filters. Angle baffle filter toward the back of hood 1. Push the baffle filter up until almost level 2. Slide forward into a recess behind the front of hood 3. Lower baffle filter 4. Slide back until it fits into the resting position 5. Refer to Figure 7.
3. Angle baffle filter toward the back of the hood.
4. Push the baffle filter up until almost level.
5. Slide forward into the recess behind the front of the hood.
6. Lower baffle filter.

7. S1ide back until it fits into resting positions.



Control Panel Layout & Buttons Configurations

1. From left to right side: Lighting Key (K1), Timer Key (K2), LED Display, Speed Key (K3), Power Key (K4)
2. When the power supply connected, all indicate lighting is On and then Off in 1 second. To press K4 to open the hood.
3. When the hood is On, to press K3 to open Fan Speed 1″, to press again to open Fan Speed 2, as so forth, to open Fan Speed 3d and 4h by K3. The Fan Speed is changed as 1-2-3-4-0-1-2-3-4.
4. If there was any fan speed working, to press K2 to open Timer Mode, the default is 3 minutes and do count-down step. Or to press K2 or K3 to set the timer as wanted, the maximum timer is 15 minutes.
5. To press K1 to open or close the lamp. The luminance of lighting can be adjusted from 0% to 100% as wanted by touching K1.
6. Gesture Control: to move your hand from left side to right side to open 1″ Fan Speed. And again to open 2″d Fan Speed, and 3, and 4″.On the contrary, to move your hand from right side to left to reduce the speed level.

Please Note: when using gesture control function, please make sure to move your hand from 2 signal ports completely.

Optional
This hood switch control can be operated by remote controller if wanted.

Setup Guide

To set up the iktch Mount Range Hood IKB02, start by ensuring you have all the necessary hardware and tools provided in the package. Follow these steps:

1. Turn off the power to the area where you will be installing the range hood.
2. Mount the range hood to your ceiling or wall according to the manufacturer's instructions.
3. Connect the electrical wiring carefully, ensuring all connections are secure and meet safety standards.
4. Install any additional features like charcoal filters if you plan to use them.
5. Test the range hood by turning it on and checking all settings and lights.

MAINTENANCE

For optimal performance, clean the range hood surface and baffles regularly.

To Clean Hood Surface

CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
Regular care will help preserve its fine appearance.

1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. 1f hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the stainless steel cleaner Caution: Do not leave on too long as this may cause damage to hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots. Use dry soft towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel for extended periods. Many of these compounds contain chemicals, which may be harmful. Rinse with water after expoSure and wipe dry with a clean lint free cloth. For Baffle Filter models only: to Clean Baffle Filter/Oil Tunnel

CAUTION: DRAIN OIL FROM BAFFLE FILTERS, SPACERS & OIL TUNNEL REGULARLY TO PREVENT OVERFLOW.

1. Remove all the baffle filters, spacers and oil tunnel. Note: Not all models have spacers and oil tunnels.
2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.
   CAUTION: SHARP EDGES (Note: Baffle Filters are top rack dishwasher safe.)

MEASUREMENTS &DIAGRAMS

IKB02 SERIES

EXPLODED VIEW

IKB02 SERIES

Stainless Steel Range Hood

Power 110V 125V 60Hz 2.5A Wattage 236W Thermally Protected
Suction Capacity: 900CFM Suitable for use in a household cooking area. Do not install closer than 25.5 inches above the cooking surface. For residential indoor use only.

TROUBLESHOOTING

WARRANTY

SPARE PARTS WARRANTY

• 5 years warranty for LED lights and switch control
• 10 years warranty for motor and blowers

iktch Mount Range Hood IKB02 Pros & Cons

Pros:

• Powerful and efficient ventilation system.
• Sleek and modern design that fits any kitchen décor.
• Easy-to-use touch control panel and remote control.
• Energy-efficient LED lighting.
• Compatible with charcoal filters for recirculating air.

Cons:

• Installation may require professional help for some users.
• Noisy at higher speed settings.
• Filters need regular cleaning or replacement.

Customer Reviews

Customers have praised the iktch Mount Range Hood IKB02 for its powerful performance and sleek design. Many have noted that it significantly improves kitchen air quality and is easy to operate. However, some users have mentioned that the installation process can be complex and the unit can be noisy at higher speed settings.
