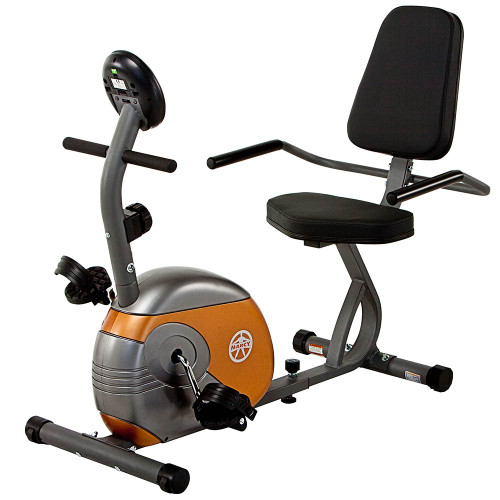

Introduction of Impex Marcy Exercise Bike ME-709

The Impex Marcy Exercise Bike ME-709 is a high-quality, affordable exercise bike designed for home use. This bike is perfect for anyone looking to improve their cardiovascular health, lose weight, or build muscle. With a sturdy steel frame and adjustable seat, the ME-709 can accommodate users of all sizes. The bike is currently available for purchase online and in stores, with an estimated price range of $150 to $200.

HARDWARE PACK

PRE-ASSEMBLY CHECK LIST

Detailed Specifications

The Impex Marcy Exercise Bike ME-709 boasts a number of impressive features, including:

• 8 resistance levels
• Adjustable seat
• Counter-weighted pedals with adjustable straps
• Foam-covered handlebars
• Large LCD display
• Transport wheels for easy movement
• Maximum user weight capacity of 300 lbs

Impex Marcy Exercise Bike ME-709 Description

The Impex Marcy Exercise Bike ME-709 is a compact and durable exercise bike that is easy to assemble and use. The adjustable seat and foam-covered handlebars allow for a comfortable ride, while the LCD display tracks time, speed, distance, and calories burned. With 8 resistance levels, users can customize their workout to their desired intensity. The ME-709 also features counter-weighted pedals with adjustable straps for added safety and stability. Overall, the Impex Marcy Exercise Bike ME-709 is an excellent choice for anyone looking for a high-quality, affordable exercise bike for home use.

WARNING LABEL PLACEMENT

ASSEMBLY INSTRUCTION

• NOTE:  It is strongly recommended that two or more people assemble this machine to avoid possible injury.



  • Before starting assembly, pull out the Quick Release Knob (#24), remove and dispose the  Protection Insert.
  • Do not tighten Nuts and Bolts until instructed to do so.
  • Insert the Sliding Frame (#26) into the Main Frame (#1). Thread the Quick Release Knob  (#24) through selected hole on Main Frame into Sliding Frame to lock the Frame in position. Thread a M10 Leverage Knob (#20) into the Sliding Frame from bottom.
  • Attach the Front Stabilizer (#14) to the Main Frame (#1).  Secure it with two M8 x 2 ½” Carriage Bolts (#13), two ∅7/8” Curved Washers (#9), and two M8 Acorn Nuts (#19).
  • Attach the Sliding Frame to the Rear Stabilizer (#30). Secure it with two M8 x 2 ½” Carriage Bolts (#13), two Ø 7/8” Curved Washers (#9), and two M8 Acorn Nuts (#19).
  • Securely tighten all Nuts and Bolts. G.) Rotate the two Rear Stabilizer End Caps (#29), and attach the M8 Leverage Knob on floor

• NOTE: In order to hold the Front Post (#4) while connecting the cables and wires,  extra help may be needed.



  • Attach the Front Post (#4) to the Main Frame (#1). Connect the Upper Computer Wire  (#10) from the bottom of Front Post to the Lower Computer Wire (#12) from the main Fame.
  • Pull the tension connector from the Upper Tension Cable (#7) and slide in between the opening on the connector holder on the Lower Tension Cable (#11). Pull the Upper Tension Cable upward and slide the wire through the slot on the bracket.
  • Drop down the Upper Tension Cable so the fitting sits firmly on top of the bracket.
  • Secure the Front Post to the Main Frame with four M8 x 5/8” Allen Bolts (#8) and three 7/8” Curved Washers (#9).

• NOTE: Attach the Seat Support (#25) to bracket on the Sliding Frame (#26). Secure it with  two M8 x 2 ¾” Hex Bolts (#31), two Ø 5/8” Washers (#27), and two M8 Aircraft Nuts (#33).



  • Attach the Backrest Board (#28) to the Seat Support. Secure it with four M8 x 5/8”  Allen Bolts (#8) and four Ø 5/8” Washers (#27).
  • Attach the Seat Pad (#32) to the Seat Support. Secure it with four M8 x 5/8” Allen  Bolts (#8) and four Ø 5/8” Washers (#27).
  • Pull up the Quick Release Knob (#24), slide the Sliding Frame to desired position, and release the Knob to lock the Seat in position.

• NOTE: Attach the Handle (#22) to the Seat Support (#25). Secure it with two M8 x 2 ¾” Hex Bolts (#31), two Ø 5/8 Washers (#27), and two M8 Aircraft Nuts (#33).



  • Connect Upper Computer Wire (#10) to the wire on the Computer. Remove the two M5 x 3/8” Philips Screws (#3) from Computer. Slide the Computer onto the bracket on Front Post. Secure it with the two Screws.
  • Thread the left Pedal (#17L) Counterclockwise into the left Crank ( #21). Thread the right Pedal (#17R) Clockwise into the Crank on the other side.

Setup Guide of Impex Marcy Exercise Bike ME-709

Setting up the Impex Marcy Exercise Bike ME-709 is a straightforward process. The bike comes partially assembled, and users will need to attach the stabilizers, seat, pedals, and handlebars. The assembly process should take no more than 30 minutes. To operate the bike, users should adjust the seat to their desired height, choose a resistance level, and begin pedaling. To configure the LCD display, users can press the mode button to switch between time, speed, distance, and calories burned. The bike can also be easily moved using the transport wheels.

Exploded Diagram

COMPUTER

AUTO START / STOP

When exercise starts, the monitor will automatically turn on and display the progress. When exercise stops, the monitor will automatically turn off after 5 minutes to save energy. Press “MODE” key, will automatically scan Time, Speed, Distance, Calories, and ODO for every 4 seconds.

The below data will display while pedaling.

1. Time Display the elapsed time. Max value is up to 99:59
2. Speed Display the current speed in miles per hour.
3. Distance Display the distance traveled in Miles. Max value is 99.99 miles.
4. Calories Display the calorie consumption in cal.
5. (ODO) Odometer Display the accumulation of distance from previous and current exercises. Max value is 9999 miles.

REPLACE BATTERY

1. Always purchase the correct size and grade of battery most suitable for the intended  use.
2. Replace all batteries of a set at the same time.
3. Clean the battery contacts and also those of the device prior to battery installation.
4. Ensure the batteries are installed correctly with regard to polarity (+ and -).
5. Remove batteries from equipment when not in use for extended periods of time.
6. Remove used batteries promptly.
7. The Computer requires two 1.5V (AAA) batteries. Batteries are not included in packaging.
8. If the display is not clear or only partial segments appeared, remove the batteries and wait for 15 seconds before re-install them.
9. The battery life is approx. 3 months under normal usage.
10. When the batteries are removed, all the functional values will reset to zero.

Note: Please note all values on this computer are approximate and they are for comparison purpose only.  Do not use these values for any medical or rehabilitation purpose.

EXERCISE INSTRUCTIONS

Using your FOLDABLE BIKE will provide you with several benefits, it will improve your physical fitness, tone muscle and in conjunction with calorie controlled diet help you lose weight.

1. The Warm Up Phase
   This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts, STOP.



2. The Exercise Phase
   This is the stage where you put the effort in. After regular use, the muscles in your legs will become more flexible.  Work to your but it is very important to maintain a steady tempo throughout. The rate of work should be sufficient to raise your heartbeat into the target zone shown on the graph below.



   This stage should last for a minimum of 12 minutes though most people start at about 15-20 minutes

3. The Cool Down Phase
   This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching exercises should now be repeated, again remembering not to force or jerk your muscles into the stretch.  As you get fitter you may need to train longer and harder. It is advisable to train at least three times a week, and if possible space your workouts evenly throughout the week.

MUSCLE TONING
To tone muscle while on your FOLDABLE BIKE you will need to have the resistance set quite high. This will put more strain on our leg muscles and may mean you cannot train for as long as you would like. If you are also trying to improve your fitness you need to alter your training program. You should train as normal during the warm up and cool down phases, but towards the end of the exercise phase you should increase resistance making your legs work harder. You will have to reduce your speed to keep your heart rate in the target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and longer you work the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal.

Troubleshooting

If users experience any issues with their Impex Marcy Exercise Bike ME-709, they should first consult the user manual. Some common issues and solutions include:

• Resistance level won't change: Make sure the resistance knob is turned all the way to the left, then turn it to the right to increase resistance.
• LCD display is blank: Make sure the bike is properly plugged in and the power switch is turned on.
• Pedals are loose: Make sure the pedals are securely attached to the crank arms and the adjustable straps are tightened.
• Bike is making noise: Make sure all bolts and screws are tightened, and that the bike is on a level surface.

Impex Marcy Exercise Bike ME-709 Warranty

IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's option.

Pros & Cons

Pros

• Affordable price
• Adjustable seat and resistance levels
• Easy to assemble and use
• Durable steel frame
• LCD display tracks workout metrics

Cons

• Limited resistance levels compared to more expensive bikes
• No preset workout programs
• No Bluetooth or app connectivity

Customer Reviews about Impex Marcy Exercise Bike ME-709

Customers have generally praised the Impex Marcy Exercise Bike ME-709 for its affordability, adjustability, and durability. Some common complaints include the limited resistance levels and lack of preset workout programs. Overall, however, users have found the bike to be a great value for the price.
