Infinity On-Ear Headphones Glide 510 User Manual

Content

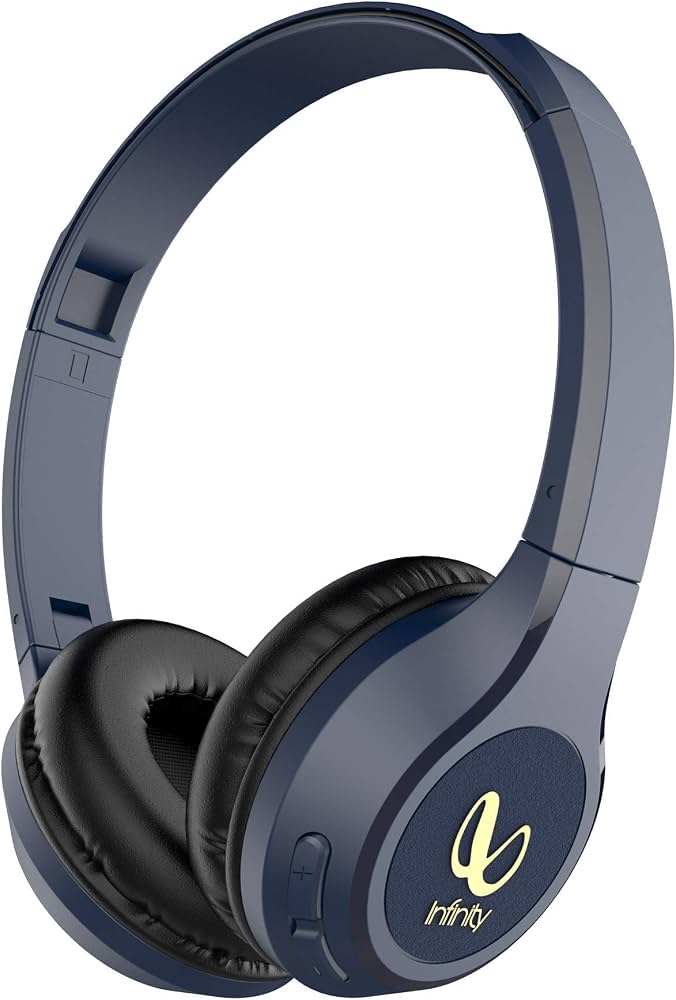

Introduction of Infinity On-Ear Headphones Glide 510

Introducing the Infinity On-Ear Headphones Glide 510 - a perfect blend of style, comfort, and superior sound quality. These headphones are designed to provide an immersive audio experience, making them ideal for music lovers, gamers, and multitaskers alike. With an estimated price range of $40 to $50, the Glide 510 is set to launch in the first quarter of 2023. Stay tuned for this exciting new product that will redefine your audio experience!

What’s in the box

GLIDE 510
USB charging cable
User manual

Specifications

Input rating: 5V500mA
Driver size: 36.0mm
Dynamic frequency response range: 20Hz~20kHz
Maximum SPL: 102±3dB @ 1kHz
Microphone sensitivity@1kHz dB v/pa:-40dBFs±3 Impedance: 32 Ohms˜
Bluetooth transmitted power: -6~4dBm
Bluetooth transmitted modulation: GFSK π/4-DQPSK 8DPSK
Bluetooth frequency: 2.402GHz~2.48GHz
Bluetooth profiles: HFP V1.7, A2DP V1.3, AVRCP V1.6
Bluetooth version: 5.0
Battery type: GSP753030
Polymer Li-ion Battery: 3.7V 610mAh
Charging time: 3hrs
Music play time: up to 72hrs(Optimal listening level)

Warning! Headphone listening at high volume levels – particularly over extended periods of time – may damage your hearing.

Do not drop your headphones.
Headphones shall not be exposed to dripping or splashing.
Do not allow your headphones to be submerged in water.
Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives. If cleaning is required with a minimum amount of water or diluted mild soap, to clean the product.
The integrated battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Infinity On-Ear Headphones Glide 510 Overview

Buttons and LEDs

Charging

Warning: Do not charge with a fast charger with voltage>5V, otherwise it will cause damage and other serious conditions. Charge in a place where temperature is between 0ºC (32ºF) and 45ºC(113ºF) (up to 90% relative humidity).

Wearing the headphone

Power on / Power off

Turn on the headphone
Turn off the headphone

Infinity On-Ear Headphones Glide 510 EQ switching

This headphone comes with dual EQ to cater to various personal preference. To swtich EQ, long press Vol- and Vol + simultaneously to switch to the other.

Bluetooth connection

For the first time connecting, hold on the power button for 2s and headphone will enter pairing mode. The unit will remember the connected device and thus start auto-pairing in future after power on.
To pair a new device, press and hold power button for 4s in state of shutdown to bring the earphone into pairing mode.
Connect to bluetooth device.
To restore factory settings, press the power button for 6s in state

Music

Phone call

Voice

Description

The Glide 510 headphones deliver rich, detailed sound with deep bass and clear treble, allowing you to enjoy your favorite music and multimedia content in its full glory. The lightweight and ergonomic design ensures a comfortable fit, even during long listening sessions. Built-in microphone and on-ear controls allow you to take calls, control music playback, and activate voice assistants with ease. With a sleek and modern design, these headphones will turn heads wherever you go.

Setup Guide

Follow these steps to operate, assemble, configure, and pair your Infinity On-Ear Headphones Glide 510:

Charge the headphones using the included USB-C cable.
Power on the headphones by pressing and holding the power button until the LED indicator flashes.
Enter pairing mode by pressing and holding the Bluetooth button until the LED indicator flashes rapidly.
Turn on Bluetooth on your desired device and search for the "Infinity Glide 510" in the list of available devices. Select it to pair.
Adjust the volume and manage playback using the on-ear controls or your connected device.

LED indicator

Infinity On-Ear Headphones Glide 510 Troubleshooting

Common problems and solutions:

Problem: Headphones won't turn on.
Solution: Ensure the headphones are charged and the power button is pressed for at least three seconds to turn them on.
Problem: Pairing is unsuccessful.
Solution: Ensure Bluetooth is enabled on your device and that you've selected the correct "Infinity Glide 510" in the list of available devices. If the issue persists, try resetting the headphones by pressing and holding the power and volume down buttons simultaneously for 10 seconds.

Warranty

HARMAN International Industries, Incorporated (“HARMAN”) is the manufacturer and through its local subsidiary, warrants to you that the Product (including components provided in/with the Product) will be free from defects in workmanship and materials for a period of ONE year from the date of retail purchase by you (the “Warranty Period”).

Pros & Cons

Pros

Superior sound quality with deep bass and clear treble
Up to 30 hours of battery life and quick charge feature
Integrated microphone with echo cancellation and noise reduction
Lightweight and ergonomic design for long-term comfort
Splash-proof and sweat-proof (IPX5 rating)

Cons

May not fit securely for users with smaller heads
Lacks active noise cancellation

Customer Reviews about Infinity On-Ear Headphones Glide 510

The Infinity On-Ear Headphones Glide 510 have received positive reviews from users, who praise their sound quality, comfortable fit, and long-lasting battery life. Most common complaints include issues with the headphones' fit on smaller heads and the lack of active noise cancellation.

PDF

Faqs

How do I pair the Infinity Glide 510 headphones with my device?

To pair your headphones, turn them on by pressing and holding the power button until the LED indicator flashes blue. Enable Bluetooth on your device and select "Infinity Glide 510" from the list of available devices to connect.

What is the estimated price range for the Infinity Glide 510 headphones?

The Infinity Glide 510 headphones are estimated to be priced between $40 and $50.

What is the battery life of the Infinity Glide 510 headphones?

The Infinity Glide 510 offers up to 72 hours of playback time on a full charge, depending on the volume and usage.

Can I use the Infinity Glide 510 headphones while they are charging?

It is not recommended to use the headphones while they are charging as it may affect battery life and long-term performance.

How do I check the battery status of the headphones?

Some devices support displaying the battery level of connected Bluetooth devices. Additionally, you can check the battery status through voice prompts when turning on the headphones or when the battery is low.

What should I do if I'm experiencing Bluetooth connectivity issues?

Ensure that the headphones are within the 10-meter Bluetooth range and there are no obstacles blocking the connection. Try unpairing and re-pairing the headphones. Also, check that your Bluetooth driver (if using with a PC) is updated.

How do I reset the Infinity Glide 510 headphones?

To reset the headphones, turn them off and then press and hold the power button for about 10 seconds until you hear a voice prompt indicating that the device has been reset.

Can I answer calls with the Glide 510 headphones, and how?

Yes, you can answer calls by pressing the power button once when a call comes in. You can also hang up the call by pressing the power button again during the call.

Is there an app that I can use with the Infinity Glide 510 headphones?

There is no dedicated app specifically for the Infinity Glide 510; however, they are compatible with general Bluetooth settings on your device.

How can I improve the sound quality on the Glide 510 headphones?

Ensure the headphones are properly seated on your ears for optimal sound delivery and isolation. Also, check the equalizer settings on your device to adjust the audio according to your preference.
