Introduction

The Jashen Cordless Vacuum Cleaner AV02A01 is a versatile and efficient cleaning solution designed for modern households. With its powerful 250W motor and 25.2V lithium-ion battery, this vacuum provides up to 40 minutes of uninterrupted cleaning time. Its lightweight design and ergonomic handle make it easy to maneuver, while the HEPA filtration system captures allergens and dust particles effectively. Priced at approximately $139.99, the Jashen AV02A01 offers excellent value for those seeking a reliable cordless vacuum.

Specifications

Product Details

• Model: AV02A01
• Type: Cordless Vacuum Cleaner
• Weight: Approximately 3.5 lbs
• Battery Life: Up to 45 minutes per charge
• Charging Time: 4-5 hours
• Estimated Price: $150-$200

Usage Purpose

The Jashen Cordless Vacuum Cleaner AV02A01 is ideal for daily home or office cleaning tasks. Its lightweight and cordless design makes it perfect for quick cleanups, pet hair removal, and reaching tight spaces without the hassle of cords.

GETTING TO KNOW YOUR JASHEN VACUUM CLEANER

Function Overview

NOTE: Your Battery does not come fully charged. Prior to first use, fully charge. During first use, discharge fully to condition your battery.

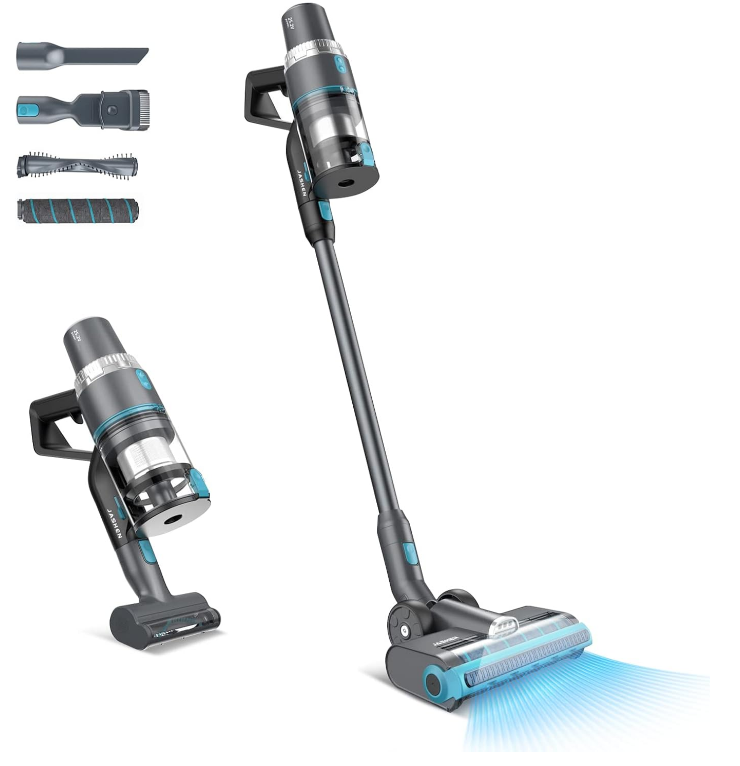

Description Parts

1. Battery pack with digital display screen
2. Main body
3. Dust Cup
4. Wand
5. Direct-drive LED multi-use floor head
6. Crevice tool
7. Dusting Brush
8. Upholstery Tool
9. Wall-mounted dock with screw
10. Adapter

Description

The Jashen Cordless Vacuum Cleaner AV02A01 features a compact and ergonomic design, making it comfortable to hold and maneuver. With a powerful 250W motor and 25KPa suction power, it effectively captures dust, allergens, and pet hair. The HEPA filter traps 99.97% of particles as small as 0.3 microns, ensuring clean air is expelled. Various attachments add versatility for different cleaning needs.

ASSEMBLING YOUR VACUUM

Assembling the main body

Assembling the battery

Assembling the soft roller (For hard floor)

Assembling the brush roller (For carpet floor)

Mode switch for Hard floor/ Carpet floor

• Hard floor mode: Move the bumper as illustrated with soft roller installed. With big opening in the front, sucks up large debris and fine dust from hard floors.
• Carpet floor mode: Move the bumper as illustrated with brush roll installed. Closed space creates more suction and direct-drive floor head clean deep into carpet to remove ground-in dirt,

Install the wall-mounted dock

Charging and runtime

Installation for wall-mounted dock

USING YOUR VACUUM

1. Filter cleaning alert: Clean filter when this sign light up, ignore this alert may cause suction lose and fast drainage of battery.
2. AUTO mode: This sign will light up when the vacuum turn into intensive cleaning by detected heavy dirt.
3. Battery indicator: Shows the remaining capacity of battery.

• MIN POWER: For small amount of dust cleaning.
• AUTO POWER: For everyday cleaning, automatically adjust power to suit different cleaning scenarios, turn to Boost mode when detected heavy dirt.
• MAX POWER: Maximum power for heavy-duty cleaning(this power setting will drains the batteries faster than other settings).

Jashen Cordless Vacuum Cleaner AV02A01 Setup Guide

1. Unpacking: Carefully remove all components from the box.
2. Charging: Plug the charger into the wall outlet and connect it to the vacuum. Allow it to charge for 4-5 hours before the first use.
3. Assembly: Attach the desired tool (crevice tool, brush tool) to the extension wand as needed.
4. Operation: Press the power button to turn on the vacuum. Adjust the suction power using the speed control button.
5. Pairing: No pairing is required; the device operates as a standalone unit.

IMPORTANT SAFETY INSTRUCTIONS
FOR INDOOR USE ONLY
WARNING
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE), Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

• DO NOT use to vacuum any liquids.
• DO NOT immerse in water when cleaning.
• If handheld vacuum/wand is damaged, discontinue use.

GENERAL USE

• To avoid fire, explosion, or injury, inspect battery pack and chargers for any damagebefore use. DO NOT use with damaged cord or plug. If the appliance has been dropped,  damaged, left outdoors, dropped into water,  or is not working as it should, return it to a service center.
• DO NOT use outdoors or on wet surfaces. Use only on dry surfaces.
• DO NOT handle charger, including charger plug and charger terminals with wet hands.
• DO NOT leave vacuum cleaner unattended.
• Always turn off this appliance before connecting or disconnecting floor nozzle.
• DO NOT incinerate appliance, even if it is severely damaged, as the power pack may explode in a fire.
• Keep the vacuum cleaner moving over the carpet surface at all times to avoid damaging the carpet fibres.
• DO NOT place vacuum cleaner on unstable surfaces such as chairs or tables.
• Keep your work area well lit.
• DO NOT put any objects into openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• DO NOT allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
• DO NOT use if airflow is restricted; if the air paths or the floor nozzle become blocked, turn off the vacuum cleaner and remove the battery. Clear all obstructions before returning the battery to vacuum and powering on again. Keep floor nozzle away from hair, face, fingers, uncovered feet, or loose clothing.
• Store the appliance indoors. DO NOT use or s tore it below 39.2° F (4° C). Ensure the  appliance is at room temperature before operating.
• DO NOT carry the appliance with your finger on the power button.

GENERAL CLEANING

• DO NOT vacuum up hard or sharp objects such as glass, nails, screws, or coins that could damage the vacuum cleaner.
• DO NOT vacuum up drywall dust, fireplace ash, or embers. DO NOT use as an attach ment to power tools for dust collection.
• DO NOT vacuum up smoking or burning objects such as hot coals, cigarette butts, or matches
• DO NOT vacuum up flammable or combustible materials, such as lighter fluid, gasoline,or kerosene, or use vacuum in areas where  they may be present.
• DO NOT vacuum up toxic solutions (e.g., chlorine bleach, ammonia, or drain cleaner). DO NOT use in an enclosed space where vapors are present from paint, paint thinner, moth-proofing substances, flammable dust, or other explosive or toxic materials.
• DO NOT vacuum up any liquids.
• DO NOT immerse vacuum cleaner in water or other liquids.
• Use extra care when cleaning on stairs.

DUST CUP/FILTERS/ ACCESSORIES

• DO NOT use without filter, dust cup, and all filters in place. Make sure all accessories are in place after routine maintenance.
• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing the   appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
• Make sure that all filters are thoroughly dry and all accessories are free of blockages after outine cleaning.
• Use only Jashen brand filters and accesso ries. Using other brands will void the warranty.

BATTERY PACK

• DO NOT charge appliance with the power on.
• DO NOT charge power pack at temperatures below S0° F (10° C) or above 100° F (38° C). Charging improperly or at temperatures outside of the specified range may damage the Battery and increase the risk of fire.
• DO NOT expose battery or appliance to fire or temperature above 266° F (130° () as it may cause an explosion. Battery should not be stored at temperatures below 37.4° F (3° C) or above 104° F (40° C) to maintain long-term battery life.
• Use Battery Charging Dock on flat, stable surfaces only.
• Use appliance only with specifically designated ed batteries and adapter. Use of any other battery packs or adapter may create a risk of injury and fire.
• When Battery is not in use, keep it away from all metal objects, such as paper clips, coins, keys, nails, or screws. Shorting the battery terminals together increases the risk of fire or burns. Battery should not be exposed to or submerged in any water, salt water, or other liquids.
• Under abusive conditions, liquid may be ejected from the battery pack. Avoid contact with liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.
• DO NOT modify or attempt to repair the appliance or the battery yourself, appliance should only be serviced by a qualified repair person using only identical replacement parts.

MAINTAINING YOUR VACUUM

WARNING: Hand wash filters only with water to prevent damage from cleaning chemicals. Allow ALL filters to air- dry completely before replacing them in the vacuum to prevent liquid from being drawn into electric parts.
CAUTION: Turn off power and remove power pack before servicing.
IMPORTANT: Clean the dust screen inside the dust cup as required.
NOTE: Empty dust cup when debris reaches the MAX fill line.

EMPTYING THE DUST CUP

To empty dust cup, first remove the hand held vacuum from the wand by pressing the Wand Release button and pulling up on the hand held vacuum. Position dust cup over a bin, then open the bottom of the dust cup by pressing the Dust Cup release button on the side.

CLEANING THE DUST CUP AND FILTERS

• To clean the dust cup, remove the dust cup from handheld vacuum and rinse with water. Flush the dirt off as needed. Once dust cup is completely dry, return it to handheld vacuum.
• To clean the filter, remove the filter from dust cup as illustration. Rinse with water. Once completely dry, reinsert the filter to dust cup.

WARNING: When cleaning brush roller, be sure to not cut anything other than hair, string, fibres, or other debris.
TIP: Ensure the floor head is completely sealed and closed before using.

MAINTAINING THE BRUSH ROLLER/ SOFT ROLLER

• Release the brush roller/soft roller by sliding the release button, remove any string, hair, or debris that may be wrapped around the brush roller/soft roller by running scissors along the guide on the roller.
• Reinsert the brush roller/soft roller to the floor head, until the release button click into place.
• Wash the Soft Roller as needed, using only water. Air-dry completely for at least 24 hours before returning it to the brush roller garage.

CHECKING FOR BLOCKAGES: Handheld, Wand, and Floor Head

• Turn off vacuum and remove the battery.
• Remove the wand from the handheld vacuum and check all intake openings.
• Remove the floor head from the wand and check the wand for blockages.

Troubleshooting

WARNING: To reduce the risk of shock and unintended operation, turn off power and remove power pack before servicing.

Disposal

• The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded.
• When removing the battery, the appliance must be powered off.
• Waste batteries should be handled properly. Do not put them into fire, water or soil.
• If the battery leakage touches the skin or clothing, flush with water immediately to avoid skin injury and seek medical help.

Pros & Cons

Pros

• Lightweight and Ergonomic Design: Easy to maneuver, reducing user fatigue.
• Strong Suction Power: Efficient at picking up dust, allergens, and pet hair.
• Long Battery Life: Provides up to 45 minutes of continuous use.
• Versatile Attachments: Suitable for different cleaning tasks.

Cons

• Charging Time: Takes 4-5 hours to fully charge.
• Noise Level: Though under 75 dB, some users may find it loud.
• Filter Maintenance: Requires regular cleaning or replacement for optimal performance.

Customer Reviews

Users love the Jashen Cordless Vacuum Cleaner AV02A01 for its ease of use, powerful suction, and long battery life, making it great for quick home cleanups. However, some users wish for a shorter charging time and note that regular filter maintenance is necessary.

Most Common Complaints

1. Longer charging time compared to other models.
2. Requires frequent filter cleaning for optimal performance
