Introduction

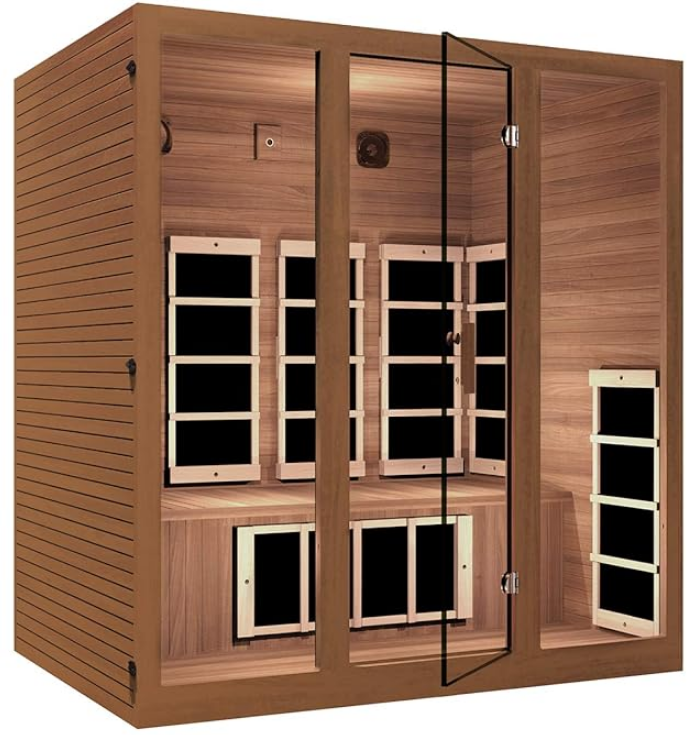

The JNH Lifestyle Infrared Sauna MG417RB is a premium two-person sauna designed to provide a rejuvenating experience with the benefits of far infrared heat. Made from high-quality Canadian Hemlock wood, this sauna features seven carbon fiber heaters that deliver consistent warmth while minimizing EMF exposure. Its user-friendly digital control panel allows for easy temperature adjustments, and the sauna includes Bluetooth speakers for added relaxation. Priced at $9,499.00, it is an investment in health and wellness for your home.

Please read these instructions before assembling your infrared sauna for the first time. We recommend keeping this instruction manual for future reference.

Overview

OVERVIEW DRAWING

PARTS LIST

REQUIRED TOOLS

Hardware Included

Detailed Specifications (Key Features)

• Dimensions: 59" x 39" x 75"
• Material: Solid Canadian Hemlock Wood
• Heaters: 7 Carbon Fiber Infrared Heaters
• Power Consumption: 120V, 1800W
• Temperature Range: 100°F - 150°F
• Timer: Up to 60 minutes
• Chromotherapy Lighting: Yes
• Auxiliary Input & USB Port: Yes
• Certifications: ETL, CE, ISO9001

Your Sauna will arrive in 3 boxes:

What is included in each box

Description

The JNH Lifestyle Infrared Sauna MG417RB boasts a sleek and modern design that complements any home decor. The solid Canadian hemlock wood construction ensures durability and a natural aesthetic appeal. The sauna is equipped with seven carbon fiber infrared heaters that provide efficient heat distribution, ensuring a consistent and comfortable experience.

The digital control panel allows users to adjust temperature settings effortlessly, and the chromotherapy lighting enhances the ambiance of the sauna session. Additional features include an auxiliary input for music and a USB port for charging devices, making each session more enjoyable.

Step-By-Step Assembly Instructions for MG417HB/MG417RB

1. Place the bottom panel on dry and level ground.

2. Attach the rear panel to the bottom panel using the tongue and groove. Confirm there are no gap prior to latching.



3. Attach the left panel to the rear and bottom panels using the tongue and groove. Confirm there is no gap prior to latching.

4. Attach the right panel to the rear and bottom panels using the tongue and groove. Confirm there is no gap prior to latching.



5. Place the power box at the designated space and tighten in place using two (2) PMW4*16 screws.

6. Attach four (4) heaters to the rear panel using TM4*40 screws. Connect heater cords to power box.



7. Attach two (2) heaters to both the left and right panels using TM4*40  screws. Connect heater cords to power box.

8. Attach a heater to the bench support panel. Fasten with  two (2) TM4*40 screws.



9. Slide the bench support panel in place and connect heater cords to power box.

10. Place bench panel in place and screw brackets to the front of the bench panel, securing the bench support panel to the bench panel.



11. Attach the front panel to the unit and secure with latches.

12. Use the screwdriver to remove the glass protectors on the glass panel.



13. Drop the top panel in place (ensure the top panel is centered correctly).



14. Please ensure the top panel is placed in the center.



    The clearance distance of L1, L2, L3 and L4 should all be the same.

15. Secure the top panel using twelve (12) KA4*40 screws.

16. Install door knob (place inside of the sauna, tighten with LONG SCREW) and door handle (place outside of sauna, tighten with SHORT SCREW).



Setup Guide

Setting up the JNH Lifestyle Infrared Sauna MG417RB is relatively straightforward. Here are the steps:

1. Unpacking: Carefully remove all components from the packaging material.
2. Assembly: Follow the provided instructions to assemble the frame and attach the heaters, control panel, and other accessories.
3. Installation: Place the sauna in a well-ventilated area, away from direct sunlight and water sources.
4. Power Connection: Connect the sauna to a standard 120V power outlet.
5. First Use: Preheat the sauna for 30 minutes before your first use to ensure all components are functioning properly.

Your sauna is ready to use. Please read the user manual for instructions on operating your sauna.

Troubleshooting

If you encounter any issues with your JNH Lifestyle Infrared Sauna MG417RB, here are some common problems and their solutions:

• No Power: Check if the power cord is properly connected to both the sauna and the wall outlet.
• Heaters Not Working: Ensure all heaters are securely connected to their respective connectors on the control panel.
• Temperature Inconsistent: Verify that no objects are blocking airflow inside the sauna.

Always refer to the user manual for detailed troubleshooting instructions and follow safety guidelines to avoid any potential hazards.

Pros & Cons

Pros

• Durable solid Canadian hemlock wood construction
• Advanced full-spectrum infrared heating system
• Spacious interior accommodating up to two people
• Easy-to-use digital control panel with timer function
• Included chromotherapy lighting for enhanced ambiance
• Auxiliary input and USB port for convenience

Cons

• Higher price point compared to some other models
• Assembly required which can be time-consuming for some users
• No built-in Bluetooth connectivity

Customer Reviews

Customers have generally been very satisfied with the JNH Lifestyle Infrared Sauna MG417RB. Many reviewers have praised its effectiveness in providing relief from muscle pain and improving overall well-being. Some common complaints include the complexity of assembly and the higher price compared to other saunas on the market.
