Introduction

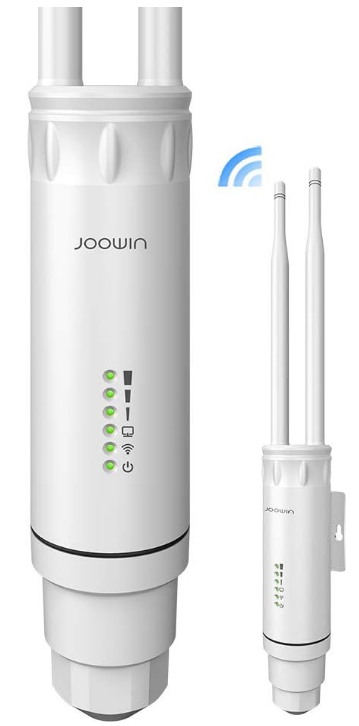

The high-performance wireless range extender Joowin JW-EW74-CAYY Power Outdoor Repeater is made to improve and expand your outdoor Wi-Fi coverage. It is perfect for use in patios, gardens, and other outside areas because of its sturdy waterproof structure. With dual-band technology support and up to 1200 Mbps of bandwidth, this repeater guarantees dependable and quick internet access. Its strong antennas offer extensive coverage, and its many operation modes (AP, Repeater, Router) and simple setup process make it an adaptable and simple-to-use option for expanding your outdoor Wi-Fi network.

Detailed Specifications

Among its many amazing features is the Joowin JW-EW74-CAYY Power Outdoor Repeater, which offers a dual-band wireless connection for quicker speeds and a weather-resistant design for use in all weather. It also features an integrated Ethernet port for connected connections and a strong external antenna for increased signal strength. With a maximum data throughput of 1200Mbps and compatibility for up to 32 devices, this repeater is ideal for usage in busy homes or workplaces. Additional important features include a small size for simple installation and a 7dBi gain for better coverage.

Description

The high-performing Joowin JW-EW74-CAYY Power Outdoor Repeater is made to expand your wireless network's coverage to challenging-to-reach places outdoors of your house or place of business. Its dual-band wireless connection guarantees faster speeds and a more consistent connection, and its weather-resistant build makes it ideal for usage in all kinds of weather. In addition, the repeater has an integrated Ethernet interface for wired connections and a strong external antenna for increased signal strength. Requiring no more than 32 devices to operate and delivering a maximum data rate of 1200Mbps, this repeater is ideal for individuals seeking to enhance their wireless network.

Installation Intsructions

1. Cable Installation Diagram



2. Device Connection Diagram



3. Set the computer to obtain the IP address automatically, and connect the LAN port of the device to the computer to enter the management page.
4. The device is defaulted to the interface Repeater mode. The steps to enter the setup page are as follows:
   1. Under default configuration, power on the device and wait for the device to start for 90 seconds.
   2. Connect device wireless SSID (default is JOOWIN_EW74).

   3. Open the computer browser, and input 192.168.10.1 to get into the device login page (Default password: admin).
      The device language is compatible with Chinese and English to choose, and you can set up the language by the top right corner icon.



5. When getting into the setting page, there are four working modes in the Wizard: AP Mode, Bridge Mode, Router Mode, Repeater Mode.



6. Click AP mode and set up IP Address and Subnet Mask. The IP address and Subnet mask should be within the same network segment as the upper network and can’t be in conflict with the IP address from the upper network router. After settings, you can visit the device from the IP address you have set just now by connecting to the internet with the WAN port of the device or POE adapter LAN port.
   Note: In AP mode, the IP address from the other devices connected to the AP will be allocated by the upper network router. The AP needs to set an intranet IP address (do not set the same IP address as the upper router).
   If you want to manage the device, manually set the IP address of the same network segment of the intranet IP.



7. AP Mode: You can set up 2.4G/5.8G wireless SSID, password, channel, and country in advance. After setting up, the device’s WAN port or POE adapter LAN port connected to the internet, other mobile devices can connect to the SSID to surf the internet.
   (Note: The SSID in WIFI Unification supports 2.4G and 5.8G simultaneous connection).



8. Bridge Mode: The AP device can set the intranet IP, select the wireless SSID signal that you need to bridge (distinguish between 5.8GHz and 2.4GHz), and enter the password.
   Note: In Bridge mode, the access to the external network, the network segment of the IP address obtained by other mobile devices accessing the AP is assigned by the superior. According to the default setting, you can also set the device-specific intranet IP address. If you need to manage the device, you must manually set the IP address of the computer's locally connected network card.

   1. LAN network IP setting (This IP address can be the management IP).



   2. Click scan, search and select the wireless SSID that you want to bridge, and enter the wireless password.



   3. Set the SSID and password of the 2.4G/5.8G of the AP (Wifi Unification mode: 2.4G and 5.8G use the same SSID and password).



      Note: Turn off WiFi Unification. You can set the SSID and password of 2G/5G separately.

9. Router Mode: There are three ways to surf the internet: PPPOE, Static, and DHCP. (Please refer to router setting as reference).
   Note: In Router mode, if you need to manage the device, you need to connect to WIFI to enter the management page.



10. Repeater Mode: You can set the LAN network IP of the AP. Then, select the wireless SSID that you need to repeat (distinguish between 5.8GHz and 2.4GHz), and enter the password of the wireless network.
    Note: In repeater mode, the IP address of other mobile devices accessing the AP is assigned by the device.

    1. LAN network IP setting.



    2. Search for the wireless SSID you want to repeat, then enter the wireless password.



    3. Set the SSID and password of the 2.4G/5.8G of the AP (Wifi Unification mode: 2.4G and 5.8G use the same SSID and password).
       Note: Turn off WiFi Unification. You can set the SSID and password of 2G/5G separately.



       Only by an authorized repair service, complete maintenance records, and seal, or maintenance records is invalid.

Setup Guide

Setting up the Joowin ‎JW-EW74-CAYY Power Outdoor Repeater is quick and easy. Simply follow these steps:

1. Plug in the repeater and wait for the power LED to turn solid green.
2. Press and hold the WPS button on the repeater for 5 seconds, then press the WPS button on your router within 2 minutes.
3. Wait for the WPS LED on the repeater to turn solid green, indicating a successful connection.
4. Move the repeater to your desired location and adjust the antenna for optimal signal strength.
5. Connect your devices to the repeater's wireless network and enjoy improved coverage and faster speeds.

Troubleshooting

If you encounter any issues with the Joowin Power Outdoor Repeater, try the following solutions:

• Make sure the repeater is within range of your router.
• Ensure that both the repeater and router are using the same wireless network name (SSID) and password.
• Check that the repeater is receiving sufficient power and that all cables are securely connected.
• If the repeater is still not functioning properly, try resetting it to its factory settings and setting it up again.
