Introduction

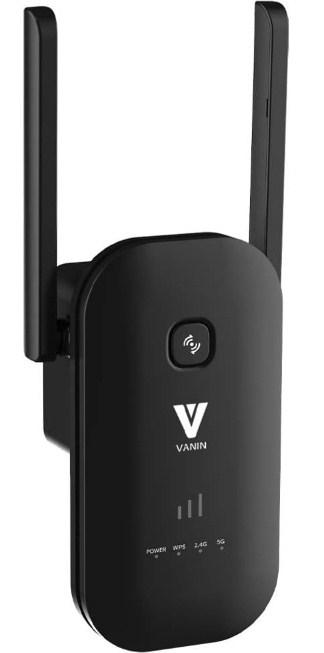

Vanin Juplink Wi-Fi Extender EC4-1200 is a powerful device created to expand the range of your current Wi-Fi network. By providing dual-band Wi-Fi that can reach speeds of up to 1200Mbps, this gadget improves connectivity for a range of devices such as smartphones, tablets, and laptops. The EC4-1200 is furnished with external antennas to enhance signal strength and coverage, and it facilitates effortless setup using a WPS button for prompt and secure connections. The Juplink Vanin Wi-Fi Extender EC4-1200 is designed to effectively eliminate dead zones and enhance the Wi-Fi signal in larger homes or businesses. It guarantees a consistent and high-speed wireless connection throughout the entire space.

Detailed Specifications

The Vanin Juplink Wi-Fi Extender EC4-1200 comes with the following key features:

• Dual-band Wi-Fi with speeds of up to 1200 Mbps (300 Mbps on 2.4 GHz band and 867 Mbps on 5 GHz band)
• 4 external antennas for better coverage and stability
• Wireless encryption with WPA/WPA2 security protocols
• Multiple operating modes (router, repeater, access point)
• AP isolation and WPS button for easy setup
• Compatible with 802.11b/g/n/ac standards
• Ethernet port for wired connections
• Dimensions: 6.3 x 3.1 x 1.9 inches
• Weight: 0.45 pounds

LED Status Indicators

Description

The Vanin Juplink Wi-Fi Extender EC4-1200 is designed to provide a seamless and stable Wi-Fi connection throughout your home or office. Its dual-band technology ensures fast and reliable internet access, while its 4 external antennas provide better coverage and stability. The device supports multiple operating modes (router, repeater, access point) and wireless encryption with WPA/WPA2 security protocols. With its WPS button and easy-to-use interface, the Juplink Vanin Wi-Fi Extender EC4-1200 is a convenient and affordable solution for extending your Wi-Fi network.

Before Setting

To customize your wireless network connection and other advanced repeater settings, please go to https://www.juplink.com/ to download EC4-1200 updated Firmware and User Guide for more information.
Operating Conditions

• Working Temperature: 0~45°C / 32~113°F   Working Humidity: 10%~90%  RH (No condensation)
• Storage Temperature:-40~85°C / -40~185°F   Storage Humidity: 5%~95%  RH (No condensation)

Method 1 : Extending Your Wi-Fi Network Using Web UI

1. Power on the Repeater

   1. Plug the repeater into a power outlet near the router




      Note : When the distance between the router and the expander is less than 1 ft , pairing is easier to succeed

   2. Wait until the 2.4G / 5G Singal LED turns solid green
2. Extend Your Wi-Fi Network

   1. Connect your Wi-Fi device to the repeater’s Wi-Fi network
      Juplink-EC4-1200_5G or Juplink-EC4-1200.



      Ensure that Mobile Data ( if any ) is disabled.

   2. Lauch a web browser on the device which has been connected to the repeater,Enter 192.168.0.2 or router.juplink.com in the address bar to log in.



   3. Username:admin / Passwrod:admin



   4. Modify your SSID and Password



      Note：Default SSID and password are automatically copied from that of the router for both 2.4 GHz and 5 GHz networks. If you wish to modify
      these settings, Click the check mark and then enter the SSID and password that you wish to apply to the extended Wi-Fi network(s).

   5. Select a Wi-Fi network (SSID) you want to extend





3. Extend Your Wi-Fi Network

   1. Enter the password of the Wi-Fi network you want to extend.



   2. Scroll to the bottom of the page and select “Save&Apply”.



      Wait a moment, the Change setting successfully! page appears

4. Relocate the Repeater
   1. For better performance, plug the repeater into an outlet halfway between the router and the Wi-Fi dead zone. The location you choose must be within the range of your existing Wi-Fi network

   2. Wait until the 2.4G / 5G Singal LED turns solid green. or the Wi-Fi Signal Strength Indicator shows at least Two LEDs on



Method 2 : Extending Your Wi-Fi Network Using WPS

You can use Method 2 if your router has a WPS button. otherwise, use Method 1

1. Power on the Repeater
   1. Plug the repeater into a power outlet near the router
      Note : When the distance between the router and the expander is less than 1 ft , pairing is easier to succeed

   2. Wait until the 2.4G / 5G Singal LED turns solid green



2. Extend Your Wi-Fi Network
   1. Press the WPS button on the router and within 2minutes press the WPS button on the repeater

   2. Wait until the 2.4G / 5G Singal LED turns solid green



3. Relocate the Repeater
   1. For better performance, plug the repeater into an outlet halfway between the router and the Wi-Fi dead zone. The location you choose must be within the range of your existing Wi-Fi network

   2. Wait until the 2.4G / 5G Singal LED turns solid green. or the Wi-Fi Signal Strength Indicator shows at least Two LEDs on



Setup Guide

To set up the Vanin Juplink Wi-Fi Extender EC4-1200, follow these steps:

1. Plug in the device to a power outlet within range of your Wi-Fi network.
2. Press the WPS button on your router and the WPS button on the extender within 2 minutes of each other.
3. The LED light on the extender will turn solid when the connection is successful.
4. If your router does not support WPS, use a web browser to connect to the extender's network and follow the on-screen instructions.

Troubleshooting

How to reset the repeater?

When the POWER LED of the repeater is solid on, press the RESET button on the repeater and hold for 8 seconds and then release. After the POWER LED turns solid on, the repeater is restored to the factory settings.

Why does it fail to work to press the RESET button?

Please ensure pressing the RESET button for 8 seconds after the device is powered on.

Why does the repeater fail to find the Wi-Fi network of my router/modem?

The router may be encrypted with WEP or WPA/WPA (Enterprise). Change the encryption type of the router to WPA-PSK, and try scanning again.

Why does it fail to log in to the Web page of the repeater?

Please check if the situation is before or after network extension.

Before extension

• Please confirm you are connected to the correct SSID (wireless network) of the repeater (see the name of its wireless network on the product label).
• Check if the IP address that entered in the address bar is correct (192.168.0.2).
• If you are unable to log in, please close the browser (not just return) and open a new page to try again. If it still failed, please clear all the browser cache or reboot your mobile device.
• If none of the above solutions work, it is recommended to restore factory settings or recharge the plug in the socket, then try connecting and logging in again.

After extension

Method 1

• Make sure that you are connected to the correct SSID (wireless network) of the repeater. If the SSID of the repeater is the same as the uplink wireless network (SSID of the router), please check if you are connected to the wireless network of the repeater.
• Then log in to this IP address: 192.168.0.2
• If it failed, please cut off the power supply and re-connect the power supply. Then try logging in to the above IP address after the repeater extends automatically.
• If it still does not work, please replace with another laptop or mobile phone to log in.

Method 2

• Make sure you are connected wirelessly (either to the router or to the repeater), and then log in to the Web page of the router;
• Open the Client List to view connected devices. After finding the MAC address (see product label) of the repeater, you can get the IP address of the repeater assigned by the router.
• Open a browser, enter the IP address in the address bar, and then you can access the Web page of the repeater.

Method 3: (recommended)

• Download device firmware file v1.0.2 from juplink.com and conduct firmware upgrade.
• After reset, try logging in to the domain name: router.juplink.com

Why can I find someone else's Wi-Fi network, but not mine?

Please check if your mobile device can be connected wirelessly to the repeater in the same place, as the signal in this place may be poor. Check if the encryption mode of the uplink router is WEP. Only no encryption, WPA, WPA2 and mixed mode are supported by this repeater. Check on your mobile device to see if the uplink wireless network is hidden.

Why does it always prompt for failure during extension?

• Check if the wireless signal (?) indicator is green or off. Off indicates extension failure.
• If you can't find the uplink wireless network during extension, please try the following:
  1. Set the SSID of the router and that of the repeater to combinations of numerals and letters.
  2. Move the repeater closer to the router (within 1ft is recommended).
  3. Ensure that the encryption mode of the uplink wireless network is not WEP. Only no encryption, WPA-PSK, WPA2-PSK, or mixed mode of the above is supported by the repeater.
  4. Ensure that the uplink wireless network is not turned off or hidden.
  5. Log in to the Web page of the router to check if any restriction is made, such as MAC filter, blacklist, etc.
  6. Ensure that the correct password of the uplink router is entered during extension.
  7. Modify the wireless network name and password of the uplink router, and reset the repeater.

How do I know if the extension is successful?

1. Check if there is the default SSID. If yes, the extension fails.
2. Check the status of the wireless signal indicator. On or flashing indicates successful extension, while off indicates extension failure.
3. Log in to the Web page of the repeater to see if it is in the extended state.

• If you are sure that the extension is successful, keep the antennas upwards and in parallel with the antennas of the router. If not, please adjust their angle.
• Try putting the repeater and router closer, and check if the indicator becomes solid green.

Why is there no Internet access after extension?

• Check if the extension is successful (by observing the indicator and Web page).
• Disconnect the device that is without Internet access, and connect again to see if it becomes available.
• Log in to the Web page of the repeater and check if the network signal of the uplink router is too weak. It is recommended to put the repeater in a place where the signal strength is at least between 40%-50%.
• When you are connected to the wireless network of the repeater, check if its SSID is assigned by the router.
• Reset the repeater and try connecting another wireless network.

Why is the extended signal poor?

• After extension, do not put the repeater too close to the router.
• Put the repeater in the middle of the router and the farthest place where you want to be connected.
• If you want to extend the wireless network horizontally, ensure that the repeater antennas are positioned upwards, and in parallel to those of the router.
• If it is for a duplex house, both the antennas of the repeater and router should be tilted and remain in parallel. The best performance distance is 5 ~ 30 ft.

Why is the wireless connection to the repeater network interrupted some time after the extension is successful?

• Check the Web page for any restriction or blacklist setting.
• Clear cache of the extended network and then reconnect.
• Reset the repeater and set up again.
• After the first successful setup, the device restarts to accommodate the channel of the extended network. Wait for about 1 minute before reconnecting.

Why does a mobile device lose connection to the repeater after extension?

• If the signal indicator becomes off, the repeater is disconnected from the router.
• Please check if any changes have been made on the repeater or the mobile device.
• Access the Web page of the router to view the operation log, and check the status of the uplink router.
• If the router is normal, adjust the location and direction of the repeater.

Why is the network not available after extension?

1. Check the location of the repeater. Do not put it at a corner.
2. If the location is normal, please reset the repeater, and try connecting the repeater to the router again.
3. Reset the repeater.

Why does the wireless network show strong signal strength but low speed after extension?

• Check the signal strength indicator on the physical housing of the repeater.
  1. One LED on: weak receiving signal, strength below 25%. (In this case, it is recommended to put the repeater closer to the router, and keep their antennas in parallel.)
  2. Two LEDs on: Good receiving signal, strength between 50~75%.
  3. Three LEDs on: Excellent receiving signal.
• In general, the repeater works in its best performance when the strength of the signal that the repeater receives is between 50% and 75% (when the Web page shows the signal of 3 bars).
• Check the network speed when your mobile device connects to the router directly at that position. If the wireless network speed of the router is similar to that of the repeater, the connection is normal.
• When the wireless network speed of the router is faster than that of the repeater, please check the following:
  1. Check the location of the repeater. Do not put it at a corner.
  2. Check if the antennas of the repeater and router are in parallel. Antennas aligned in parallel ensures better connection.
  3. If it still does not work, reset the repeater, and try connecting the repeater to the router again.
  4. Reset the repeater.

Why does a single frequency extend state after successful extension?

The signal may be hidden. Please check if the encryption mode is WPA, WPA2, or mixed of the above; if the encryption key contains special characters; if the signal channel is changed. Then, try extending the wireless network again.

Why can't I extend Comcast or Verizon router signal?

The encryption method used by the Comcast or Verizon router may not be recognized by EC4-1200 Wi-Fi Extender. Try the following solutions to solve the problem:

1. Log in to the Comcast or Verizon router and enter the wireless settings page.
2. Change the wireless encryption method to WPA/WPA2 or WPA-PSK/WPA2-PSK.
3. Confirm the settings and then use EC4-1200 Wi-Fi Extender to search the router signal.

Vanin Juplink Wi-Fi Extender EC4-1200 Pros & Cons

Pros

• Dual-band technology for fast and reliable Wi-Fi connection
• 4 external antennas for better coverage and stability
• Multiple operating modes and wireless encryption for added security
• Easy setup with WPS button
• Affordable price

Cons

• May not work with all routers
• Limited range compared to some other Wi-Fi extenders

Customer Reviews

Customers have praised the Vanin Juplink Wi-Fi Extender EC4-1200 for its easy setup, fast Wi-Fi speed, and affordable price. However, some have reported issues with connectivity and range. The device has an average rating of 4.2 out of 5 stars on online marketplaces.
