Introduction of Kalamera Compressor Wine Cooler KRC-85SZF

Introducing the Kalamera Compressor Wine Cooler a must-have for wine enthusiasts who want to store and showcase their wine collection in style. This compressor wine cooler has a sleek design and advanced features that make it a perfect addition to any modern kitchen, dining room or entertainment area. With a spacious 85-bottle capacity, this wine cooler ensures that you have enough room to store both your reds and whites at their optimal temperatures. The Kalamera Compressor Wine Cooler KRC-85SZF is available for an estimated price of $1,299, making it a worthwhile investment for any serious wine collector.

Technical Data

Wine Cooler Specifications

Features of Your Wine Cooler

KRC-85SZF

1. Right Upper Hinge
2. Light Switch
3. Temperature Setting
4. Temperature Display
5. Temperature Setting
6. Temperature Switch
7. Light
8. Carbon Filter
9. Temperature Sensor
10. Fan
11. Exhaust Window
12. Shelf
13. Foot
14. Lower Hinge
15. Glass
16. Door Seal
17. Handle

KRC-73DZF

1. Upper Hinge
2. Upper Zone Light
3. Upper Zone Temperature Sensor
4. Upper Zone Carbon Filter
5. Upper Zone Fan
6. Light Switch
7. Upper Zone Exhaust Window
8. Lower Zone Temperature Display
9. Temperature Switch
10. Upper Zone Temperature Display
11. Lower Zone Carton Filter
12. Lower Zone Light
13. Lower Zone Fan
14. Lower Zone Temperature Sensor
15. Lower Zone Exhaust Window
16. Shelf
17. Foot
18. Lower Hinge
19. Glass
20. Door Seal
21. Handle

KRC-52SZF

1. Right Upper Hinge
2. Light Switch
3. Temperature Setting
4. Temperature Display
5. Temperature Setting
6. Temperature Switch
7. Fan
8. Light
9. Temperature Sensor
10. Exhaust Window
11. Shelf
12. Carbon Filter
13. Foot
14. Lower Hinge
15. Glass
16. Door Seal
17. Handle

Electrical Circuit Diagram

KRC-85SZF & KRC-52SZF

KRC-73DZF

Description

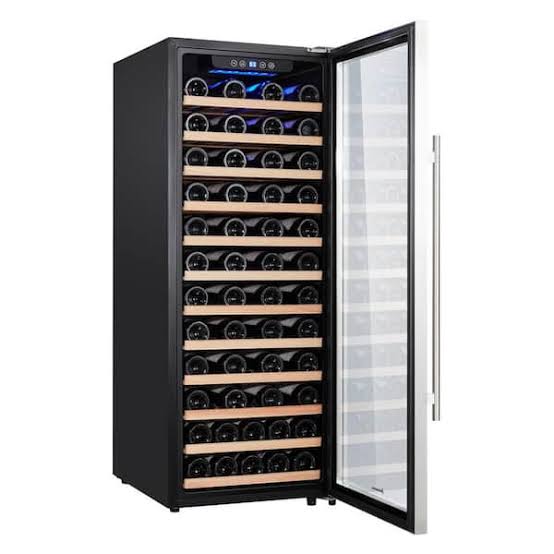

The Kalamera Compressor Wine Cooler KRC-85SZF is a dual-zone wine cooler, which means that it can store red and white wines at their optimal temperatures. It has a capacity of 85 bottles, and the racks are designed to hold standard-sized wine bottles. The cooler is made with high-quality materials, including a stainless steel frame and tempered glass door. It also features a digital control panel that allows you to adjust the temperature and set the mode easily. The cooler operates quietly, with a low noise level of 42dB, making it perfect for any room in your home.

Setup of Compressor Wine Cooler

Setting up the Compressor Wine Cooler KRC-85SZF is easy. First, find a level surface to place the cooler on. Then, plug it in and let it run for 24 hours before adjusting the temperature. This will allow the cooler to reach its optimal cooling temperature. To adjust the temperature, use the digital control panel on the top of the cooler. The left zone can be adjusted from 40°F to 50°F, while the right zone can be adjusted from 50°F to 66°F. The cooler also features a built-in LED light that can be turned on and off using the control panel.

Installation Instructions

• Remove the exterior and interior packing
• Clean the interior surface with lukewarm water using a soft cloth.
• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.
• To level your appliance, adjust the front legs at the bottom of the appliance.
• Before connecting the appliance to the power outlet, let it stand upright for at least 24 hours. This will reduce the possibility of malfunction in the cooling system from handling during transportation.
• Choose a cool, shady location, out of direct sunlight, to prevent ambient temperature fluctuations of your wine cooler.
• After 24 hours, plug in wine cooler, and allow interior to adjust to optimal temperature before adding any bottles.
• After 24 additional hours, fill with wine bottles. Allow wine cooler to adjust to reach your set temperature.
• To remove a wine bottle, gently pull shelf out a little, lift upper shelf slightly, and carefully remove bottles.
• To install the door handl
  For shipment, the door handle has been stored inside of the unit binding to the wood shelves. To install the handle, the door gasket should be gently pulled back where it covers the screw holes for the handle, then the handle should be attached by screwing into place with the two screws which are packed in the box with this Instruction Manual and other spare parts.

Spare parts details

Operating Your Wine Cooler

The Control Panel: KRC-85SZF & KRC-52SZF
How to use the press-buttons on the Display Panel

• To control the temperature, press “UP” or “DOWN” button. Each press would adjust the temperature by 1°C between 5~18°C or 1°F between 40~66°F.
• To turn on or off the internal LED lighting, press “LIGHT” button on the right side.
• To switch the temperature display from Celsius Degree to be Fahrenheit Degree or vice versa, press “°C/°F” button.
• To control the upper zone temperature, press “UP” or “DOWN” button on the left side. Each press would adjust the temperature by 1°C between 5~10°C or 1°F between 40~50°F.
• To control the lower zone temperature, press “UP” or “DOWN” button on the right side. Each press would adjust the temperature by 1°C between 10~18°C or 1°F between 50~66°F.
• To turn on or off the internal LED lighting, press “LIGHT” button on the right side.
• To switch the temperature display from Celsius Degree to be Fahrenheit Degree or vice versa, press “°C/°F” button.

Safety Precautions

• PLEASE READ all instructions before installing, operating, or servicing the appliance.
• Danger and Warning: Failure to follow this safety statement will result in severe personal injury or death, property or equipment damage.
• RISK OF CHILD ENTRAPMENT. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so children may not easily climb inside. Keep children away from the wine cooler, avoid them put fingers in air outlet on the kick plate.
• SHOCK HAZARD - Electrical Grounding required.
• Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected.
• Never remove the round grounding prong from the plug and never use a two-prong grounding adaptor.
• Altering, cutting of power cord, removal of power cord, removal of power plug, or direct wiring can cause serious injury, fire or loss of property and life, and will void the warranty.
• Never use an extension cord to connect power to the unit.
• Always keep the working area dry.

Important Precautions

• Do not lift unit by door handle.
• Do keep the door closed before installing into cabinet.
• Be sure the kick-plate on the front bottom is free from obstruction. Obstructing free airflow can cause the unit to malfunction and will void the warranty.
• Allow unit temperature to stabilize for 24 hours before use.
• Do not block any internal fans.
• Use only genuine supplier's replacement parts. Imitation parts can damage the unit, affect its operation or performance and may void the warranty.

Care And Maintenance

Cleaning your wine cooler

• Unplug the wine cooler and remove the bottles.
• Wash the inside with warm water or baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• The outside of wine cooler should be cleaned with mild detergent or warm water.
• Draw out the water box at the bottom, and wash it.

Moving your wine cooler

• Remove all the bottles.
• Securely tape down all loose items inside your wine cooler.
• Turn the leveling legs up to the base to avoid damage.
• Tape the door.
• Be sure the wine cooler stays in the upright position during transportation.

Trouble Shootings

You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestion below to see if you can solve the problem before calling the service center.

Warranty

The manufacturerThe temperature warrants to the original purchaser of this product that the product will be free from manufacturing defects in workmanship and material for a period of 1 year from the date of original purchase when this major appliance is operated and maintained according to instructions attached to or furnished with the product.

Pros & Cons of Kalamera KRC-85SZF

Pros

• Spacious 85-bottle capacity
• Dual-zone temperature control
• Quiet operation
• High-quality materials and construction
• Digital control panel

Cons

• Expensive
• May be too large for some kitchens or entertainment areas

Customer Reviews of Kalamera Compressor Wine Cooler

Customers who have purchased the Kalamera Compressor Wine Cooler have raved about its spacious capacity and dual-zone temperature control. One customer said, "I love that I can store my reds and whites at their optimal temperatures." Another customer said, "This wine cooler is a game-changer. It's easy to use, looks great, and keeps my wine at the perfect temperature." However, some customers have noted that the cooler is expensive and may be too large for some kitchens or entertainment areas.
