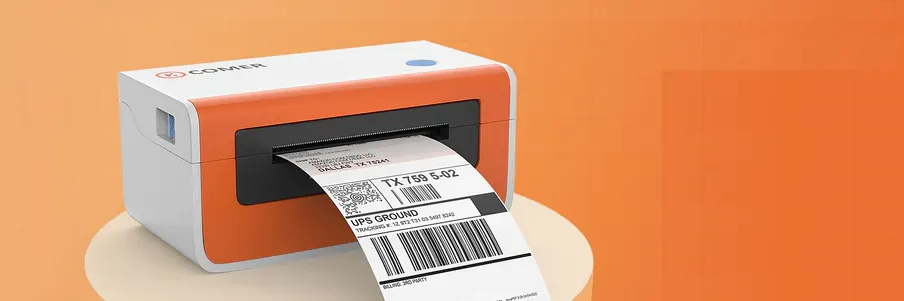

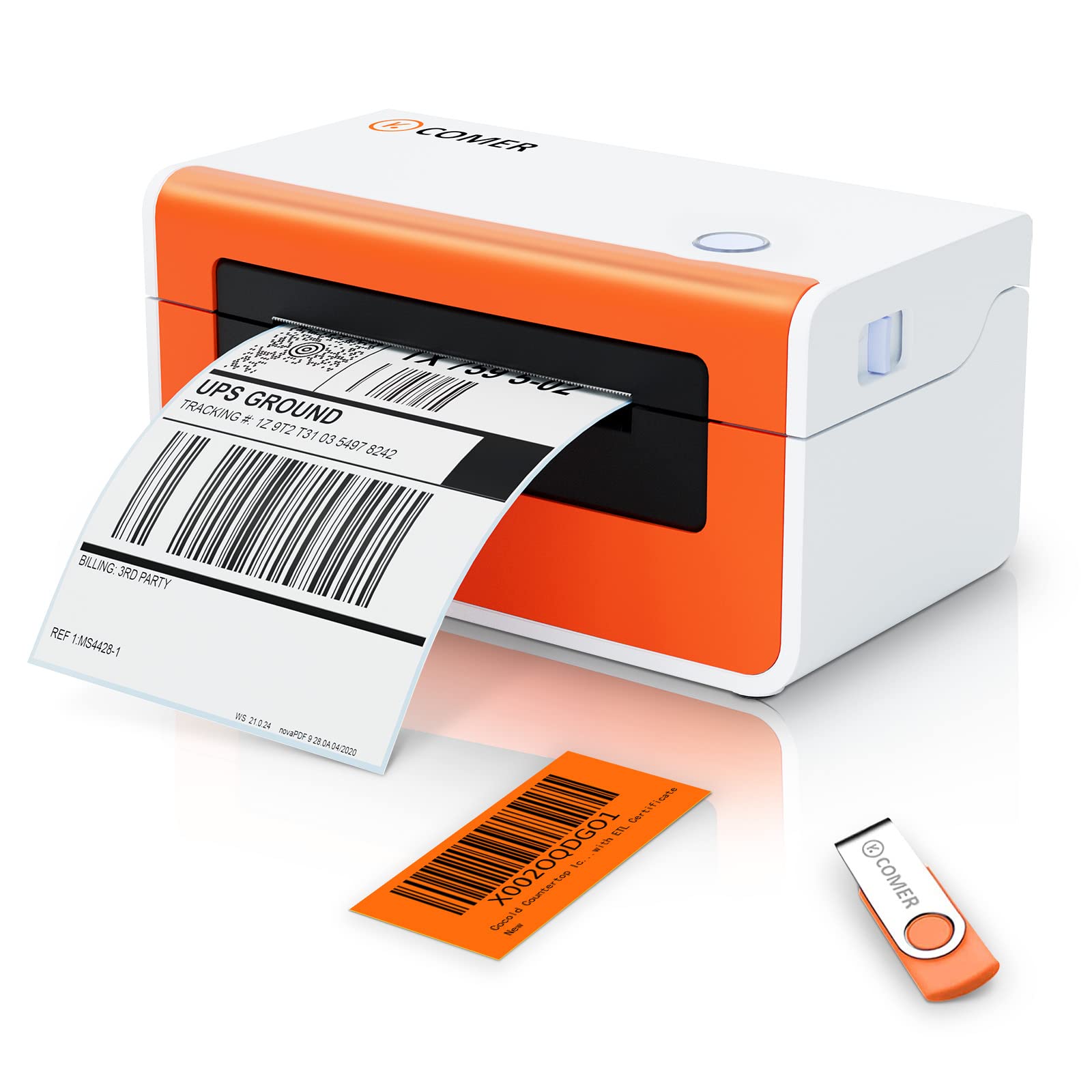

Kuaimai CX418 Comer Label Printer

A high-performance direct thermal printer, the Kuaimai CX418 Comer Label Printer is built for efficient and high-quality label printing. The printer's maximum printing speed of 150 mm/s and resolution of 203 dpi make it ideal for a wide range of labeling tasks. It can handle a printing width ranging from 50 to 108 mm and is USB compatible. Whether you're a student or a working professional, the CX418 will guarantee accurate and dependable label printing.

Detailed Specifications

The kuaimai Comer Label Printer CX418 boasts several key features that make it stand out from the competition. These include:

• A high-resolution print engine capable of producing labels with a resolution of up to 300dpi.
• Compatibility with a wide range of label materials, including paper, polyester, and vinyl.
• A compact and portable design, making it easy to move from one location to another.
• A user-friendly interface that makes it easy to create and print labels.
• Connectivity options include USB, Ethernet, and Wi-Fi.

Package Contents & Standard Accessories

• 1x Printer
• 1x Power Adapter
• 1x Power Cord
• 1x USB B-Type Cable
• 1x User Manual

• 1x CD/USB Disk (contains driver and software)



Appearance and Components

Description

The kuaimai Comer Label Printer CX418 is a versatile and reliable label printer that is perfect for small to medium-sized businesses. With its high-resolution print engine, this printer can produce labels with crisp, clear text and graphics. Additionally, its compatibility with a wide range of label materials makes it a great choice for a variety of applications. The user-friendly interface and connectivity options make it easy to create and print labels from any computer or mobile device.

Quick Printer Installation

Cable Connection

1. Confirm the printer is Power-off (0).
2. Connect the power line to the printer.

3. Connect the other end of the power line to the socket.



USB Connection

1. Confirm the printer is Power-off (0).
2. Connect the USB B-Type line to the printer.
3. Connect the other end of the USB B-Type line to the PC mainframe.

4. Turn on the printer power to be Power-on (I).



Consumables Installation

1. Face the back of the printer, hold down the paper guide with both hands to adjust the guide space according to the paper size.
2. Insert the thermal paper into the paper guide.

3. Feed the thermal label into the paper channel slowly, and the paper will be automatically absorbed by the detector.



Outside-Scroll Installation

1. Make sure the thermal label paper is in place; the machine can automatically absorb the paper into a small part.

2. The hook of the external paper roll holder needs to be aligned with the hook at the bottom of the printer.



Paper Jam

1. Facing the front of the printer, move the opening button forward with both hands at the same time to open the top cover.
2. Lift the top cover upwards.
3. After pulling the jammed paper out of the paper path, replace it with new paper and discard the wrinkled paper.

4. After the jammed paper is pulled out, normal media installation can be performed.



Driver Installation & Print Test

Please download the driver from our website: http://printer.kuaimai.com.

Windows

1. Ensure the printer is ON, download the Windows driver and run the downloaded software, prompt to complete.

   • Use an unzip tool to unzip the driver (as the pic shows).



2. Find the driver and prompt to install.



3. Install successfully.



4. Connect the computer to the printer and place the direct thermal label, start to print a test page.



5. Test the printer, click on the 【Device and Printer】 in the computer (just as the pic shows) to find the installed printer.



6. Check the test page, you can reset the label size and print density if not satisfied.



MAC

1. Ensure the printer is ON, download the Mac driver and run the downloaded software, prompt to complete installation. Please download the driver in the USB disk or from the website. The video takes the website for example.



2. Find CX418 Printer and click it.



3. Download the Zip/Rar format, you need to download the unzip tool to restore.



4. Ensure the printer is ON, run the downloaded software, prompt to complete installation.



5. Confirm the CX418 printer is already installed.



How to Find the Installed Printer in Your Mac?

1. Find the installed printer driver in the launchpad of your Mac.



2. Click the system preference.



3. Select 【Printer and Scanners】, Add the printer driver.



4. If the page displays your printer information, the installation succeeds.





Please feel free to contact us if you have any problems.

Setup Guide

Setting up the kuaimai Comer Label Printer CX418 is a straightforward process. Here's how to do it:

1. Unpack the printer and remove any packaging materials.
2. Plug in the power cord and turn on the printer.
3. Connect the printer to your computer or mobile device using USB, Ethernet, or Wi-Fi.
4. Install the printer driver and label design software (included with the printer).
5. Create your label design using the label design software and print it out.

Button ‘FEED’ Instruction

Indicator Light Instruction

Printer Uses Tips

1. To ensure optimal print quality, use the original factory power adapter.
2. Avoid poor quality paper which wears the printer greatly, causing damage to the heat of the printer.
3. Regularly or when print quality is unclear, please clean the print head to ensure high-quality print results.
4. When replacing the paper specification (including the thickness of the paper, quality), it is suggested to do “Automatic identification label”.
5. If the poor quality of the paper and ensure the heating has been cleaned, if the print effect still does not meet the requirement, adjust to a higher concentration of printing, in the range of 0 to 15 levels.
6. The product has a paper absorption function, please load the paper in the rear suction mode. Opening the cover will cause the waste of paper.

Printer Data Sheet

• Brand: Comer
• Method: Direct Thermal
• Resolution: 203 dpi
• Max Printing Speed: 150 mm/s
• Connection: USB
• Printing Width: 50 - 108 mm
• Paper Width: 50 - 118 mm
• Power Adapter: 1.5A

The Comer thermal printer is covered by a one-year warranty. In the unlikely event that you experience any issues with your printer, please contact Comer customer service to promptly receive troubleshooting tips or a replacement. For any questions and/or suggestions, please email [email protected]. Any further information, please visit http://dyj.kuaimai.com/.

Wram Tips
Our new item CX418 with fashional shape and best quality , can works with any thermal direct label including express waybill , logistics labels, commodity price tags, and various sizes of barcode labels and so on. Help save time and money on label costs.For the convenience of using the comer printer, please read the following user guide carefully. if operate with a incorrect way may result in damage to your printer or injury. 01

Troubleshooting

Common problems with the kuaimai Comer Label Printer CX418 include:

• The printer is not responding: Check to make sure the printer is turned on and properly connected to your computer or mobile device.
• Labels are not printing correctly: Check the label roll and make sure it is loaded properly. Also, check the printer settings to make sure they are set correctly for the label material you are using.
• The printer is making strange noises: This may indicate a problem with the print head or a jam in the printer. Turn off the printer and check for any issues.

Kuaimai CX418 Comer Label Printer Pros & Cons

Pros

• High-resolution print engine
• Compatibility with a wide range of label materials
• User-friendly interface
• Connectivity options

Cons

• Higher price point
• May be overkill for small businesses with low labeling needs
