Setup: Leggett and Platt Simplicity 3.0 and S-cape 2.0 Adjustable Bed Bases User Manual

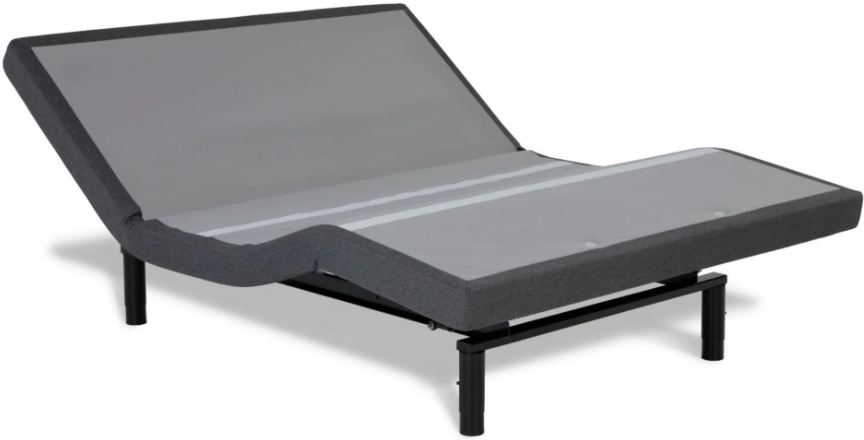

Leggett and Platt Simplicity 3.0 and S-Cape 2.0 Adjustable Bed Bases

Introduction

Experience the ultimate in comfort and relaxation with the Leggett and Platt Simplicity 3.0 and S-Cape 2.0 Adjustable Bed Bases. These innovative sleep solutions are designed to elevate your bedtime experience, providing a range of features from head and foot articulation to dual massage systems. Both models cater to a wide audience, from those seeking a comfortable reading position to individuals requiring relief from snoring or back pain. The estimated price range for these adjustable bed bases is typically between $1,000 and $2,500, depending on size and features.

Specifications

Here are the key specifications and features for both models:

• Weight Capacity: Both models have a maximum weight capacity of 850 lbs.
• Control Options: - Simplicity 3.0: Wireless, stand-up remote control. - S-Cape 2.0: Wireless, Bluetooth, 17-button remote.
• Massage Features: Dual, full-body massage with wave technology.
• Lighting: Under-bed lighting for ambiance and functionality.
• Wallhugger Technology: Only available on the S-Cape 2.0, keeping you closer to your nightstand.

INSTALLATION

For installation and setup, complete the numbered procedure indicated below and on the following pages:

STEP 1
Before discarding any packing materials, check the base shipping carton and verify the following items are included:

• (1) Mattress Retainer
• (4) Bed Legs
• (1) Remote Control
• (3) AAA Batteries
• (1) 4-Port Charging Hub (S-cape®+ 2.0 only)
• (1) Power Down Device (batteries not included)
• (1) Owners Manual
• (1) Warranty Activation Card
• (1) Quick Setup Guide

STEP 2
Uncoil the main power cord and extend it out head end of the base, then remove the hardware box from the shipping container. Cut the zip-tie and remove the mattress retainer.

STEP 3
Install (4) legs into the base frame. Simply screw each leg into a tapped hole at each corner of the base frame (FIGURE 1).

STEP 4
With the base still in the shipping carton, rotate the entire bottom carton on its edge and then gently rotate it over so the base is resting on its legs.

STEP 5
Remove the shipping carton and plastic packaging from the adjustable base frame. Remove protective film from Micro-Hook™ strips, if applicable. Note: S-cape®+ 2.0 base includes a 4-port charging hub at the head end of the base (FIGURE 2).

STEP 6
Plug the electrical power cord into a working, grounded electrical outlet. Note: an electrical surge protection device is recommended (not included).

STEP 7
Install batteries in the remote control (3-AAA size, included) (FIGURE 3). Briefly activate all functions of the base with the remote control to verify all features are in working order. If the base does not operate, refer to the Troubleshooting section of this manual.

STEP 8
Return the base to the level position.

MATTRESS RETAINER INSTALLATION (OPTIONAL) Mattress is equipped with a Micro-Hook™ system to captivate the mattress (FIGURE 4), but if desired, a mattress retainer can also be used. If installing a mattress retainer, proceed to Step 9. If not installing a mattress retainer, proceed to Step 10.

STEP 9
Install mattress retainers at the foot end of the adjustable base as follows:

• Locate grommeted holes at the foot of the base (FIGURE 5).
• Place mattress retainer ends into grommeted holes in the top surface of the adjustable base (FIGURE 5). Press down until the horizontal retainer section is flush against the base.

STEP 10
Install the mattress on the adjustable base.
Typical adjustable base installation is now complete.

REMOTE CONTROL FUNCTION

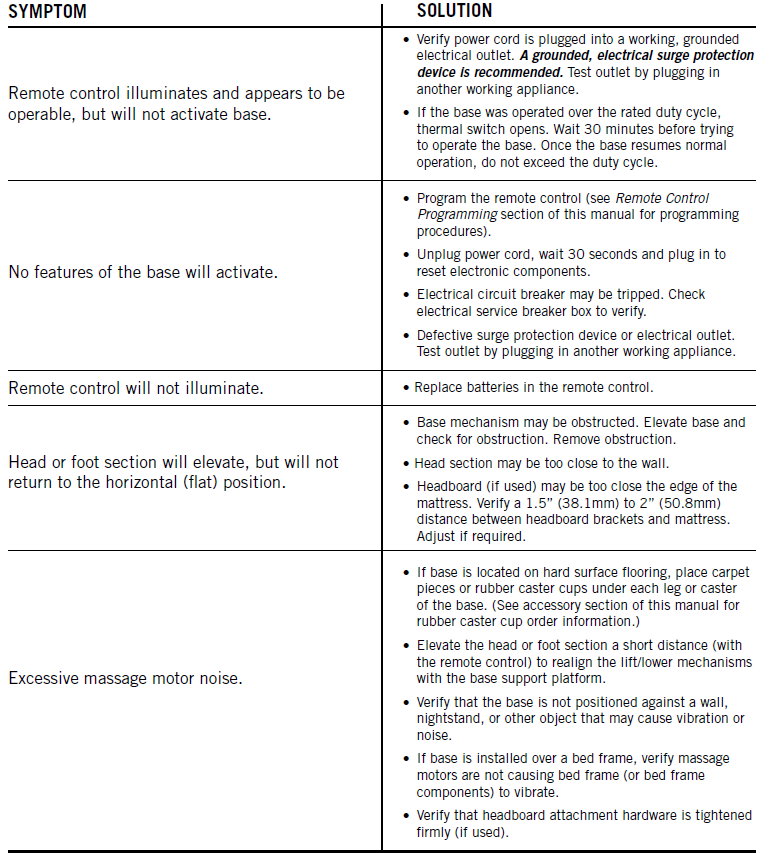

Troubleshooting

Common issues and solutions include:

• Motor Not Working: Check power cord connections and ensure the base is properly assembled.
• Massage Not Functioning: Ensure the remote or app is properly linked to the base.
• Warranty and Support: Leggett & Platt offers a comprehensive warranty with support options available through their official website.

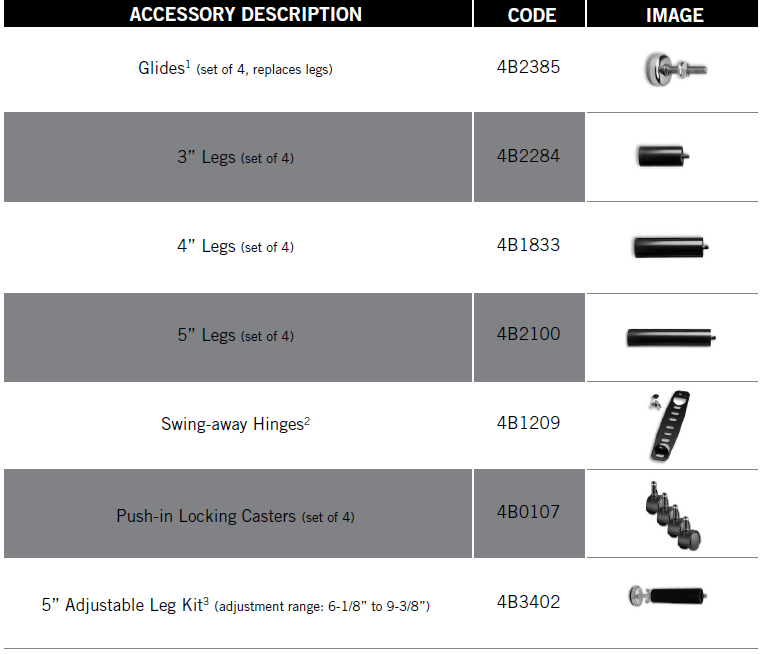

ACCESSORIES

OPTIONAL EQUIPMENT
Contact customer service toll-free (800-888-3078) to order the accessories indicated in the chart below.

1 YEAR, 3 YEAR,, AND 25 YEAR LIMITED WARRANTY

In this warranty, “Adjustable base” means the adjustable bed foundation sold by L&P to the dealer.  The “adjustable base” does not include the mattress. “L&P” means Leggett & Platt, Incorporated. “Purchaser” and “You” both mean the consumer who is the original purchaser of this adjustable base made by L&P.  This warranty is not transferable “Warranty Commencement Date” means either (i) the date You purchased a new and unused L&P adjustable base or (ii) the date of manufacture of this adjustable base if You purchased an L&P adjustable base that has been used as a floor or display model. L&P warrants this adjustable base to you on the terms and over the reducing periods of time set out below. All warranty claims require notice from you to be given to L&P in the manner set out below, and to be received by L&P inside the applicable warranty time period.

1ST YEAR FULL WARRANTY
For the first year from the Warranty Commencement Date, your adjustable base is warranted against non-excluded defects in L&P’s workmanship or materials. During the first year from the Warranty Commencement Date, L&P will repair or replace (at no cost to You) any defective adjustable base part, and L&P will pay all authorized labor and transportation costs associated with the repair or replacement of any parts found to be defective.

2ND & 3RD YEAR LIMITED WARRANTY
During the second and third year from the Warranty Commencement Date, L&P will replace any adjustable base part found to be defective and not excluded by
this warranty. You are responsible for paying all service and transportation costs related to the costs of receiving and installation of the new part.

4TH YEAR TO END OF 25TH YEAR LIMITED WARRANTY
Starting in the fourth year from the Warranty Commencement Date and through to the end of the 25th year from the Warranty Commencement Date, L&P will replace steel and mechanical base parts found to be defective and not excluded by this warranty. This warranty does not cover any electronics, electrical components, drive motors, or massage motors. You are responsible for paying all service and transportation costs related to receiving and installation of the new part and a portion of the cost of the replacement steel and mechanical part, based on the number of months that the base has been owned by you since the fourth anniversary of the Warranty Commencement Date.

By the end of the 25th year, no portion of the replacement cost is covered by L&P. You will be required to pay 1/22nd of the then-current replacement cost of the part multiplied by the number of years past the third year from the Warranty Commencement Date. This portion is calculated using the following formula: Cost of the part divided by 22 [being the number of years in years 4 to 25 inclusive], multiplied by the number of years you have owned the base since the end of the first 3 years. For example, if you claim a part eligible for this warranty in the 5th year since the Warranty Commencement Date, you would be responsible for paying: $100 part cost divided by 22, multiplied by 2 = $9.09.

ADDITIONAL TERMS AND CONDITIONS
This warranty requires notice to be given to L&P of any claim for repairs or replacement parts.

EXCLUSIONS:
This warranty does not apply: (a) to any damage caused by You; (b) if there has been any repair or replacement of adjustable base parts by an unauthorized person; (c) if the adjustable base has been mishandled (whether
In transit or by other means), subjected to physical or electrical abuse or misuse, or otherwise operated in any manner inconsistent with the operation and maintenance procedures outlined in the Owner’s Manual and this warranty; (d) to damage to mattresses, fabric, cables, electrical cords or items supplied by dealers (contact the dealer for warranty information on these items); (e) if there has been any modification of the adjustable base without prior written consent by L&P; or (f) to costs for unnecessary service calls, including costs for in-home service calls solely for the purpose of educating You about the adjustable base or finding a satisfactory power connection.

• This warranty will be void if either the recommended weight restriction is not followed (refer to the advisory section of the Owner’s Manual) or if you sell or give, or transfer the base to another person.
• Any repairs to or replacement of your adjustable base or its components under the terms of this limited warranty do not extend the applicable warranty from the Warranty Commencement Date. This time limitation may not apply in some jurisdictions, including the Province of Quebec.
• The decision to repair or to replace defective parts under this warranty shall be made, or cause to be made, by L&P at its option and in its sole discretion.
• Repair or replacement shall be the sole remedy of the Purchaser. There shall be no liability on the part of L&P for any special, indirect, incidental, or consequential damages or for any other damage, claim, or loss not expressly covered by the terms of this warranty.
• This limited warranty does not include reimbursement for inconvenience, removal, installation, setup time, loss of use, shipping, or any other costs or expenses. L&P and its service technicians will not be responsible for moving furniture or any other items not attached to the adjustable base to perform service on the adjustable base.
• It is your sole responsibility of You to provide adequate space and accessibility to the adjustable base. If the technician is unable to perform service due to lack of accessibility, the service call will be billed to you,, and the service will have to be rescheduled.
• L&P makes no other warranty whatever, express or implied, and all implied warranties of merchantability and fitness for a particular purpose are disclaimed by L&P and excluded from this agreement.
  Some American States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
• This warranty gives You specific legal rights, and You may also have other rights, which may vary from jurisdiction to jurisdiction. This warranty is valid in all 50 American States, the District of Columbia, Puerto Rico, and all 10 Provinces and 3 Territories of Canada.
• For customer service under this limited warranty, give notice to L&P by mail, phone, email,, or online to the addresses set out below:

Pros & Cons

Here's a balanced assessment of both models:

Pros

• Advanced Features: Both models offer excellent massage and articulation options.
• Convenience: Wireless controls and Bluetooth connectivity enhance the user experience.

Cons

• Cost: The high price point may be a barrier for some consumers.
• Complexity: Some users may find the array of features overwhelming.

Customer Reviews

Customers praise the comfort and flexibility of these adjustable bed bases, with many noting improved sleep quality. Common complaints include the cost and occasional issues with the wireless connectivity. Overall, these products are highly rated, with many users recommending them for their versatility and comfort.
