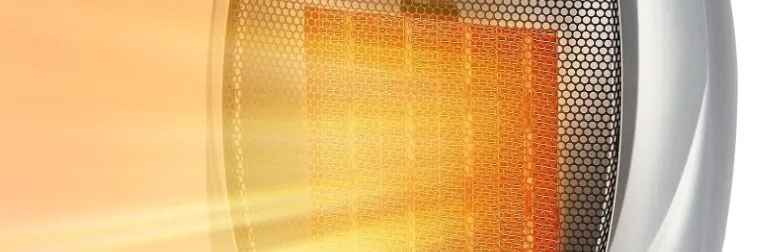

Lensoul Space Heater PTC113 Introduction

For small to medium-sized spaces, Lensoul is a portable, effective heating solution. With the use of cutting-edge PTC ceramic heating technology, it ensures energy efficiency while delivering quick and steady warmth. This heater has several heat settings, an adjustable thermostat, and vital safety features including tip-over and overheat protection. It is the perfect option for keeping your house or place of business at a suitable temperature because of its silent operation and user-friendly design, which includes a remote control and timer feature.

Package Content

• Space Heater
• User Manual

Product Diagram

Detailed Specifications

Description

A fashionable and portable heating option that complements any interior design is the lensoul Space Heater PTC113. Its cutting-edge PTC heating technology guarantees rapid and reliable heat distribution, and its several heating modes and adjustable thermostat let you set the temperature to suit your tastes. For convenience of use, the space heater also has a remote control and a digital control panel. The Lensoul Space Heater PTC113 is a dependable and practical heating solution for your house or place of business, thanks to its extra safety features like overheat protection and a tip-over safety switch.

Getting Started

• Place the product on a firm, level surface
• Plug the unit directly into a 120 V AC electrical outlet
• Rotate the power knob clockwise to select between (fan only), 1 (low heat) or 11 (high heat), low position operates the heater at 750 watts conserving energy and high position operates the heater at a maximum 1500 watts
• Turn the thermostat knob clockwise to the highest setting
• When the room reaches a comfortable temperature, slowly turn the thermostat knob counter-clockwise until the heating element clicks off
• This is the point at which the thermostat setting equals the room temperature. In this setting, the thermostat will automatically turn the heater on and off to maintain the selected temperature
• Turn the power knob to off and unplug the heater when finished using

Features

Tip-Over Safety Feature
This heater is equipped with a tip-over safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off. Once the heater is restored an upright position, the heater will reset. To continue operation, turn on the heater using the control panel on the heater.

Overheat Safety Feature
This heater is equipped with a overheat safety feature. When the heaters internal components reach a certain temperature that could cause overheat and possible fire, the heater will automatically shut off.
Automatic Thermostat
User can turn the switch clockwise between the “ The minimum adjustable thermostat ” and  “The maximum adjustable thermostat ” , heater will stop working when desired temperature is reached and rework when the temperature is lower than desired temperature. (Note: button position does not represent specific temperature figures. User can switch the power knob several times to get desired temperature).

Setup Guide

The lensoul Space Heater PTC113 can be configured by doing the following:

• Take the heater out of its box and carefully take out all of the wrapping.
• The space heater should be placed away from any combustible objects on a level, firm surface.
• Turn on the power button and plug the heater into an electrical socket.
• Choose the temperature, heating mode, and any settings you like using the digital control panel or remote control.

Optional: Turn on the oscillation feature to distribute heat more widely and set the timer for automated shut-off.

Maintenance

1. Turn the power off.
2. Unplug the unit and let it cool completely.
3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: Do not let liquid enter the heater.
4. Do not use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
5. Do not immerse the heater in water.
6. Wait until the unit is completely dry before use.

Important Safeguards

1. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear
2. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended
3. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater, or return to authorized service facility for examination and/or repair
4. Do not use outdoors
5. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container
6. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from trafficked areas and where it will not be tripped over
7. To disconnect the heater, turn controls to off, then remove the plug from the outlet Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater
8. To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked
9. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored
10. Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons
11. Always plug heaters directly into a wall outlet/receptacle. Never use it with an exten-sion cord or relocatable power tap (outlet/power strip)
12. Before connecting the appliance to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the appliance rating label
13. To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from hot surfaces and open flames as well
14. Do not operate the appliance with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands
15. Do not open the appliance casing under any circumstances
16. Do not place heavy objects on top of the appliance. Do not place objects with open flames (e.g. candles) on top of or beside the appliance.
17. Do not place objects filled with water (e.g. vases) on or near the appliance
18. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by persons responsible for their safety
19. Children should be supervised to ensure that they do not play with the appliance

CAUTION: Risk of Burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• Do not pull the power plug out of the electrical outlet by the power cord and do not wrap the power cord around the appliance
• Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the appliance can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the appliance. Use the power plug as the disconnection device
• Disconnect the power plug from the electrical outlet when not in use and before cleaning
• Always turn the appliance off before disconnecting the power plug
• The heater must not be located immediately below a socket-outlet

Troubleshooting

If the heater will not operate, please check the following before seeking repair advice:

1. Check if the power cord is plugged into an electrical outlet, if not, plug in.
2. Check if power indicator light works.

Lensoul Space Heater PTC113 Pros & Cons

Pros

• PTC heating technology advancement
• Thermostat that may be adjusted and several heating options
• Features for safety and cool-touch housing
• Remote control and digital control panel
• ECO option for energy savings and an 8-hour timer

Cons

• Perhaps unsuitable for larger spaces
• Operation of the remote control requires line of sight.

Customer Reviews

Customers adore the lensoul Space Heater PTC113 because of its characteristics that are easy to use, quick heat dispersion, and small size. Precise temperature control is made possible by the adjustable thermostat and the various heating modes, while other safety features offer piece of mind. Nevertheless, some users have pointed out that the remote control might not work as well in larger spaces and needs to be in line of sight to function.
