Introducing the Level Bolt Invisible Smart Deadbolt Lock Guide

The Level Bolt Invisible Smart Deadbolt Lock is a state-of-the-art home security solution that offers keyless entry, remote access, and advanced encryption technology. This sleek and modern lock is designed to blend seamlessly with your door, providing a discreet and secure locking system. With an estimated price range of $250 to $300, the Level Bolt Invisible Smart Deadbolt Lock is set to launch in early 2022.

Door Specifications

1. Level Bolt is engineered to fit inside ANSI standard exterior doors.
   Make sure your door meets this standard by taking 3 simple measurements:



   REQUIRED MEASUREMENTS
   Door thickness is 1 ¾” thick
   Bore hole size is 2 ⅛” in diameter
   Backset length is either 2 ⅜” or 2 ¾”

2. Level Bolt is engineered to meet ANSI standard strike plate dimensions.  The strike plate is located on the door frame and provides additional security for your home.
   Make sure your strike plate cut-out meets standard dimensions:



   REQUIRED MEASUREMENTS
   ANSI standard height of 2 ¾” and width of 1 ⅛” (Tall)
   ANSI standard width of 2 ¼” and width of 1 ⅛” (Short)

Bolt Invisible Smart Deadbolt Lock Specifications

Level Bolt is designed to work with most American standard residential deadbolts. The following list of deadbolts is just a highlight of some of the verified makes and models that are compatible with Level Bolt.

Compatibility Review

Summarized below are the areas to consider to make your lock installation process as seamless as possible.

1. Lock Type: First, determine what kind of existing hardware you have. Review the lock types to find the kind of lock that looks most like yours.



2. Door Alignment: Over time, doors can become misaligned due to normal wear and tear or changes in weather. All deadbolts need a properly aligned door to operate smoothly.



3. Door and Strike Plate Specifications: Level Bolt is engineered to work with ANSI standard exterior doors and strike plates.



4. Lock Specifications: Level Bolt is designed to work with most American standard residential deadbolts. Make sure yours is compatible.



Level Bolt Working

Will Level Invisible Smart Deadbolt work with my lock?
Level Bolt is designed for most American standard deadbolts and requires a properly operating door and latch. Visit our interactive compatibility guide or read through the steps below to make sure you have what you need to successfully install your lock. To learn more, visit our Support  https://level.co/support#utilities

Lock Type

Let’s determine what kind of existing hardware you have.  Review the lock types below to find the kind of lock that looks most like yours.

1. Standard Deadbolt
   A lock where the deadbolt is separate from the latch or knob and has an exterior profile greater than 2/4” (19mm)

2. Low Profile
   A lock that minimizes the projection off the door - generally measuring less than 3/4” (19mm) off of the door surface.



3. Tubular
   A lock that presents a visual combinatiomn of the latch with the deadbolt. Often the latch works independently of the deadbolt.



4. Interlocking
   A lock that combines the latch action with the deadbolt action. When the latch is depressed, it may interact with the deadbolt mechanism.



5. Mortise Lock
   A lock that sits in a pocket that’s cut into the edge of the door. From the side view, one large pocket is visible.



Most Standard and Low Profile residential deadbolts can be replaced with Level Bolt.
Tubular locks vary in design and are not standardized. Level Bolt works with Tubular locks that do not share an exterior faceplate.
Interlocking and Mortise Locks are not compatible with Level Bolt. Consider adding Level Bolt  to a different door.

Door Alignment

Over time, doors can become misaligned due to normal wear and tear or changes in weather. All deadbolts need a properly aligned door to operate smoothly.
Let’s check your door alignment

• With the door closed in its normal position, does the latch engage properly and hold the door in the closed position? Does the bolt lock and unlock without any friction?

Tip: If you need to push or pull on the door so the deadbolt can turn smoothly, your door is misaligned and needs adjusting.

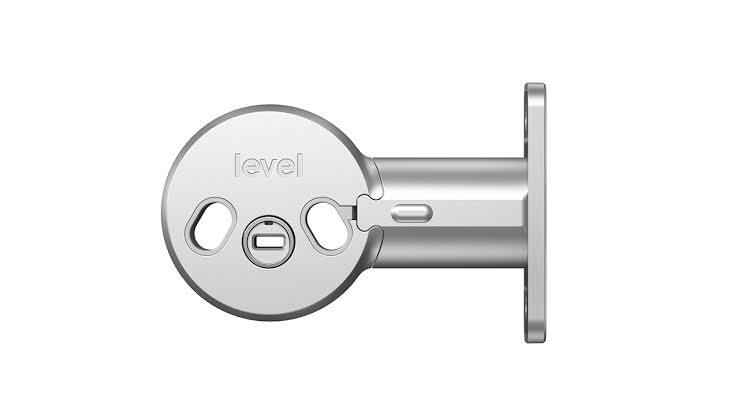

Description of Invisible Smart Deadbolt

The Level Bolt Invisible Smart Deadbolt Lock features a minimalist design with a hidden fingerprint-resistant touchscreen keypad and a motorized deadbolt. The lock is powered by a rechargeable battery that can last up to one year on a single charge. The lock is also equipped with advanced encryption technology and a built-in alarm system that detects potential break-ins. The lock can be controlled remotely through the Level Home app, which is available on both iOS and Android devices.

Setup Guide

To set up the Level Bolt Invisible Smart Deadbolt Lock, follow these steps:

1. Download and install the Level Home app on your iOS or Android device.
2. Create an account and follow the app's instructions to connect the lock to your Wi-Fi network.
3. Use the app to program your access code or add additional users.
4. Install the lock on your door by following the installation guide provided in the box.
5. Test the lock to ensure it's working properly.

Level Bolt Troubleshooting

If you encounter any issues with your Level Bolt Invisible Smart Deadbolt Lock, try the following troubleshooting steps:

1. Check the battery level and charge if necessary.
2. Make sure the lock is properly installed and aligned with the door frame.
3. Restart the lock by removing and reinserting the battery.
4. Check the Wi-Fi connection and make sure the lock is within range of your router.
5. If the issue persists, contact Level's customer support for assistance.

Pros & Cons

Pros

• Keyless entry and remote access
• Advanced encryption technology and built-in alarm system
• Minimalist design that blends seamlessly with your door
• Long-lasting rechargeable battery
• User-friendly Level Home app

Cons

• Higher price point compared to traditional deadbolt locks
• Requires Wi-Fi connection for remote access
• May be difficult to install for those unfamiliar with home security systems

Customer Reviews about Level Bolt Invisible Smart Deadbolt

Customers have praised the Level Bolt Invisible Smart Deadbolt Lock for its sleek design, ease of use, and advanced security features. However, some users have reported issues with the lock's Wi-Fi connectivity and battery life. Overall, the lock has received positive reviews and is highly recommended for those looking for a modern and secure home security solution.
