Introduction

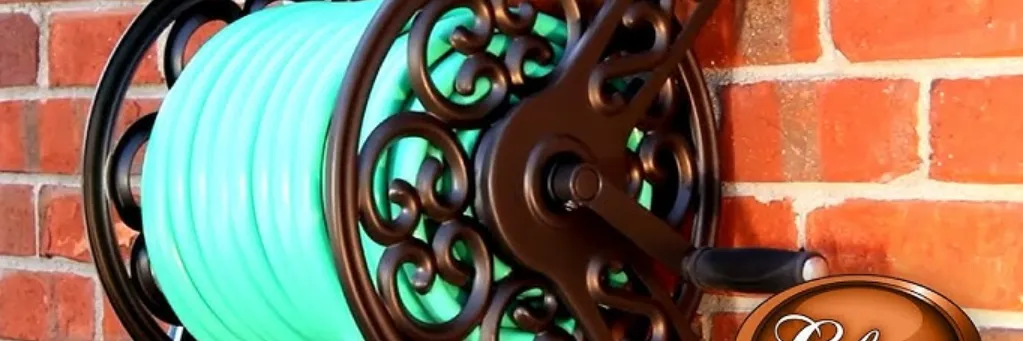

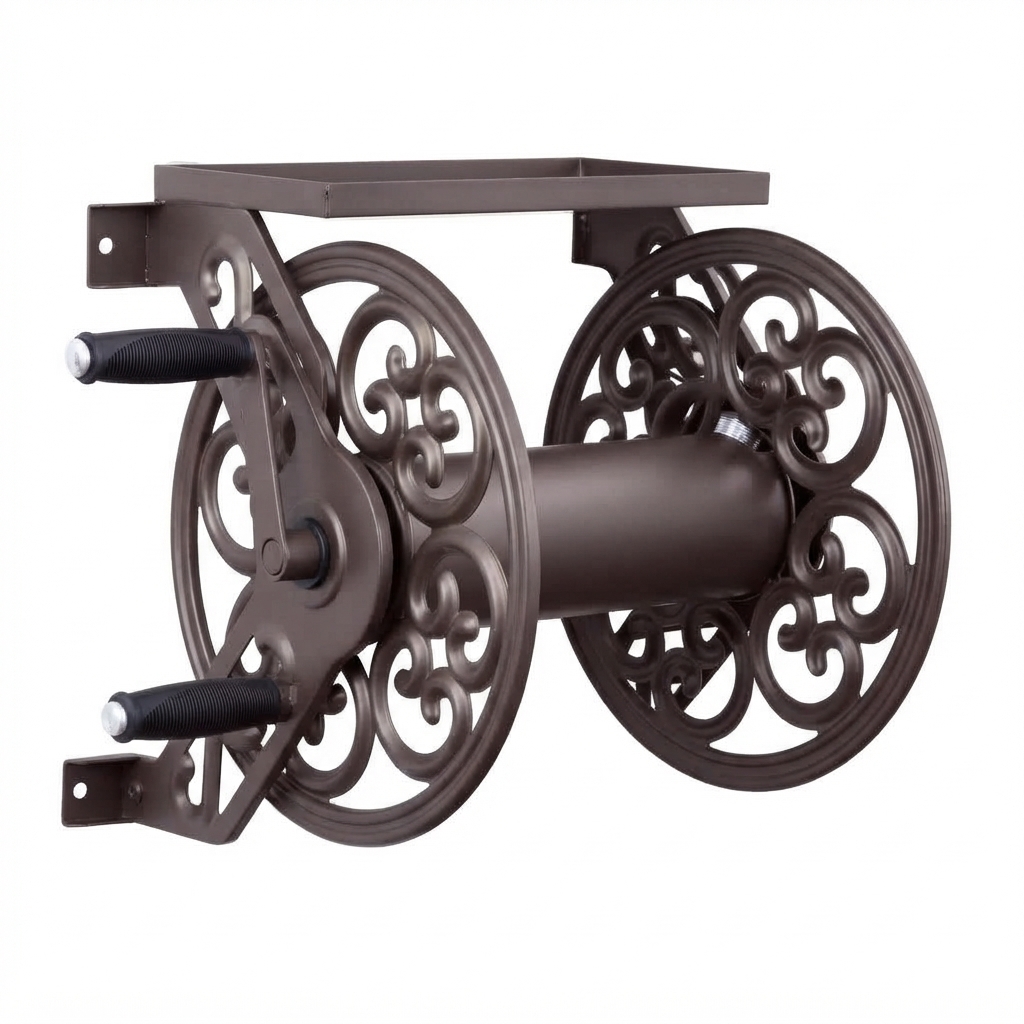

The Liberty Garden Decorative Wall Mount Hose Reel 708 combines functionality and elegance, making it an ideal solution for organizing garden hoses. Constructed from heavy gauge steel with a durable powder coat finish, this hose reel is designed to withstand the elements while holding up to 125 feet of 5/8-inch hose. Its stylish bronze color adds a decorative touch to any outdoor space, while the included storage shelf keeps tools handy. The cost of this hose reel is approximately $142.94.

Detailed Specifications

TOOLS REQUIRED

Pliers, Adjustable Wrench, Drill (Not Included) & Allen Wrench (Included)

Estimated Assembly Time: 5 Minutes (Not Including Mounting)

Liberty Garden Decorative Wall Mount Hose Reel 708 PARTS LIST

1. Crank handle (1)
2. Allen screw (1)
3. Leader hose (1)
4. Hose reel (1) (Not Pictured)

Description

The Liberty Garden 708 Decorative Wall Mount Hose Reel is a versatile gardening tool that combines functionality with style. Its sturdy steel frame is complemented by a sleek, powder-coated finish that resists rust and corrosion. The reel's design allows for smooth hose winding and unwinding, thanks to its built-in guide that prevents kinks and tangles. The brass swivel connector ensures reliable water flow, making it easy to use the hose without any interruptions.

The product's compact size makes it ideal for small to medium-sized gardens, while its decorative elements enhance the overall look of your outdoor space. Whether you're looking to add a touch of elegance or simply need an efficient way to manage your garden hose, the Liberty Garden 708 is an excellent choice.

ASSEMBLY INSTRUCTIONS

1. Align the holes in the crank handle (A) with crank handle shaft. Tighten the crank handle Allen screw (B) using the Allen wrench provided. Do not overtighten crank handle screw. Figure 1



2. Attach the leader hose (C) to the swivel connector. Figure 2



   Note: If you have trouble with the swivel turning and kinking the leader hose, try spraying a silicone spray inside to lubricate the O-rings. The O-rings located inside the swivel may be dry. You can reach the O-rings by taking off the retaining clip or spraying inside the opening of the swivel.

3. Attach your garden hose to the hose connection on the hose reel spool (D). Figure 3



   • DO NOT leave water running through the hose reel unsupervised.
   • DO NOT expose the reel to freezing temperatures with water remaining in the unit.
   • Turn the water off after each use.

IMPORTANT: LAY OUT ALL PARTS AND FASTENERS. MAKE SURE ALL PARTS ARE ACCOUNTED FOR. IF ANY PART IS MISSING, PLEASE CONTACT LIBERTY GARDEN PRODUCTS AT  1-866-820-5805, MONDAY - FRIDAY, 9 A.M. - 5 P.M. EST. DO NOT CONTACT THE RETAILER. YOU CAN ALSO VISIT US ONLINE AT https://WWW.LIBERTYGARDENPRODUCTS.COM  FOR MORE INSTRUCTIONS, PICTURES, AND HELPFUL HINTS.

INSTALLATION

This hose reel MUST be mounted to a solid masonry wall or to wall studs.

1. BRICK OR MASONRY ANCHOR SLEEVES

   The following hardware (not included) is recommended for installation:
   (4) 7 or 8 mm x 60 mm masonry wall anchors (5/16” x 2 1/2”)(4) Anchor sleeves
   (4) Washers
   (4) Lock washers
   (4) Nuts

   • Position and hold your hose reel against the brick/masonry wall at a convenient height. Mark the position of each suspension hole on the wall. Remove the hose reel
   • Using a hammer drill, drill holes 5/16” in diameter at the marked positions on the wall.
   • Insert the masonry wall anchors into the anchor sleeve. Next, insert the anchor and sleeve into the drilled holes until the steel sleeve is completely in the wall.
   • Place the hose reel on the masonry wall anchors.

   • Install a washer, lock washer, and nut over each wall anchor and tighten securely.



   TIP: Remember to use the correct size and quantity of hardware to properly support the total weight of the unit. A standard 100' length of garden hose weighs approximately 15 lbs. Filled with water, the additional weight can exceed 20 lbs. The mounting hardware must be able to support the combined weight of the unit, garden hose, plus water.
   NOTE: Drill hole  diameters may vary based on anchor sleeve, concrete screw, and wood screw manufacturer.  Check product recommendations before drilling holes.

   BRICK OR MASONRY SCREWS

   The following hardware (not included) is recommended for installation:
   (4) 7 or 8 mm x 60 mm masonry screws (5/16” x 2 1/2”)
   (4) Washers

   • Position and hold your hose reel against the brick/masonry wall at a convenient height. Mark the position of each suspension hole on the wall. Remove the hose reel.
   • Using a hammer drill, drill pilot holes 1/4” in diameter at the the marked positions on the wall.
   • Align the hose reel suspension holes with the pilot holes.

   • Attach the hose reel to the wall using the concrete screws with washers and tighten securely.



   WOOD SCREWS

   The following hardware (not included) is recommended for installation:
   (4) 7 or 8 mm x 60 mm wood screws (5/16” x 2 1/2”)
   (4) Washers

   • Using a stud finder locate the wood studs on your wall.
   • Position and hold your hose reel against the wood wall at a convenient height. Mark the position of each suspension hole on the wall. Remove the hose reel.
   • Using an electric drill, drill pilot holes 1/4” in diameter at the marked positions on the wall.
   • Align the hose reel suspension holes with the pilot holes.

   • Attach the hose reel to the wall using the wood screws with washers and tighten securely.



Setup Guide

To set up the Liberty Garden Decorative Wall Mount Hose Reel 708, follow these steps:

• Choose a suitable location on your wall, ensuring it is level and within easy reach.
• Mount the bracket to the wall using the provided screws and anchors.
• Attach the hose reel to the mounted bracket according to the manufacturer's instructions.
• Connect your garden hose to the reel through the brass swivel connector.
• Wind your hose onto the reel, using the built-in guide to prevent kinking.

Once installed, you can easily operate the hose reel by pulling out the desired length of hose and rewinding it when not in use.

CARE INSTRUCTIONS

Your hose reel is manufactured with the finest quality components available. This product will give you many seasons of reliable and functional hose storage. All components are manufactured to rigorous  quality standards not common in other consumer grade hose reels available  today. As with any steel product, there is always the chance for rust developing over time. Your hose reel finish is designed for  industrial applications, but even the toughest of coatings can be compromised by scratches.

Such minor surface damage can occur in shipping despite our best efforts. We have found that most scratches occur during assembly and/or installation (in the case of wall mounted hose reels). If the base metal is exposed to the elements long enough, rust will develop. In the case of wall mounted reels, be sure to use stainless steel mounting hardware. We recommend that you periodically inspect your reel for any surfaces damage. Scratches can easily be repaired by using standard automotive touch-up body paint. Some of our  most loyal customers recommend that at the end of each season, the unit be cleaned and painted with a clear acrylic paint.

When you install your hose reel, be sure the hose washers are in place and all fittings are secure. If you live in more  temperate  climates, be sure to drain the unit of any residual water before storing.

• DO NOT EXPOSE UNIT TO FREEZING TEMPERATURES while water remains in the plumbing system, this can damage the swivel.
• DO NOT leave water running through the hose reel cart while not in use or unsupervised.
• DO NOT consume water from garden hose; not fit for human consumption.

WARNING! This product contains one or more chemicals known in the state of California to cause cancer and birth defects or reproductive harm. Wash hands after handling.

Troubleshooting

Problem: Swivel head is not rotating, causing the leader hose to kink up.
Solution: Remove leader hose and turn the square head of the swivel several times; apply lubricant.
Problem: Your new Liberty hose reel is leaking at the swivel.
Solution: Apply Teflon/Plumber's Tape on the threads or/and make sure fixtures are tightened. It is normal for the swivel to leak slightly until the O-rings are wet and have seated. If the leaking continues, try these steps: (It is not necessary to return the hose reel)

1. If the leader hose is attached to the swivel, unscrew the hose and look inside the swivel.
2. Check that the hose washer is inside the nut. You may contact Liberty Garden Products for a new hose washer or obtain one at any hardware store.
3. If your swivel is old, the O-rings may be worn, please contact us for a new set of O-rings.
4. If these steps do not solve your leaking problem, contact Liberty Garden Product’s customer service.

LIBERTY GARDEN PRODUCTS WARRANTY

LIMITED WARRANTY ON PRODUCTS

Company warrants solely to the original Customer that (a) the Structural Frame will be free from defects in materials and workmanship under normal use for a period of three (3) YEAR(S) from the date of original retail purchase, and (b) the Non-Frame Parts (which consist of the crank handle, swivel and water connections, leader hose and tires), will be free from defects in materials and workmanship under normal use for a period of ONE (1) YEARS from the date of original retail purchase.

Notwithstanding the foregoing, the colors and finishes of the Products may vary within a reasonable scope due to unavoidable color variations in different production batches, and such variations shall not constitute a material defect. This limited warranty is limited solely to the original Customer with proof of purchase and is not transferable.

Liberty Garden 708 Pros & Cons

Pros

• Durable steel construction with rust-resistant powder coating.
• Decorative design that enhances outdoor aesthetics.
• Easy to install and operate.
• Built-in guide prevents hose kinking and tangling.
• Affordable price point compared to other models.

Cons

• Limited capacity for larger hoses (125 feet of 5/8-inch hose).
• May require additional support for heavy hoses.
• Some users may find the mounting bracket installation challenging without proper tools.

Customer Reviews

Customers have generally praised the Liberty Garden 708 for its ease of use and stylish design. Many have noted that it is an excellent value for the price, offering both functionality and aesthetic appeal. However, some users have reported minor issues with the mounting bracket installation and occasional kinking problems if not properly wound.
