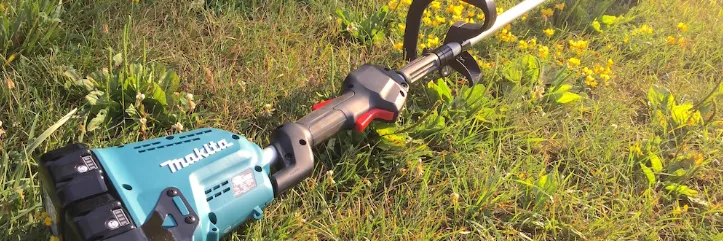

Introducing the Makita Cordless Multi Function Power Head XUX02

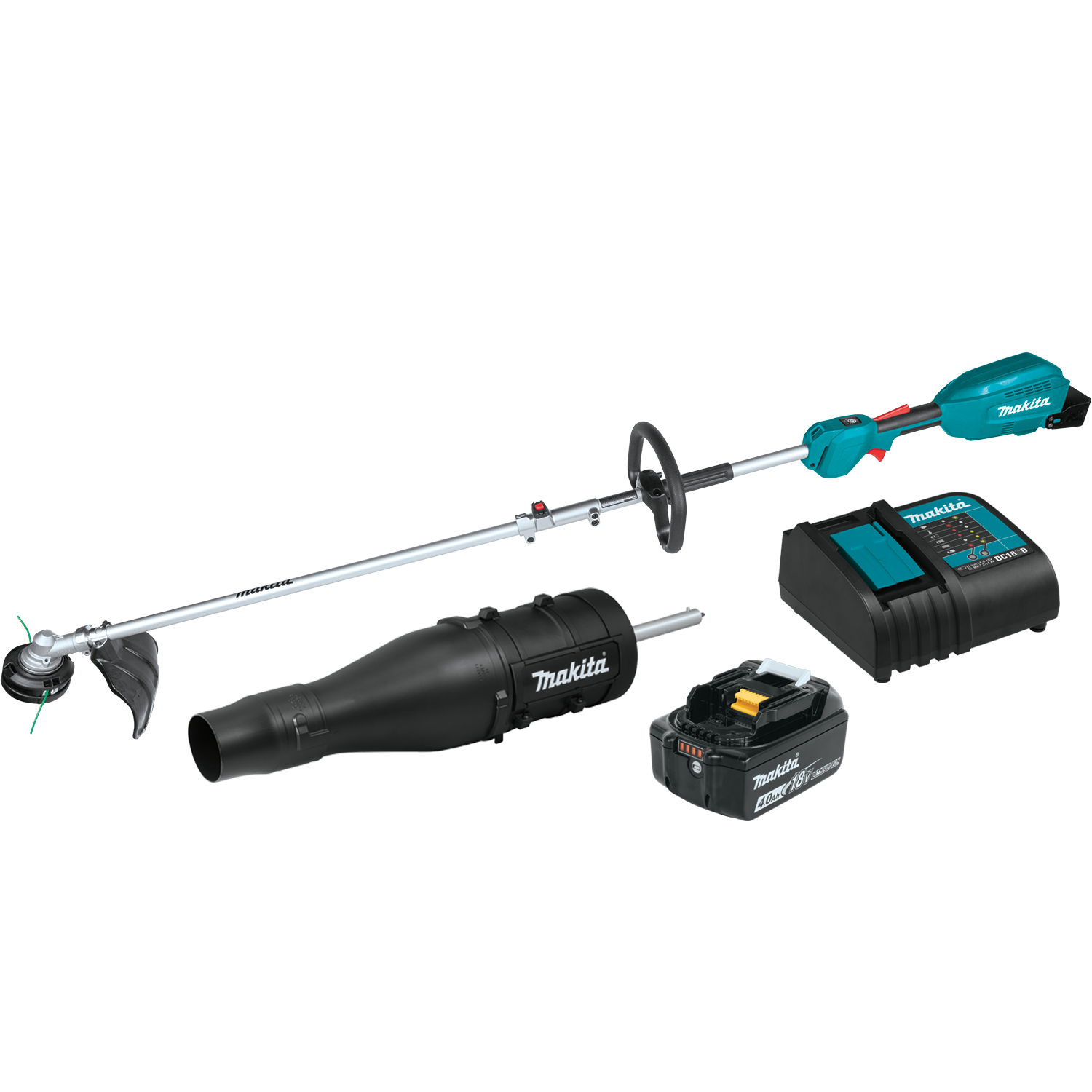

The Makita Cordless Multi Function Power Head XUX02 is a versatile and powerful tool that is perfect for a variety of applications. It is part of Makita's expanding 18V LXT system, which is the world's largest cordless tool system powered by 18V lithium-ion slide-style batteries. The XUX02 is compatible with a range of attachments, making it a truly multi-functional power head.

The XUX02 is estimated to be priced around $200, and it is set to be launched in the second quarter of 2022. It is a great investment for both professionals and DIY enthusiasts who are looking for a high-quality and reliable power head.

Makita ACCESSORIES

NOTICE: These accessories or attachments are recommended for use with your Makita tool as specified in this manual. The use of any other accessories or attachments may pose a hazard to persons. Use the accessory or attachment only for its intended purpose. If you need assistance with more information about these accessories, please contact your local Makita service center. See Approved Accessories section for applicable models for this tool.

• Trimmer attachment

• Hedge trimmer attachment

• Ground trimmer attachment

• Saw attachment

• Cultivator attachment

• Edge trimming attachment

• Coffee collection nozzle

• Shaft extension

• Nozzle for electric brush

• Sweeping device

• Original Akita battery and charger

NOTE: Some items listed may be included as standard accessories with the tool. They may differ from country to country.

PARTS DESCRIPTION

1. Battery cartridge
2. Lock-off lever
3. Switch trigger
4. Hanger
5. Handle
6. Release button
7. Barrier
8. Indicator lamps
9. Main power button
10. Shoulder harness

SPECIFICATIONS

• Due to our ongoing research and development program, the specifications herein are subject to change without notice.

• Specifications may vary from country to country.

• Weight may vary depending on attachments, including battery pack. The lightest and heaviest combinations according to the EPTA 01/2014 procedure are shown in the table.

Applicable battery pack and charger

Some of the battery cartridges and chargers listed above may not be available depending on your region.

WARNING: Use only the battery cartridges and chargers listed above. Use of any other battery cartridges or chargers may result in personal injury and/or fire.

Recommended Battery Adapter

Battery adapter: PDC01

• The battery adapters listed above may not be available depending on your region.

• Before using the battery adapter, read the instructions and warning labels on the battery adapter.

No-load speed with attachment

Approved attachment

Purpose

This cordless multi-function attachment is designed to operate the approved attachments listed in the SPECIFICATIONS section of this owner's manual. Never use the device for other purposes.

WARNING: Before use, read the instructions for use of the attachment as well as these operating instructions. Failure to follow warnings and instructions may result in serious injury.

SAFETY PRCAUTIONS

General safety rules when working with power tools
WARNING. Read all warnings, instructions, illustrations and safety specifications supplied with this power tool. Failure to follow all instructions below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future use.
The term “power tool” in the warnings refers to your corded (corded) power tool or cordless (cordless) power tool. Workplace safety

1. Keep your work area clean and well lit. Cluttered or dark places can cause accidents.

2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks that can ignite dust or fumes.

3. Keep children and bystanders away from operating power tools. Distraction can lead to loss of control.

Electrical safety

1. Power tool plugs must match the outlet. Do not modify the fork under any circumstances. Do not use adapter plugs with grounded power tools. Unmodified plugs and suitable outlets will reduce the risk of electric shock.

2. Avoid body contact with grounded surfaces such as pipes, radiators, stoves and refrigerators. If your body is grounded, there is an increased risk of electric shock.

3. Do not expose power tools to rain or moisture. Water entering a power tool increases the risk of electric shock.

4. Do not overuse the cord. Never use the cord to carry, pull, or disconnect a power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or tangled cords increase the risk of electric shock.

5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of electric shock.

6. If you use a power tool in an advertising and location is unavoidable, use a ground fault circuit interrupter (GFCI) power source. Using a GFCI reduces the risk of electrical shock.

7. Power tools can generate electromagnetic fields (EMFs) that may not cause harm to the user. However, users of pacemakers and other similar medical devices should consult the device manufacturer and/or physician for advice before using this power tool.

Personal safety

1. Be alert, watch what you do, and use common sense when operating power tools. Do not operate power tools if you are tired, under the influence of drugs, alcohol, or medication. A moment of inattention when operating a power tool can result in serious injury.

2. Use personal protective equipment. Always wear safety glasses. Protective equipment such as a respirator, non-slip safety shoes, hard hat or hearing protection used in appropriate conditions will reduce the incidence of injury.

3. Prevent unintentional launch. Make sure the switch is in the off position before connecting to a power source and/or battery, or lifting or carrying the tool. Carrying a power tool with your finger on the switch, or operating a power tool with the switch on, may cause accidents.

4. Remove the adjusting key or wrench before turning on the power tool. A wrench or wrench left on a rotating part of a power tool can cause injury.

5. Do not overdo it. Always stay on your feet and maintain balance. This allows you to better control the power tool in unexpected situations.

6. Dress appropriately. Do not wear loose clothing or jewelry. Keep hair, clothing and gloves away from moving parts. Loose clothing, jewelry, or long hair may become caught in moving parts.

7. If devices are provided to connect dust collectors and dust collectors, make sure they are connected and used properly. Using a dust collector can reduce the dangers associated with dust.

8. Don't let the familiarity gained from frequent tool use cause you to become complacent and ignore tool safety principles. Careless action can result in serious injury in a split second.

9. Always wear safety glasses to protect your eyes from injury when operating power tools. Goggles must meet ANSI Z87.1 standard in the USA. It is the employer's responsibility to ensure that tool operators and others in the immediate work area use appropriate protective equipment.

Using and caring for power tools

1. Do not force the power tool. Use suitable power tools. The right power tool will do the job better and safer at the speed for which it was designed.

2. Do not operate a power tool unless the switch turns it on or off. Any power tool that cannot be operated with a switch is dangerous and must be repaired.

3. Disconnect the power plug and/or remove the battery, if disconnected, from the power tool before making any adjustments, changing accessories, or storing the power tool. These preventative safety measures reduce the risk of accidental starting of the power tool.

4. Keep power tools out of the reach of children when not in use and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

5. Maintenance of power tools and accessories. Check for misaligned or seized moving parts, broken parts, or any other conditions that may affect the operation of the power tool. If damaged, have the power tool repaired before use. Many accidents are caused by poor maintenance of power tools.

6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to seize and are easier to control.

7. Use power tools, accessories, attachments, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Using power tools for operations other than those intended may result in a hazardous situation.

8. Keep handles and gripping surfaces dry, clean and free of grease. Slippery handles and gripping surfaces make it difficult to handle and control the tool safely in unexpected situations.

9. When using the tool, do not wear cloth work gloves as they may become tangled. Getting fabric work gloves entangled in moving parts can cause injury.

Using and caring for cordless tools

1. Charge only with a charger specified by the manufacturer. A charger that is suitable for one type of battery pack may pose a risk of fire when used with another battery pack.

2. Use power tools only with designated batteries. Use of any other battery packs may result in personal injury or fire.

3. When the battery is not in use, keep it away from other metal objects such as paper clips, coins, keys, nails, screws or other small metal objects that could connect one terminal to another. Shorting battery terminals together may cause burns or fire.

4. Under incorrect conditions, fluid may leak from the battery; avoid contact. In case of accidental contact, rinse with water. If liquid gets into your eyes, seek additional medical attention. Liquid leaking from the battery may cause irritation or burns.

5. Do not use a damaged or modified battery or tool. Damaged or modified batteries may behave unpredictably, resulting in fire, explosion, or risk of injury.

6. Do not expose the battery or tool to fire or extreme temperatures. Exposure to fire or temperatures above 130°C may cause an explosion.

7. Follow all charging instructions and do not charge the battery or tool outside the temperature range specified in the instructions. Charging incorrectly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

1. Have your power tool serviced by a qualified service technician using only identical replacement parts. This will ensure the safety of the power tool.

2. Never repair damaged batteries. Servicing of battery packs should only be performed by the manufacturer or authorized service providers.

3. Follow instructions for lubrication and replacement of accessories.

4. Do not modify or attempt to repair the device or battery except as specified in the operating and care instructions.

Makita Safety Instructions of Power Head XUX02

1. Keep your hands, face and clothing away from the cutting tool while it is rotating. Failure to do so may result in injury.

2. During operation, unauthorized persons or animals must be kept at a distance of at least 15 m from the tool. Stop the tool as soon as someone approaches.

3. Never stand on unstable or slippery surfaces or steep slopes while working. During the cold season, beware of ice and snow and always ensure proper footing.

4. Never work on a ladder or tree to avoid losing control.

5. Before working, inspect the work area for stones or other hard objects. They can be thrown or cause dangerous kickback, which could result in serious injury and/or property damage.

6. When using cutting blades, avoid kickback and always be prepared for accidental kickback. See the Rollback section.

7. When you leave the tool, even if only briefly, always remove the battery pack. A tool left unattended with the battery pack installed may be used by an unauthorized person and cause a serious accident.

8. Always turn the tool off and remove the battery pack before performing any maintenance, repair or cleaning work on the tool.

9. Perform complete cleaning and maintenance before storing the instrument. Remove the battery cartridge. Attach the cover to the cutting blade.

10. Store the tool in a dry, high place or locked place out of the reach of children.

11. Wear protective gloves when touching the cutting blade. Cutting blades can cause severe cuts to bare hands.

12. Always wear gloves and a blade guard when handling a cutting blade.

13. When not in use, attach the blade cover to the blade. Remove the cover before use.

14. Before transporting the tool, turn it off and remove the battery pack. Attach the cover to the cutting blade.

15. Before starting the tool, make sure that the cutting tool does not touch the ground or other obstacles such as wood.

16. The cutting tool must be equipped with a protective guard. Never run a tool with damaged guards or without the guards installed!

17. Check the cutting attachment frequently during operation for cracks or damage. Before checking, remove the battery pack and wait until the cutting tool comes to a complete stop. Replace damaged cutting tools immediately, even if they only have superficial cracks.

18. Do not operate the tool in bad weather or if there is a risk of lightning.

19. Make sure there are no electrical cables, water pipes, gas pipes, etc. that could be damaged when using the tool.

20. Always hold the tool with both hands while working. Never hold the tool with one hand while working.

21. Keep your hands dry, clean and free of grease. Keep all cooling air inlets free of debris.

22. Use the shoulder strap while working. Hold the tool firmly on the right side.

23. Do not touch the gearbox during or immediately after surgery. The gear housing becomes hot during operation and can cause injury.

24. Rest so you don't lose control of yourself due to fatigue. We recommend resting 10 to 20 minutes every hour.

25. Avoid hazardous environments. Do not use the tool in a dump or damp area or expose it to rain. Water entering the tool increases the risk of electric shock.

26. Do not throw the battery(s) into fire. The cell may explode. Check local regulations for any special disposal instructions.

27. Do not open or damage the battery(s). Leaking electrolyte is corrosive and may cause damage to eyes or skin. It may be toxic if swallowed.

28. Do not charge the battery in the rain or in damp places.

Individual protection means

1. Wear a hard hat, safety glasses, and protective gloves to protect yourself from flying debris or falling objects.

2. Wear hearing protection, such as earmuffs, to prevent hearing loss.

3. Wear suitable clothing and footwear for safe work, such as coveralls and sturdy, non-slip shoes. Do not wear loose clothing or jewelry. Loose clothing, jewelry, or long hair may become caught in moving parts.

4. Wear protective gloves when touching the cutting blade. Cutting blades can cause severe cuts to bare hands.

Recoil (blade thrust)

1. Kickback (blade thrust) is a sudden reaction to a snagged or stuck cutting blade. If this occurs, the tool will be thrown to the side or toward the operator with great force, which may result in serious injury.

2. Recoil occurs, in particular, when the blade segment is impacted between 12 and 2 o'clock on solid objects, bushes and trees with a diameter of 3 cm or more.



3. To avoid kickback

   • Apply between 8 and 11 o'clock.

   • Never apply the segment between 12 and 2 o'clock.

   • Never operate the segment between 11 and 12 o'clock and between 2 and 5 o'clock unless the operator is well trained and experienced and does so at his own risk.

   • Never use cutting blades near hard objects such as fences, walls, tree trunks and rocks.

   • Never use cutting blades vertically for tasks such as edging and hedge trimming.

Vibration

1. People with poor circulation who are exposed to excessive vibration may suffer damage to their blood vessels or nervous system. Vibration may cause the following symptoms in the fingers, hands or wrists: falling asleep (numbness), tingling, pain, tingling sensation, changes in skin or skin color. If any of these symptoms appear, consult your doctor!

2. To reduce the risk of white finger disease, keep your hands warm while working and take good care of your tools and accessories.

Symbols

The symbols used for the tool are shown below.

• V volt

• D.C.

Important safety instructions for the battery pack

1. Before using the battery pack, read all instructions and warning labels on (1) the charger, (2) the battery, and (3) the product that uses the battery.

2. Do not disassemble or disassemble the ampere battery pack. This may result in fire, overheating or explosion.

3. If the operating time is significantly reduced, stop working immediately. This can lead to overheating, burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them with clean water and seek immediate medical attention. This can lead to vision loss.

5. Do not short-circuit the battery pack:

   1. Do not touch the terminals with any conductive material.

   2. Avoid storing the battery pack in a container with other metal objects such as nails, coins, etc.

   3. Do not expose the battery pack to water or rain. Short circuiting the battery can cause high current, overheating, possible burns and even failure.

6. Do not store or use the tool and battery pack in locations where temperatures may reach or exceed 50°C (122°F).

7. Do not burn the battery pack, even if it is severely damaged or completely worn out. The battery pack may explode in a fire.

8. Do not nail, cut, crush, throw, drop, or hit the battery pack with hard objects. This behavior may result in fire, excessive heat, or explosion.

9. Do not use a damaged battery.

10. The lithium-ion batteries contained are subject to Dangerous Goods Legislation. For commercial transport, for example by third parties, freight forwarders, special packaging and labeling requirements must be observed. Consultation with a hazardous materials specialist is required to prepare the intercepted item. Please observe possibly more detailed national regulations. Tape or mask exposed contacts and pack the battery so that it cannot move around in the package.

11. When disposing of a battery pack, remove it from the tool and dispose of it in a safe location. Follow local battery disposal regulations.

12. Use batteries only with products recommended by Makita. Installing batteries in non-compatible products may cause fire, excessive heat, explosion, or battery leakage.

13. If the tool is not used for a long period of time, the battery must be removed from the tool.

14. The battery pack may become hot during and after use, which may cause burns or burns. Pay attention to handling hot battery cartridges.

15. Do not touch the tool contact immediately after use as it may become hot enough to cause burns.

16. Do not allow chips, dust, or dirt to get into the contacts, holes, or grooves of the battery pack. This may result in poor performance or damage to the tool or battery pack.

17. If the instrument does not support use at near-high-volume power lines, do not use the battery pack near high-voltage power lines. This may cause malfunction or damage to the tool or battery pack.

18. Keep the battery out of the reach of children.

WARNING: Use only original Makita batteries. Using non-genuine Makita batteries or batteries that have been modified may cause the battery to explode, causing fire, injury and damage. This will also void the Makita warranty on the Makita tool and charger.

Tips for Maintaining Maximum Battery Life

1. Charge the battery pack before it is completely discharged. Always stop using the tool and charge the battery pack when you notice a decrease in the tool's power.

2. Never charge a fully charged battery pack. Overcharging will shorten battery life.

3. Charge the battery pack at room temperature between 10°C and 40°C (50°F and 104°F). Allow a hot battery pack to cool before charging.

4. When not in use, remove the battery pack from the tool or charger.

5. Charge the battery pack if you do not use it for an extended period (more than six months).

MAKITA FUNCTIONAL DESCRIPTION

WARNING: Before making any adjustments or checking the operation of the tool, be sure the tool is turned off and the battery pack is removed. Failure to turn off and remove the battery pack may result in serious injury due to accidental starting.

Installing or removing the battery pack

WARNING: Always turn the tool off before installing or removing the battery pack.
WARNING: Hold the tool and battery pack firmly when installing or removing the battery pack. Failure to hold the tool and battery pack in place may cause them to slip out of your hands, causing damage to the tool and battery pack and causing injury.

1. Red indicator

2. Button

3. Battery pack

To remove the battery cartridge, pull it out of the tool by sliding the button on the front of the cartridge. To install the battery cartridge, align the tab on the battery cartridge with the groove in the housing and push it into place. Insert it all the way until it clicks into place with a slight click. If you see a red light on the top of the button, it is not completely locked.

WARNING: Always install the battery pack completely until the red indicator is no longer visible. Otherwise, it may accidentally fall out of the tool and cause injury to you or others.
WARNING: Do not force the battery pack into place. If the cartridge is difficult to insert, it is not inserted correctly.

Tool/battery protection system

The tool is equipped with a tool/battery protection system. This system automatically cuts off power to the motor to extend tool and battery life. The tool will automatically stop during operation and the lamps indicator will light up if the tool is in one of the following conditions:

Indicator lamps				Protection status
Color
Green				Overload
Red				Overheat
Red				Over- discharge

Lamps indicator

Overload Protection of Makita Cordless Multi Function Power Head XUX02

If the tool or battery encounters one of the following situations, the tool will automatically stop and the lamp indicator will flash green:

• The tool or battery is overloaded with tangled weeds or other debris.

• The tool is locked.

• The main power button is turned on when the trigger is pressed.

In this situation, release the trigger switch and correct the cause of the overload if necessary. After this, press the trigger switch again to resume operation.

WARNING: Before correcting the cause of the overload, be sure to turn off the tool.

Tool or Battery Overheat Protection
When the tool or battery pack overheats, the tool will automatically stop and the lamp indicator will turn red. Allow the tool and/or battery to cool before turning the tool back on.

Overload protection
When the battery capacity becomes low, the tool will automatically stop. The lamp indicator starts flashing red. If the tool does not operate even with the switches turned on, remove the battery pack from the tool and charge it.

Indication of remaining battery capacity

Only for batteries with indicator

1. Lamps indicator

2. Test button

Press the test button on the battery pack to indicate the remaining battery charge. The indicator lamps light up for a few seconds.

Indicator lamps

Remaining capacity

1. 75% to 100%



2. 50% to 75%



3. 25% to 50%



4. 0% to 25%



5. Charge the battery.



6. The battery may have malfunctioned



NOTE: Depending on usage conditions and ambient temperature, readings may vary slightly from actual container.
NOTE: The first (leftmost) lamp will flash when the battery protection system is activated.

Main power switch

WARNING: Always turn off the main power switch when not in use.
Press the main power button to turn on the instrument. To turn off the instrument, press and hold the main power button until the lamp indicator lights up.

1. Lamps indicator

2. Main power button

NOTE: The lamp indicator flashes when the trigger switch is pressed under non-operating conditions. lamp flashes when you turn on the main power switch while holding down the lock lever and the switch trigger.
NOTE: This instrument uses an auto power off feature. To prevent unintentional starting, the main power switch is automatically turned off if the switch trigger is not pulled within a certain period of time after the main power switch is turned on.

Switch action

WARNING: For your safety, this tool is equipped with a locking lever to prevent the tool from being launched unintentionally. NEVER use the tool if it works when you simply pull the trigger switch without pressing the lock lever. Return the instrument to our authorized service center for proper repair BEFORE further use.
WARNING: NEVER tape over or interfere with the purpose and function of the locking lever.
WARNING: Before installing the battery pack into the tool, always check that the trigger switch operates correctly and returns to the OFF position. when released.
WARNING: Never place your finger on the main power button or trigger switch when carrying the tool. The tool may start unintentionally and cause injury.
WARNING: Do not press the trigger too hard without pressing the lock lever. This may damage the switch.

To prevent accidental activation of the switch trigger, a locking lever is provided.

1. Lock lever

2. Trigger switch

To start the tool, turn on the main power switch and grasp the handle (the locking lever is released when grasped), then pull the switch trigger. The speed of the tool is increased by increasing pressure on the switch trigger. To stop the tool, release the trigger switch.

Speed ​​adjustment

You can select the speed of the tool by pressing the main power button. Each time you press the main power button, the speed level will change.

1. Lamps indicator

2. Main power button

Indicator lamps	Mode
	High
	Low

Electric brake

This tool is equipped with an electric brake. If the tool consistently fails to stop quickly after the trigger is released, please contact our service center to have the tool serviced.
WARNING: This braking system is not a replacement for tread. Never use a tool without a protector. An unprotected cutting tool can cause serious injury.

Electronic torque control function

The electronic tool detects a sudden drop in rotation speed that may cause kickback. In this situation, the tool automatically stops to prevent further rotation of the cutting tool. To restart the instrument, release the trigger switch. Eliminate the cause of the sudden drop in rotation speed, and then turn on the tool.
NOTE: This feature is not a preventive measure for rollbacks.

INSTALLATION of Power Head XUX02

WARNING: Before performing any work on the tool, be sure the tool is turned off and the battery is removed. Failure to turn off and remove the battery pack may result in serious injury due to accidental starting.
WARNING: Never start the tool until it is completely assembled. Operating the tool in a partially assembled state may result in serious injury due to accidental starting.

Mounting the Handle

Attach the handle with the supplied clamps and bolts. Make sure the handle is between the spacer and the arrow. Do not remove or compress the gasket.

1. Key amp

2. Hexagon socket bolt

3. Handle

4. Arrow

5. Spacer

When using the following attachments, be sure to attach the barrier to the handle using the screw on the barrier.

• Trimmer attachment

• Edge trimming attachment

• Only with a metal blade attached.

  1. Barrier

  2. Screw

Installation of fastening pipe

CAUTION: Always ensure that the connecting pipe is secure after installation. Improper installation may cause the attachment to fall off the power unit and cause injury. Install the connecting pipe to the power unit.

1. Turn the power unit lever towards the attachment.
   Lever




2. Remove the nozzle cap. Align the pin with the arrow and insert the connecting tube until the release button pops out.

   1. Release button

   2. Arrow

   3. Pin



3. Turn the lever towards the power supply.
   Lever




Make sure the surface of the lever is parallel to the pipe. To remove the pipe, rotate the lever toward the mounting and pull the pipe out while pressing the release button.

1. Release button

2. Lever

3. Handset

Adjusting the Handle Position

Adjust the position of the handle to obtain comfortable handling of the tool. Loosen the hex bolt on the handle. Move the handle to a comfortable working position and then tighten the bolt.

1. Handle

2. Hexagon socket bolt

Attaching the Shoulder Strap

WARNING: Use extreme caution and monitor the tool at all times. Do not allow the tool to swing toward you or anyone near the work. Failure to control the tool can result in serious injury to others and the operator.

WARNING: When using the tool in conjunction with a backpack-type power source, such as a portable power supply, do not use the shoulder strap included with the tool, but rather use a Makita-approved carrying strap. If you wear the shoulder strap included with the tool and the shoulder strap of the backpack power supply at the same time, it will be difficult to remove the tool or the backpack power supply in an emergency and may result in an accident or injury. Contact Makita Authorized Service Centers for recommended hanging strap information.
WARNING: Always use the shoulder strap attached to the tool. Before operation, adjust the shoulder strap according to the user's size to prevent fatigue.
WARNING: Before operating, ensure that the shoulder strap is properly attached to the tool harness.

1. Place the shoulder strap over your left shoulder.



2. Attach the hook on the shoulder strap to the tool hanger.

   1. Hanger

   2. Hook



3. Adjust the shoulder strap to a comfortable working position.



The shoulder strap has a quick release device. Simply squeeze the sides of the buckle to release the tool from the shoulder strap.

1. Buckle

Hex key storage

CAUTION: Be careful not to leave the hex key inserted into the tool head. This may result in personal injury and/or damage to the instrument. When not in use, store the hex key as shown in the illustration to prevent it from getting lost.

1. Handle

2. Hex key

Power Head XUX02 Description

The Makita Cordless Multi Function Power Head XUX02 is designed to deliver maximum performance and convenience. It features a powerful motor that delivers 1,050 inches per pound (IPM) of maximum torque, making it ideal for a variety of applications, including driving screws, drilling holes, and sanding surfaces. The XUX02 is also compact and lightweight, weighing only 2.7 pounds (without battery), making it easy to handle and maneuver in tight spaces.

The XUX02 is equipped with a variable speed control dial that allows users to adjust the speed from 0-4,000 RPM, providing maximum control and precision. It also features a built-in LED light that illuminates the work area, making it easier to see what you're doing in dark or poorly lit spaces.

SERVICE

WARNING: Always make sure the tool is turned off and the battery is removed before attempting to inspect or service the tool. Failure to turn off and remove the battery pack may result in serious injury due to accidental starting.
WARNING: Never use gasoline, benzene, thinner, alcohol, etc. This may cause discoloration, deformation or cracks.
To ensure product SAFETY and RELIABILITY, repairs and any other maintenance or adjustments should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

Cleaning the Tool

Clean the tool by wiping off any dust, dirt, or grass clippings with a dry cloth or a rag soaked in soapy water and wrung out. To prevent the tool from overheating, be sure to remove any grass clippings or debris stuck to the tool's vent.

Battery Guard

WARNING: Do not remove the battery guard. Do not use the tool with the battery guard removed or damaged. Direct impact to the battery pack may cause the battery to malfunction and cause injury and/or fire. If the battery guard is deformed or damaged, contact an authorized service center for repair.

1. Battery protection

MAKITA LIMITED WARRANTY

Please refer to the attached warranty sheet for the most current warranty terms and conditions applicable to this product. If the included warranty sheet is not available, please see the warranty details below. website for your country.

• United States: https://www.makitatools.com/

• Canada: https://www.makita.ca/

• Other countries: https://www.makita.biz/

Troubleshooting of Makita Cordless Multi Function Power Head XUX02

Before calling for repairs, do your own inspection first. If you discover a problem that is not described in the manual, do not attempt to disassemble the instrument. Instead, contact Makita Authorized Service Centers, always using Makita replacement parts for repairs.

Makita Pros & Cons

Pros

• Compatible with a range of attachments, making it a truly multi-functional power head
• Powerful motor that delivers 1,050 inches per pound (IPM) of maximum torque
• Variable speed control dial that allows users to adjust the speed from 0-4,000 RPM
• Built-in LED light that illuminates the work area
• Compact and lightweight, weighing only 2.7 pounds (without battery)

Cons

• May be expensive for some users
• Only compatible with Makita 18V LXT batteries
• Some users may find the variable speed control dial to be sensitive

Customer Reviews about Power Head XUX02

Customers who have purchased the Makita Cordless Multi Function Power Head XUX02 have praised its power and versatility. Many have commented on its ability to handle a variety of applications with ease, and have noted its compact and lightweight design as a major plus. Some users have reported issues with the variable speed control dial being sensitive, but this seems to be a minor issue that does not detract from the overall performance of the tool.

The most common complaint among customers is the price. While many agree that the XUX02 is a high-quality and reliable tool, some have noted that it is more expensive than other cordless power heads on the market. However, many customers have stated that the price is justified by the tool's performance and versatility.
