Introduction

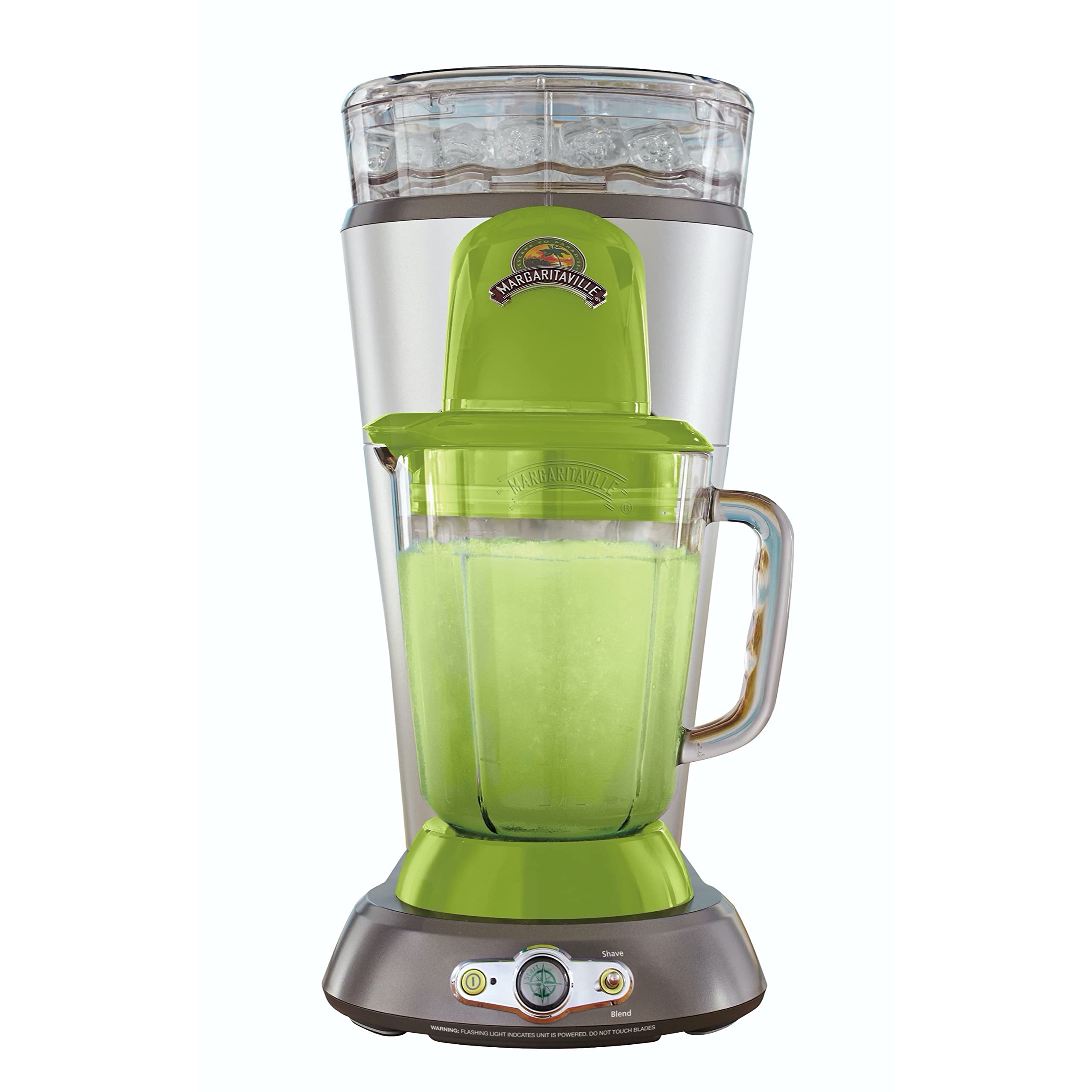

Introducing the Margaritaville Frozen Concoction Maker, the ultimate appliance for creating delicious and perfectly blended frozen drinks in the comfort of your own home. Whether you're a fan of margaritas, daiquiris, or pina coladas, this machine has got you covered. With an estimated price range of $200 to $400, this product is a worthwhile investment for any home bar. The Margaritaville Frozen Concoction Maker was launched in 2009 and has been a popular choice among home mixologists ever since.

Margaritaville Frozen Concoction Maker Specifications

 The Margaritaville Frozen Concoction Maker boasts the following key features:

• 36-ounce blending jar capacity
• Ice reservoir with an easy-to-use ice chute
• Durable stainless steel blending blades
• Multiple drink settings for a variety of frozen drinks
• Easy-pour spout for mess-free serving
• Cord storage underneath the base

Frozen Concoction Maker

PARTS LIST

1. Ice Reservoir Lid
   Covers the Ice Reservoir.
2. Ice Reservoir
   Holds the ice for making frozen drinks.
3. Shaving Paddle
   Moves ice across the Shaving Blade.
4. Ice Hopper
   Ice Hopper (ice deflector blade assembly)
   Feeds ice from reservoir to Shaving Blade.
5. Ice Shaving Blade
   Shaves ice.
   Ice Shaving Blade with deflector Shaves ice.
6. Shaving Blade Assembly Nut
   Holds Shaving Blade in place.
   U-Lock Holds Shaving Blade in place.
7. Ice Chute
   Directs ice from Ice Hopper into Blending Jar.
8. Blending Base
   Holds Blending Jar securely in place.
9. Control Panel
   Contains all necessary controls to operate your unit.
10. Spiller Spoiler Lid With Easy
    • Pour Spout Seals the blending jar.
11. Blending Jar
    Has maximum capacity of 36 oz.
12. Blending Blade Sealing Ring
    Seals the blending jar and blending base.
13. Blending Blade
    Creates forward action when blending drinks.
14. Jar Base
    Designed with wide base for stability.
15. Ice Reservoir Release Button
    Releases ice reservoir from unit.
16. Ice Melt Reservoir
    Contains melted ice excess.
17. Cord Storage Door
    Covers power cord storage area.

KEY WEST CONTROL PANEL

1. READY/OFF Rotary Switch – Turns your unit on and off.
2. Shave ’n Blend Toggle Switch – Used to select automatic Shave ’n Blend cycle.
3. Power Indicator Light – Blinks when unit is plugged in to indicate ready for use. Avoid any contact with blades or moveable parts.
4. Progress Indicator Lights – Shows status of Shave ’n Blend cycle.
5. Blend Only/Shave Only Toggle Switch – Used to manually operate ice shaver and blender.
6. Number of Drinks Rotary Switch – Used to select 1, 2 or 3 twelve oz. frozen drinks.

Description of Margaritaville Frozen Concoction Maker

Concoction Maker is a must-have appliance for anyone who enjoys entertaining at home. Its large blending jar capacity means you can make multiple drinks at once, while the ice reservoir ensures that you always have enough ice on hand for your frozen drinks. The stainless steel blending blades are strong enough to handle even the toughest of ingredients, while the multiple drink settings make it easy to switch between your favorite drinks. The easy-pour spout is a convenient feature that makes serving a breeze, and the cord storage underneath the base keeps your countertop tidy.

Making frozen drinks

1. Place the unit on a clean dry flat surface.

2. Place the Ice Reservoir on the unit front first, then push down firmly on back. Reservoir must click into place.



   NOTE:  IF ICE RESERVOIR IS NOT SEATED FIRMLY  IN PLACE THE UNIT WILL NOT OPERATE.

3. Remove the Cord Storage Door by pushing down on the release tab located on the Cord Storage Door. Remove the power cord and plug the unit  into a standard 120 Volt wall socket. Replace the Cord Storage Door and position the power cord in the slot below the cord storage release tab.



4. Remove the Ice Reservoir Lid using the  Release Button located on the top of the  Ice Reservoir.
   NOTE:  NEVER PUT ANYTHING BUT ICE IN  THE ICE RESERVOIR.



5. Fill the Ice Reservoir with ice cubes.
6. Replace the Ice Reservoir Lid and snap closed.
7. Lift and remove the Blending Jar. The Ice Chute is spring-loaded and  can be pushed up.

8. Remove Blending Jar Lid.



9. Add appropriate amount of liquid ingredients to the Blending Jar for the number of drinks being made (1, 2 or 3).
   NOTE:  NEVER SHAKE OR REMOVE JAR DURING OPERATION –  BLADE ASSEMBLY WILL GET DAMAGED.
   The Best Margarita Recipe

   Ingredients	1 Drink (fl oz)	1 Drink (ml)	2 Drinks (fl oz)	2 Drinks (ml)	3 Drinks (fl oz)	3 Drinks (ml)
   Margaritaville® Gold Tequila	1	30	2	60	3	90
   Triple Sec	1/4	7.5	1/2	15	3/4	22.5
   Lime Juice	1/2	15	1	30	1 1/2	45
   Orange Juice	1/2	15	1	30	1 1/2	45
   Margaritaville® Margarita Mix	1	30	2	60	3	90
   Total Volume	3 1/4	97.5	6 1/2	195	9 3/4	292.5

10. Replace Blending Jar Lid and return Blending Jar to Blending Base by pushing up on the Ice Chute with the Blending Jar and then placing it on the Blending Base.

11. Set the Number of Drinks Rotary Switch to correspond to the number of drinks being made. (Always select 3 drinks when using No-Brainer Mixing Tool.)



12. Rotate the READY/OFF Rotary Switch on the Control Panel to the Ready position.



13. Start the Automatic Shave ’n Blend™ Cycle by pushing up on the  Shave ’n Blend Toggle Switch.



14. The unit will shave ice for the appropriate time (based on the settings selected). The blender will start automatically. The unit will stop at the completion of the cycle.
    NOTE:  DURING THE SHAVE ‘N BLEND CYCLE  THE PROGRESS INDICATOR LIGHTS WILL  ILLUMINATE IN A SEQUENCE FROM LEFT TO  RIGHT TO INDICATE THE CYCLE PROGRESS.
15. The Power Indicator Light will blink  to indicate the unit is ready to make more drinks.

16. To serve: With the Spiller Spoiler lid, there’s no need to remove the lid for serving.




    NOTE:  To remove excess ice from the Ice Reservoir hold the Shave Only Toggle Switch in the Shave Only position until the Ice Reservoir is empty.
    WARNING:  DO NOT PLACE FINGERS IN THE  ICE HOPPER THE SHAVING BLADE IS SHARP AND COULD CAUSE INJURY.

17. Turn off the unit.

18. Periodically check the Ice Melt Reservoir and empty as needed.



Setup Guide

Setting up your Margaritaville Frozen Concoction Maker is easy. Simply plug in the machine, add ice to the reservoir, and select your desired drink setting. The machine will do the rest, blending your drink to the perfect consistency. To clean the machine, simply rinse out the blending jar and blades with warm water and soap.

Cleaning & Maintenance

IMPORTANT: Your Blending Jar, Shaving and Blending Blades are subject to wear during normal use. Always inspect for nicks, chips, or cracks. Always inspect for broken, cracked, or loose blades. If the jar or Shaving and Blending Blades are damaged, do not use.

1. Make sure unit is unplugged. Place on a clean dry surface. Turn the unit so the back is facing you. Push down on the  Ice Reservoir Release Button. Lift the back of the Ice Reservoir and remove. This will expose the Shaving Paddle and Ice Hopper.



   Note: The location of the Shaving Blade  inside the Ice Hopper.
   WARNING:  DO NOT PLACE FINGERS INSIDE THE  ICE HOPPER NEAR THE SHAVING BLADE.  BLADE IS SHARP HANDLE CAREFULLY.



2. To Remove the Shaving Paddle: Press the button located behind the Ice Chute. If the button cannot be pressed, rotate the  Shaving Paddle for a half turn and retry. While pressing the button, rotate the Shaving Paddle counter-clockwise (to the left) by placing fingers in the ridges of the Shaving Paddle and unscrew. This will expose the Ice Hopper and Shaving Blade. To re-assemble the Shaving Paddle, simply replace it into the threaded insert and rotate clockwise. Hand tighten only.



3. Press the two Ice Hopper release catches and  lift the Ice Hopper to remove.



4. Turn the Shaving Blade Assembly Nut  counter clockwise (to the left) and remove, then remove the Shaving Blade and store in a safe place.
5. Carefully lift the Jumbo Jar straight up to remove. The Ice Chute is spring-loaded and can be pushed up. If the Blending Jar is not easily removed, rock gently and lift. Do not twist.

6. Turn the Blending Jar upside down and unscrew the jar base clockwise (to the right). Carefully remove the blending blade, and blending blade sealing ring.



   WARNING:  THE BLENDING BLADE IS SHARP.  HANDLE WITH CARE.

7. To remove the Ice Melt Reservoir hold the unit still and pull straight out on the handle.
8. The Ice Reservoir Lid, Ice Reservoir, Shaving Paddle, Ice Hopper, Shaving Blade Assembly Nut, Shaving Blade, Blending Jar Lid, Jumbo Jar, Blending Blade, Blending Blade Sealing Ring, Jar Base and Ice Melt Reservoir can be safely washed in the top rack of your dishwasher. Use only top rack. Failure to do so will result in damage.

9. Use a damp cloth to clean the outside of the unit.



WARNING:  UNPLUG UNIT BEFORE CLEANING.  DO NOT USE SOLVENTS.  NEVER IMMERSE THE UNIT IN WATER.

NOTE:  THIS APPLIANCE HAS NO USER SERVICEABLE PARTS. ANY SERVICING OTHER THAN THE CLEANING DESCRIBED ABOVE SHOULD BE PERFORMED BY AN AUTHORIZED SERVICE REPRESENTATIVE.

Margaritaville Frozen Concoction Maker Manual Cycle

To make a thicker drink

• Hold the “Blend Only/Shave Only” Toggle Switch in the Shave Only position to add more ice to the Blending Jar.

• To stop adding ice, release the toggle switch.

• To mix the newly added ice into the
  drink, hold the Blend Only/Shave Only Toggle Switch in the Blend Only (down) position until the desired consistency is achieved. To stop the blending, release the Toggle Switch.

• Use less drink mixer than in recipe. (ex. use 12 oz. (354 mL) or less liquid ingredients)



To make a thinner drink

• Hold the Blend Only/Shave Only Toggle Switch in the Blend Only (down) position until the desired consistency is achieved.

• To stop blending release the Toggle Switch.

• Add more drink mixer than in recipe (use 14 oz. (414 mL) or more of total mix)

IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

1. READ ALL INSTRUCTIONS BEFORE USING.

2. To protect against electric shock, do not immerse appliance, cord or plug in water or other liquids.

3. Close supervision is necessary when any appliance is used near children. This appliance should not be used by children.

4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.

5. Avoid contact with moving parts.

6. Do not operate any appliance with damaged cord or plug, after the appliance malfunctions, or is dropped or damaged in any manner.

7. Do not use outdoors.

8. Do not let cord hang over the edge of a table or counter or touch hot surfaces, including the stove.

9. Keep hands and utensils out of container while blending and/or ice shaving to reduce risk of severe injury to persons or damage to the unit. A rubber spatula may be used but must be used only when the appliance is not running.

10. Blades are sharp; handle carefully.

11. Always operate appliance with Jar Lid and Ice Reservoir Lid in place.

12. The use of attachments not recommended or sold by the manufacturer may cause fi re, electric shock, or injury.

13. Do not use broken, chipped, or cracked Blending Jar or Ice Reservoir.

14. To reduce risk of injury to persons, never place Blending Blade Assembly on base without the Blending Jar properly attached.

15. Do not leave appliance unattended while it is operating.

16. To disconnect, turn control to off, then remove plug from wall outlet.

17. Do not use appliance for other than intended use.

18. Never place fi ngers or other utensils into feed or discharge areas.

19. Check Ice Reservoir for presence of foreign objects before using.

20. Be certain the Jar Lid and Ice Reservoir Lid are securely locked in place before operating appliance.

21. Do not blend hot liquids.
    NOTE: NEVER SHAKE OR REMOVE BLENDER JAR DURING OPERATION AS JAR BLADE ASSEMBLY CAN GET DAMAGED.

SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY

Polarized Plug
This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fi t in a polarized outlet only one way. If the plug does not fi t fully into the outlet, reverse the plug. If it still does not fi t, contact a qualified electrician. Do not attempt to defeat this safety feature.

Margaritaville Frozen Concoction Maker Troubleshooting

• If the Power Indicator Light does not light
  Check that the unit is plugged into a working power outlet.

• If liquid leaks from the base of the Blending Jar
  Remove it from the unit and check that the Blending Blade Sealing Ring is properly installed and that the Blending Jar Base is tightened.

• If water leaks from the unit: Empty the Ice Melt Reservoir.

• If the Blending Jar overfl ows during the Shave ’n Blend cycle
  Follow the drink recipes included in “making frozen drinks” section and make sure to not exceed the specifi ed total volume.

• If the Blending Jar will not sit on the Blending Base
  Remove it from the unit and check for ice on the Blending Base.
  WARNING: unplug the unit before removing ice from the Blending Base.

• If the unit is in fault mode (fast blinking red status compass rose indicator light)
  Check that the Ice Reservoir and Ice Reservoir Lid are properly installed and in the lock position.

• If the drink is too watery
  Make sure to follow the recipe guide (pg.5) or manually shave more ice until the desired consistency is achieved.

Dos and Don’ts

• DO NOT place fi ngers into the Blending Jar or Ice Hopper. The blades in this unit are sharp and could cause injury.

• DO NOT place Blending Jar onto Blending Base while motor is running. The spinning Blending Base could damage the Blending Jar.

• DO NOT twist Blending Jar when removing. Simply lift and remove. Twisting the Blending Jar could loosen the Blending Jar Base causing it to leak.

• DO NOT put hot liquid into the Blending Jar. Hot liquids could be ejected during the blending process causing injury.

• DO NOT place ice, frozen foods or very cold liquids into a Blending Jar which has come directly from a hot dishwasher. The sudden change in temperature could cause the Blending Jar to crack.

• DO NOT place very hot liquids or foods into a Blending Jar that has come directly from the freezer. The sudden change in temperature could cause the Blending Jar to crack.

• DO follow the cleaning and maintenance instructions prior to your fi rst use and after subsequent uses.

• DO unplug the unit when not in use.

One Year Warranty

Sunbeam Products, Inc., doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions
(collectively “Jarden Consumer Solutions”) warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. Jarden Consumer Solutions, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value.

Pros & Cons

Pros

• Large blending jar capacity
• Durable stainless steel blending blades
• Multiple drink settings
• Easy-pour spout
• Cord storage

Cons

• Higher price point compared to other blenders
• Large size may not be suitable for smaller kitchens

Customer Reviews about Margaritaville Frozen Concoction Maker

Customers rave about the Margaritaville Frozen Concoction Maker, praising its ease of use and ability to create perfectly blended frozen drinks. However, some customers have mentioned that the machine can be a bit loud and that the ice reservoir needs to be refilled frequently.
