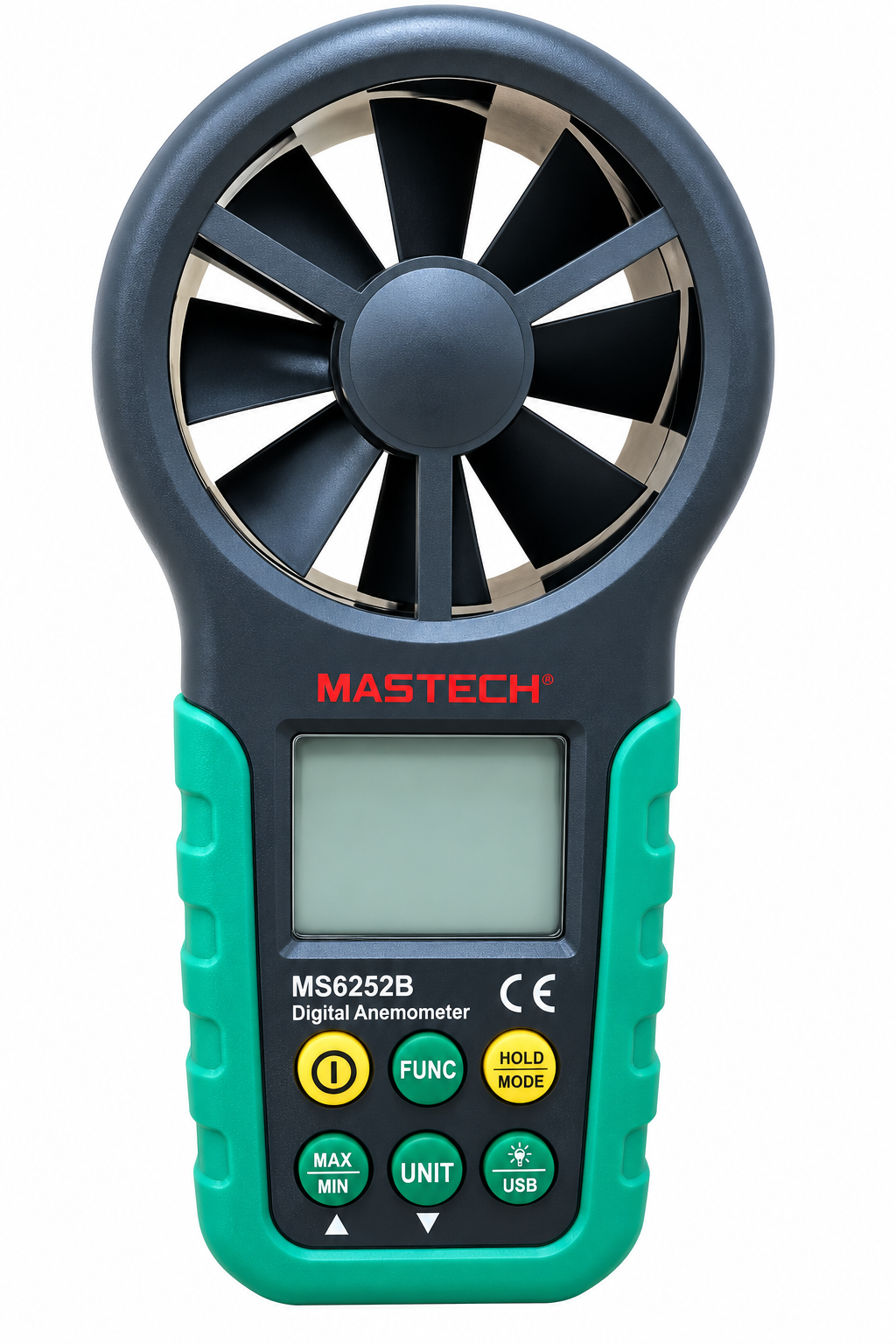

Introduction of Mastech Wind Speed Anemometer MS6252B

Mastech Wind Speed Anemometer MS6252B is a high-precision instrument designed to measure wind speed and temperature. This device is an ideal tool for meteorologists, weather enthusiasts, and HVAC professionals who need to monitor wind speed and temperature in their daily tasks. With an expected launch date in early March and an estimated price of around $100, this anemometer is a great value for its features and capabilities.

ATTACHMENTS

Technique data

• Ambient temperature: 2 3±5° C,

• Relative humidity: <7 5%

m/s

km/h

ft/s

knots

mile/h

ft/m

Air volume unit

Ambient temperature, dew point temperature, wet bulb temperature

Relative humidity

SPECIFICATION

The meter should be recalibrated under the condition of 18°C~28°C, relative humidity <75% every year.

General

• Work height: Maximum 2000m

• Work mode: Frequency of wind speed conversion

• Display: LCD

• Maximum show value: 9999

• Sampling time: About 0.4s/time.

• Low battery indicator: sign displays on LCD.

• Work power: 1×9V 6F22 battery.

• Operation environment: Relative humidity– 0~95%RH, no moisture condensation. Temperature–-20°C~80°C,, no moisture condensation

• Detector (fan) operation environment: Relative humidity– 0~95%RH, no moisture condensation. Temperature–-20°C~80°C, no moisture condensation.

• Storage environment: Relative humidity– 0~80%RH, no moisture condensation Temperature–-10°C~50°C, no moisture condensation

• Dimension: Meter –165L x 85W x 38H mm.

• Weight: About 200g

Description

This meter is a digital anemometer for measuring the ambient temperature, humidity, dew point temperature, wet bulb temperature, wind speed, and air volume. This meter is a portable, professional measuring instrument with large-screen LCD and backlight, multi-unit switching functions.

• This meter can be used for hand-held or fixed measurement.

• This meter has the functions of reading hold, maximum, minimum, etc.

• It has a low battery indicator and USB real-time data uploading functions.

Part Name

1. Fan

2. LCD

3. “FUN” — Function switching button

4. Power switch

5. “UNIT” — Unit switching button

6. Maximum/Minimum button

7. “HOLD/MODE” hold display, switch temperature mode

8. “ /USB” — Backlight/USB real-time data uploading functions

9. Fan retaining bolt hole

10. Connection hole for fixing measurement bracket

11. Battery housing cover retaining bolt hole

12. Battery cover

FRONT PANEL

BACK PANEL

Button Description

• Power Button: Switch for meter powering on/off.

• /USB button: Switch for turning on/off the backlight and USB transmission.

• HOLD/MODE button: Switch for reading retention and temperature mode.

• FUN button: It is used for switching among the functions of wind speed measurement, area setting, and air volume measurement. Long press for three seconds to enable or disable "Auto Power-Off" function.

• MAX/MIN button: Switch maximum/minimum/normal mode, long press to exit.

• UNIT button: Switch unit, area (m², ft²), long press to switch (°C, °F) Wind speed (m/s, km/h, mil/h, ft/m, ft/s, knots), Air volume (CMS, CMM, CFM).

Sign Definition

• Indicates Auto Power-Off status

• H Reading hold state

• VEL Wind speed measurement state

• FLOW Air volume measurement state

• AREA Area setting required by air volume

• DP Indicates that the current mode is dew point temperature mode

• WB Indicates that the current mode is wet bulb temperature mode

• °C, °F Temperature unit

• %RH Relative humidity sign

• USB Indicates that USB real-time data uploading is enabled

• MAX Displays maximum after entering maximum/minimum mode

• MIN Displays minimum after entering maximum/minimum mode

• m² Indicates that the current area setting unit is square meter

• ft² Indicates that the current area setting unit is square foot

• CMM Cubic meters per minute

• CMS Cubic meters per second

• CFM Cubic meters per minute

• knots Nautical miles per hour, 1850 meters per hour

• ft/s Feet per second

• ft/m Feet per minute

• m/s Meters per second

• Km/h Kilometers per hour

• mil/h Nautical miles per hour

• Low battery indicator

OPERATING GUIDANCE

1. Power On/Off
   Press the"POWER" key to turn on or off the anemometer power.
2. Reading hold
   In the measurement process, if the reading should be kept, press "HOLD" key to lock the reading, and display the HOLD symbol; press it again to unlock.
   Note: In the reading hold state, "FUN", "MAX/MIN" and "UNIT" keys are invalid.
3. Backlight
   In the measurement process, if the ambient light is too dark to read, you can press"" key to open the backlight. Backlight timer is set to 15 seconds. During this period, you can press"-:+:-" key again to turn off backlight at any time.
   Note
   1. The luminous body of backlight is LED with large operating current. Frequently using backlight will shorten battery life. Do not use backlight when unnecessary.
   2. When the battery voltage::; 7V, the" " (low battery) symbol will show on the display. However, in the case of using the backlight, if the battery voltage 7V, the battery voltage drops because of its larger operating current, "" symbol may show (when "" symbol is showing, the accuracy of the measurement can't be guaranteed). At this moment, you needn't replace battery until the"" symbol display again under normal use condition without using backlight.
4. Wind speed measurement
   Place the detector (fan) into the test environment, "VEL" symbol will display on the screen, measurement is done with the fan surface perpendicularly to the wind direction.
   Note
   • If the detector (fan) is not aiming at the wind direction, which will bring the measurement error.
   • For steady wind, the detector (fan) will get maximum reading when it is aiming at the wind direction.
5. Wind speed measurement
   When using the meter to measure air volume, you can press "UNIT" key to select the measurement unit you required (m/s, km/h, mill/h, ft/m, ft/s, knots).
6. Area setting
   • To measure air volume, you should first determine the area of air flue to be, area input steps are shown as following:
   • Press "FUN" key to make "AREA" display on  the screen.
   • Use the "MAX/MIN" and "UNIT" keys to adjust value and unit, after adjusting area unit (m2 , ft2 ), then press "MAX/MIN" key. There should be an audible buzz, indicating that area input is completed and settings are saved.
   • To change the area setting, please repeat the  step
7. Air volume measurement
   Place the detector (fan) into the test environment. Use the "FUN" key to set the meter to the Air volume measurement mode; the "FLOW" symbol should display on the screen.
   Measurement is done with the fan surface perpendicular to the wind direction.
   Note
   1. If the detector (fan) is not aligned in the wind direction, the measurement can be skewed.
   2. For steady wind, the detector (fan) will get maximum reading when it is aiming at the wind direction.
8. Air volume unit selection
   When using the meter to measure air volume, you can press the "UNIT" key to select the measurement unit your required (CMS, CMM, CFM).
9. Temperature unit selection
   Long press the "UNIT" key for 3 seconds to switch temperature unit (° C, °F).
10. Temperature mode selection
    Long press the "HOLD/MODE" key for 3 seconds to switch temperature mode (ambient temperature, dew point temperature and wet bulb temperature).

11. USB real time data uploading
    Long press the " USB" key for 3 seconds to enable or disable USB real time data uploading function.

    Detailed steps are shown as follows:

    1. Use CD to install the PC software and the USB drivers.
    2. Power on the meter and connect it to a computer with USB cable.
    3. Launch the PC software.
    4. Long press the"/ USB" key for 3 seconds to     enable the USB function of the meter.
    5. The PC software displays data and diagrams.

    6. Save or print data.



12. Using tripod connection receptacle
    1. When necessary, the meter can be fixed on a tripod.
    2. When necessary, the meter can be used by hang.
13. Replacing battery
    1. If the “”sign appears, this indicates that the battery should be replaced.
    2. Power off the meter and remove the battery cover.
    3. Replace the old battery.
    4. Install the battery cover properly.

Mastech Wind Speed Anemometer MS6252B Setup Guide

To operate the Mastech Wind Speed Anemometer MS6252B, follow these steps:

1. Turn on the device by sliding the power switch to the "ON" position.
2. Select the desired measurement unit for wind speed and temperature by pressing the "MODE" button.
3. Hold the device with the sensor pointing into the wind.
4. The device will automatically measure the wind speed and temperature and display the results on the digital display.

SAFETY INFORMATION

Please read carefully the following safety information before usage and maintain this anemometer while using it according to operating guidance, otherwise, the anemometer may be damaged. The anemometer will provide satisfactory services to you if you use and protect it appropriately.

Preparation

• Please check for damage during transportation after receiving the anemometer.

• If it should be stored and shipped under hard conditions, please confirm that whether the meter is damaged.

Usage

• The meter should be used in the range of specified ambient temperature and humidity.

• If you notice any abnormality or failure, it should stop using.

• Don't store or use the meter under the conditions of direct sunlight, high temperature, and high humidity.

• Don't touch the fan blades with excessive force.

• Don't directly expose the blades in the hard light to avoid reading error.

Maintenance

• Repair or maintenance should be implemented by trained personnel.

• If there is dust on the fan blade, please blow it with clean air or scrub gently with a damp cloth and mild detergent.

• Clean the meter with a damp cloth and mild detergent. Don't use abrasive material or solvent.

• The meter should be powered off when it is not in use.

• The meter will consume small current, about 5µA, after shutdown. If the meter is not to be used for a long period, batteries should be removed to prevent damaging the meter.

Troubleshooting

If the device is not measuring wind speed or temperature correctly, try the following solutions:

1. Ensure that the sensor is pointing into the wind.
2. Replace the batteries if the low battery indicator is displayed.
3. Calibrate the device using a known wind speed or temperature source.
4. Check for any physical damage to the device or sensor.

Pros & Cons

Pros

• High precision and accuracy
• Easy to use and operate
• Digital display for easy reading
• Data hold function and memory for maximum and minimum values
• Low battery indicator

Cons

• Handheld design may not be suitable for all applications
• May not be as durable as other anemometers in its price range

Customer Reviews about Mastech Wind Speed Anemometer MS6252B

Customers have praised the Mastech Wind Speed Anemometer MS6252B for its accuracy and ease of use. However, some have noted that the device may not be as durable as other anemometers in its price range. Overall, the device has received positive reviews and is a great value for its features and capabilities.
