Introduction

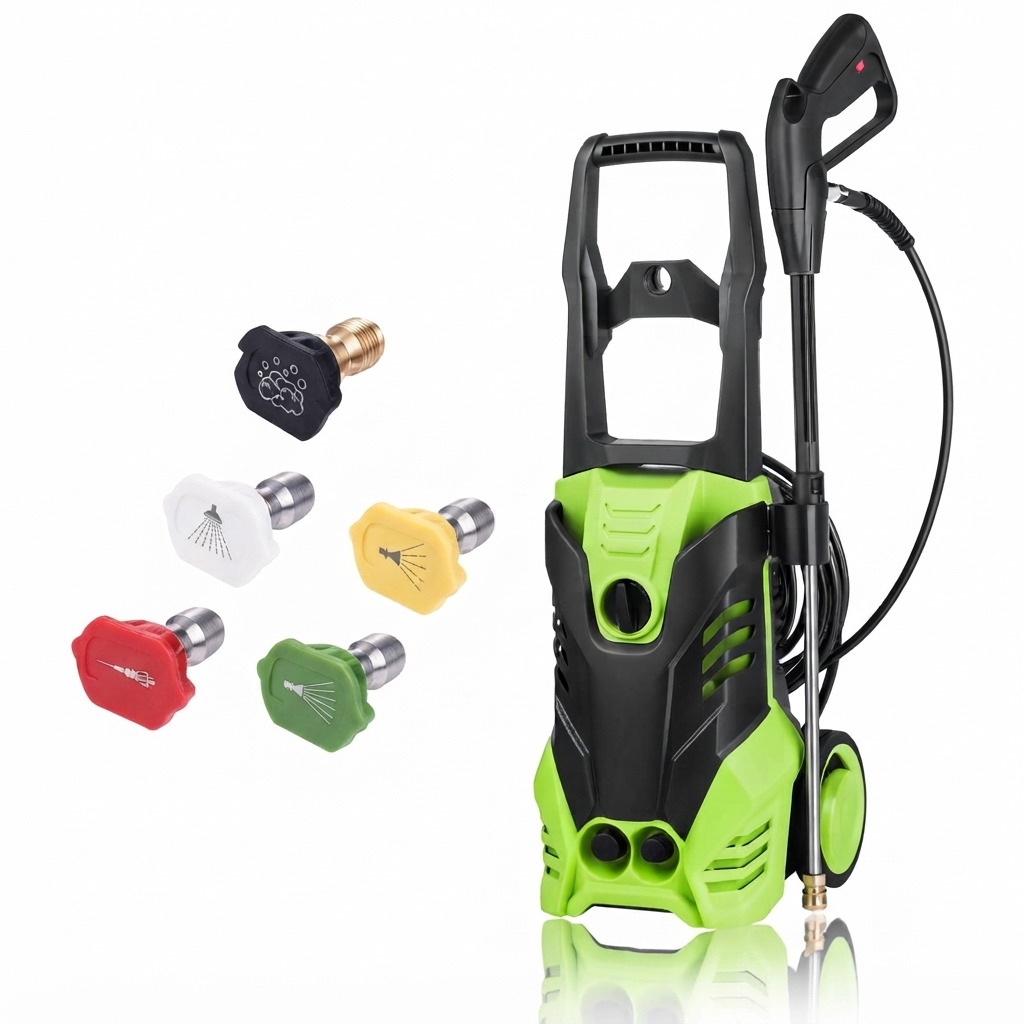

The Meditool Electric Washer Pressure 3000PSI is a powerful cleaning tool designed for tackling tough dirt, grime, and stains on various outdoor surfaces. With an impressive 3000 PSI pressure output, it can effectively clean driveways, patios, vehicles, and more. The washer features an 1800W motor, adjustable spray nozzles, and an onboard detergent tank for added convenience. Priced at $145.99, the Meditool Electric Washer Pressure 3000PSI offers excellent value for its performance and features.

ACCESSORY

Product Details

• Power Source: Electric (120V, 60Hz)
• Pressure: Up to 3000 PSI
• Flow Rate: 1.7 GPM
• Weight: Approximately 40 lbs
• Dimensions: 20 x 12 x 18 inches

Usage Purpose

This pressure washer is perfect for cleaning driveways, sidewalks, decks, patios, and even heavy-duty equipment. Its high pressure and flow rate ensure that tough dirt and grime are removed efficiently, making it a go-to tool for anyone looking to maintain their property.

Detailed Specifications

• Motor: 1800W induction motor for reliable performance
• Spray Nozzle: Interchangeable spray nozzles (0°, 15°, 25°, 40°) for various cleaning tasks
• Hose Length:25 feet high-pressure hose for extended reach
• Detergent Tank: On-board detergent tank for easy soap application
• Safety Features: Automatic shut-off, thermal protection, and overheating protection

ELECTRICAL DIAGRAM

Description

The Meditool Electric Washer Pressure 3000PSI boasts a robust design with a durable steel frame and ABS plastic components. The induction motor ensures quiet operation and minimal vibration, while the high-pressure pump delivers consistent performance. The unit comes with a convenient storage compartment for the hose, nozzles, and other accessories. The on-board detergent tank allows for easy application of cleaning solutions, making the cleaning process more efficient.

ASSEMBLY

High-pressure hose connection
Connect the pressure hose to the machine's outlet, making sure it is connected firmly. See picture 1

Gun connection
Connect the gun lance(Fixed brush/turbo lance) to the gun stock. Turn the gun lance(Fixed brush/turbo lance) clockwise until it is locked in position. Connect the hose to the thread of the gun stock by a spanner. Check that the seal ring is properly seated. See Picture 2

Inlet hose connection

1. Connecting water hose to inlet, make sure it is connected firmly. Do not turn on the machine at this moment.
2. Turn on the tap, and make sure the inlet water pressure keeps between 0.01 Mpa and 0.3 Mpa.
3. Pull the trigger till all the air is pushed out of the machine and water flows from the gun. It means now the pump is full of water.

OPERATION

Gun operation
The spray angle can be adjusted.The spray angle can be varied from straight to fan by turning the nozzle. See picture 4

• High/Low-Pressure Operation
  The nozzle controls the washer pressure. Push the nozzle in the closed position for high-pressure operation keeping at least 30cm away from workpieces.
  NOTE: No detergent will be dispensed in high-pressure mode



  LOW Pressure Operation(for dispensing cleaning detergent)
  Pull out the nozzle for low-pressure operation. This is the required position to dispense the detergent from the built-in detergent reservoir. See picture 5
  NOTE: Detergent needs to be diluted to achieve the most effective cleaning. It is recommended to dilute the detergent in a suitable container to the required concentration before using

Switching off the appliance

1. Turn off the water supply at the tap.
2. Press the trigger to reduce the pressure in the appliance.
3. Pull out the water inlet hose, then let the machine run for a few seconds to drain the water of storing in the pump.
4. Switch off the appliance and disconnect the electric plug from the power socket

5. Detach the pressure hose. To drain the residual water, lift up the jet gun and squeeze the trigger. See picture 6



Setup Guide

1. Unpacking: Carefully unpack all components from the box.
2. Assembly: Attach the spray nozzle to the end of the high-pressure hose. Connect the hose to the pump outlet.
3. Configuration: Plug in the unit and ensure all connections are secure.
4. Operation: Turn on the unit and adjust the spray nozzle as needed.
5. Pairing: Use the on-board detergent tank by filling it with your preferred cleaning solution.

USER MAINTENANCE AND REPAIR

1. Disconnect from the electrical power supply before carrying out user maintenance.
2. Turn off the water supply at the tap and press the trigger to discharge the pressure. Lubricate the fixing periodically using the lubrication oil.
3. When the water pressure is not consistent or too high, it shows the signal of defectivet hose or accumulation of the Calcium in the nozzle.
4. Turn off the machine immediately.
5. Use the nozzle cleaner to clean the hose and the water inlet filter.
6. Change the defective filter.
7. Make sure that the machine is clean and clean the components when necessary.
8. Follow the operation instructions for the different parts. Pluggable ring-nuts are used to connect the gun, hose and other parts.
9. The seals of the ring-nut connections shall not be damaged
10. Turn the detergent tank and fasten it to the foam nozzle.
11. Connect the foam nozzle with the jet gun.
12. Turn on the machine. input the cleaning agent by a proportion of 1%. Warning: Use only the cleaning agent supplied by the manufacturer or their after-sales service.
13. Keep the appliances safe and store them carefully in a secure dry place. Always store the machine out of the reach of children.
14. Avoid storing the washer in temperatures below the frost point.
15. Cut off the power if the appliance malfunctions.

GENERAL SAFETY RULES

• WARNING: This machine has been designed for use with the cleaning agent supplied or recommended by the manufacturer, The use of other cleaning agents or Chemicals may adversely affect the safety of the machine.
• WARNING: Do not use the machine within range of persons unless they wear protective clothing.
• WARNING: Risk of explosion does not spray flammable liquids.
• WARNING: High-pressure cleaners shall not be used by children or untrained personnel.
• WARNING: Water that has flown through backflow preventers is considered to be non-potable .
• WARNING: Removing the plug from the socket-outlet during cleaning or maintenance and when replacing parts or converting the machine to another function:
• WARNING: Inadequate extension cords can be dangerous.
• WARNING: Ensure that any exhaust emissions are not in the vicinity of air intakes.
• WARNING: Do not use the appliance without reading the instruction sheet.
• WARNING: The electrical supply connection shall be made by a qualified person and comply with IEC 60364-1. The electric supply to this appliance should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms or a device that will prove the earth circuit.
• WARNING: Keep the operating area clear of all persons
• WARNING: High-pressure hoses, fittings,, and couplings are important for the safety of the appliance, Use only hoses, fittings, and couplings recommended by the manufacturer.
• WARNING: Do not use the appliance if a supply cord or important parts of the appliance are damaged. e.g. safety devices, high-pressure hoses, and trigger guns.
• WARNING: If an extension cord is used, the plug and socket must be of watertight construction.
• WARNING: Improper extension cords can be dangerous.
• WARNING: High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment, or the appliance itself.
• WARNING: Do not direct the jet against yourself or others to clean clothes or footwear.
• WARNING: Disconnect from the electrical power supply before carrying out user maintenance.
• WARNING: To ensure appliance safety, use only original spare parts from the manufacturer or approved by the manufacturer.
• WARNING: Do not leave the appliance unattended while the machine is running.
• WARNING: Do not use cleaning agents or chemicals in the appliance.
• WARNING: Turn off the appliance if it is in the event of an accident (e.g. contact with detergents: rinse With an abundance of clean water ) or break down to prevent unsafe situations.
• WARNING: When the appliance is moving and installing, the appliance must be in flat.

ADDITIONAL SAFETY INSTRUCTIONS

• To safely use the cleaner, make sure that you have read all of these instructions and checked the machine before operation. Have a try before the official use.
• The machine, hose, and plug must be checked before the operation. Defective parts should be repaired by a specialist.
• Do not direct the jet at the machine, socket, and wire connection.
• Do not direct the jet to people and animals.
• Check the hose connection before operation, the leaky and defective parts shall be repaired or replaced immediately.
• Do not touch the electrical plug or any wall socket with wet hands.
• Use the handle grip to transport the machine, it's forbidden to drag the power cord to move the appliance.
• When you unplug, grasp the plug, not the cord.
• Only the power cord which with rubber insulation enclosure or protection enclosure can be used. Keep the plug and hose in a dry place.
• To prevent the maximum operating pressure, the outlet hose should be at least 3M long.
• Do not use the pressure cleaner in an inflammable environment.
• Take care of the kickback force and the sudden torque on the spray assembly when opening the trigger gun. Always use two hands to grip the gun firmly before pressing the trigger.
• Only press the switch after the high-pressure hose is tightly fixed.
• Always wear protective clothing, gloves, and safety glasses. It's forbidden to use the machine bare-footed or when wearing a sandal.
• By operation keep the hand away from the water jet and hose.
• Sometimes the reflected water is also dangerous.
• Do not direct the water to the fire or hot equipment. Hot particles and steam are dangerous.
• Do not use the pressure washer with inflammable or toxic liquids, corrosive detergents, or any dangerous products.
• Use only your hand to squeeze the trigger, do not jam the trigger in the ON position.
• Before disconnecting the high-pressure hose, turn off the machine first, then squeeze the trigger until there is no more pressure in the system.
• Do not bend, twist, or fold the hose.
• Use only original spare parts supplied by the manufacturer.
• A fluctuating or high water pressure shows the signal of defect or accumulation of the calcium in the hose. In this case, turn off the machine immediately.
• Do not run the cleaner without water. This will cause damage to it.
• Before starting the machine, fully open the water supply tap. Be careful not to bend the hose. When the machine hose or tube freezes in winter, do not use it. Before storing the water must be drained from the machine. Always store the pressure washer in a secure dry and frost-protected place
• Do not use the machine in a dirty place.
• Put the machine on a flat surface.
• The sea water is not suitable for use in this machine.
• The appliance is not fit for long-term industrial use.

This appliance is not intended for use by persons (including children) with reduced physical, sensory, or capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

The function of the Safety valve: when the pressure of the pump exceeds the Preset valve, returns the excess fluid to the inlet system.

The function of the pressure switch: When turning off a gun, the pressure switch on the action, cuts off the power supply for protection operations.

PROBLEM AND SOLUTION

Warning! Disconnect from the electrical power supply before carrying out user maintenance. If the mains cable is damaged it must be replaced by the manufacturer, or its service agent,, or similarly qualified person to avoid a hazard.

INSPECTION & MAINTENANCE

For safety use, make sure a three-month clean the appliance . Before working, make sure to inspect the filter and the nozzle, to make sure there are no impurities. After working, make sure there is no water in the pump and the hose.

If the product needs to be repaired in the guarantee period, please return the product to the shop. You need to provide the certificate of purchase in order to repair or get the substitute. Before Packaging, The appliance should be cleaned, then use closed packaging, packaging should be firm. Store the appliance in dry.

For transportation safety, the appliance should comply with ISTA.

Pros & Cons

Pros

• High Pressure: Effective at removing tough dirt and grime.
• Versatile Nozzles: Interchangeable nozzles for various cleaning tasks.
• Durable Construction: Robust steel frame and ABS plastic components.
• Quiet Operation: The induction motor reduces noise and vibration.
• Efficient: High flow rate and on-board detergent tank for efficient cleaning.

Cons

• Heavy: Weigh approximately 40 lbs, which may be cumbersome for some users.
• Cord Length: Limited by the length of the power cord (10 feet).
• Noise Level: While quieter than gas models, it still produces some noise.

Customer Reviews

The Meditool Electric Washer Pressure 3000PSI has received positive reviews from users who appreciate its powerful performance and ease of use. Some common praises include its ability to tackle tough cleaning jobs and its quiet operation compared to gas-powered models. However, some users have noted that the unit is heavy and may require additional effort to move around.

Most Common Complaints

• Weight: Several users have mentioned that the unit is heavier than expected.
• Cord Length: Some users have noted that the power cord could be longer for greater convenience.
