Introduction

A smart home device that is designed to improve the automation and security of your house, the Meross Door Sensor Kit B086MKBC63 is available for purchase. The wireless door sensor that is included in this kit is designed to interact smoothly with the smart home system that you already have in place. It will provide you with real-time alerts and notifications whenever a door is opened or closed. Voice control and automation are both possible with this product, which is compatible with Amazon Alexa, Google Assistant, and SmartThings. This gives you the ability to easily build personalized routines and improve the safety of your house or business. Because it is simple to install and use, the Meross Door Sensor is a very useful addition for anyone who is interested in enhancing their experience with smart home technology.

Package Contents

You find any part is missing in the package, please contact [email protected] we will provide proper solution for you.

Detailed Specifications

The meross Door Sensor Kit B086MKBC63 is equipped with cutting-edge technology that guarantees dependable and precise performance with its components. In addition, the hub has a Wi-Fi connectivity range of up to 150 feet, and each sensor is fitted with a high-precision magnetic sensor that can detect even the smallest amount of movement. Continuous monitoring is ensured by the sensors' use of batteries, which have a battery life of up to two years and are powered by internal batteries. In addition, the kit is compatible with services such as Amazon Alexa, Google Assistant, and IFTTT, which enables you to include it into your already established smart home system.

Meross Door Sensor Kit B086MKBC63 Installation Guide

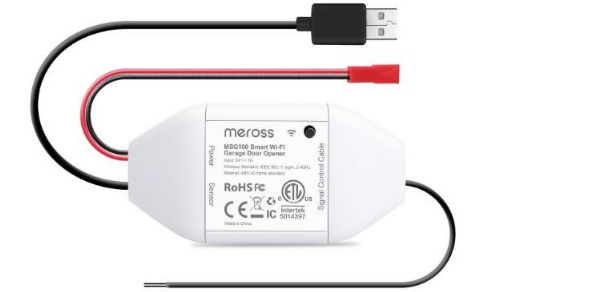

1. Meross smart garage door opener is the companion device of your existing garage door opener. It supports up to 3 garage doors. Its main working principle is as follows.
   Connecting Wires



2. Download the Meross app and choose Smart Garage Door Opener to get start.



3. Power on the device. Wait about 5 seconds until the status LED blinks amber and green.



4. Connect the device to your home WiFi with Meross app.

5. Choose how many garage doors are you going to setup in the app wizard, it can help activate the ports automatically. You can activate/inactivate extra port any time after the configuration.



6. Connect the sensor cable. Move the sensor to check if it is functional*. Make sure the cable is connected to the activated port.



7. Find a proper position on the garage door to mount the sensors*. Please make sure the distance between the two sensors is less than 1 inch when the garage door is closed, and the two sensors are well separated when the garage door is open.
   'You can use the included double-sided adhesive tapes or screws for sensor fixation.



8. Power OFF both existing garage door opener and your smart device. Connect the signal control cable to the two terminals that connects to the wall button. Wire order does not matter here.



9. Deploy the device. We recommend to deploy it on the top of your existing garage door opener and if you have three single doors, please deploy the device on the middle door opener. Use the provided double-sided adhesive tapes for the fixation if necessary.



10. If you have two or three single doors•, please repeat step 6 - 8 to finish the setup. 'Additional garage door sensor kit is required for the second or third single door.
11. Power on both existing garage door opener and smart garage door opener. The smart garage door opener will reconnect to Meross cloud service automatically.

LED and Button Rules

Status LED

• Solid amber: Initialization/ Reset/ Firmware upgrading mode.
• Flashing amber and green slowly: Configuration mode.
• Flashing green rapidly: Wi-Fi connecting mode.
• Solid green: Successfully connected.
• Solid red: No internet connection.
• Flashing amber once: Sensors connected or disconnected(Door close or open detected).
• Off: Power OFF.

Description

The meross Door Sensor Kit B086MKBC63 is a home security solution that will not take up much space and will be simple to install. Considering how small and unobtrusive the sensors are, they are an excellent choice for any door or window. The hub features a sleek and contemporary style that is able to mix in perfectly with any kind of interior design. In addition, the package comes with mounting hardware and a user manual, which makes the installation and configuration process simple. Through the use of the meross app, you are able to keep track of the condition of your doors and windows, generate individualized notifications and alerts, and even take command of other smart home devices.

How to Use

General Settings

1. Port 1/2/3:  Activate/Inactivate doors, and configure individual garage settings.
2. LED: Turn on/off LED.
3. User manual: Check user manual

Port Settings

1. Garage door name:  Change garage name.
2. Garage door status:  Activate or inactivate this garage door.
3. Operation history: Check operation history of this garage door.

Door Notifications

• Open:  Send me a notification each time my garage door opens.
• Close:  Send me a notification each time my garage door closes.

Overtime reminder

1. Send me a notification when my garage door opens for 10-60 mins. Overnight reminder:
2. Send me a notification when my garage door is still open after particular time.

Auto close & Advance settings

1. Over time close:  Close the door automatically when the door opens for a period of time.
2. Fixed time close:  Close the door automatically when the door is still open after particular time.
3. Opening time: Choose the proper time duration for your garage door opener. App use it as a timeout parameter to confirm the status of your garage.
4. Trigger Duration: Choose the proper trigger duration if you find your meross app can't fully close or open your garage door. The trigger duration is the same time as you press the garage wall button.
5. Closing alarm: Sound alarm when door is closing.

Setup Guide

The installation of the door sensor kit B086MKBC63 from meross is a simple and uncomplicated process. To begin, you will need to download the Mero app and then establish an account. After that, you will need to connect the hub to your Wi-Fi network and plug it in. After that, use the mounting hardware that was provided to you to securely attach the sensors to your windows or doors. After they have been fitted, the sensors will automatically link with the hub once they are ready. All that remains is for you to configure your notifications and alerts through the meross app, and then you will be ready to launch.

Voice Control

Choose "Meross" skill, the commands are as following:

• "Hi Alexa, open/close my garage."
• "Hi Alexa, lack/unlock my garage."
• "Hi Alexa, is my garage locked/closed?"

Note: Please replace "garage" to the garage door name you set. Amazon Alexa support Security Code, you can enable it via Amazon Alexa app.

Google Assistant
Choose "meross" action, the commands are as following:

• "Hey Google, open/close garage door."
• "Can I have your securi'ty code?"
• "Hey goagle, is garage door opened/closed?"

Note: Please replace 'garage door' to the garage door name you set. PIN code is required to set by google for security concern.

Widgets

Widgets are the quick access to your Meross devices and Scenes. To enable it, please go to Account-> Widgetto add shortcuts first. And then follow below steps on your smartphones to activate them.

For iPhones

1. Swipe to the right on your Home or Lock screen
2. Scroll down to the bottom ofyourwidget list and then tap edit.
3. Scroll down to find Meross and add it.

For Android smartphones

1. On the home screen, tap and hold on an available space.
2. Tap Widgets, find Meross widget and then add it.

Troubleshooting

If you encounter any problems with the meross Door Sensor Kit B086MKBC63, here are some common solutions:

• If the sensors are not pairing with the hub, make sure they are within range and the hub is connected to Wi-Fi.
• If you are not receiving notifications, check the app settings and make sure notifications are enabled.
• If the battery is low, replace it with a new CR2032 battery.

It is also recommended to avoid exposing the sensors to extreme temperatures or moisture, as this can affect their performance. If you continue to experience problems, contact meross support for further assistance.

Meross Door Sensor Kit B086MKBC63 Warranty

Meross products are covered by a 12 months limited warranty from the date of its original purchase. If any problems occur, please contact [email protected] for help.  We can only provide aftersales service for products that are sold by Meross or Meross authorized retailers and distributors.

Pros & Cons

Pros

• Easy to install and set up
• Reliable and accurate performance
• Compatible with Amazon Alexa, Google Assistant, and IFTTT
• Long battery life
• Affordable price

Cons

• Limited Wi-Fi range
• No local storage for recorded videos

Customer Reviews

"I love the meross Door Sensor Kit! It's easy to install, reliable, and affordable. I appreciate the compatibility with my existing smart home system. The notifications are timely and accurate, giving me peace of mind when I'm not at home. " -Mary "I had some trouble setting up the kit, but the meross support team was very helpful and guided me through the process. The sensors are small and discreet, and the hub has a sleek design. I feel much safer knowing that my doors and windows are monitored." - John

"The battery life is impressive, and the sensors are very responsive. I would recommend this kit to anyone looking for an affordable and reliable home security solution." - Sarah
