Setup: Metro S800 Mobility Scooter User Manual

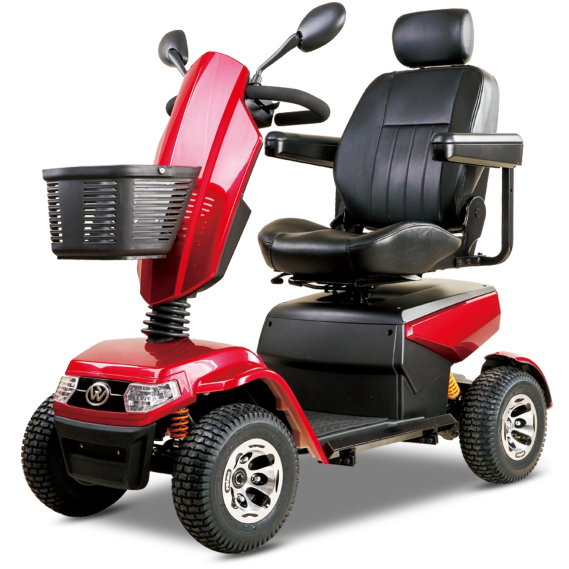

Metro S800 Mobility Scooter

Introduction

The Metro S800 Mobility Scooter is a versatile and reliable personal mobility device designed to enhance independence and comfort for users with limited walking ability. Ideal for seniors, individuals recovering from injury, or those with mobility impairments, the metro S800 offers a smooth and stable ride both indoors and outdoors. Its compact but sturdy design makes it suitable for everyday errands, recreational activities, and social outings.

Key benefits of the metro S800 include a robust motor system that ensures efficient performance on various terrains, an ergonomic seating arrangement for long-term comfort, and intuitive controls that make operation easy even for first-time users. The scooter incorporates advanced safety features, such as automatic braking and anti-tip technology, to provide peace of mind during use.

Targeted mainly at adults seeking a dependable mobility solution, the metro S800 balances power, portability, and ease of use. It is well-suited for those who value both the freedom to move independently and the confidence that comes with a well-engineered product.

The estimated price range for the Metro S800 Mobility Scooter falls between $1,200 and $1,600, depending on the retailer and optional accessories. It is widely available through authorized dealers and online mobility stores, with customer support and warranty options to ensure lasting satisfaction.

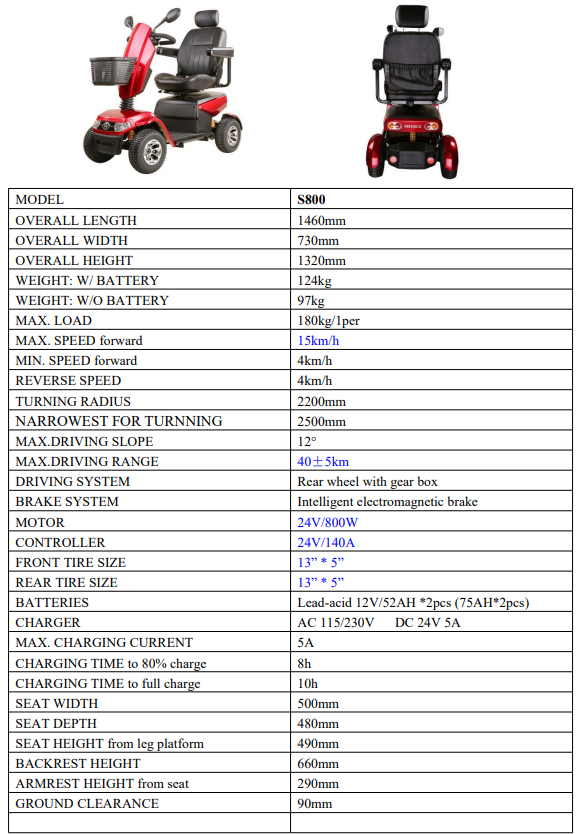

TECHNICAL SPECIFICATIONS

Compared to similar scooters in its class, the Metro S800 offers a superior combination of range and portability, making it competitive with models like the Merits Health Roadster S4 and Pride Go-Go scooters, which may have similar speeds but often less compact designs or shorter battery life.

SAFETY INSTRUCTION

Distinguished guests, please read this manual carefully before using the scooter for an understanding of the precautions and scooter performance. Failure to follow the instructions may lead to scooter damage or serious personal injury.

1. Please obey local traffic regulations when using the product.
2. Do not try to refit the scooter without permission or use the scooter for other purpose.
3. In the event you feel dizzy, your vision is blurred due to a health condition or medication, please must not operate the scooter.
4. Consult your physician if you are taking prescribed medication or if you have any certain physical limitations. Some medications and limitations may impair your ability to operate scooters in a safe manner.
5. Drunk driving is strictly prohibited in the any area.
6. Please check the brake system before driving the scooter.
7. Do not set the electric switch OFF before the scooter stops stably on smooth ground.
8. Don't remove the anti-tipper wheel if the scooter is equipped with it.
9. Do not stop the scooter when climbing a slope or drive on a slope steeper than the limitation for the stability of the scooter and your safety.
10. Please ride with caution and keep a safe distance on the road in rain, oil,, and snow to prevent tires from slipping and rolling over.
11. Please slow down and be careful when turning or reversing.
12. Please do not use the music entertainment system when driving the scooter, for it may cause distraction and a traffic accident.
13. Please do not overload.
14. Please power off the scooter when it is not in use to prolong the service life of the battery and protect you from accidents. Do not charge under the exposure of the sun in the sun Charge the battery indoors in winter when the outdoor temperature is lower than 10℃.

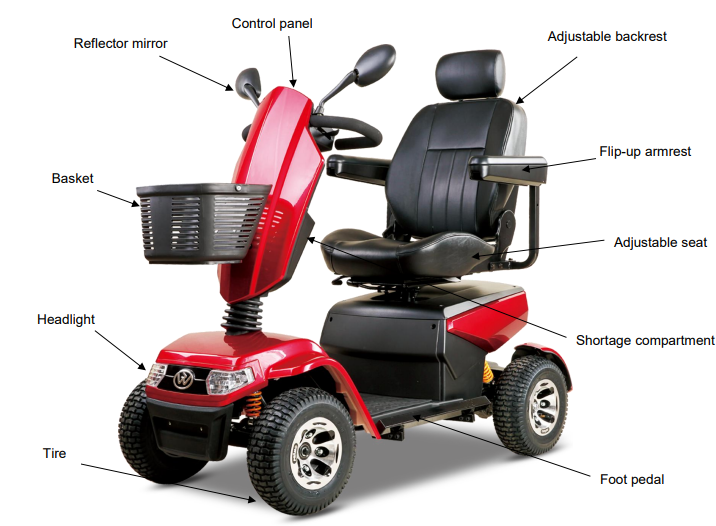

FEATURES

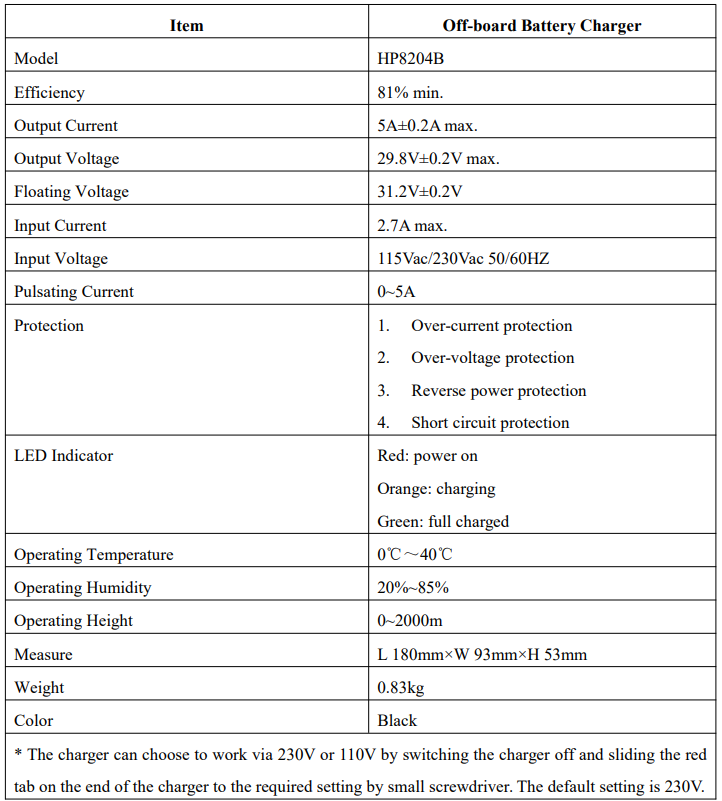

CHARGING INSTRUCTIONS

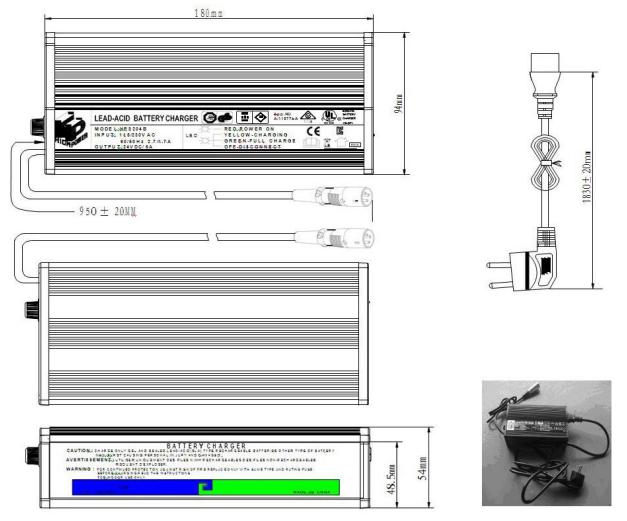

Appearance & Dimensions

BATTERY INSTRUCTIONS

Battery pack care plan

• The battery should be compatible with the scooter and with a matching charger; no mixed use is allowed.
• The battery shall be checked whether it has been damage, cracks, and whether the battery surface is clean before use.
• A new battery will achieve the best performance after 2or 3 complete cycles of charge and discharge. If batteries are kept unused for more than a month, they will lose about 5% of their capacity.
• Do not leave the charger connected to the batteries when the mains socket/plug is switched off.
• In the event of a short circuit, the battery management system will switch to protect mode, and the power cord, in tandem with the safety piece,, will fuse to give a double protection to the battery. Once the fault is removed, the battery can work normally.
• If you leave your scooter for an extended period (more than 5 days), please charge your batteries for 12 hours, then remove the charger and ensure the batteries are disconnected.
• If the battery needs to be stored, you should disconnect the battery from the charging equipment and the connection part of the load; it should be kept in a cool, clean room. And you should conduct a supplementary power every 3 months during a shortage.
• Please do not dispose of the battery out of use at will for the sake of environmental protection.

Caution

• Remember to remove the plug from your scooter when the charger is off, to prevent driving away whilst attached. The scooter cannot be operated when being charged.
• The batteries need to be checked regularly for signs of damage. If any damage is apparent, contact your local mobility dealer immediately.
• Take care not to short-circuit the battery terminals. Remove all conductive jewelry (e.g.,, watches, necklaces, es etc.) before checking the batteries.
• When charging, always place it on a hard surface in a room with good ventilation. You should not charge the batteries in outdoor conditions.
• Do not expose any part of the battery to direct heat (i.e.,, gas fires or naked flame).
• Do not allow the batteries to freeze.
• Do not dispose of batteries in normal waste. Always recycle in accordance with local laws.

SCOOTER MAINTENANCE

Proper routine maintenance of S800 can prolong its service life and check out the potential problems that may affect the running and performance of the scooter. Regular items that are required are listed as follows:

ROUTINE MAINTENANCE

1. Keep the scooter free of dust, dirt,, and liquids. To clean the product, use a cloth dampened with warm, soapy water. Do not use chemicals, solvents, or abrasive cleaners, as this may cause damage to the product.
2. Monthly check all vehicle components for loose, damaged,, or corroded components, such as connectors, terminals, or cables. Restrain all cables to protect them from damage. Replace damaged components.
3. Check the tire pressure and the degree of wear regularly to see whether they need to be changed.
4. Check the seat to see whether it is loose or shakes sharply before riding.
5. Check whether the electromagnetic brake meets the brake requirements, and the scooter can be placed on the appropriate slope for further inspection.
6. Check the motor to see whether it needs to be replaced, especially after being used for one year.
7. Please develop good driving habits, and operate the scooter beyond the permitted range.
8. The scooter should be stored in a dry and ventilated place. Please do not place it in the water or a very damp environment (humidity should be less than 85%).
9. If the scooter has not been used for a long time, please check the battery condition and keep the battery fully charged and charge for it at least once a month.

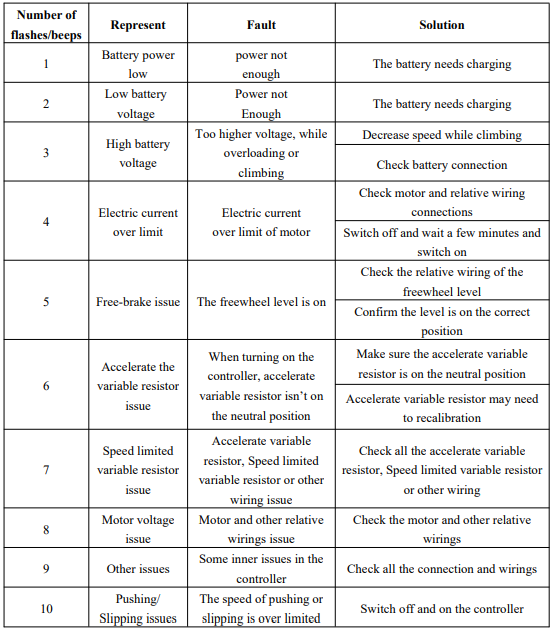

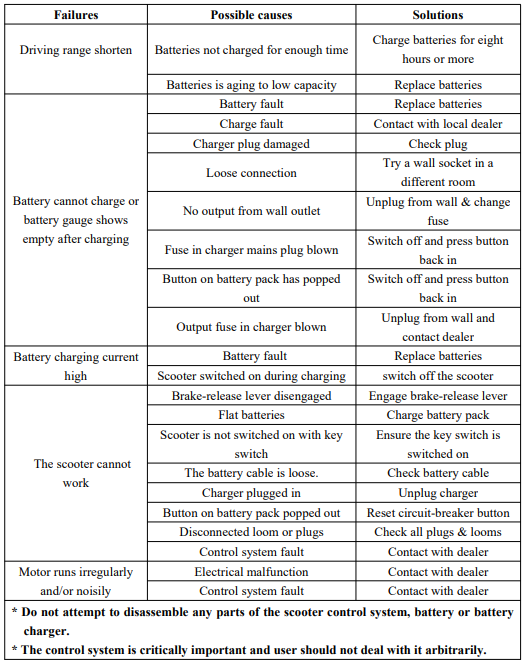

TROUBLESHOOTING & FAULT REPAIR

Your scooter is engineered with a self-diagnostic controller that continuously monitors the operating conditions of your scooter. If it detects a problem, it will indicate an error message by flashing the READY on the LCD and sounding an audible will beep simultaneously. You should count the number of flashes and beeps separated by a short delay between each sequence, and check the list below to see what kind of problem has happened according to the number.

WARRANTY

All equipment supplied by Metro Mobility is warranted by the company to be free from faulty workmanship or materials. If any defect is found within the warranty period, the company will repair, or at its discretion replace, the equipment without charge for materials or labour.

1. The repairing or replacement of any part will be carried out by authorized Dealers/Service Agents.
2. In the event of safety performance failure (the products fail to comply with safety requirements, have personal safety/property hazard, do not have the due service performance, or have other design/manufacturing/processing defect and cause quality problem and lead to accessory damage) within 7 days (including) after the sales date (the invoice date shall prevail) even you follow the instructions, you may choose to return, replace or repair the product;
3. Should any part or parts of the scooter need repairing or replacement as a result of a specific manufacturing or material defect within two years from the date on which the possession of the scooter was transferred to the original purchaser, and subject to it remaining within that ownership, then the part or parts will be repaired or replaced completely free of charge if returned to the authorized service agent.  (Note: This guarantee is not transferable.)
4. Parts replaced after the original warranty has expired are covered for a further three months.
5. Items of a consumable nature will not generally be covered during the normal warranty period unless such items have clearly suffered undue wear as a direct result of an original manufacturing defect. These items include, amongst others, upholstery, tires, inner tubes, batteries, arm pad, hand grips, and other similar parts.
6. The above warranty conditions apply to all scooter parts for models purchased at full retail price.
7. Under normal circumstances, the warranty will be void  ,, ed and no responsibility will be taken by the manufacturer for the following reasons:
   • The scooter or parts that have not been maintained in accordance with the manufacturer’s instructions above, or do not use the original accessories provided by the manufacturer or agents.
   • The scooter or parts have been damaged for personal neglect, accident, modification,, or misuse
   • The original technical specifications of the scooter or parts have been altered without the authority of the manufacturer, or the scooter or parts have been repaired by users themselves without approval from service agents.
     Please keep a note of your local Service Agent’s address and telephone number in the space provided. In the event of a breakdown, please contact with them and give all the relevant details so that they can help you in time.
     The scooter shown and described in this manual may not be exactly the same in every detail as your own model. However, all instructions are still entirely relevant irrespective of the detailed differences.
     The manufacturer reserves the right to alter without notice any weights, measurements, or other technical data shown in this manual. All figures, measurements, and capacities shown in this manual are approximate, and do not constitute specifications.

Pros and Cons of the Metro S800 Mobility Scooter

• Pros:
  • Powerful motor delivers smooth acceleration and hill-climbing ability
  • Long battery range supports extended trips without frequent recharging
  • Compact and lightweight design allows easy transport and storage
  • Comfortable, adjustable seat enhances user experience during long rides
  • User-friendly controls suitable for all skill levels
• Cons:
  • Top speed may be lower compared to high-end heavy-duty scooters
  • Weight capacity limits are used for heavier individuals beyond 300 lbs
  • Some users report a learning curve adjusting to the tiller controls
  • Limited color options reduce personalization choices

Overall, the Metro S800 offers excellent value for money within the mid-range mobility scooter market. While alternatives like the Pride Go-Go Elite might offer more features, the S800’s balance of portability, power, and price makes it a popular choice.

Customer Reviews and Feedback on the Metro S800 Mobility Scooter

Users generally praise the Metro S800 Mobility Scooter for its reliable battery life and ease of maneuvering in tight indoor environments. Common compliments include the comfortable seating and sturdy frame, with many customers highlighting how it restored their mobility and independence.

Frequent complaints focus on the scooter’s speed limit for outdoor use and occasional difficulty in adjusting the tiller angle. However, most users find these issues minor compared to the overall performance.

With an average rating of 4.3 out of 5 stars, the Metro S800 is recommended for people looking for a dependable, mid-priced mobility scooter suitable for both indoor and outdoor use.
