Setup: Mongoose Rise 100 Freestyle Scooter R6313 User Manual

Mongoose Rise 100 Freestyle Scooter R6313

Introduction

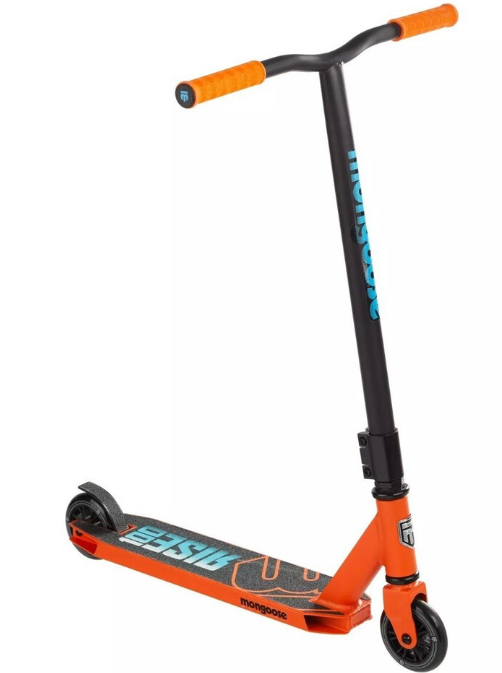

The Mongoose Rise 100 Freestyle Scooter R6313 is a high-performance scooter designed for freestyle riding and tricks. This scooter is part of Mongoose's esteemed lineup, known for its durability and quality. The Rise 100 is intended for intermediate to advanced riders who are looking to push their skills to the next level. With its robust construction and precise handling, this scooter is perfect for skate parks, streets, and other urban environments.

The estimated price of the Mongoose Rise 100 Freestyle Scooter R6313 is around $200-$250, making it a competitive option in the market. The scooter was launched in recent years, aligning with the latest trends and innovations in freestyle scootering.

Whether you're a seasoned pro or an aspiring rider, the Mongoose Rise 100 offers the perfect blend of style, performance, and reliability. Its sleek design and vibrant color options make it a standout choice among enthusiasts.

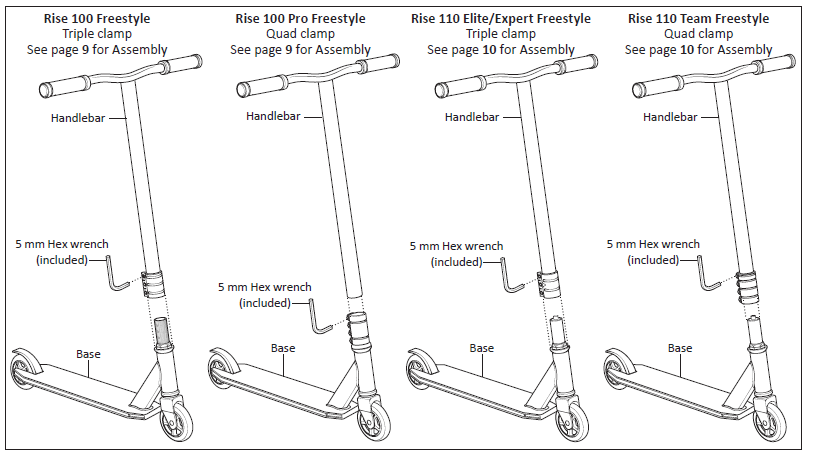

Parts

Specifications

• Deck: 4.25" x 19.5" 6061-T6 Aluminum
• Handlebar: 22.5" x 25" Steel T-Bar with BMX-Style Crossbar
• Fork: Threadless, Steel, and IHC Compatible
• Wheels: 100mm x 24mm PU Cast with 86A Hardness
• Bearing: Sealed Bearing with ABEC-9 Rating
• Brake System: Adjustable Spring-Loaded Brake System
• Weight Capacity: Up to 220 lbs
• Age Range: Suitable for Riders Aged 8 and Above

Safety Warning Messages

The following Safety Warning Messages indicate a potential personal injury hazard. Failure to follow the warnings may result in damage to property, injury, or death.
This manual contains many Warnings and Cautions concerning the consequences of failure to follow safety warnings. Because any fall can result in serious injury or even death, we do not repeat the warning of possible injury or death whenever the risk of falling is mentioned.

Age and Weight Range

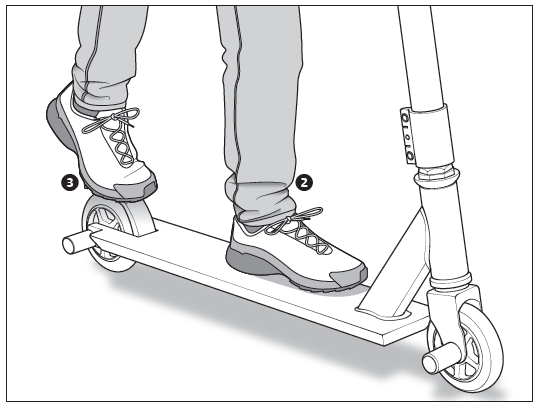

Use

1. Grip the handlebars firmly with both hands.
2. With one foot firmly on the scooter, begin to slowly push the scooter forward with the other foot.
3. Brake by pressing down on the rear wheel stop.

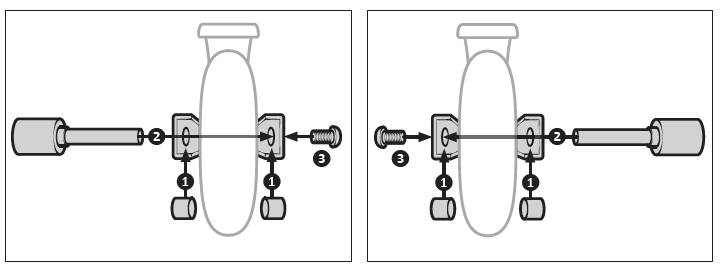

Rear Peg Adjustment

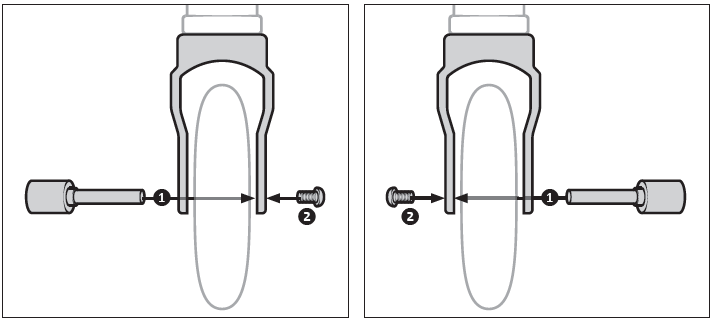

Front Peg Adjustment

Maintenance

WARNING
Proper maintenance is critical to the performance and safe operation of the scooter. Always inspect the scooter and conduct necessary maintenance before each use of the scooter. Failure to conduct maintenance on the scooter may result in the malfunction of a critical part or serious injury or death.

This section presents important information on maintenance and will assist you in determining the proper course of action to take if you do have a problem with the operation of the scooter. If you have questions regarding maintenance, please call our customer service, toll-free, at 1-800-626-2811 or see a qualified bicycle mechanic. Do not call the store where the scooter was purchased.
Correct routine maintenance of your new scooter will ensure:

• Smooth running
• Longer-lasting components
• Safer riding
• Lower running costs

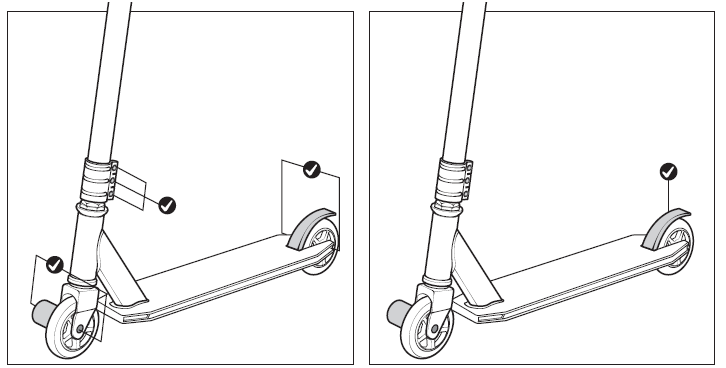

Basic Maintenance
The following procedures will help you maintain your scooter for years of enjoyable riding.

• For painted frames, dust the surface and remove any loose dirt with a dry cloth. To clean, wipe with a damp cloth soaked in a mild detergent mixture.
• Clear any debris between the wheels and frame.
• Store your scooter under a shelter. Avoid leaving it in the rain or exposed to corrosive materials.
• Riding on the beach or in coastal areas exposes your scooter to salt, which is very corrosive. Wash your scooter frequently.
• If the paint has become scratched or chipped on the metal, use touch-up paint to prevent rust. Clear nail polish can also be used as a preventative measure.
• Check that the wheels are securely fastened to the scooter and axle nuts are tight.

Troubleshooting

If you encounter issues with your scooter, here are some common problems and their solutions:

• Wobbly Handlebar: Check if the handlebar is properly tightened to the fork. Adjust or tighten as necessary.
• Unresponsive Brakes: Adjust the spring-loaded brake mechanism or clean the brake surface to ensure proper contact.
• Loose Wheels: Tighten the axle bolts securely but avoid over-tightening.

Always follow safety instructions and wear protective gear when riding.

Warranty

LIMITED WARRANTY AND POLICY ON REPLACEMENT PROCEDURES & RESPONSIBILITIES
Your purchase includes the following warranty, which is in lieu of all other express warranties. This warranty is extended only to the initial consumer purchaser. No warranty registration is required. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

FRAME
Frames are guaranteed against manufacturing defects for a period of 5 years. If frame failure should occur due to faulty materials or workmanship during the guarantee period, the frame will be replaced. For frame replacement under this Pacific Limited Warranty, contact us, stating the nature of the failure, model number, date received, and the name of the store from which the scooter was received, at the address given on this page . The frame must be returned for inspection at the customer’s expense. The length of the useful life cycle will vary depending on the type of scooter, riding conditions, and care the scooter receives. Competition, jumping, downhill racing, trick riding, trial riding, riding in severe conditions or climates, riding with heavy loads, or any other non-standard use can substantially shorten the useful product life cycle. Any one or a combination of these conditions may result in an unpredictable failure that is not covered by this warranty.

PARTS
All other parts of the unit, except Normal Wear Parts, are warranted against defective materials and workmanship for a period of 1 year from the date of purchase by the initial consumer purchaser, subject to the Terms and Conditions of the warranty listed below. If failure of any part should occur due to faulty materials or workmanship during the warranty period, the part will be replaced. All warranty claims must be submitted to the address below and must be shipped prepaid and accompanied by proof of purchase. Any other warranty claims not included in this statement are void. This especially includes installation, assembly, and disassembly costs. This warranty does not cover paint damage, rust, or any modifications made to the scooter. Normal Wear Parts are defined as grips, wheels, and the brake mechanism. These parts are warranted to be free from defects in material and workmanship as delivered with the product. Any claim for repair or replacement of Normal Wear Parts (grips, wheels, brake mechanism) and missing parts must be made within thirty (30) days of the date of purchase. The warranty does not cover normal wear and tear, improper assembly or maintenance, or installation of parts or accessories not originally intended or compatible with the scooter as sold. The warranty does not apply to damage or failure due to accident, abuse, misuse, neglect, or theft. Claims involving these issues will not be honored.

CONDITIONS OF WARRANTY

1. Your scooter has been designed for general transportation and recreational use, but has not been designed to withstand abuse associated with stunting and jumping. This warranty ceases when you rent, sell, or give away the scooter, ride with more than one person, or use the scooter for stunting or jumping.
2. This warranty does not cover ordinary wear and tear or anything you break accidentally or deliberately.
3. It is the responsibility of the individual consumer purchaser to ensure that all parts included in the factory-sealed carton are properly installed, all functional parts are initially adjusted properly, and subsequent normal adjustments necessary to keep the scooter in good operating condition are properly made. This warranty does not apply to damage due to improper installation of parts, installation of any kind of power plant or internal combustion engine,  modification or alteration of the brakes, or frame in any way, or failure to properly maintain or adjust the scooter. NOTICE: Scooter specifications subject to change without notice.

Pros & Cons

Pros:

• Durable Construction: Built with high-quality materials for long-lasting performance.
• Precise Handling: Designed for smooth and responsive steering.
• Adjustable Brake System: Allows for customized braking power.
• Stylish Design: Available in various vibrant colors and sleek designs.

Cons:

• Weight Limitation: The Maximum weight capacity of 220 lbs may limit heavier riders.
• Maintenance Required: Periodic checks and adjustments may be necessary to maintain optimal performance.
• Assembly Required: Some riders may find the assembly process cumbersome.

Customer Reviews

Customers have praised the Mongoose Rise 100 Freestyle Scooter R6313 for its robust build quality and excellent performance. Many have noted that its handling is very responsive, making it ideal for tricks and stunts. However, some users have mentioned that the assembly process can be a bit challenging, and periodic maintenance is necessary to keep the scooter in top condition.
