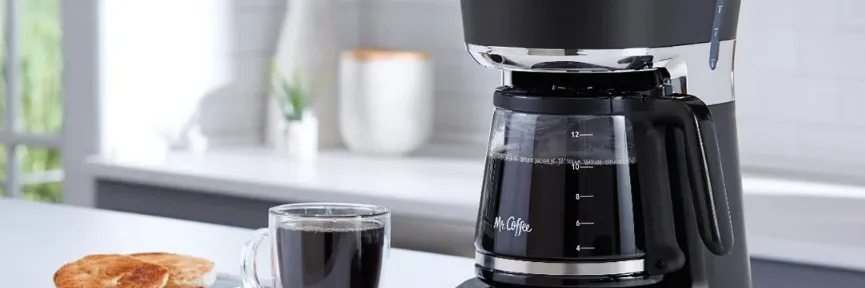

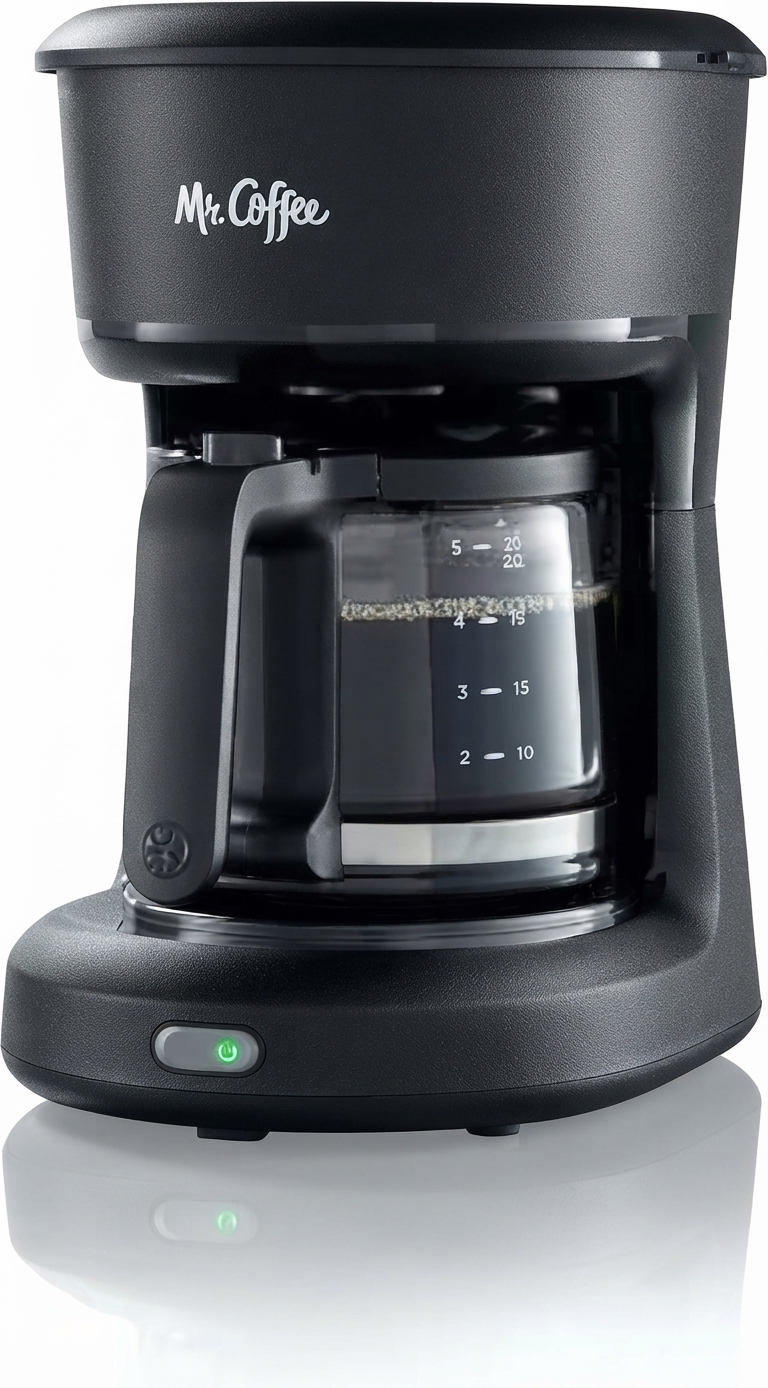

Mr.Coffee 4-Cups Coffee Maker TF4 Introduction

A coffee maker is described as a plug in appliance that pushes hot water through coffee beans to create coffee. A coffee maker is composed of a heating plate on the bottom, a glass pitcher to catch the coffee in, a water reserve tank, a cup of to hold coffee grounds, and a tube to tie this all together.

Detailed Specifications

The Mr. Coffee 4-Cups Coffee Maker TF4 has the following key features:

• Brews up to 4 cups of coffee at a time
• Compact and modern design
• On/off indicator light
• Removable filter basket for easy cleaning
• Pause 'n Serve feature allows you to pour a cup of coffee before the brewing cycle is complete
• Grab-a-Cup auto pause feature
• cord storage

Description

For small homes or businesses, the Mr. Coffee 4-Cups Coffee Maker TF4 is an ideal, straightforward coffee maker. Those with little kitchen space will find it to be an excellent option because of its small size and lack of counter space. The coffee maker's body is made of black plastic and its handle is made of stainless steel. Cleaning is a snap with the detachable filter basket and the water reservoir is simple to fill. You don't have to wait for the whole pot to finish brewing since the Pause 'n Serve feature lets you pour a cup of coffee before it does. When you want to get a cup of coffee before the brewing cycle is finished, the get-a-Cup automatic stop option comes in rather handy.

DIAGRAM OF PARTS

1. Dual Water Windows
2. Water Reservoir
3. Filter Basket Lid
4. Pause ’n Serve
5. Cord Storage
6. Warming Plate (not on thermal models)
7. Control Panel (see detail on next page)
8. Glass Decanter or Thermal Carafe
9. Removable Filter Basket
10. Shower Head

Control Panel

Switch Models

• a. On/Off Switch with On Indicator Light

Programmable Models

• a. PM Indicator (shown in PM hour position)
• b. Delay Brew Button
• c. Delay Indicator (displays after Delay Brew Button is pushed)
• d. Set Delay Button
• e. Hour Button
• f. Minute Button
• g. Clock Display
• h. On Button
• i. Off Button
• j. On Indicator Light

Coffeemaker Extras (not included with all models)

• Mr. Coffee Brand 4-Cup Permanent Filter



• Mr. Coffee Brand 4-Cup Basket-Style Paper Filters



• Coffee Scoop



COFFEEMAKER FEATURES AND BENEFITS

Your new MR. COFFEE coffeemaker has the following features:

• Brewing Capacity
  4 cups – Glass decanter series
• Brew Basket with Removable Filter Basket
  Lifts out for fast and easy cleaning and filling.
• Pause ‘n Serve
  Allows you up to 30 seconds to pour a cup of coffee while the coffeemaker is still brewing. Carefully remove the decanter and the Pause ’n Serve feature will be automatically activated, temporarily stopping the flow of coffee into the decanter.
• Dual Water Windows
  Show amount of water in the reservoir for accurate filling.
• Non-Stick Warming Plate
  Allows you to keep your coffee hot after brewing. The non-stick attribute prevents the decanter from sticking to the surface of the warming plate.
• Cord Storage
  Safely stores excess cord to keep your countertop neat.
• On/Off Indicator Light
  Lets you know when your coffeemaker is “on”.

Additional Programmable Control Features

• Clock
  The LCD Clock serves as a handy kitchen clock and allows you to set the Delay Brew feature.
• Delay Brew
  Allows you to preset when you would like the coffeemaker to automatically brew your coffee, up to 24 hours in advance.
• One-Hour Auto Shut-Off
  Keeps your coffee warm for 1 hour after you brew, then automatically turns off.

NOTE: If you have selected any of the operating functions, the coffeemaker will act upon the last operation selected if the power is restored within 10 seconds after a power outage.

CLEAN YOUR COFFEEMAKER BEFORE USING THE FIRST TIME

Make sure your first cup of coffee is as good as can be by cleaning your MR. COFFEE® Coffeemaker before its first use. Just follow these simple steps:

1. Wash the decanter, decanter lid, and the filter basket in a mixture of mild detergent and water. Rinse each thoroughly (please refer to the parts diagram listed above).
2. Replace all the parts and close the lid. Then, run a brew cycle with water only, without adding coffee and coffee filter.
3. When brewing is complete, turn your coffeemaker off, discard the water in the decanter, and rinse the decanter, decanter lid, and filter basket.

Your coffeemaker is now ready to use. Enjoy it!

SETTING THE CLOCK AND DELAY BREW TIME

For Programmable Models Only

To Set the Clock

1. Plug the power cord into a standard electrical outlet. The clock will flash on the control panel to indicate that the time has not been set yet.
2. Press and hold the HOUR and MINUTE buttons until you reach the current time. The PM indicator will display when a PM hour is showing.

Note: Pressing any button before setting the clock will cause the clock to start keeping time from 12:00 a.m. You must set the clock if you want to use the Delay Brew feature.

To Set the Delay Brew Time

After setting the clock, simply press and hold the SET DELAY button (Figure 1), and set the brew time by pressing the HOUR and MINUTE buttons. The PM indicator will display when a PM hour is shown.

Note: To activate the DELAY BREW cycle, see the “Brewing Coffee Later” section. To check the programmed time, push the SET DELAY button. The display will show the time you have programmed the coffee to brew.

Preparing for Use

Selecting and Measuring Ground Coffee

For best results, use a level tablespoon for ground coffee measurement. Make sure you use medium grind coffee for a perfect brew.

Suggested Coffee Measurement Chart

Adding Water and Ground Coffee

1. Lift and open the coffeemaker lid. For your convenience, you can lift out the removable filter basket.

2. Place a MR. COFFEE brand 4 cup paper basket-style filter or a MR. COFFEE permanent filter into the removable filter basket. (Figure 2)



   • Note: If using paper filters, it is important that the sides of the filter fit flush against the side of the filter basket. If filter collapse occurs, dampen the filter before placing it in the filter basket and adding ground coffee and water.
3. Add the desired amount of coffee and gently shake to level the coffee. See the “Suggested Coffee Measurement Chart”.
4. Be sure the filter basket is properly centered and all the way down in the filter basket.
5. Fill the decanter with cold, fresh water to the desired capacity (1 cup equals 5 ounces). For easy and accurate filling, the water markings on the glass decanter and on the dual water windows show the amount of water needed to make the corresponding desired number of cups. Do not fill past the “MAX line” or water will flow out of the overfill hole in the back of the water reservoir.
   • Note: The amount of coffee brewed will always be slightly less than the amount of water poured in the water reservoir. This is due to the minimum absorption of water by the coffee grounds.
6. Pour the water into the water reservoir. Close the lid and place the empty decanter onto the warming plate.

Note: Make sure the decanter is fully placed on the warming plate or the water and the grounds will overflow from the filter basket. An overflow may cause personal injury or damage to property.

Caution: To reduce the risk of damaging the decanter and/or the risk of personal injury, do not add cold water to the decanter if the decanter is already hot. Allow the decanter to cool before using.

Brewing Coffee Now

For Programmable models

1. Press the ON Button to begin the brewing cycle. The green indicator light will turn on to signal that the coffeemaker is brewing. When the brewing cycle is complete the coffeemaker switches over to the warming mode. Your coffeemaker will keep your coffee hot for 1 hour, then automatically shut off.
2. To turn the coffeemaker off, push the OFF button.

For Switch models

1. Press the ON/OFF Switch on the control panel so the green indicator light illuminates. The light indicates that the coffeemaker is on and that the brew cycle will begin. To turn off the coffeemaker, push the switch so the light is no longer illuminated.
2. While the coffee is brewing, the Pause ’n Serve feature allows you to sneak a cup of coffee from the decanter. Replace the decanter on the warming plate within 30 seconds to prevent overflow and possible injury.

Note: If the brew basket overflows or fails to empty into the decanter, do not open the brew basket. Turn off the coffeemaker. Unplug the coffeemaker and wait for the contents to cool before handling.

Brewing Coffee Later

For Programmable Models Only

1. You must first set the time when you would like the coffeemaker to begin brewing your coffee as described in “Setting the Clock and the Delay Brew Timer” section.
2. Prepare your coffeemaker as described in “Adding Water and Ground Coffee” section.
3. To activate DELAY BREW and program your coffeemaker to brew coffee at a later time, press the Delay Brew button. The DELAY indicator light will illuminate. The coffeemaker is now set to automatically brew coffee at the pre-set later time.
4. At the pre-set time, the green indicator light will turn on and the DELAY light will turn off, indicating the brewing has started.
5. The coffeemaker warming plate will keep your coffee hot for 1 hour and then automatically turn off.

Note: As a safety feature, your coffeemaker will NOT start again automatically the next day. If you want your coffee to brew at the same time the following day, simply add a new filter, coffee and water, and set DELAY BREW, by repeating Steps 2 and 3 above.

To cancel DELAY BREW
Press the OFF button. The DELAY BREW green indicator light will turn off.

Setup Guide

It takes little time to set up the Mr. Coffee 4-Cups Coffee Maker TF4. Ensure the coffee maker is connected in and the power switch is set to "off" first. The filter basket should then be taken out and a paper filter added. Using caution not to overfill the filter, add the necessary quantity of coffee grounds. Once that's done, add enough water to the water reservoir to make the desired number of cups. At last, switch on the coffee machine and let it to brew through.

Cleaning and Maintaining

Daily Cleaning: Always unplug the coffeemaker and allow it to cool before cleaning. Remove the filter basket, permanent filter (not included on all models), decanter, and decanter lid and wash them in a solution of hot water and mild liquid soap. Never use abrasive cleansers, steel wool pads, or other abrasive materials. Dishwasher top rack safe parts: glass decanter and lid, filter basket, and permanent filter.

Caution: Never immerse the coffeemaker itself in water, in any other liquid, or place it in the dishwasher.

Regular Cleaning and Maintenance

Decalcifying your MR. COFFEE Coffeemaker

Minerals (calcium) found in water will leave deposits in your coffeemaker and will affect it. It’s recommended that you regularly remove these deposits by using MR. COFFEE Cleaner or vinegar.

1. Follow package instructions to prepare one batch of MR. COFFEE Coffeemaker Cleaner. Pour the mixture into the water reservoir.

Note: 4 cups or 20 fl. oz. of undiluted, white household vinegar may be used as a substitute for the cleaner.

1. Place an empty MR. COFFEE 4 cup basket-style paper filter or MR. COFFEE permanent filter into the filter basket and close the coffeemaker lid.
2. Place the empty decanter back in the unit, centered on the warming plate.
3. Brew three cups of the cleaning solution through the coffeemaker.
4. Turn the coffeemaker off and let it stand for 30 minutes.
5. Run the remainder of the cleaning solution through the coffeemaker.
6. Discard the cleaning solution and rinse the decanter thoroughly with clean water.
7. Fill the water reservoir with clean, fresh water.
8. Place the empty decanter back on the coffeemaker, centered on the warming plate.
9. Remove and discard the paper filter used during the cleaning cycle. If a MR. COFFEE permanent filter was used during cleaning, remove it and rinse it thoroughly before replacing it in the filter basket.
10. Begin brewing and allow the full brew cycle to complete.
11. Repeat Steps 8 through 11 one more time.

Your coffeemaker is now clean and ready to brew the next pot of delicious, hot coffee!

Suggested Decalcifying Interval

• Soft Water: Every 80 Brew Cycles
• Hard Water: Every 40 Brew Cycles

Cleaning the Decanter: Hard water can leave a whitish stain on the decanter, and coffee may then turn this stain brown. To remove decanter stains:

1. Fill the decanter with a solution of equal parts water and vinegar and let the solution stand in the decanter for approximately 20 minutes.
2. Discard the solution, then wash and rinse the decanter.
3. Do not use harsh abrasive cleaners that may scratch the decanter. Scratches may cause the decanter to break.

IMPORTANT SAFEGUARDS

To reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed when using electrical appliances, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING THE COFFEEMAKER.
2. Do not touch the coffeemaker’s hot surfaces. Use handles or knobs and do not open the lid or cover while brewing. Scalding may occur if the lid is removed during brewing cycles.
3. To protect against electric shock, do not immerse the power cord, power plug, or coffeemaker in water or in any other liquid.
4. Close adult supervision is necessary when this appliance is used by or near children.
5. Turn the coffeemaker OFF and unplug the power cord from the power source when the coffeemaker and clock are not in use and before cleaning. Allow the coffeemaker parts to cool before putting on or taking off parts and before cleaning the appliance.
6. Do not operate any appliance with a damaged power cord or power plug, or operate it after the appliance malfunctions, or has been damaged in any manner. Return this appliance only to the nearest Authorized Service Center for examination, repair, or adjustment.
7. The use of accessory attachments other than MR. COFFEE® brand products may cause hazards or injuries.
8. Do not use the coffeemaker outdoors.
9. Do not let the power cord hang over the edge of a table or counter, or allow it to come into contact with hot surfaces.
10. Do not place this coffeemaker on or near a hot gas stove or electric burner or in a heated oven.
11. To disconnect the coffeemaker, turn it OFF, then remove the power plug from the power supply.
12. Place the appliance on a hard, flat level surface to avoid interruption of airflow underneath the coffeemaker.
13. Avoid contact with any moving parts.
14. This coffeemaker is designed for household use only.
15. Do not use the appliance for other than its intended use.

DECANTER USE AND CARE

Follow the instructions below to reduce or eliminate the chance of breaking the glass decanter:

• This decanter is designed for use with your MR. COFFEE® coffeemaker and therefore must never be used on a range top or in any oven, including a microwave oven.
• Do not set a hot decanter on a wet or cold surface.
• Do not use a cracked decanter or a decanter having a loose or weakened handle.
• Do not clean the decanter with abrasive cleaners, steel wool pads, or other abrasive materials.
• Discard the decanter immediately if it is ever boiled dry.
• Protect the decanter from sharp blows, scratches, or rough handling.

WARNING: To reduce the risk of fire or electric shock, do not remove any service covers. There are no user serviceable parts inside the coffeemaker. Only authorized personnel should repair the coffeemaker.

SAVE THESE INSTRUCTIONS

SPECIAL CORD SET INSTRUCTIONS

1. For your convenience, the plug is stored inside the cord storage.
2. A short power supply cord is provided to reduce the hazards resulting from a person or pet becoming entangled in, or tripping over, a longer cord.
3. An extension cord may be purchased and used if care is exercised in its use.
4. If an extension cord is used, the marked electrical rating of the extension cord must be at least 10 amps and 120 volts. The resulting extended cord must be arranged so that it will not drape over a countertop or tabletop where it can be pulled on by children or tripped over accidentally.
5. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way. You can customize the length of the power cord so that it is the exact length you desire. To increase the length of the power cord: grasp the power cord (not the power plug) and gently lift it out of the slot, then pull it away from the coffeemaker. To decrease the length of the power cord: grasp the power cord (not the power plug), lift it out of the slot and gently feed it into the coffeemaker. Lock the cord in the slot when finished.

TROUBLESHOOTING

Your MR. COFFEE Coffeemaker has been carefully designed to give you many years of trouble-free service. In the unlikely event that your new coffeemaker does not operate satisfactorily, please review the following potential problems and try the steps recommended BEFORE you call an Authorized Sunbeam Service Center.

SERVICE AND MAINTENANCE

Replacement Parts

• Coffee Filters: For better tasting coffee, we recommend that you use a MR. COFFEE® brand 4-cup basket paper filter or MR. COFFEE® brand permanent filter. These filters are available at most grocery stores.
• Decanters: You can usually purchase a replacement decanter from the store where you purchased your coffeemaker. If you are unable to find a replacement, please visit mrcoffee.com or call 1-800-MR-COFFEE (1-800-672-6333) in the U.S. or 1-800-667-8623 in Canada for information on where you can find a store that carries replacement decanters.

WARRANTY INFORMATION

1-YEAR WARRANTY

Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship.

Pros & Cons

Pros

• Compact and modern design
• Affordable price
• Easy to use and clean
• Pause 'n Serve feature allows you to pour a cup of coffee before the brewing cycle is complete
• Grab-a-Cup auto pause feature

Cons

• Only brews 4 cups at a time
• The carafe does not have a handle
• Some users have reported issues with leaking
• No programmable options
