Introduction

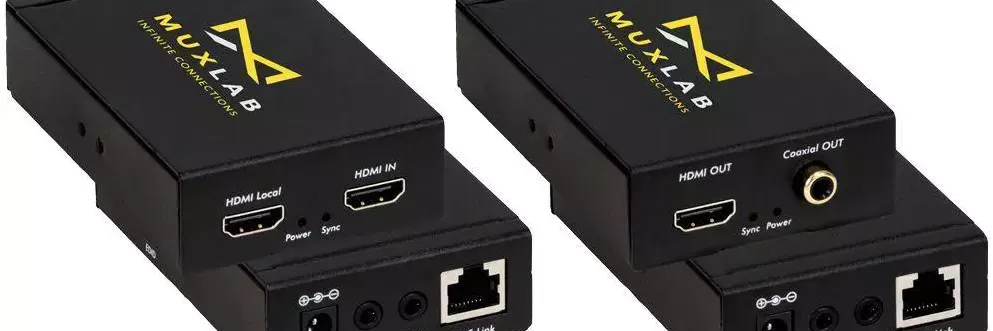

A dependable and effective way to extend HDMI transmissions up to 230 feet (70 meters) over a single Cat5e/6 cable is the MuxLab HDMI Extender Pair 100504. With support for 4K at 60Hz (4:2:0) and 4K at 30Hz (4:4:4) high definition video resolutions, this extender guarantees clean and sharp visuals. It is perfect for commercial AV applications, conference rooms, and home theater installations because it can carry both audio and video information. Users can effortlessly control their source devices remotely thanks to support for bi-directional infrared control. The MuxLab HDMI Extender Pair 100504 is an easy-to-use and adaptable plug-and-play option for improving your AV connectivity.

Detailed Specifications

Overview

The HDMI Extender Pair, HD (100504) allows an HDMI video signal to be transported up to 164ft (50m) over Cat 5e/6 UTP cable. This extender pair supports video resolutions up to 1920 X 1080p60 and VGA-UXGA. It is HDCP compliant and supports an HDMI Loop-out on the Transmitter and Digital Audio extract on the Receiver. The product includes one Transmitter and Receiver, two Power Supplies, two Emitters, and two Sensors.

Applications

• Commercial and residential AV systems
• Classroom training systems
• Digital signage
• Boardroom systems
• Medical video systems

Key Features

• Support HDMI 1.4 (3D), up to 1080p @ 60Hz and VGA-UXGA
• Support 3D and ARC function
• HDCP compliant and DVI 1.0 standards
• Transport video at up to 164ft (50m)
• Support Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio pass-through
• HDMI Loop-out on Transmitter
• Digital Audio extract on Receiver
• 2-way IR for remote control of end devices
• EDID management

Description

The MuxLab HDMI Extender Pair 100504 is a reliable and cost-effective solution for extending HDMI signals over long distances. This product uses high-quality components and advanced signal processing techniques to ensure the delivery of high-definition video and audio signals. The extender pair supports a wide range of HDMI resolutions and chroma subsampling, making it suitable for a variety of applications, including digital signage, home theaters, and conference rooms. The extender pair also features advanced EDID management, ensuring that the connected devices communicate and operate properly. The product's compact design and easy-to-use interface make it a popular choice among installers and integrators.

Typical Application

Setup Guide

1. To set up the MuxLab HDMI Extender Pair 100504, first, connect the power adapter to the transmitter and receiver units.
2. Next, connect the HDMI source device to the transmitter unit using an HDMI cable, and connect the display to the receiver unit using another HDMI cable.
3. Finally, connect the transmitter and receiver units using a Category 6/6A/7 cable, and power on the units. The extender pair will automatically detect the connected devices and establish a connection.
4. You can also use the OSD (On-Screen Display) menu to configure the settings, such as resolution, refresh rate, and audio format.

Troubleshooting

• If you experience any issues with the MuxLab HDMI Extender Pair 100504, first, check the connections and ensure that all cables are securely connected.
• If the issue persists, check the power supply and ensure that the power adapter is properly connected to the transmitter and receiver units. You can also reset the extender pair by pressing and holding the reset button on the transmitter unit for a few seconds.
• If you still encounter problems, contact MuxLab's technical support team for further assistance. It is also important to note that the maximum transmission distance is 328 feet (100 meters), and using a longer cable may result in signal loss or degradation.

Pros & Cons

Pros

• Supports 4K x 2K at 60 Hz with 4:4:4 chroma subsampling
• Long transmission distance (328 feet/100 meters)
• Advanced EDID management
• Compact design and easy-to-use interface

Cons

• May require the use of Category 6/6A/7 cable for optimal performance
• May not be compatible with older HDMI devices

Customer Reviews

Customers have praised the MuxLab HDMI Extender Pair 100504 for its high-quality video and audio transmission, ease of use, and compact design. Many customers have also noted that the product offers great value for money, making it a popular choice among installers and integrators. However, some customers have reported issues with the transmission distance, stating that the signal becomes weaker or drops out when using longer cables. Overall, the MuxLab HDMI Extender Pair 100504 is a reliable and high-performance solution for extending HDMI signals over long distances.

Most Common Complaints

The most common complaints regarding the MuxLab HDMI Extender Pair 100504 are related to transmission distance, compatibility with older HDMI devices, and the use of Category 6/6A/7 cable. However, these issues are relatively rare, and the majority of customers have reported positive experiences with the product.
