Introduction

Congratulations, and thank you for choosing Naxa’s 150” Home Theater 720P LCD Projector with Buil-in DVD Player. This manual will help you operate your new device. We know you have many choices when it comes to technology; thank you for choosing us here at Naxa Electronics. Established in 2001 in Los Angeles, California, we are dedicated to delivering products that entertain and delight.  We trust that you will be happy with your purchase. Please read this manual carefully and save it for reference. You may also find the latest FAQ, documentation, and other product material at our website. Come visit us on the web at https://naxa.com/ and see all that we have  to offer!

Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources, such as radiators, heat registers, stoves, or other apparatus (including amplifier) that produce heat.
9. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments / accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been dam-aged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have falled into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
13. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.
14. Do not look directly into the projector light.
15. Do not touch the projector lens.
16. Mains adapter is used as disconnect and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket completely.
17. CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
18. WARNING: Changes or modified to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
    • Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
19. WARNING: Shock hazard - DO NOT OPEN.
20. Caution and marking information is located at the rear or bottom of the apparatus.
21. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing.
22. Objects filled with liquids, such as vases, shall not be placed on the apparatus.

Package Contents

Basic Information

Your projector comes with a lens cap to protect the lens from dirt and debris when not in use. Be sure to remove the lens cap before using the projector, and reinstall the lens cap when done, as seen below.

Placing Projector

Your projector can be installed in four different configurations (see picture below).

• Front Table: Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

• Front Ceiling: Select this location with the projector suspended upside-down from the ceiling in front of the screen.
  NOTE: A projector mount is required to install the projector on the ceiling.



• Rear Table: Select this location with the projector placed near the floor behind screen. NOTE: A special rear projection screen is required.
• Rear Ceiling: Select this location with the projector suspended upside-down from the ceiling behind the screen.
  NOTE: A projector mount and a special rear projection screen is required.

Making Adjustments

Follow the pictures below to adjust the focus and trapezoidal screen. Adjust the focus by turning the knob while observing the image pixels near the center of the screen. Optimal focus is obtained when the pixels are clearly visible. Depending on the projected screen size, the focus near the screen edges may be less sharp than the screen center.

Keystone image is created when the projector beam is projected to the screen in an angle. Keystone correction will restore the distorted image to a rectangular or square shape.

Remote Overview

1. Power: Press to power on
2. Mute: Mute the audio playback. Press again to reactivate audio play-back
3. Random: Press to play tracks at random from a loaded disc.
4. OSD: Press to display the information of the current video / audio.
5. Angle: On supported DVDs, press and hold to view alternate angles.
6. Subtitle: Briefly press to change subtitle mode.
7. Repeat: Press repeatedly to cycle through repeat options for a loaded disc.
8. PBC: Press to activate Play Back Control function, only for a VCD dics.
9. Title: Press to view the title menu of a loaded DVD.
10. DVD Menu: Press to view the main menu of a loaded DVD.
11. A-B: Press to create a repeating loop on a loaded DVD.
12. PROG: Program a loaded disc to play chapters and titles or tracks in a specific order.
13. Slow: During playback, press repeatedly to set the slow motion speed.
14. Setup:  Press to access the setup menu only for DVD mode.
15. Previous / Next: Press to skip between chapters or tracks.
16. Rewind / Fwd: Press to search through an individual chapter or track.
17. Arrows / OK: Press to navigate and confirm selections in settings and other menus.
18. Source: Press to select media source (AV / HDMI 1 /HMDI 2A / GA / DVD / MEDIA PLAYER)
19. DVD: Press to enter the DVD player mode once in another source.
20. Menu: Press to access projector settings menu.
21. Exit: Press to exit the projector menu or the audio /movie playback.
22. Play / Pause: Press here to play or pause the audio /movie playback.
23. Stop: stop the audio / video / photo playback.
24. Flip: Press to rotate / mirror projector screen.
25. Audio: Press to switch the available audio channels probided by the disc.
26. VOL +: Raise the volume.
27. VOL-: Decrease the volume.
28. 0-9 Number Keypad: enter chapter / title to play.
29. Go To: Go to a specific chapter or track number. Use play button to begin playing.
30. Zoom: For the movie / video, press to access the zoom function. For photos, press to switch between 1000%, 125%, 150%, 200%, 75%, 50%, and normal status.

Remote Batteries

Remove the battery cover on the back of the remote control by gently pushing it open. The battery cover can then be raised. Insert the correct batteries (not included) according to the polarity markings. Finally, replace the cover.
NOTE

• Batteries must not be exposed to excessive heat, such as sunshine / fire.
• Make sure that the batteries are installed correctly.
• Do not mix old and new batteries.
• Only use the same or equivalent batteries as recommended.
• Do not dispose of batteries in the fire, the battery could explode or leak. Do not try to charge a battery.

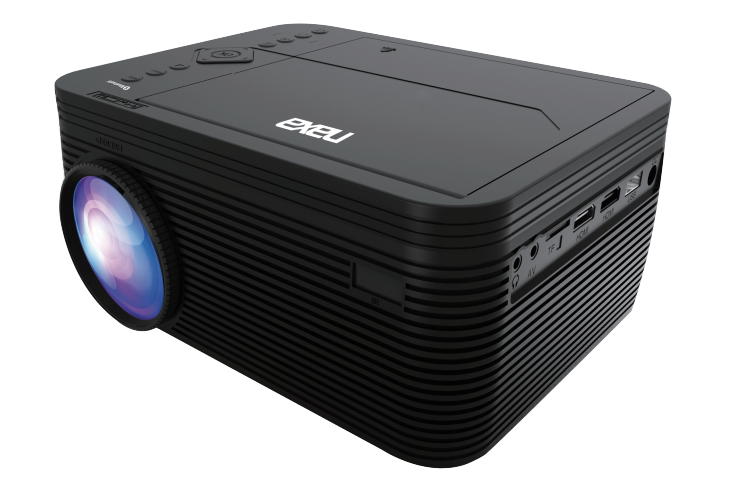

Projector Overview

1. VOLUME +
2. VOLUME -
3. STOP
4. NAVIGATOR Buttons
5. 0K
6. MENU button
7. SOURCE button
8. POWER ON Indicator
9. RETURN button
10. POWER OFF Indicator
11. POWER Button
12. Open disc cover
13. EARPHONE jack
14. AV jack
15. Micro SD card
16. HDMI port 1
17. HDMI port 2
18. USB port(Media player)
19. DC IN jack
20. LENS
21. ANGEL ADJ. Knob
22. 1R Window(Front Side)
23. VGA Port
24. IR Window (RearSide)
25. TRAPEZOIDALADJ. Knob
26. FOCUSADJ. Knob

Audio / Video Input

Requires a 3.5mm to RCA audio / video cable.

1. Connect the 3.5mm to RCA audio video cable to the AV input on the projector.
2. Connect the 3.5mm to RCA audio / video cable tot he RCA stereo audio outputs and composite video output on the media player.
3. Set the projector’s Source to AV and use the control on the connected player to select and play media.

Computer Video (VGA)

NOTE: VGA connections do not support audio. You will need to use the computer’s speakers to hear audio.
Requires a VGA cable (not included) and a desktop PC or laptop with a VGA output.

1. Using a VGA cable, connect the VGA Input on the projector to the VGA output on your computer.
2. Set the projector’s Source to PC and use the controls on the computer to select and play media.

External Audio

NOTE: Speakers must have their own power supply. Requires a 3.5mm to RCA audio / video cable.

1. Using a 3.5mm to RCA stereo cable, connect the external powered speakers to the headphone jack on the projector.
2. The projector will automatically detect the connection and send audio signal to the speakers.

Micro SD & USB Inputs

Supports Micro SD cards and USB flash drives up to 32GB. Supports AVI, MOV file formats.

1. Turn off device and install USB or TF card.
2. Turn on device and press the Source button.
3. Use the arrow buttons to select Music / Photo / Movie, use directional arrows to select TF card or USB if necessary, then press the “OK” button to begin playing content from the connected storage device.

DVD Playback

1. Press the Power button to turn on the unit, the power indicator light will turn green.
2. Press the Source button to enter and use the direction-al arrows to search for DVD mode.
3. Open the disc cover and insert a DVD or CD disc, make sure the label side is facing up, and close cover.
4. The player will scan the disc. Playback will begin automatically.

Disc Handling

• Do not leave discs near heat sources, in direct sunlight, or in high humidity.
• Store discs in their cases when they are not being used.
• Stacking discs or standing them at an angle without put-ting them in the case can cause the disc to warp.
• Do not touch the disc surface when handling a disc; hold it by the edge.
• Fingerprints, dust, dirt, or scratches on the disc can distort the picture or reduce sound quality. Always handle carefully and make sure discs are clean before use.
• Do not stick paper or tape onto the disc.
• Do not write on the disc with a marker, etc. Clean discs using a soft cloth, lightly wiping from center outwards.
• Do not use solvents such as benzene, commercially available cleaners not intended for CDs or anti-static spray.

Specifications

• Light Source Type: LED
• HDMI Input Supported Video Resolution: 1080p, 1080o, 720p, 576i, 480p, and 480
• Power Consumption: Operating 48W; Standby 0.8W
• Power Input Connect Included Adapter: DC 12V, 4A
• Included Adapter Connect DC Input of Unit: Input: AC 100-240V, 50/60Hz Output: DC12V, 4A
• Display Color: 16.7K
• Projection Size: 30-170 Inch
• Signal Port: Video / VGA / HDMI
• USB Port: Supports USB device up to 32 GB Supports mpeg1, Mpeg2, mpeg3, mp3, jpeg
• Micro SD: Supports Micro SD card up to 32GB Supports mpeg1, Mpeg2, mpeg3, mp3, jpeg
• Dimension: 203 x 161 x 95 mm

Description

The NAXA 150” Home Theater Projector NVP-2500 is a powerful and versatile projector that offers an immersive cinematic experience in the comfort of your home. With a brightness of 1500 lumens, a contrast ratio of 2000:1, and a native resolution of 800x480, this projector delivers sharp and vibrant images, making it ideal for watching movies, playing games, or delivering presentations. The projector also features built-in speakers, multiple input options, and a long-lasting lamp that can last up to 50,000 hours, reducing the need for frequent replacements.

Setup Guide

Setting up the NAXA 150” Home Theater Projector NVP-2500 is a straightforward process. First, connect the projector to a power source and turn it on. Next, adjust the focus and keystone correction to ensure that the image is clear and aligned properly. Connect your preferred device, such as a laptop, gaming console, or Blu-ray player, to the projector using the appropriate input option. Finally, adjust the projection size and distance to fit your screen or wall, and enjoy your favorite content on a large scale.

Troubleshooting

Here are some common issues and solutions for the NAXA 150” Home Theater Projector NVP-2500:

• No image or dim image: Check the cable connections, adjust the focus and keystone correction, and ensure that the projector is in the correct input mode.
• Distorted image: Adjust the projection size and distance, and ensure that the projector is level.
• Lamp issues: Check the lamp life and replace it if necessary. Avoid touching the lamp with your fingers, as this can cause damage.
• Sound issues: Check the volume level and the audio connections, and ensure that the projector is not muted.

Pros & Cons

Pros

• Bright and vibrant images
• Long-lasting lamp
• Multiple input options
• Built-in speakers
• Easy to set up and use

Cons

• Native resolution could be higher
• Limited zoom capability
• No 3D capability
• No Wi-Fi or Bluetooth connectivity

Customer Reviews

Customers have praised the NAXA 150” Home Theater Projector NVP-2500 for its bright and vibrant images, long-lasting lamp, and easy setup. However, some have noted that the native resolution could be higher, and that the zoom capability is limited. Some customers have also expressed disappointment that the projector does not support 3D or have Wi-Fi or Bluetooth connectivity.
