Nekteck Shiatsu Foot & Calf heat massager NK-FLM01 User Manual

cover-image

Content

Introducing the Nekteck Shiatsu Foot & Calf heat massager NK-FLM01

The Nekteck Shiatsu Foot & Calf Heat Massager NK-FLM01 is a luxurious and versatile device designed to provide soothing relief for tired feet and calves. Featuring a combination of deep kneading, vibration, and heat therapy, this massager promotes relaxation and improves circulation, making it an ideal addition to any wellness routine. With adjustable positions and multiple intensity levels, users can customize their massage experience to target specific areas, including soles, heels, and arches. The included remote control enhances convenience, allowing for easy operation without bending down. Priced at $143.99, the Nekteck massager offers a spa-like experience in the comfort of your home.

PACKAGE CONTENTS

  • Nekteck Shiatsu Foot & Calf Massager with Heat
  • Wireless Remote Controller
  • User Manual
  • Power Adapter
  • AAA Battery

SPECIFICATIONS

Product NameNekteck Shiatsu Foot & Calf Massager with Heat
Model NumberNK-FLMOl
Rated Voltage12V DC=5.0A
Rated Power60W
Dimensions17.3 x 15 x 8.7 in / 44 x 38 x 22.2 cm
Net Weight11.9 lbs/ 5.4 kg

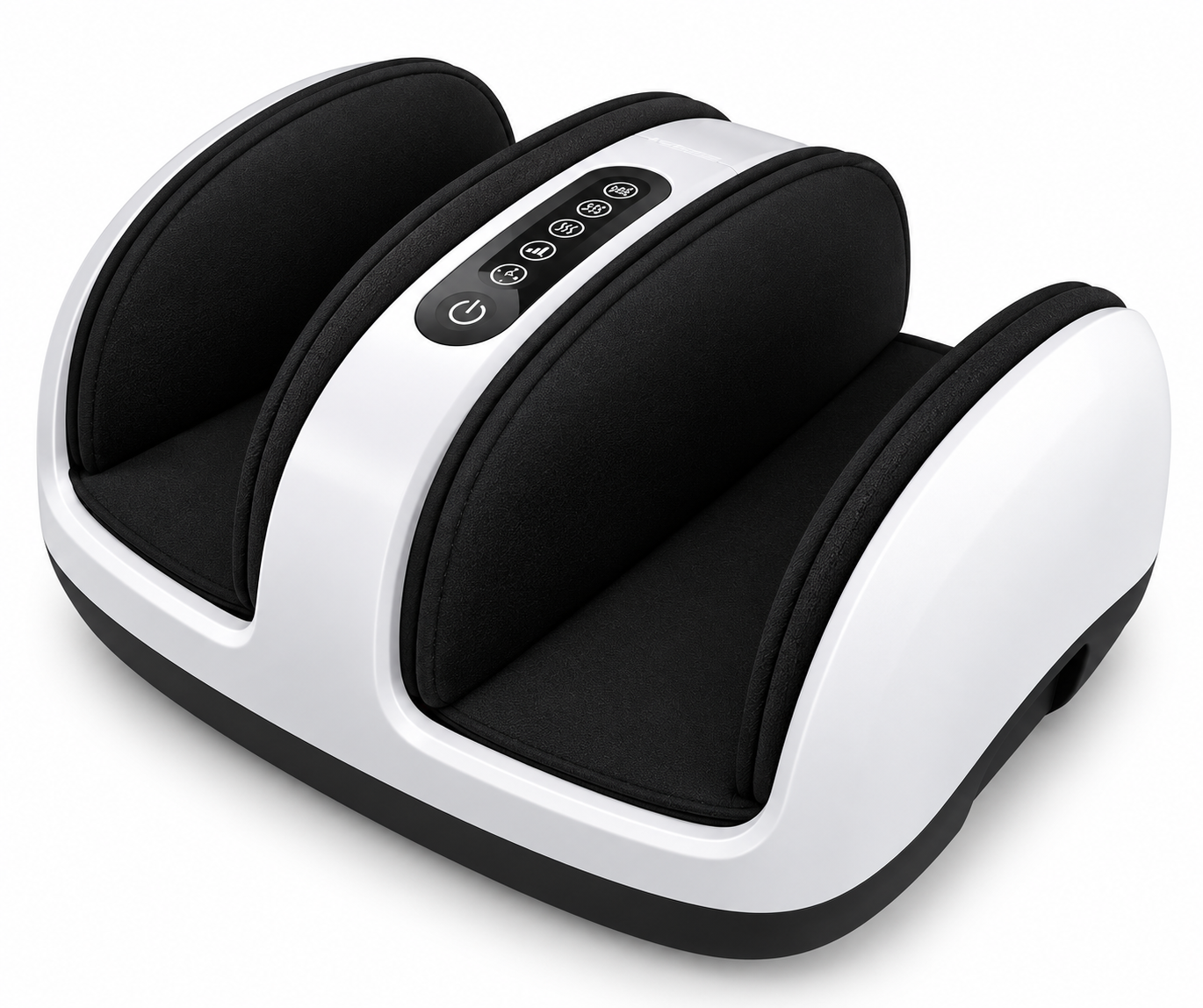

KNOW YOUR FOOT & CALF MASSAGER

Nekteck Shiatsu Foot & Calf Massager with Heat combines the shiatsu massage with heat therapy to relieve tension and fatigue for your feet and calves. It features an adjustable bar and adjustable feet to position the massager at different angles to fit your needs. Enjoy the comfortable massage time with Nekteck Shiatsu Foot & Calf Massager with Heat.

PARTS & FEATURES

NO PART NAME FEATURE
1



Rolling Area

Combine rolling, kneading, and scraping functions to offer you optimum massa ge experiences
2Vibrating AreaFocus on massaging your heels with vibration s
3



Control Panel

Press the buttons to choose your preferred massage modes and intensity levels, or turn on/off the massager
4AirbagsProvide air pressure by inflating and deflating the airbags
5Removable & Washable CoversFor easy cleaning
6



Adjustable Bar

Position the massager at an angle of about 54° for calf massage when you are sitting .

NOTE: The adjustable bar can NOT be used to carry the massager

7



Adjustable Feet

Position the massager at an angle of about 20° for a sole massage when you are sitting, or calf massage when you are lying down
8Anti-slip Foot PadsMake the massager more stable while operating
9HandleDesigned on both left and right sides for better portability

WIRELESS REMOTE CONTROLLER


CONTROL PANEL


Detailed Description

The nekteck Shiatsu Foot & Calf heat massager NK-FLM01 is a high-quality, durable massager that is perfect for use at home or in the office. The massager nodes deliver a deep-kneading shiatsu-style massage, penetrating tired and aching muscles for ultimate relief. The heat function further enhances the massage experience, relaxing and soothing your muscles for even greater comfort. The adjustable intensity levels allow you to customize the massage to your specific needs and preferences, and the separate foot and calf massage sections ensure that every part of your legs gets the attention it deserves. The remote control makes it easy to operate, and the overheat protection ensures your safety during use.

OPERATING INTRODUCTIONS

SETTING UP

  • Remove all packing material from the massager, and make sure there is no packaging underneath or around the massager. Check if there are any parts damaged or missing during transportation.
  • Place the massager on a flat floor or surface.
  • Unwind and plug the power cord into the power jack on the side of the massager.
  • Connect the power adapter to the socket, then the ON/OFF Button starts to flash.

Now your shiatsu foot & calf massager is ready for use.

MASSAGE OPERATION

Step 1: Turn on the massager
Press the ON/OFF Button “power.png” on the controller or the control panel. The massager will beep once and start in the default massage mode (see the chart below). Default Settings for Each Mode and Timer


Step 2: Adjust the massage modes and intensity levels to fit your needs (Optional)
Reference Chart of Modes and Intensity Levels


Press the Mode Buttons “mode_buttons.png “to change the intensity levels or turn on/off the corresponding mode. With each press of the button, the intensity level will change once, cycling through the sequence shown in the chart above.

For example: Press the Rolling Button “rolling_utton.png” once, the intensity will change to the next level, cycling through the following sequence: Low Intensity (Default Setting with Green Indicator)➔ High Intensity (Red Indicator)➔ OFF (Light Off).
Note: Each of the 4 massage modes can be adjusted and run individually.

Reference Chart of Indicator Light Color and Its Corresponding Intensity Level or Timer


Step 3: Set the Massage Duration (Optional)
By default, this massager will automatically shut off after a 15-min massage session. Press the Timer Button timer_button.png to switch the timer between 15 and 30 mins. timer_default.png15 Mins (Default) timer_default_button.png30 Mins
Note: If you want to have a 30-min massage session instead of the default 15 mins session, it’s highly recommended to set the time in the beginning. If you want to change the time during the operation, please follow the chart below.

SWITCH/CHANGE WHEN THE MASSAGER WORKED FOR HOW THE TIMER CONTINUES TO
WORK AFTER SWITCHING
EXAMPLES EXPLANATION

From 15 to

30 mins

0-15 mins

The previous working time will NOT be cleared and will be accumulated to the 30-min session .

*If you want to have another exact 30-min session during the operation , turn off and on the massager and set the modes and time again.

When Massager has worked for10 minsIf you switch from 15 mins to 30 mins when the massager has worked for 10 minutes, it will continue to work for 20 minutes, not another 30 minutes
Remaining working time after switching20 mins

From 30 to

15 mins

< 15 minsThe previous working time will NOT be cleared and will be accumulated to the 15-min session .When Massager has worked for5 minsIf you switch from 30 mins to 15 mins when the massager has worked for 5 minutes, it will continue to work for 10 minutes, not another 15 minutes.
Remaining working time after switching10 mins
;, 15 minsThe massager will still run through the previous 30-min session . In this situation, please turn off and restart the massager to run the 15-min massage session .When Massager has worked for25 minsIf you switch from 30 mins to 15 mins when the massager has worked for 25 minutes, it will continue to work for only 5 minutes, not another 15 minutes.
Remaining working time after switching5 mins

Cautions

  • After each massage session, please rest for 30 minutes before starting the next massage session.
  • Each Individual should NOT use the massager for over 45 minutes a day.
  • It is highly recommended to start the operation from the lowest intensity at the beginning of each use.
  • It is highly recommended to wear socks while using this massager.
  • If you want to stop the massage session, press the ON/OFF button at any time you like.

CLEANING AND MAINTENANCE

TO CLEAN

  • Unplug the massager and allow it to cool down before cleaning. The fabric cover can be removed for cleaning.
  • Clean the base only with a soft, very slightly damp sponge or cloth.
  • DO NOT allow water or any other liquids to get into the massager.
  • DO NOT immerse the product in any liquid to clean.
  • DO NOT use abrasive cleaners, brushes, or strong chemicals to clean the product, for it might cause damage to the product.

TO STORE

  • Place the massager in its package box or in a safe, dry, and cool place.
  • Avoid sharp edges and objects to protect the product from scratching or damage.
  • DO NOT wrap the power cord around the product to avoid breakage.
  • Keep out of high temperatures.

SAFETY INSTRUCTIONS

Please read ALL instructions carefully before using the Foot & Calf Massager for the first time. We recommend that you keep this manual for future refer­ence, even if you are familiar with the product. Improper use or unautho­rized repairs are not permitted for safety reasons and will lead to loss of warranty. The basic safety precautions should always be followed. Failure to comply with this manual may cause fire, electric shock, and other serious injuries.

  • This product is not intended to diagnose or treat any medical condition or to replace your healthcare professional. Always consult your physi­cian before using any massagers. Please STOP using and consult your healthcare professional immediately when you feel uncomfortable during use.
  • This product should NOT be used by people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they are supervised or given instructions concerning the use of this product in a safe way and understand the hazards involved.
  • This product is NOT A TOY. Please ensure adequate supervision when the product is used by or near children.
  • The product is intended for Household Use ONLY. Only use this unit according to the intended purpose as stated in the instructions.
  • In case of pregnancy, heart disease, hypertensive disease, osteoporosis, or other illness, consult your doctor before using this product.
  • DO NOT use this appliance in damp or dust-dense conditions or light­ning weather.
  • DO NOT use or store the product near sinks, baths, or showers contain­ing water or near running water.
  • DO NOT operate the product if any water or other liquids get on the massager.
  • DO NOT leave the product unattended when plugged in.
  • DO NOT sit or stand on the massager. Use only when you are sitting or lying down.
  • DO NOT place any part of this appliance on or near a hot area. For exam­ple, hot gas, electric burner, or heated oven, otherwise, the plastic will melt and cause a fire.
  • DO NOT use the product until the massager cloth cover is equipped on.
  • DO NOT let the skin directly touch the massage head to avoid damage to your skin.
  • DO NOT use the massager with shoes.
  • DO NOT pull the massager cloth cover forcefully.
  • DO NOT use this massager if there is any abnormal or severe pain during use.

ELECTRIC SAFETY

  • The appliance is only to be used with the power adapter that comes with the appliance.
  • DO NOT use this appliance if it has been dropped or any part of the appli­ance (including the massager cloth cover, power cord, or power adapter) has been damaged.
  • DO NOT operate the appliance with wet hands or wet feet to reduce the risk of electric shock.
  • Turn off and unplug this appliance before moving it.
  • Unplug this appliance after use and before cleaning.
  • Unplug IMMEDIATELY and DO NOT use the product if it has malfunc­tioned or has been damaged in any way. Inspect the product by a qualified person.

TROUBLESHOOTING

Troubleshoot your problem by using the chart below. If the Shiatsu Foot & Calf Massager still does not operate correctly, it may be defective. Please contact a qualified technician. DO NOT try to repair it by yourself. Other­wise, there is a risk of electric shock.

PROBLEM POSSIBLE CAUSE SOLUTION
The product does not workThe adapter is not plugged properlyPlug in again
The ON/OFF button is not pressedPress the ON/OFF button
The adapter is not the original oneCheck whether the adapter specifications are the same as the original adapter: 12V SA
The product suddenly stops workingThe product turns off automatically after a 15-min or 30-min sessionPress the ON/OFF button again for another session
The DC connector is not connected properly to the DC power jackCheck and reconnect the connector and jack port
The product is overused and the overheat protection turns onUnplug the product and let it cool down completely before using it again
The device is pressed too hard and the massage rollers get stuckPress the ON/OFF button to restart the product
The heat function does not workThe heat button is not pressed



Press the Heat Button

The product is abnormally warmThe product is likely to be overusedUnplug the product and let it cool down completely before using it again

LIMITED WARRANTY

Nekteck provides all of our customers with a warranty of 12 Months from the date of purchase.
Order ID: ______ _
Date of Purchase: ______ _
*For your own reference, we recommend that you record your order number and date of purchase.

Massager NK-FLM01 Pros & Cons

Pros

  • Deep-kneading shiatsu-style massage
  • Heat function for added comfort
  • Adjustable intensity levels
  • Separate foot and calf massage sections
  • Remote control for easy operation

Cons

  • May be too intense for some users
  • May be too large for some users to use comfortably
  • Remote control may be difficult to use for some users

Customer Reviews

"I love this massager! It's helped me so much with my plantar fasciitis and I love the heat function. It's easy to use and the adjustable intensity levels are great. Highly recommend!" - Sarah P.

"I was hesitant to spend this much on a massager, but it's been worth every penny. My feet and calves feel amazing after using it and the remote control is a nice touch. Overall, I'm very happy with this purchase." - John D.

"This massager is a little bulky, but it does a great job of massaging my feet and calves. The heat function is a nice added bonus and the adjustable intensity levels are a great feature. I would definitely recommend it to anyone looking for a good foot and calf massager." - Emily L.

PDF

Faqs

What is the weight limit for the nekteck Shiatsu?

The Nekteck Shiatsu Foot & Calf heat massager NK-FLM01 has a weight limit of 220 pounds.

How long does the heat function take to warm up?

The heat function takes about 30 seconds to a minute to reach its full temperature.

How long does the massager need to be unplugged before it can be safely stored?

The Nekteck Shiatsu Foot & Calf heat massager NK-FLM01 should be unplugged for at least 10 minutes before it is safely stored.

How long does the massage last?

The massage lasts for 15 minutes and will automatically turn off after that time.

How do I clean the massager?

To clean the Nekteck Shiatsu Foot & Calf heat massager NK-FLM01, wipe it down with a damp cloth and let it air dry. Do not submerge the massager in water.
