Introduction

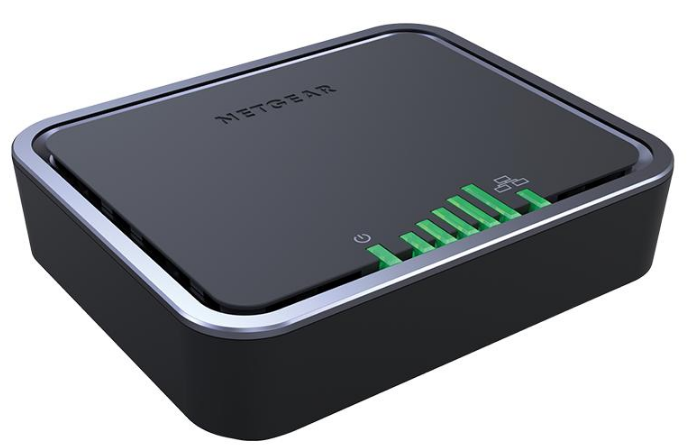

Using 4G LTE networks, the Netgear 100NAS Modem Dual LB2120 is a dependable and adaptable LTE modem that offers a smooth internet connection. It is intended to function as your house or business's primary or backup internet connection, guaranteeing ongoing access even in the event that your primary broadband connection fails. This modem is a great option for people looking for a reliable and continuous internet connection because of its quick plug-and-play configuration, small size, and seamless interaction with current networks. It improves the flexibility and functionality of your network by making it simple to connect to a router or a computer directly with support for dual Ethernet ports.

Package Contents

Note: The power adapter is localized to the country of sale. For some countries, a converter is included.

Detailed Specifications

The Netgear 100NAS Modem Dual LB2120 comes with the following key features:

• DOCSIS 3.1 cable modem with 32x8 channel bonding for faster internet speeds
• Two Gigabit Ethernet ports for seamless connectivity
• Compatible with major cable internet providers
• LED indicators for power, downstream, upstream, and online status
• Supports IPv6 and comes with a 2-year limited warranty

Description

The Netgear 100NAS Modem Dual LB2120 is a reliable and high-performance cable modem that offers blazing-fast internet speeds and improved network efficiency. This modem uses the latest DOCSIS 3.1 technology with 32x8 channel bonding to deliver internet speeds of up to 10 Gbps. With two Gigabit Ethernet ports, this modem provides seamless connectivity to your devices and network. The Netgear 100NAS Modem Dual LB2120 is compatible with major cable internet providers such as Xfinity, Spectrum, and Cox, making it an ideal choice for those who want to upgrade their network performance.

Install Your LTE Modem

1. Install the micro SIM card
   Note: To obtain an activated micro SIM (3FF format) card, contact your mobile broadband service provider. If you use a nano SIM (4FF format) card, you must use an adapter.
   1. Ensure that power to the modem is off.
   2. Remove the SIM card cover on the bottom of the modem.
   3. Unlock the SIM card door.
   4. Carefully slide the micro SIM card into the slot.
   5. Lock the SIM card door, and close the SIM card cover.
2. Connect the modem to a wireline broadband modem
   1. Connect one end of the Ethernet cable that came in the package to the blue WAN Gigabit Ethernet port on the modem.
   2. Connect the other end of the Ethernet cable to a wireline broadband modem, such as a DSL, cable, or fiber optics modem, that provides an Internet connection.
3. Provide power to the modem
   1. Connect the power adapter to the modem and plug it into an electrical outlet.
   2. Press the power On/Off button on the modem.

   3. Wait for the Power LED to light green, which might take several minutes.



4. Connect the modem to a router or directly to a computer
   1. To connect the modem to a router:
      1. Connect one end of an Ethernet cable (not provided) to the yellow Gigabit Ethernet LAN port on the modem.
      2. Connect the other end of the Ethernet cable to the Internet or WAN port on the router.
      3. Use another Ethernet cable (not provided) to connect your computer to a LAN port on the router.
   2. To connect the modem directly to a computer:
      1. Connect one end of an Ethernet cable (not provided) to the yellow Gigabit Ethernet LAN port on the modem.
      2. Connect the other end of the Ethernet cable to an Ethernet port on your computer.
         The modem is ready for operation.

Manage Your LTE Modem

To access your LTE modem

1. Launch a web browser from a device that is connected to the modem.
2. In the address field of the web browser, enter http://192.168.5.1.
3. In the Sign In field, enter the default password, and click the Sign In button. See the modem label for the default password.
   • While the password that you enter is unique to your modem and is secure, we recommend that you change it to a password that you want to use.

Mobile Broadband Internet Connection

By default, when the modem powers up with a SIM card installed, it automatically searches for and connects to your mobile service provider’s mobile broadband network. This process might take several minutes. The SIM card that is installed determines the mobile broadband network to which the modem connects.

However, if the modem does not automatically connect to the mobile broadband network, the Power LED remains solid amber, and you must contact your mobile service provider to get the access point name (APN) profile information and add and activate a custom APN profile in the modem (see Add and Activate a Custom APN Profile).

Add and Activate a Custom APN Profile

If the modem does not recognize the settings of the installed SIM, contact your mobile service provider to get information about the APN profile that you must use. Use the information that your mobile service provider gives you to configure a custom APN profile.

To add and activate a custom APN profile for a mobile service provider’s mobile broadband network:

1. Launch a web browser from a device that is connected to the modem.
2. In the address field of the web browser, enter http://192.168.5.1.
   • The limited Dashboard page displays.
3. To access the full Dashboard page and other pages, in the Sign In field, enter the default password, and click the Sign In button. See the modem label for the default password.
4. Select Settings > Network > APN.
   • The APN page displays.
5. Click the Add button.
   • The New APN pop-up window opens.
6. Enter the settings for the new APN profile. Use the information that your mobile service provider gave you. If your mobile service provider did not specify some settings, leave the default settings.
7. Click the Save button.
   • The new APN profile displays on the page but is not yet the active profile.
8. Select the radio button next to the APN profile that you just added.
   • The modem now uses the selected APN profile to establish a connection with the mobile broadband network of the mobile service provider.

If you still cannot get an Internet connection, contact your mobile service provider to verify the information for the APN profile.

Setup Guide

To set up the Netgear 100NAS Modem Dual LB2120, follow these steps:

1. Connect the modem to your cable internet line and power it on.
2. Connect your devices to the modem's Ethernet ports or via Wi-Fi.
3. Contact your cable internet provider to activate the modem.
4. Once activated, you can configure your network settings using the modem's web interface or mobile app.

Troubleshooting

If you encounter any issues with the Netgear 100NAS Modem Dual LB2120, try the following solutions:

• Check that the modem is properly connected to your cable internet line and power source.
• Ensure that the modem is activated with your cable internet provider.
• Restart the modem and try again.
• Check for any firmware updates for the modem.

Netgear 100NAS Modem Dual LB2120 Pros & Cons

Pros

• Blazing-fast internet speeds of up to 10 Gbps
• Seamless connectivity with two Gigabit Ethernet ports
• Compatible with major cable internet providers
• Easy to set up and configure
• LED indicators for power and status

Cons

• May be expensive for some users
• May not be compatible with some cable internet providers
• May require firmware updates for optimal performance
• May have limited range for Wi-Fi connectivity

Customer Reviews

Customers have praised the Netgear 100NAS Modem Dual LB2120 for its fast internet speeds and improved network efficiency. Some have noted that the modem can be expensive, but overall, customers have been satisfied with its performance and reliability.

Common Complaints

Some customers have reported issues with compatibility with certain cable internet providers, while others have noted that the modem can be difficult to configure. However, these issues are relatively rare and can typically be resolved with proper setup and configuration.
