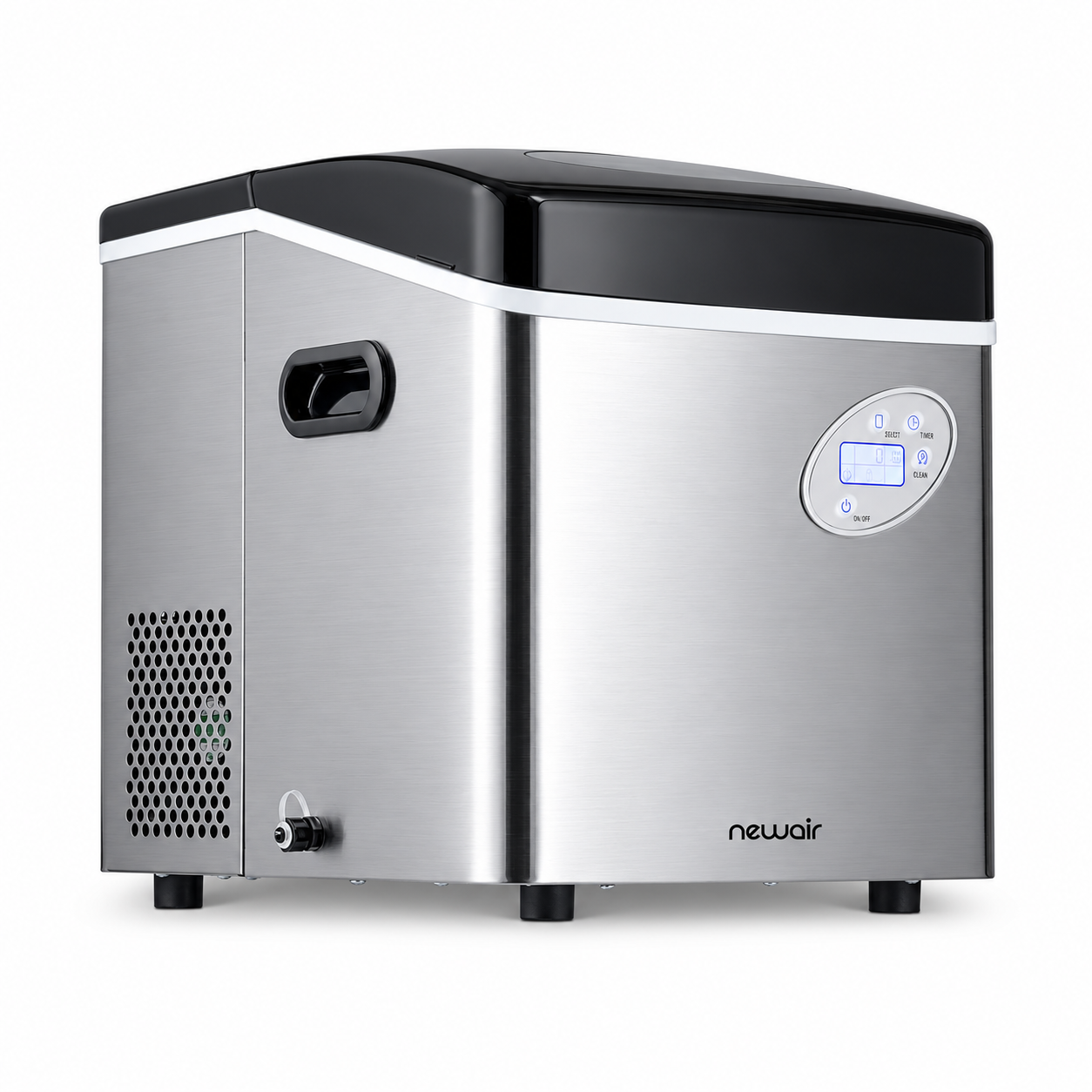

Newair Portable Ice Maker AI-215

Introducing the Newair Portable Ice Maker AI-215 is a state-of-the-art appliance designed to provide you with fresh, crystal-clear ice in just a matter of minutes. Ideal for home use, parties, or even small businesses, this compact ice maker is a game-changer for those looking to enjoy fresh ice without the need for a large, built-in unit. With an estimated price range of $300 to $350 and a launch date set for late 2023, the AI-215 is an affordable and efficient solution for your ice needs.

SPECIFICATIONS

PARTS LIST

1.  Cover

2.  Control Panel

3.  Water Drain Cap

4.  Ice Basket

5.  Ice Scoop

6.  Ice Shovel

7.  Handle

Newair Portable Ice Maker AI-215 Full Parts Diagram

1. Fixing set for water pump
2. Refrigerant dry filter
3. Silicon pipe for supplying water
4. V/Water pump
5. Water detecting piece
6. Evaporator assembly
7. Steel pipe for supplying water
8. Steel grill
9. Cam
10. Micro switch
11. Install panel of switch
12. Left panel
13. Silicon pipe for ice-making box
14. Rear panel
15. Ice making box axis
16. Ice making box assembly
17. Back down cover
18. Synchronous motor
19. Right panel
20. Hand dug
21. Back up cover
22. Front up cover
23. Up window
24. Back down cover
25. Detector pressing pat
26. Water full temperature sensor
27. Front down cover
28. Down window
29. Ice apron
30. Ice basket
31. Ice shove
32. Operation panel frame
33. Button PWB
34. Rubber feet with bolts
35. Water filter
36. Fomaing assembly
37. Bottom base
38. Main control PWB
39. Power line and clip
40. Compressor
41. Electrical box
42. Condenser
43. Water draining assembly
44. Electromagnet valve assembly
45. DC12V/Fan blade
46. Inner lead

WIRING DIAGRAM

CONTROL PANEL DIAGRAM

BUTTONS

• ON/OFF – Use to start or stop the unit

• SELECT – Selects ice size

• TIMER – Set or cancel timer (refer to page 9)

• CLEAN – Begin self-cleaning function (refer to page 7)

LCD DISPLAY SYMBOLS

1. Power indicator

2. Ice size selected (small, medium or large)

3. Timer display

4. Ice Bucket Full Indicator

5. Add Water Indicator (flashes when water needs to be added)

6. Warning Indicator – problem with unit

7. Self-Cleaning Indicator

Description

The Newair Portable Ice Maker AI-215 is designed to be both functional and stylish, making it a great addition to any kitchen or workspace. Its sleek exterior is available in two colors, black and stainless steel, giving you the flexibility to choose the perfect fit for your space. With a user-friendly digital display and easy-to-use buttons, operating the AI-215 is a breeze. Simply add water, select your desired ice size, and let the machine do the rest. Within minutes, you'll have fresh, restaurant-quality ice ready to enjoy at your convenience.

ASSEMBLY & INSTALLATION

1.  Remove the exterior and interior packaging. Check that the ice basket and ice scoop are included. If any parts are missing, please contact customer service.

2.  Clean the interior with lukewarm water and a soft cloth. Take out the ice basket and clean it.

3.  Place your ice maker in a location that is protected from direct sunlight and other heat sources (e.g., stove, furnace, and radiator). Make sure it is on a level surface with at least 4 inches of space between the back and sides of the unit and the wall.

4.  Allow two hours for the refrigerant fluid to settle in the compressor before plugging the ice maker in.

5. Plug your appliance into an exclusive, properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed to a certified electrician.

6. We recommend you clean your ice maker thoroughly before using it. Please see Cleaning & Maintenance on page 10 of this guide.

OPERATING INSTRUCTIONS of Newair Portable Ice Maker AI-215

MAKING ICE

1.  Open the unit’s cover, remove the ice basket, and pour water into the water reservoir. Keep the water level below the “MAX” line marked inside the reservoir.

2.  Plug in the unit to the grounded power supply outlet.

3.  Press the “ON/OFF” button on the control panel to begin the ice making cycle.

4.  Select the size of the ice cube by pressing the “SELECT” button. If the room temperature is lower than 60°F, it is recommended to select small or medium ice in order to avoid the ice sticking together.

5.  The ice making cycle lasts anywhere from 7 to 13 minutes, depending on the size of the ice cubes you select and the ambient room temperature. Ice making time may vary significantly in extremely high room temperatures.

6.  Periodically verify the water level in the water reservoir when the ice maker is on. If the water level is too low, the ice maker will automatically stop and the “Add Water” indictor light will flash in the LCD display window. Press the “POWER” button to stop the unit and unplug it. Fill the reservoir with water up to the level mark. Plug it in and press the “POWER” button again to restart the unit. Allow at least 3 minutes for the refrigerant inside the compressor to settle before restarting.

7.  The ice maker automatically stops working when the ice basket is full. The “Ice Bucket Full” indicator will also turn on at this time.

8.  Change the water in the reservoir every 24 hours to ensure hygienic ice. If the ice maker will not be used for an extended period of time, drain the water from the reservoir by unplugging the drain off cap located on the side of the ice maker.

USING THE TIMER

How to Set the ON-TIMER Program

When the unit is off, you can program the timer to start the unit after a set number of hours.

1.  Press the TIMER button on the control panel. “1.0H” will flash in the Timer Set Display Window.

2.  Press the SELECT button to set the Timer delay to a time between 1.0 and 18.0 hours, in half hour increments.

3.  After the desired time is set, the display will show the time remaining and will decrease in 0.1 hour increments. When the timer reaches ZERO and disappears, the unit will start to run automatically according to your settings.

To cancel when the time is set but not yet running, press the TIMER button twice to cancel it.

How to Set the OFF-TIMER Program

When the unit is on, program the OFF-TIMER to stop the unit after a set time.

1.  Press the TIMER button on the control panel. “1.0H” will flash in the Timer Set Display Window.

2.  Press the SELECT button to set the Timer delay to a time between 1.0 and 18.0 hours, in half hour increments.

3.  After the desired time is set, the display will show the time remaining and will decrease in 0.1 hour increments. When the timer reaches ZERO and disappears, the unit will stop running automatically.To cancel while the unit is running, press the TIMER button twice to cancel the TIMER-OFF setting.

Setup Guide

To get started with your Newair Portable Ice Maker AI-215, follow these simple steps:

1. Connect the ice maker to a standard 120V electrical outlet.
2. Fill the water reservoir to the indicated level.
3. Select your desired ice size using the digital control panel.
4. Wait for the ice maker to produce and dispense the ice.
5. Empty the ice basket regularly to maintain optimal performance.

CLEANING & MAINTENANCE

Clean the outside of the ice maker with a mild detergent solution and warm water. Use a soft cloth to wipe to avoid scratching or damaging the surface of the unit. Use the unit’s self-clean function to clean the interior of the unit:

1.  Remove the ice basket.

2.  Add 1:1 mixture of water and vinegar.

3.  Plug in the unit. Hold down the CLEAN button for at least 6 seconds and release. The unit will automatically enter the self-clean program. This process will last about 5-6 minutes, after which the unit will automatically power down again. During this process the “Add Water Indicator” and the “Self Cleaning Indicator” will light in the LCD display window, and the fan blades in the self-clean symbol will always rotate. This process will rinse the inside parts of the ice maker thoroughly.

4.  After the self-clean program is completed, drain out the water by unplugging the drain cap on the side. Then close the drain cap.

5.  Unplug the unit and add fresh water into the interior tank, up to the water level mark.

6.  Re-plug the unit to the power supply, and rerun the self-cleaning program again as described in Step 3.

7.  When the self-cleaning program is completed, unplug the unit and drain out the water by unplugging the drain cap on the side.

8.  Dry the interior and exterior with a soft cloth.

9.  Tighten the drain cap. Replace the ice basket and plug the unit in again.

To remove the build-up of calcium or other impurities, add a capful of vinegar or lemon juice to the water in the reservoir and run for two or three ice-making cycles. Drain and refill the reservoir with clean, warm water. Run two more cycles to rinse the vinegar or lemon-juice. When the machine is not in use open the water drain cap to completely drain the water reservoir. http://www.NewAir.com

STORAGE

Before storing your ice maker, clean it according to the directions above and allow it to dry thoroughly – at least 24 hours – in order to prevent the growth of mold or mildew. Store your ice maker in the original packaging, or cover with a soft cloth or plastic sheet.

SAFETY INFORMATION & WARNINGS

As with any electrical appliance, basic safety precautions must be followed in order to reduce the risk of fire, electrical shock and/or injury to persons or property. Be sure to read all instructions before using this appliance and observe the following safety tips:

•  Do not operate this appliance if it has a damaged cord.

•  Only connect the ice maker to a properly polarized outlet. No other appliance should be plugged into the same outlet. Make sure the plug is fully inserted into the receptacle.

•  An extension cord is not recommended, as it may overheat and become a fire risk. If necessary, use an extension cord with a minimum size of No. 14 AWG and rated for no less than 1875 watts.

•  Do not place hands or objects on or near the ice maker’s evaporator when it is in operation.

•  Do not run the power cord over carpeting or heat insulators. Do not cover the cord. Keep the cord away from high traffic areas and never submerge it in water.

•  Always turn off and unplug the ice maker from the power supply before cleaning and servicing.

• Do not use your ice maker outdoors.

•  Do not use liquids other than water to make ice cubes.

•  Exercise caution and make sure there is supervision when this appliance is being used near children.

•  If the ice maker is brought in from the outside in the winter, allow the ice maker to warm up to your room’s temperature for a few hours before plugging it in.

•  Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or cause an explosion.

• Do not touch the evaporator while the unit is in use or during the ice making process. It may cause severe burning.



TROUBLESHOOTING

MANUFACTURER’S WARRANTY

This appliance is covered by a limited manufacturer’s warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.

Pros & Cons about Newair Portable Ice Maker AI-215

Pros

• Compact and portable design
• Quick ice production (within minutes)
• Three adjustable ice size options
• Digital control panel for easy operation
• Eco-friendly R600a refrigerant

Cons

• Slightly higher price point compared to some competitors
• May require frequent water refills for continuous ice production

Customer Reviews

Customers rave about the AI-215's modern design and efficient ice-making capabilities. The compact size is particularly popular among users who appreciate having the freedom to move the machine around with ease. The most common complaints are regarding the higher price point and the need to refill the water reservoir frequently for continuous ice production.
