Introduction

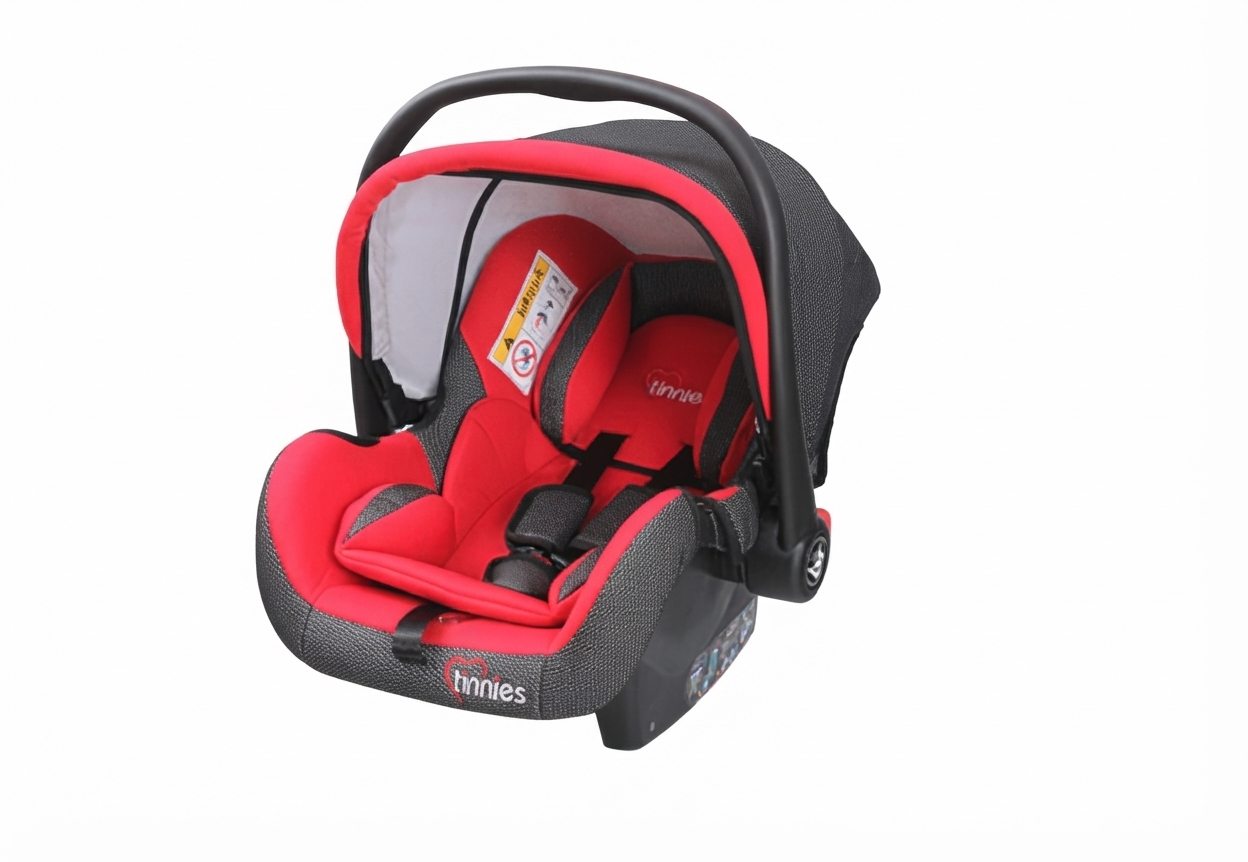

For the modern parent, the Nureca T002-014 Tinnies Baby Carry Cot is a portable option that can be used for more than one thing. This carry cot can be used as a chair or a baby seat, so it's great for both home and travel. It also makes a safe and comfortable place for babies to sleep. It was made with safety and comfort in mind, with a soft, padded interior, a movable canopy, and strong handles that make it easy to move. No matter where you are—at home, visiting family, or on the go—the Tinnies Baby Carry Cot gives babies a safe and cozy place to sleep. This way, your little one can rest peacefully no matter where you are.

Detailed Specifications

The Nureca T002-014 Tinnies Baby Carry Cot comes with the following key features:

• Suitable for newborns up to six months of age
• Lightweight and portable design
• Spacious and comfortable sleeping area
• Removable and washable fabrics
• Sturdy and durable frame
• Includes a canopy for sun protection
• Breathable mesh windows for added ventilation
• Easy-to-use zippers and buckles
• Folds flat for convenient storage

Description

The Nureca T002-014 Tinnies Baby Carry Cot is the ideal solution for parents who are perpetually on the move. This portable infant bed is intended to offer a secure and comfortable sleeping environment for newborns who are six months of age or younger. The cot is portable and lightweight, rendering it an excellent choice for overnight stays at grandma's house, day excursions, or travel. The removable and washable fabrics of the cot facilitate the maintenance of its cleanliness and freshness, while the spacious and comfortable sleeping area guarantees that your infant will experience a tranquil and restful overnight.

The carry cot is equipped with a durable and robust frame that can accommodate a maximum weight of 15 pounds. The breathable mesh windows guarantee that your infant remains cool and comfortable, while the canopy offers sun protection. The cot's foldable design enables convenient stowage when not in use, and the easy-to-use zippers and buckles facilitate the process of setting up and taking down.

Universal Child Restraint Information

1. This is a "Universal" child restraint, it is approved to Regulation NO.44.04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats.
2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a “Universal” child restraint for this age group.
3. This child restraint has been classified as “Universal” under more stringent conditions than those which applied to earlier designs which do not carry this notice. Only suitable if the vehicle is fitted with 3-point safety belts. Approved to UN/ECE Regulation No.16 or other equivalent standards.

Parts and Interior Information

Use In the Vehicle

Child Safety Seat

• Test and certification to ECE R44/04
• Group Body weight: BABY-CARRIER o+ To 13kg
• Danger! An airbag hitting the baby seat can cause serious injuries to your child, possibly resulting in death.
• DO NOT use on a passenger seat with a front airbag.

Please observe the instruction in your vehicle manual for the use of child seats.

This is how you can use your child safety seat:

• Forward facing: no
• Rearward facing: yes
• With 2 point belt: no
• With 3 point belt: yes
• On front passenger seat: no
• On outer rear seat: yes
• On centre rear seat: no

(Please observe the relevant regulations in your country)

1. The use of a 2 point belt substantially increases the risk of injury to your child in the event of an accident.
2. The safety belt must be approved to ECE R16 or a comparable standard (see test label on belt with an "E" or "e" in a circle).
3. Capsule is not recommended to use at the front passenger seat unless there is no air bag in the front and no back seat can be used.
4. Can be used if the vehicle seat is equipped with a 3 point belt. Center rear seat with 3-point belt is the best for installing your baby seat because it can supply the space for crash cushion, the second better option is rear seat.
5. Never leave your baby unattended in the baby seat when placing it on elevated surfaces.

Setup Guide

Setting up the Nureca T002-014 Tinnies Baby Carry Cot is quick and easy. Here's how to do it:

• Lay the cot out flat on the ground after unfolding it.
• Put the mattress inside the cot.
• Attach the canopy to the top of the cot
• Secure the fabric to the frame using the zippers and buckles
• Make sure the cot is stable and secure before placing your baby inside

Securing Your Baby

For the protection of your baby:

• Always secure your baby in the baby seat using the seat belt.
• Never leave your baby unattended in the baby seat when placing it on elevated surfaces (e.g. a table, nappy changing unit, etc.).
• Never allow the strap end to become caught in moving parts (e.g. automatic doors, escalators, etc.).

1. Caution! The plastic parts of the baby seat heat up in the sun, due to which your baby may get burnt. Protect your baby and the baby seat against intensive solar radiation (e.g. by putting a light cloth over the seat).
2. The baby seat requires only one seating position in the car. This advantage means, however, that your baby must be in a semi-reclined position.
3. Take your baby out of the baby seat as often as possible to relieve its spine. We recommend frequent breaks during long journeys. Even outside of the car, please avoid leaving your baby in the baby seat for too long.

Removing the Lying Support

The lying support is used to provide extra comfort for very small babies. Caution! Only use the lying support when the shoulder belt is in the lowest slot position.

• Slide shoulder belt out of 3 bar on the back of the carrier.



• Take out the belt. You can remove the lying support.

• Then put belt through upper another slot and slide straps in 3 bar.



Adjusting the Handle

You can engage the handle in three positions: Simultaneously press both buttons on the handle. Then whilst holding the buttons pressed, turn the handle backwards or forwards until it engages in the desired position.

Adjusting the Shoulder Belt Height

A correctly adjusted shoulder belt height ensures your baby's optimal protection in the baby seat. The shoulder belt height must be adjusted so that the shoulder straps are at the same level as your baby's shoulders or slightly below. Follow paragraph 4.1.

Loosening the Shoulder Straps

Press the adjuster button under the cover and at the same time pull both shoulder straps forward.

Securing Your Baby Using the Harness

• Loosening the shoulder straps.
• Open the harness buckle (press the red release button). Put the tongue with belt on both sides, the buckle is placed to front so that the occupant place is free.
• Place your baby into the baby seat.
• Put the shoulder straps over the shoulders of your baby. Caution! Do not twist or interchange the shoulder straps.

• Put the two buckle tongues together and engage in the harness buckle with an audible CLICK!



• Tighten the straps until they are in contact with your baby's body.

Caution! The hip belt must lie as possible over your baby's hips.

Removal

Press the side red button of the harness to release the five-point harness, then put the tongue on both sides, take out your baby.

Tightening the Harness

Pull the strap end. Caution! Pull the strap end straight towards you, not upwards or downwards. Please pay attention to the strap end while travelling (especially outside the car), it should always be placed in the carrier.

Checklist to Ensure That Your Baby Is Buckled Up Correctly

For the safety of your baby, please check that:

• The shoulder straps of the baby seat are close to the body without constricting the baby.
• The shoulder straps are adjusted correctly.
• The shoulder straps are not twisted.
• The buckle tongues are engaged in the harness buckle.

Installation in the Vehicle

Please do not leave your child unattended in the child safety seat in the vehicle.

For the protection of all vehicle occupants:
In case of an emergency stop or an accident unsecured persons or objects may cause injury to other vehicle occupants. Please always check that:

• The backrests of the vehicle seats are locked (i.e. that a foldable rear seat bench latch is engaged).
• All heavy or sharp-edged objects in the vehicle (e.g. on the parcel shelf) are secured.
• All persons in the vehicle have their seat belts fastened.
• The child safety seat is always secured when it is in the vehicle, even if no child is being transported.

To protect your vehicle:

Some vehicle seat covers of sensitive materials (e.g. velour, leather, etc.) may develop wear marks when child seats are used. This can be avoided by placing a blanket or towel under the child seat.

Securing the Baby Seat in Your Vehicle

To secure the baby seat using the 3-point belt of your vehicle proceed as follows:

• Place the baby seat rearward-facing on the vehicle seat (baby is facing backwards). Tip! In certain cases, it is possible that the baby seat does not rest securely or is inclined too steeply on the vehicle seat. This can be remedied by placing a blanket under the child seat or choosing another seating position. Ensure that the handle is in its upper position as below.



• Caution! Do not twist the belt.
• Tighten up the diagonal belt section.

Removal

• Slide diagonal belt out from belt holder slot to unhook the diagonal belt section.
• Open the vehicle seat buckle and take the lap belt section out of the blue belt guides.

Checklist for the Correct Installation of the Baby Seat in Your Car

For the safety of your baby, please check that:

• The baby seat is installed rearward-facing.
• The baby seat is only installed on the front passenger seat if no front airbag can strike the baby seat.
• The baby seat is only secured using a 3-point belt.
• The diagonal belt section runs through the blue belt holder and the baby seat.
• The vehicle seat buckle or belt is not positioned in or in front of the lap belt holder.

• The vehicle seat belt is tightened up and not twisted.



• The lap belt section runs through both blue belt guides on the baby seat, lying in the flute of both sides (see picture).



• Don’t use any load bearing other than those described in the instructions.

Fitting the Sunroof

Push fastener (A) of the canopy onto the other fastener (B).

Care Instructions

To retain the protective effect:

• In an accident at a collision speed above 10 km/h the child seat could suffer damage which is not necessarily obvious. In this case, the child seat must be inspected by the manufacturer and if necessary replaced.
• Regularly check all important parts for damage. Ensure the correct operation of all mechanical components.
• To prevent damage or breakage, ensure that the child seat does not become jammed in the car door, seat runners, etc.
• If the child seat is damaged (for example after dropping it), it must be inspected by the seller.

Care for the Harness Buckle

The function of the harness buckle is important for the safety of your child. Malfunctions of the harness buckle are mostly attributable to accumulations of dirt and dust.

Malfunction

• The buckle tongues are ejected only slowly when the red release button is pressed.
• The buckle tongues will no longer lock home (are ejected again).
• The buckle tongues engage without an audible "click".
• The buckle tongues are difficult to insert (you feel resistance).
• The buckle only opens if extreme force is applied.

Remedy
Wash out the harness buckle so that it functions properly once again:

1. Removing the harness buckle: Open the harness buckle (press the red release button). Loosen the harness straps (see 4.4). Tilt the baby seat backwards. Push T-bar, with which the harness buckle is fixed to the seat shell, on its side upwards through the belt slot.



2. Cleaning the harness buckle: Soak the buckle in warm water with dishwashing liquid for at least an hour. Rinse and dry thoroughly.

3. Re-fitting the harness buckle: Push the metal plate on its side downwards through the belt slot in the cover and through the seat shell. Check for correct filling by pulling firmly on the harness buckle.



Removing the Harness

• Unhook the shoulder straps as described above (see 4.1).
• Pull out T-bar which is used to fasten the strap to the bottom of the carrier shell (see 7.1). Total three pieces of T-bar.
• Push the strap loop inwards from the short side of T-bar and unhook the strap. You can now pull the strap out.

Removing the Cover

• Open the harness buckle (press the red release button).
• Unhook the shoulder straps from the connecting piece (see 4.1). Take the plastic buttons off the seat.
• Pull the shoulder straps out of the belt slots of the baby shell.
• Pull out the straps and the buckle tongues from the cover.
• Pull out the harness buckle from the cover.

• Take off the shoulder pads. You can now remove the cover.



Re-fitting the Cover

• Put the cover over the seat as described in paragraph 1.2 (pictures).

Installing the Harness

• Engage the buckle tongue in the harness buckle (see 4.5). Re-fitting the buckle (see 7.1).
• Now take the strap through the two slots of the baby shell. Caution! Do not twist the belts.
• Hook T-bar into the strap loop (first the long side and then the short side of the T-bar).
• Hook the shoulder straps into place as described above.

How to Dispose

• Please observe the waste treatment regulations of the country.
• Please put the returnable plastics and metal parts into a corresponding returnable container.

Washing Instructions

• Use the original seat cover only.
• Do not use the child safety seat without the seat cover.
• Use only water (under a temperature of 30°C) with neutral detergent to wash the cover. Hang it in the shade after washing and do not wash by machine. Spin dry or tumble dry is not recommended.

• Wash the plastic parts with warm water and neutral soap. Do not wash with chemicals.



Nureca T002-014 Tinnies Baby Carry Cot Safety Information

1. The customer can email at [email protected], to obtain future information on fitting the child restraint in specific cars.
2. The rigid items and plastic parts of a child restraint must be so located and installed that they are not liable, during everyday use of the vehicle to become trapped by a movable seat or in a door of the vehicle.
3. Any straps holding the restraint to the vehicle should be tight; that any straps restraining the child should be adjusted to the child's body; and that straps should not be twisted.
4. The instructions can be retained on the child restraint for its life period.
5. Do not use any load bearing contact points other than those described in the instructions and marked in the child restraint.
6. The device should be changed when it has been subject to violent stresses in an accident.
7. It is dangerous to make any alterations or additions to the device without the approval of the competent authority, and a danger of not following closely the installation instructions provided by the child restraint manufacturer.
8. When the chair is not provided with a textile cover, it should be kept away from sunlight, otherwise it may be too hot for the child's skin.
9. Children must not be left in their child restraint system unattended.
10. Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
11. The child restraint must not be used without the cover.
12. The seat cover cannot be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.

Troubleshooting

Here are some common problems and solutions for the Nureca T002-014 Tinnies Baby Carry Cot:

• If the cot is wobbly or unstable, make sure it is fully unfolded and the legs are securely locked in place.
• If the fabric is difficult to attach to the frame, check to make sure the zippers and buckles are properly aligned.
• If the canopy is not providing enough sun protection, try adjusting the angle or position of the canopy.
• Always follow the manufacturer's instructions when assembling or disassembling the cot.

Pros & Cons

Pros

• Lightweight and portable design
• Spacious and comfortable sleeping area
• Removable and washable fabrics
• Sturdy and durable frame
• Includes a canopy for sun protection
• Breathable mesh windows for added ventilation
• Easy-to-use zippers and buckles
• Folds flat for convenient storage

Cons

• May not be suitable for babies over six months old
• Some users may find the setup process confusing or difficult

Customer Reviews

Customers love the Nureca T002-014 Tinnies Baby Carry Cot for its lightweight design and comfortable sleeping area. Many users have praised the cot for its ease of use and portability, making it a great option for travel or day trips. However, some users have noted that the setup process can be confusing or difficult, and that the cot may not be suitable for babies over six months old.
