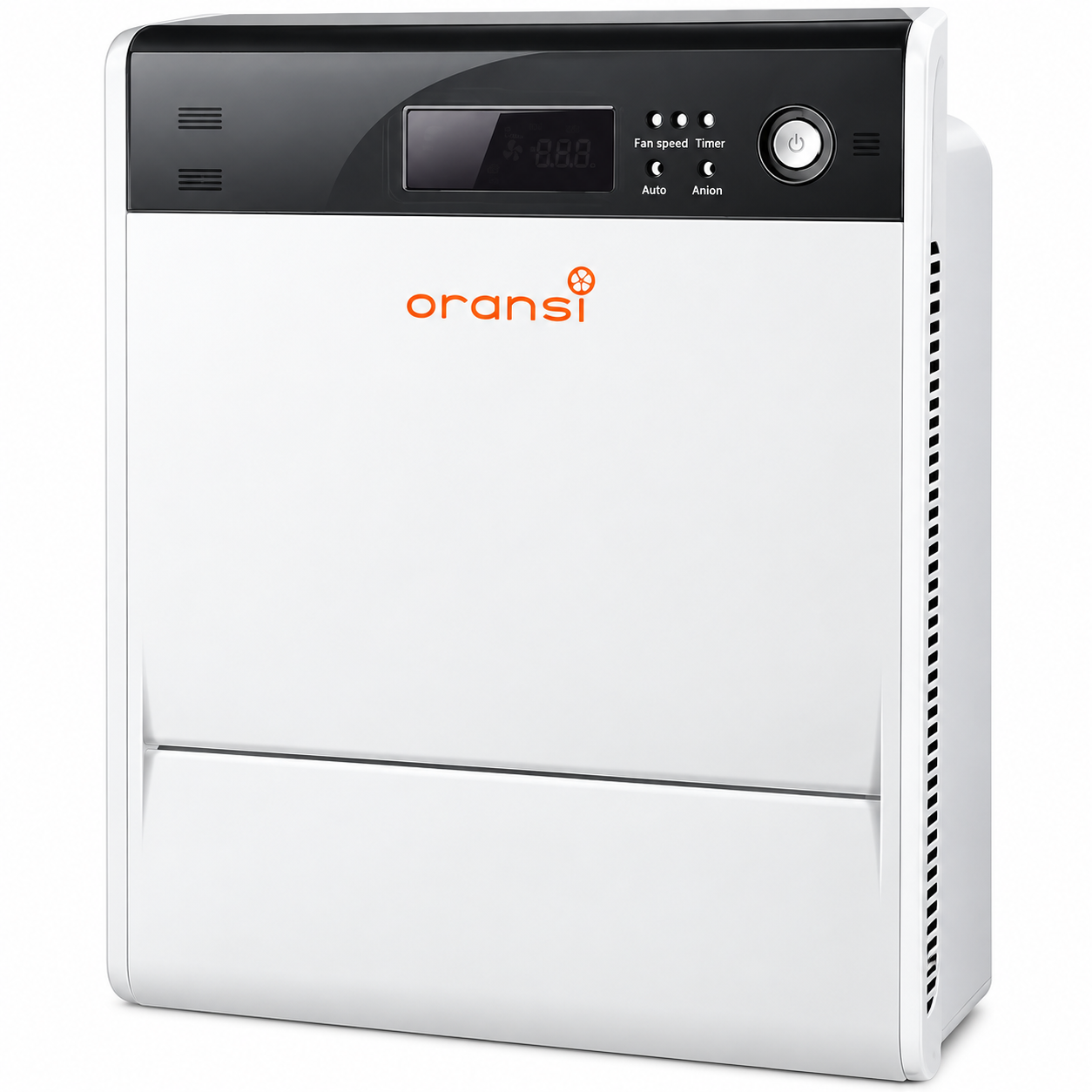

Oransi OVHM80 Max Air Purifier

Introducing a premium gadget that greatly enhances indoor air quality is the Oransi OVHM80 Max Air Purifier. Its medical-grade HEPA filter efficiently collects 99.97% of airborne particles, such as dust, mold spores, pet dander, and allergies. The activated carbon filter also eliminates dangerous gasses and smells. It has the ability to quickly cleanse big rooms up to 600 square feet because to its high Clean Air Delivery Rate (CADR). The Oransi OVHM80 Max Air Purifier is a vital tool for keeping a clean and healthy living or work area. It is renowned for its silent operation, energy economy, and user-friendly settings.

Detailed Specifications

The Oransi OVHM80 Max Air Purifier boasts the following key features:

• 99.99% elimination rate of particles as fine as 0.01 microns with true HEPA filtration
• Filtration using activated carbon to eliminate smells, volatile organic compounds, and other gaseous contaminants
• UV-C light technique for the destruction of viruses, bacteria, and other microorganisms
• UV-C light, activated carbon filter, HEPA filter, and pre-filter are all part of this four-stage filtration system.
• 760 for smoke, 800 for dust, and 880 for pollen on the CADR scale
• Real-time monitoring of air quality and an intuitive touchscreen display
• Silent operation and automated brightness adjustment in sleep mode
• energy-efficient and requiring only 30 to 60 watts of power
• A smart filter reminder system with an alert for filter replacement
• White finish, sleek and contemporary design, small footprint

Air Purifier Description

Main Structure

1. Front view
2. Front air flow inlet
3. Front cover
4. Pre-filter
5. Front panel
6. HEPA
7. Carbon filter
8. Fan
9. Side air flow inlet
10. Power button
11. Airflow outlet
12. Function buttons
13. LED Display
14. Air Quality sensor

Technical data

• 120V, 60Hz, 90W, 0.8A

Purifying Process and Main Features

• Pre-Filter
  Captures larger-sized particles like dust. Can be cleaned by vacuuming lightly or wiping with a damp cloth. Do not soak in water.
• HEPA filter
  HEPA filter to remove microscopic particles down to 0.3 microns in size such as fine dust, smoke, pollen, bacteria, and mold.
• Activated carbon filter
  The activated carbon filter consists of a vast system of highly adsorbent molecular-sized pores to remove gases, light odors, and VOCs (volatile organic compounds).
• Anion generator
  Low-level and ozone-safe negative ionizer to freshen and balance the air (ie neutralizes a surplus of positive charges from TVs and computer monitors).
• Air Quality Sensor (AQS)
  Measures and displays the air quality. In Auto mode, the unit automatically adjusts its fan speed based on the air quality reading. The sensor needs about 10 minutes to warm up to reach its maximum sensitivity. The display will flash AQS to indicate it is warming up and will stop flashing and display AQS when ready.
• Placement
  In order to get better performance in cleaning, it is recommended to place the purifier on the ground or a stable surface.  Since the air is drawn in through the front of the air purifier it can be placed near a wall.

Function Description

1. Standby
   In standby mode, the standby indicator illuminates in red to show the air purifier has been plugged in and has power but is not operating.
2. Refresh
   Anions are generated under this mode (low level negative ions).

3. Fan Speed
   There are four different fan speeds with Silent the lowest and Turbo the highest fan speeds.



4. Air Quality Indicator
   There are five levels of air quality as indicated below:
   Note: the air quality reading is located above the “AQS”.  Since the air quality sensor is located on the air purifier the reading will be in the area of the air purifier.  In many cases it will have a reading of Excellent or Very Good.

5. Auto
   In auto mode, the fan speed of the air purifier will be set automatically based on the air quality detected by the sensor.  We suggest setting the fan speed where you would like it before pressing Auto.  Once pressed, the fan will stay at the same speed but the fan speed display will reflect the air quality reading as in the table below and not the current fan speed.  For example, if you are on the Strong fan speed and the air quality is very good the display on the air purifier will show Silent even though the fan speed is operating on Strong (speed 3).



   The Refresh icon will be illuminated on the panel when the anion feature is activated.  You can turn this off by pressing the Anion button.  In auto mode, the fan will stay on the speed that you select to run in normal operating mode but will automatically increase speed when the sensor detects extra particulates in the air.

6. Check Filter
   When the purifier has run for a total time of 3,000 hours, the maintenance indicator illuminates to remind the user to check the pre-filter and activated carbon filter.  The HEPA filter has a color shade on the frame to see whether it is time to be replaced.    After maintenance, press the “Fan Speed” and “Anion” buttons simultaneously for 3 seconds to reset the counter. Please note that whenever the “Fan Speed” and “Anion” buttons are pressed at the same time, the counter will be reset.  If users do not reset the counter after checking the filter or forget to check the filter after 3,000 hours, “Check Filter” will blink after 3,500 hours as a reminder.

Setup Guide

Setting up the Oransi OVHM80 Max Air Purifier is easy and straightforward. Follow these steps to get started:

1. Take the air purifier out of its box and discard all of the wrapping.
2. A place with enough room and ventilation is ideal for the air purifier.
3. After inserting the plug, press the power button to activate the air purifier.
4. To choose your preferred filtration mode, such as "Auto," "Sleep," or "Manual," press the "Mode" button.
5. To change the fan speed, timer, and other settings as necessary, use the touchscreen display.

How to Use

Buttons and Display

Buttons
ON/OFF, Fan Speed, Timer, AUTO, Refresh
LED Display

Operation Guide

• On/Off
  When plugged in, the unit will beep and illuminate the icons on the display.  Press the ON/OFF button and the unit will start on the Strong fan speed. Any time the unit is restarted, it will remember its last working status.
• Night Mode
  By pressing the Power button for 3 seconds you can turn off the light around the power button.  This will not turn off the icons on the display.
• Fan Speed
  The fan speed cycles in the following order:
  Strong ---Turbo --- Silent --- Middle
  The lighted indicator around the power button indicates the fan speed with different colors.  Silent is green, Middle is blue, Strong is orange and Turbo is red.
• Refresh
  Press this button and the ionizer starts generating anions (negative ions). Press this button again to turn it off.  The refresh icon will be illuminated when the anion feature is activated.
• Countdown Timer
  Press the Timer button to set the number of hours the air purifier will run before turning off.  With each press of this button, the time will increase by 1 hour and max at 12 hours. Pressing again after 12 hours will turn off the timer.

Oransi OVHM80 Max Air Purifier Maintenance

Cover and Housing

1. Power off the unit and unplug it before any maintenance.
2. Clean the unit only when necessary. If the unit is used in a dirty environment it may need cleaning more frequently.
3. Wipe any dust away with a soft cloth (can be dry or damp).
4. Do not use any cleaners or chemicals on the air purifier.

Sensors

1. Clean out the dust blocking the sensors’ air inlet
2. If the sensor is giving a false reading, vacuum around the sensor to remove any dust have may have accumulated there.

Filters

The filters should be cleaned or replaced regularly.
Prefilter: It’s washable as normal fabric but DO NOT rinse it. Let it dry flat. It’s recommended to clean this filter every 3 months and replace it after 1 year. HEPA filter and Carbon filter: When the purifier has run for 3,000 hours, the maintenance indicator illuminates to remind the user to check the HEPA and carbon filters. The HEPA filter has a color shade on the frame to see whether it is necessary to replace it. Please replace it when the color is dark. After maintenance, press the “Fan Speed” and “Anion” buttons simultaneously for 3 seconds to reset the filter replacement indicator.

Disassembly

Using the front cover removal tool, or any non-conductive item such as a plastic utensil, wooden chop stick or similar, insert the tool into the uppermost side air intake slot and gently push outwards against the back surface of the front cover until the top corner of the front panel ‘pops’ free, as shown below.
Repeat this process for the other side and then lift the entire front panel up and away from the main body, exposing the filter compartment. Place the front panel out of the way and protect it from damage.

NOTE: Any non-conductive implement such as the handle of a plastic utensil, a wooden chopstick or similar item can be used in place of the tool provided with your unit.

1. Pre-filter: Turn the 4 locks per the direction of the arrows to release the pre-filter.
2. HEPA filter: Hold the small ribbon and pull the filter out.

3. Carbon filter: Hold the small ribbon and pull the filter out.



Assembly

1. Carbon filter: Put the filter in place from the bottom and then push it into the cabinet.
2. HEPA filter: Put the filter in place from the bottom and then push it into the cabinet.
3. Pre-filter: Place in the pre-filter and turn the locks to secure it.

4. Front cover: Secure the interlock at the bottom first and push the whole cover inwards at the top two corners to secure it.



Important Safeguards!

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. WARNING: RISK OF ELECTRICAL SHOCK

• Safety precautions should always be used when operating this or any electrical appliance.
• Decrease the risk of electrocution, electric shock, injury or fire by reading and following all of the warnings below.
• To reduce the risk of electric shock, do not attempt to service the air purifier in any way other than to replace or clean the air filter.
• To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet,reverse the plug. If it still does not fit, contact qualified personnel to install the
• proper outlet. Do not alter the plug in any way.
• Read all instructions before operating the air purifier.
• This product operates at 120V AC, 60Hz only.
• Do not run the power cord under carpets, and do not cover with throw rugs.
• This product is not intended to filter oil or grease from air.
• Always unplug the power cord from the electrical outlet when the air purifier is not in use or when changing the filter.
• Never run the air purifier unless it is fully assembled.
• Do not alter the plug in any way.
• Always turn off the air purifier before unplugging the air purifier from outlet.
• Do not place the cord near a heated surface.
• Never operate the air purifier if the plug or cord is damaged or appears damaged. Only qualified service personnel should ever replace or attempt to replace a damaged power cord.
• Never use the power cord to pick up, carry, drag, pull, or lift the air purifier. Do not pull the cord against or around sharp corners and edges.
• Always remove the plug from its power outlet by holding onto the plug itself and pulling gently.
• Never pull on the cord itself to unplug it from its power outlet.
• Use care when operating the air purifier by keeping all foreign objects, fingers, body parts, hair, loose clothing and jewelry away from openings.
• Never touch the air purifier or its plug when your hands are wet.
• CAUTION: THIS EQUIPMENT SHOULD BE INSPECTED, AND COLLECTOR CELLS SHOULD BE CLEANED IN ACCORDANCE WITH MANUFACTURER’S INSTRUCTIONS, ON A REGULAR BASIS TO PREVENT EXCESSIVE ACCUMULATION OF DUST PARTICLES THAT CAN RESULT IN FLASHOVER OR A RISK OF FIRE

Note: Before operating the air purifier, make sure the air filters inside the air purifier are not wrapped in plastic. When the air purifier is plugged in you should hear a beep. Press the Power button to turn it on. If the air purifier does not power on, ensure the front cover and filters are installed correctly.

Oransi OVHM80 Max Air Purifier Troubleshooting

Pros & Cons

Pros

• Advanced filtration technology with true HEPA, activated carbon, and UV-C light
• High CADR rating and suitable for large rooms and offices
• Smart features and touchscreen display for easy control and monitoring
• Energy-efficient and low power consumption
• Elegant and modern design

Cons

• Expensive compared to other air purifiers in the market
• Filter replacement may be costly in the long run
• UV-C light may produce small amounts of ozone

Customer Reviews about Oransi OVHM80 Max Air Purifier

The Oransi OVHM80 Max Air Purifier has received generally positive reviews from customers, with many praising its advanced filtration technology and smart features. However, some customers have criticized its high price point and costly filter replacements. The most common complaint is the production of ozone from the UV-C light, which may aggravate respiratory issues for some users.
