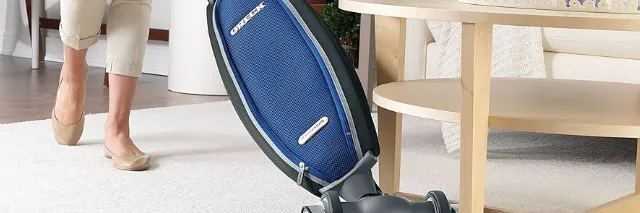

Introduction of Oreck Magnesium Lightweight Upright Vacuum Cleaner

The Oreck Magnesium Lightweight Upright Vacuum Cleaner (VC) is a powerful and lightweight cleaning solution for all your flooring needs. This high-performance vacuum cleaner is designed with a magnesium frame, making it strong yet lightweight, and easy to maneuver around furniture. The Oreck Magnesium VC has a retail price of around $400 and was launched in 2021.

Parts

All accessories and replacement parts are sold separately. To order, call our customer service hotline or visit our website. Please have your model number from the data label on the bottom of the unit.

Accessories

Replacement Parts

Oreck Magnesium Detailed Specifications

The Oreck Magnesium VC boasts the following features:

• Weighs only 7.7 pounds
• Dimensions: 34.5 x 12.5 x 9 inches
• Powerful 650-watt, dual-speed motor
• Side edge brushes for cleaning edges and corners
• Automatic height adjustment
• Direct suction design for efficient cleaning
• HEPA inner bag and micro-filter for allergen containment
• 20-foot power cord with cord-rewind system
• 5-year warranty

Overview

1. Handle with soft comfort grip
2. On/Off Switch
3. Cord Dump
4. Magnesium Handle
5. Deflector
6. Bag Dock
7. Carry Handle
8. Zipper
9. Main Bumper
10. Power Cord
11. Lower Tube
12. Fan Housing
13. Rear Wheels
14. Cover
15. Outer Bag
16. Power Hea
17. HEPA Odor Fighting Inner Bag

Assembling the Handle Oreck Magnesium VC

1. Align the four connector tabs at the bottom of the magnesium handle with the four receiving ports at the top of the outer bag and insert until a “snap” is heard.

2. Snap cord assembly into the cord clip located on the back of the magnesium handle.  Leave excess cord at the power head to allow movement.




   Operating the Oreck Magnesium: Make sure the disposable inner bag is in place. Do not operate the vacuum without a disposable inner bag. Plug the power cord into an electrical outlet and press the ON/OFF switch on the back of the vacuum when ready to operate. Press the button once to turn the unit on high, press a second time for low speed, and a third time to turn the unit off.

3. Up-Position Lock: Place foot on power head and lean handle back gently to release lock for vacuum use. Return handle to the full upright position to engage lock.




   Note: Do not operate the vacuum while in the upright and locked position. Do not let the vacuum run while in any one stationary position for any period of time. Keep the vacuum moving while in operation.

4. Cord Dump: To release cord, twist cord dump ½ turn. Slide cord off cord dump.
5. Easy Power Cord Storage: Turn Cord Dump to the up position, wrap power cord around Cord Dump and lower cord bracket located below the Carry handle.

6. Carry Handle: Carry handle located on back of the vacuum for easy lifting, carrying, and vacuuming stairs.



INNER BAG REMOVAL

1. Unzip outer bag completely.
2. Pull tab on bag to release bag dock from connector. Bag dock door will hinge downward.

3. Gently pull bag cardboard collar outward from bag dock. Saniseal® dust seal will close automatically.

   INNER BAG INSTALLATION

4. Slide the cardboard collar completely onto bag dock door.
5. Firmly push bag dock door with both thumbs on indication point until it snaps.

The performance of your new vacuum greatly depends upon care and maintenance. The instructions in this manual will guide you in performing basic care and maintenance. To obtain the most satisfying years of service read the instructions and keep them handy for future reference.

HEPA Odor Fighting Inner Bag

Your Oreck includes an HEPA Odor Fighting Inner Bag.  The  disposable inner bag plays a very important role in the efficiency of  your ORECK vacuum. The purpose of the disposable inner bag is  to trap dirt, but at the same time it must be porous enough to allow  air to pass through. If the disposable inner bag becomes clogged,  no air can pass through the vacuum and cleaning cannot take place,  regardless of the vacuum’s power.

To keep your upright vacuum operating at maximum efficiency, change the disposable inner bag frequently.

DO NOT FILL ABOVE THE LINE INDICATED ON THE DISPOSABLE INNER BAG.

Be sure the disposable inner bag is installed properly.

Note: All disposable inner bags are not the same. Oreck offers HEPA and non-HEPA inner bags. Your Oreck HEPA or non-HEPA inner bags have been designed to be used with the ORECK Upright vacuum. Using bags other than genuine Oreck HEPA or non-HEPA disposable inner bags will affect the cleaning ability of your vacuum and could cause damage to it.

Oreck Magnesium Lightweight Description

The Oreck Magnesium Lightweight Upright Vacuum Cleaner is designed for ease of use and efficient cleaning. Its lightweight design makes it easy to carry or move around the house, while the dual-speed motor provides powerful suction for deep cleaning of all floor types. The automatic height adjustment feature ensures optimal cleaning performance on any surface. With side edge brushes, this vacuum cleaner is ideal for cleaning edges and corners. Additionally, the HEPA inner bag and micro-filter system captures over 99% of particles, making it an excellent choice for those with allergies.

Setup Guide

Follow these steps to assemble, configure, and use the Oreck Magnesium Lightweight Upright Vacuum:

1. Attach the handle to the vacuum body by aligning the handle latch with the slot on the vacuum.
2. Insert the end of the handle into the opening at the base of the vacuum.
3. Rotate the handle until it clicks into place.
4. Plug in the power cord and press the power button to turn on the vacuum.
5. Select the appropriate suction setting for your floor type by using the switch located on the side of the vacuum.
6. Push the vacuum forward and backward to clean your floors.

Oreck General Use & Maintenance

Simple Operating Tips
You’ll love the way your Oreck cleans under things, and is SO lightweight and easy to use. The following are a few simple suggestions regarding its operation:

• When inserting a new disposable inner bag, first puff out and OPEN the bag.
• When the disposable inner bag is full, replace it.
• Check the disposable inner bag at least once a month.
• Do not run the vacuum over the cord. The revolving brushroll could damage the cord.
• Use caution when vacuuming over area rug edges and fringe.
• If at any time the machine does not pick up properly or makes an unusual noise, stop operation and service.
• Although your upright will pick up pins, paper clips, and other small objects, it is recommended that these be removed from the floor before you vacuum. Failure to do so may result in permanent damage to the motor suction fan and its housing.

The Belt: Oreck Magnesium is equipped with the Endurolife Belt, which is designed for long life and doesn’t need changing.

Motor Protection/Vacuum Shutdown

If the vacuum becomes overloaded, which could occur by sucking up a large obstruction or on extremely thick carpet, the electronics are designed to shut down the vacuum. If this happens, the vacuum will be turned off and the headlights will flash. To reset the vacuum turn the unit off, wait 5 seconds, and then turn it back on. If it shuts down again there may be a large obstruction in the vacuum. See page 9 for the steps on clearing a blockage.

WARNING: Unplug cord from electrical outlet before servicing.

1. Clear any large obstruction or blockage from the vacuum.
2. Once the blockage is cleared, plug the vacuum back in and it will reset. NOTE: If the vacuum continues to shut down, contact an Oreck Authorized Service Center.

Lubrication

The vacuum motor bearings are factory lubricated and sealed. Further lubrication is not required.

Brushroll Maintenance

At least once a month, check for and remove excessive lint,  string or hair from the revolving brushroll. Patented cleaning  grooves on the brushroll will allow easier cleaning. Wipe  the outside of the vacuum with a damp cloth. Also clean the  connector deflector assembly area, base of vacuum and fan  housing area. If there is dust in the outer bag, vacuum it or  shake it out.

A little preventative maintenance will keep your Upright  vacuum looking new and will ensure continued cleaning  effectiveness.

Replacing the Brushroll

The brushroll is designed for long life.  Should it ever become worn or frayed, it can be replaced by an Oreck Authorized Service Center.

Stuffing or Blockage

IMPORTANT: On plush and new carpets, stuffing may occur inside the intake tube and the lower tube assembly. This is due to excessive fuzz and loose cuttings in the carpet. Stuffing could occur for the first few cleanings until all the loose material is removed. Due to the high efficiency of the vacuum, many older carpets will cause stuffing when the vacuum is first used on them. If your vacuum does not pick up properly, or makes unusual noise and the outer bag does not fluff up or balloon open, follow these steps:

WARNING: Unplug cord from electrical outlet before servicing.

1. Check for blockage at the mouth of the intake opening If there is blockage, remove it with long-nose pliers, a screwdriver or coat hanger.
2. Twist lower collar counterclockwise to slide up. Pull tube out of base. Check for blockage. If blockage is in the tube, remove with a coat hanger.

3. If tube is not blocked, look into fan housing. Remove debris with long-nose pliers, a screwdriver or coat hanger.



4. Insert tube and push down until the tube is seated. Make sure O-ring is in place against fan housing opening.

5. To finish reassembly, replace and tighten collar clockwise until collar locking tabs are locked in place.



Note:  Many times blockage occurs due to a full disposable inner bag causing dirt to back down the air flow system. When that happens, the blockage will be at the top of the system, starting in the area where the disposable inner bag connects to the connector assembly.

IMPORTANT SAFETY INSTRUCTIONS!

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER

• Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not operate the unit while in the upright and locked position.
• Do not let the unit run while in any one stationary position for any period of time. Keep the unit moving while in operation.
• Do not allow to be used as a toy. Close attention is necessary when used near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center or call customer service at: US: 1-800-989-3535  Canada: 1-888-676-7325
• Do not pull or carry by cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners.
• Keep cord away from heated surfaces.
• Do not run appliance over cord.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
• Do not use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without disposable inner bag assembly in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline or lighter fluid, or use in areas where they may be present.
• Do not use appliance in an enclosed space where flammable, explosive or toxic vapors are given off by oil base paint, paint thinner, some mothproofing substances, or in an area where flammable dust is present.
• Do not pick up toxic material such as chlorine bleach, drain cleaner, gasoline, etc. with this appliance.
• Use caution when vacuuming over area rug edges and fringe.
• Product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CAUTION! Wood Floors, Soft (Vinyl, Asphalt Tile, etc.) Floor Surfaces and
Polished Floor Finishes
Use floor and floor finish manufacturer’s recommended methods of cleaning. The brushroll may also scuff very soft finishes. Do not operate the vacuum while in the upright and locked position. Do not let the vacuum run while in any one stationary position for any period of time. Keep the vacuum moving while in operation.

Troubleshooting

Service problems that appear to be major can often be solved easily. You can be your own troubleshooter by reviewing this guide.
All other servicing should be done by an Oreck authorized service center.

Lightweight Upright Vacuum Cleaner Warranty

Oreck will repair or replace, free of charge, to the original purchaser, any part that is found to  be defective in material or workmanship within seven (7) years of the date of purchase. This limited warranty applies to normal domestic use. Any commercial use of this product will void this limited warranty.

Pros & Cons

Pros

• Lightweight and easy to maneuver
• Powerful suction for efficient cleaning
• Effective edge and corner cleaning
• Automatic height adjustment for various floor types
• Excellent for allergy sufferers with HEPA filtration

Cons

• Limited attachments for above-floor cleaning
• No onboard storage for power cord

Customer Reviews about Oreck Magnesium Lightweight Upright Vacuum Cleaner

Customers have praised the Oreck Magnesium VC for its lightweight design, powerful suction, and efficient cleaning performance on various floor types. However, some have noted that the vacuum cleaner has limited attachments for above-floor cleaning and no onboard storage for the power cord. Most users find the vacuum easy to assemble and maintain, with few complaints about its performance.
