Introduction

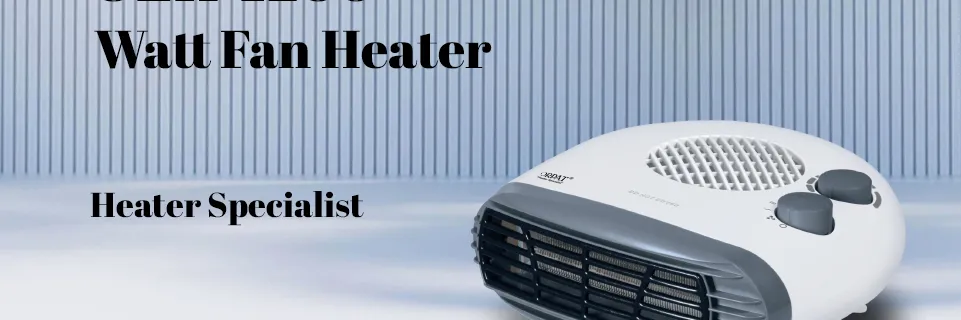

Ideal for small to medium-sized rooms, the Orpat Fan Heater OEH-1260 is a highly adaptable and compact heating solution. With its two heat settings, which are 1000W and 2000W, it offers effective warmth that you can customize to your needs. For increased safety when in use, the heater has a cool-touch body, an overheat protection feature, and a safety thermal cut-off. For keeping your home or office cozy and pleasant, the Orpat OEH-1260 is a great option because to its elegant design, sturdy construction, and silent operation.

TECHNICAL DATA

• Voltage: 230V, 50Hz, 1<1>, AC.
• Power: 1000 / 2000 Watt (+5%, -10%)
• Class: I
• Insulation Class: E
• Pollution Degree: III
• Degree Of Protection: IPXO

IMPORTANT SAFEGUARDS

1. Please read the following instructions carefully before using the heater.
2. Remove the packing and make sure that the appliance is intact. In case of doubt do not use the appliance and contact a qualified technician to have the unit checked. Do not leave packaging materials like bags and staples within reach of children.
3. Before switching on the appliance check if the electrical voltage and frequency of the circuit correspond to those indicated on the appliance.
4. Always plug the heater into a properly grounded power socket, which is also protected by ELCB (Earth Leakage Circuit Breaker).
5. Do not use this heater other than for its intended use.
6. Do not use it for any other purpose as it could be dangerous. The Manufacturer is not responsible for any eventual damages caused by improper or faulty use.
7. Always place the heater on a hard stable, plane & heat resistant surface and away from hot objects and naked flame.
8. The heater must not be located immediately below a socket outlet.
9. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
10. Leave sufficient space all around the heater. Do not place any objects in front of the heater.
11. The use of this electrical appliance calls for the awareness of some basic rules, such as:
    • Never touch the appliance with wet or damp hands or feet.
    • Never expose the appliance to atmospheric conditions (rain, sun, etc)
12. In order to avoid overheating, do not cover the heater.
13. To reduce the risk of fire, the heater must not be installed close to curtains, clothes, beds and other combustible materials.
14. Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
15. The heater must be switched off and the plug must be removed from the socket outlet before cleaning or when the heater is not in use. Remove the plug by pulling the plug & not the cord.
16. Plug directly into a power socket as extension cords may not be adequate to carry the load of the heater.
17. Do not use the appliance near liquids or inflammable matters or explosive gas.
18. The fireguard of the heater is intended to prevent direct access to heating elements and must be in place when the heater is in use.
19. The fireguard does not give full protection for young children and for infirm persons.
20. Never allow children to operate the heater. Extreme care must be taken when the heater is used near children and infirm persons.
21. Do not let the power cord overhang the edge of a tabletop where a child could reach.
22. The heater is hot when in use. To avoid burns, do not let the bare skin touch the hot surface. Do not move the heater when plugged or hot.
23. The heater has hot, arcing & sparking parts inside. Do not use it in areas where gasoline, paint or other volatile or flammable liquids are used or stored.
24. Do not immerse the heater, cord or plug in water or any other liquid.
25. In case the power cord is damaged, do not try to fix it yourself. Show it to a qualified technician.
26. Children, old people and disabled people are not often aware of the dangers, which can derive from improper use of the appliance. The appliance should never be used without adult supervision.
27. Do not put the cable on the appliance when it is still warm.
28. The heater must be installed and kept vertically.
29. To avoid personal injury or damage, never insert fingers, pencils or any other objects through the front grill and any slot.
30. The heater is designed to provide supplemental heat only for residential applications and should not be used as a continuous primary heat source. Do not use outdoors.
31. If the appliance does not work, switch it off without tampering with it. If any repair is required please contact a qualified technician.

When switching ON Heater for the first time, there might be some emission of smoke fumes. These fumes are caused due to the action of the heat on locking adhesives. It is not a product fault and will disappear after a few minutes automatically.

Description

For anyone looking for a quick and effective way to warm up, the Orpat Fan Heater OEH-1260 is a simple and adaptable heating option. Its small size makes it ideal for usage in cramped areas, and its thermostat can be adjusted to provide exact temperature control. During the warmer months, using the fan-only option is perfect as it offers a light breeze to keep you cool. This fan heater is a dependable and secure choice for any home or business thanks to its safety features, which include tip-over and overheat prevention.

INSTALLATION

This appliance requires no installation. It should be used solely as a portable appliance. Portable appliances are not suitable for use in a bathroom.

OPERATION

• Turn the thermostat knob (right) in a clockwise direction until it reaches the maximum setting.
• Summer service (Ventilation only): Turn the knob to the setting fan.
• Heating at reduced power: Turn the knob (right) to setting I (1000W).
• Heating at full power: Turn the knob (right) to setting II (2000W).
• Switching off: Turn the knob (left) to setting 0.

GETTING TO KNOW YOUR HEATER

1. Main Body
2. Thermostat Control Knob
3. Function Control Knob
4. Guard
5. Power Cord
6. Legs

PLACEMENT GUIDE FOR THE HEATER

The heater should only be operated at a minimum distance of 1 m from a wall or any other object. Position the air flow in order to optimize the heating of the room.

THERMOSTAT SETTING

Keeping in view customer requirements, the ORPAT Element Heater is designed with a thermostat to maintain the desired temperature. For this, follow the steps given below:

• Step 1: Switch ON the Element Heater by keeping it in an upright position.
• Step 2: Keep the thermostat to the max. position.
• Step 3: Once the desired room temperature is reached rotate the Thermostat Knob back till the unit cuts off.
• Step 4: The Element Heater will now automatically cut-in and cut-out to maintain the desired temperature.

OVERHEAT PROTECTION

This heater has an overheat protection safety device that switches off the heater automatically in case of overheating. This may happen if the heater is in operation for a long period of time. In this case, unplug the heater and let it cool down for about half an hour before using it again.

Setup Guide

The Orpat Fan Heater OEH-1260 is easy to set up and operate. To begin, locate a level, sturdy surface to set the heater on. After that, insert the heater's plug into a power outlet and turn on the heat to the chosen level by turning the thermostat dial. Just turn the dial to the appropriate position if you want to use the fan-only configuration. The heater swiftly and effectively heats the surrounding space as soon as it is turned on. After using the heater for the last time, disconnect it from the power source and turn it off.

CLEANING AND MAINTENANCE

1. Always make sure to disconnect the heater from the power supply and allow the heater to cool down completely before you start cleaning the heater.
2. Never immerse the heater or its parts, power cord or plug in water or any other liquids for cleaning.
3. The main body of the heater may be wiped clean with a slightly damp, lint-free cloth and then with a soft dry cloth.
4. Do not use any cleaning chemicals such as detergents and abrasives, as this will damage the product beyond repair.
5. If necessary, dust particles accumulated on the front grill/guard may be removed with a vacuum cleaner.
6. In case of any malfunction, do not try to repair the product by yourself, as this may result in a fire hazard or electric shock. Always contact a qualified technician.
7. To use after a long gap, please run the appliance on the "Fan only" position for 10 minutes to ensure that the motor becomes free. In case the motor does not start, DO NOT turn switch to heating.

NOTE

• In view of continuous improvement, the design and specifications of the product are subject to change without prior notice.
• Company reserves the rights to provide service at home or service center.
• Parts illustrated in this use and care manual are indicative only, parts provided with the product may differ with illustrations.
• This Element Fan heater is intended for household use only.

Troubleshooting

Try these fixes if the Orpat Fan Heater OEH-1260 is giving you any trouble:

• Verify that the heater is correctly hooked into a power outlet if it isn't turning on.
• Verify that the thermostat dial is set to the "heat" position if the heater isn't heating up.
• Turn off the heater and unplug it from the power outlet if it is overheating. Before using it once more, let it cool.
• Make sure the heater is positioned on a level, sturdy surface if it is toppling over.

Orpat Fan Heater OEH-1260 Warranty

This ORPAT ELEMENT FAN HEATER is warranted for the period of 2 years from the date of purchase against any manufacturing defects arising during the period of warranty. This warranty is only for India. The motor of this appliance is warranted for 2 years against all manufacturing defects.

Pros & Cons

Pros

• Compact and light-weight construction
• A thermostat with precise temperature control adjustments
• In the warmer months, switch to the fan-only mode.
• Safety features like the ability to prevent overheating and tipping over
• A reasonable price range

Cons

• Perhaps unsuitable for larger areas
• more volume as the temperature rises.

Customer Reviews

Customers have praised the Orpat Fan Heater OEH-1260 for its compact and portable design, as well as its powerful heating capabilities. Many have also noted the convenience of the fan-only setting, making it a versatile option for use all year round. However, some have noted that the heater can be loud on higher heat settings. Overall, customers have been pleased with the performance and value of this fan heater.
