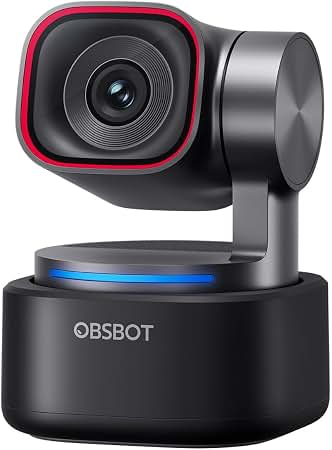

Introduction of Tiny 4K AI-Powered PTZ Webcam

OBSBOT Tiny 4K is an AI-powered PTZ webcam that uses deep learning neural networks computing to achieve AI tracking & auto framing, gesture control. It’s designed to give users exciting new abilities and high-quality video for live streaming, video calls, and conferences. The standard for fast and reliable connections, OBSBOT Tiny 4K uses USB-C to ensure efficient video transfer speeds. Compatible with Windows® and macOS®. Using OBSBOT TinyCam, to expand more functions for the users.

Detailed Specifications

The osbot Tiny 4K AI-Powered PTZ Webcam boasts the following key features:

• Ultra-high definition 4K resolution at 30fps
• Advanced AI-powered auto-framing technology
• Smooth pan, tilt, and zoom (PTZ) capabilities
• Wide-angle lens with 90° field of view
• Built-in privacy shutter and microphone
• Compatible with Windows, macOS, and Linux operating systems
• Plug-and-play USB connectivity
• Optional external power supply for continuous use

Parts Info

1. 4K Ultra HD lens

2. Camera Indicator

3. Dual Microphone

4. DC Power Port

5. USB-C Port

6. UNC 1/4-20 Interface

7. Magnetic Base

Setting Up Tiny 4K

Placing Tiny 4K

The webcam has an adjustable magnetic mount to fix the device to a monitor, desktop, or tripod.

1. Placement on a Monitor

   • Open the flexible base and mount it, attach one side of the gluing to the back of the monitor.

   • Make sure the foot on the flexible base is flush with the back of your monitor.



2. Placement on a Desktop

   • Place OBSBOT Tiny 4K directly on your desktops.

3. Placement on a Tripod

   • OBSBOT Tiny 4K is equipped with a standard UNC ¼-20 nut connector on the base for mounting the camera to a stand/tripod.

Connecting Tiny 4K

The webcam is compatible with Windows and Mac computers. To set up your OBSBOT Tiny 4K, please use the provided USB-C data cable for connecting. In addition, please use the provided USB-C to USB-A adapter if necessary. The webcam will begin to install automatically on your device. Please allow the webcam a few seconds to finish installing before attempting to access it. Then you can feel free to use any popular calling platforms such as Zoom, Microsoft Teams, Skype, Google Meet to get Tiny 4K streaming.

• WARNING: If the product is in working condition for a long time, the bottom of the product will get hot, which is normal.

• WARNING: Connecting Suggestions

  • USB 3.0 Port (Recommendation);

  • USB 2.0 Port + DC Port.

• WARNING: 4K streaming requires compatible third-party software.

Gimbal

OBSBOT Tiny 4K is equipped with a 2-axis gimbal. The controllable rotation range for the pan is ±150°, and for the tilt is ±45°.

Privacy Mode

Point the lens straight down. When the indicator light is off, it means that the privacy mode is turned on.
⚠ The product cuts off both the video and audio in the privacy mode.

Upside Down Mode

OBSBOT Tiny 4K supports using with upside down mode. It can be mounted upside down, then the screen will rotate automatically for use.

Gesture Control

OBSBOT Tiny 4K has the first of the kind implementation of gesture control in AI webcam, empowering users to access a series of functions such as select/cancel tracking target, zoom in/out with natural simple gestures. No need to press the button or interrupt your flow. First of all, please put your hand nearby your face and keep your fingers splay out when you making gestures, and then the camera indicator light will turn blue. The three blue lights flash one by one and then all of them flash once together means your gesture is recognized successfully.

Zoom

OBSBOT Tiny 4K supports 4x digital zoom.

• Supports 4x digital zoom.

  • Gesture Control: Default zoom is 2x, customizable from 1x to 4x via OBSBOT TinyCam.

  • Manual Control: Adjust zoom settings from 1x to 4x via OBSBOT TinyCam.

Focus

OBSBOT Tiny 4K supports two focusing methods.

• Auto-Focus
  Based on OBSBOT’s AI technology, the auto-focus intelligently adjusts the lens in real-time Select/Cancel Target 2x (Default) Zoom in/out so you always stay in focus, no matter you move toward or away from the camera.
• Manual Focus
  Users can close the auto-focus function and switch to manual focus in OBSBOT TinyCam.

HDR

• By default, HDR is off. Users can switch it in OBSBOT TinyCam. You look your best over video, even in low light and direct sunlight with HDR.

Indicator Statuses

OBSBOT TinyCam Software Overview

OBSBOT TinyCam

OBSBOT TinyCamis the software that comes with OBSBOT Tiny 4K for advanced setting. It is compatible with Windows and macOS. The users can do some control such as adjust the rotation of the gimbal, select target or unlock target, zoom in or out, set preset positions and so on.

Installation

Please visit https://obsbot.com/download to download the OBSBOT TinyCam to get further user experience.

Homepage

1. Homepage

2. System Setting

3. Connect: Display device connection status (up to 4 devices).

4. Smart Shooting: Lock/cancel tracking target.

5. Device Status: Put device to sleep or wake.

6. Zoom: Manually adjust zoom (up to 4X digital zoom).

7. Gimbal Reset: Reset gimbal to initial position.

8. Gimbal Control: Manually control gimbal.

9. Preset Position: Add/delete/rename up to 3 preset positions.

Tiny 4K AI-Powered PTZ Webcam Description

The osbot Tiny 4K  is a compact and versatile device that is perfect for both personal and professional use. With its ultra-high definition 4K resolution, you can enjoy crystal-clear video quality for all your virtual meetings, classes, and live streams. The advanced AI-powered auto-framing technology ensures that you are always in the center of the frame, even when you move around, making it perfect for online presentations and demos. The smooth PTZ capabilities allow you to easily adjust the camera angle and zoom level, giving you full control over your video feed. The wide-angle lens with 90° field of view ensures that you can fit the entire room in the frame, making it perfect for larger meetings and gatherings. The built-in privacy shutter and microphone provide additional security and convenience, while the plug-and-play USB connectivity makes it easy to set up and use with any device.

System Settings

1. Software Version

   • Find the current software version. The update will be pushed to the device automatically when the new version has been released.

2. Firmware Version

   • Find the current firmware version. The update will be pushed to the device automatically when the new version has been released.

3. Gesture Control-Locked Target

   • By default, it’s on. The product cannot be used with gesture control for locked the target if you close this function.

4. Gesture Control-Zoom

   • By default, it’s on. The product cannot be used with gesture control for zoom settings if you close this function.

5. Gesture Control-Zoom Factor

   • By default, the zoom settings is 2x. Users can create customized zoom settings from 1x to 4x.

6. Tracking Mode

   • There are 3 tracking modes. By default, it’s standard mode.

     • Headroom Mode: Leave more space above your head.

       • Standard Mode: It provides a standardized level for the auto-frame and tracking speed, which can cover most usage scenarios.

     • Motion Mode: It adjusts the auto-frame to capture the whole body and improved the speed of Ai tracking.

7. Configure Video

   • Adjusting camera parameters, which only supports Windows.

8. Anti-Flicker

   • By default, it’s off. This feature helps reduce flicker if you are in a room with fluorescent lights or you plan on shooting a television screen.

9. HDR

   • By default, it’s off. The exposure difference can be automatically repaired after being turned on it.

10. Auto-Focus

    • By default, it’s on. Users can close the auto-focus function and switch to manual focus.

11. Face Focus

    • By default, it’s on. The focus area is on the center of the frame when you turned it off. This setting can be only supported when the auto-focus is on.

12. Initial Boot Position

    • Preset PTZ initial position.

13. Preset Position

    • By default, it’s off. There are 3 preset positions that can be added to the homepage after being turned on it.

14. Global Hotkeys

    • By default, it’s off. Click to view the list of global keys.

15. Remote Controller

    • By default, it's off. Users can control the Tiny 4K by remote controller after the mode is turned on.
      ⚠ Please go for buy it on OBSBOT official online store.

16. Language

    • Switching languages.

17. More

    • Export Log: Manually export the log file.

    • Upgrade Manual: Firmware upgrade manual.

    • Firmware Upgrade: Entry for manually firmware upgrade.

    • Restore Factory Settings.

Connecting Suggestions

1. USB 3.0 Port (Recommendation)

2. USB 2.0 Port + DC Port

If the following phenomenon occurs when you use the OBSBOT Tiny 4K for the first time: videos lagging/choppy/flickering or automatic reset and restart. It means your product may be in use with the USB 2.0 port. Please use an extra DC adapter or change your connection port to the USB 3.0 to support the power supply.

System Requirements

• Windows 7, Windows 8, Windows 10 or later

• macOS 10.13 or later

• 7th Gen Intel Core i5 or later

Recommended for 1080p 60 fps and 4K

Recommended Apple computers

1. MacBook Pro (2018, 8th Gen Intel Core i5 Processors or later)

2. MacBook Air (2018, 8th Gen Intel Core i5 Processors or later)

3. iMac Retina (2019, 8th Gen Intel Core i5 Processors or later)

Recommended PC configuration

1. CPU: 7th Gen Intel® Core™ i5 Processors or later

2. RAM: 8GB

Troubleshooting

Here are some common problems and solutions for the osbot Tiny 4K AI-Powered PTZ Webcam:

• Problem: The camera is not being detected by my device.
• Solution: Make sure the webcam is properly connected to your device's USB port and that the webcam drivers are installed. If the problem persists, try using a different USB port or restarting your device.
• Problem: The camera's auto-framing feature is not working correctly.
• Solution: Ensure that the camera is positioned correctly and that the subject is within the frame. If the problem persists, try adjusting the camera's settings in the webcam software.
• Problem: The camera's PTZ capabilities are not working smoothly.
• Solution: Make sure the camera is properly connected to a power source and that the PTZ controls are not being obstructed. If the problem persists, try adjusting the camera's PTZ settings in the webcam software.

Pros & Cons

Pros

• Ultra-high definition 4K resolution
• Advanced AI-powered auto-framing technology
• Smooth PTZ capabilities
• Wide-angle lens with 90° field of view
• Built-in privacy shutter and microphone
• Compatible with multiple operating systems
• Plug-and-play USB connectivity
• Optional external power supply for continuous use

Cons

• Expensive compared to standard webcams
• May require additional power source for continuous use
• May have compatibility issues with older or less common operating systems
