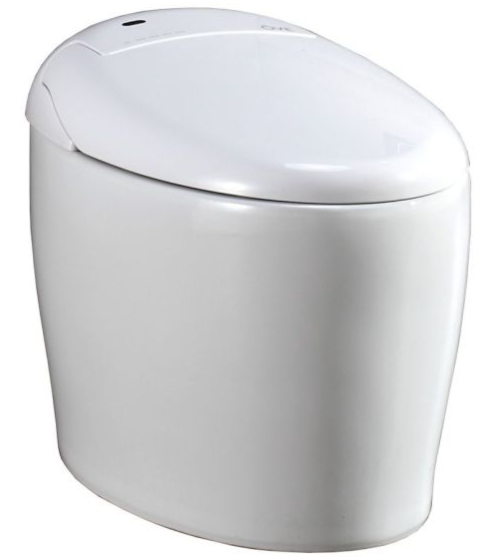

Ove Decors TUVA Intelligent Toilet

Introduction

The Ove Decors TUVA Intelligent Toilet is a cutting-edge bathroom solution designed to enhance comfort, hygiene, and convenience. This advanced toilet features a sleek and modern design, making it a perfect addition to any contemporary bathroom. The TUVA Intelligent Toilet is equipped with a range of innovative features, including a self-cleaning nozzle, heated seat, and advanced flushing system.

The estimated price for the Ove Decors TUVA Intelligent Toilet is around $2,500, although prices may vary depending on the retailer and any additional features or accessories. As for the launch date, this product was introduced to the market in late 2022, marking a significant milestone in the evolution of smart bathroom technology.

The primary purpose of this intelligent toilet is to provide users with a luxurious and hygienic bathroom experience. It combines advanced technology with ergonomic design to ensure maximum comfort and efficiency.

Specifications Sheet

• Electric Load: AC 120V / 1300W / 60HZ
• Electric Cord: 1.2 m insulated power cord
• Remote control batteries: 2x 1.5V batteries
• Product’s size: 520x690x410 mm (HxDxL)
• Outer carton’s size: 650x760x490 mm (HxDxL)

Cleaning System

• Spray Cleaning (1 jet): Water amount adjustment 0.4-1.0 L/min (water pressure 0.19 MPa / 27.6 psi)
• Bidet Cleaning (5 jets): Water amount adjustment 0.5-1.0 L/min (water pressure 0.19 MPa / 27.6 psi)
• Water Temp: From ambient temperature to 40 °C
• Heater Capacity: AC 120V / 1000W / 60HZ
• Cleaning Tank Capacity: 1.5 L
• Overheating Safety: Temperature safety fuse integrated. The toilet will shut down if the temperature. Is out of specs.
• Anti-Reflux: Anti-Reflux check valve integrated.

Drying System

• Drying Air Temp: From ambient temperature to 55 °CC
• Air Speed: 5 m/s
• Heater Capacity: AC 120V / 300W / 60HZ
• Overheating Safety: Temperature Fuse

Heating Seat

• Seat Temp: From ambient temperature to 40 °CC
• Heater Capacity: AC 120V / 40W / 60HZ
• Overheating Safety: By design

Deodorization System

• Filter: Eliminates odors through activated charcoal filtering
• Air Speed: 3 M/S

Limitations

• Water Supply Pressure: Lowest water pressure is 0.1MPa (14.5 psi), highest water pressure is 0.5MPa (72.5 psi)
• Water Supply Temp: 10-35 °CC
• Ambient Temp: 10-40 °C °C °C °C °C°C °C°C°C

Saftey Notice

ATTENTION!
BEFORE INSTALLING THE PRODUCT, YOU MUST READ AND UNDERSTAND CAREFULLY ALL WARNINGS BELOW.

1. It is forbidden to disassemble a toilet by yourself.
2. Please do not set this product in a wet place, because it is an electronic product. If set in the bathroom, please ensure that there is proper air flow.
3. Please ensure that the product is set more than 0.6 meters away from the bathtub.
4. Please make sure the electric power is AC 110V +/- 10%. Ensure the electrical socket can bear a load of 1500W power (or else it can cause fire or electrical shock).
5. Please make sure the electrical source is well grounded.
6. Please do not put any water or detergent on the product or its electrical plug.
7. Do not touch the electrical plug with a wet hand (or else it can cause fire or electric shock).
8. Do not use the product if it has the following problems. When any of the following problems occur, turn off the electricity and close the water valve.
   • Water is leaking from the pipe or the main body.
   • Crack or breakage
   • Abnormal sound or smell of the product
   • Smoke coming out of the product
9. Keep any flame or flammable products away from the toilet.
10. Please do not step on the toilet seat, the seat cover, or the main body, or put anything heavy on the product. Otherwise, the product may break and may cause injury,, or the product may break and may cause indoor flooding.
11. Please do not put your finger or anything else into the outlet of the drying blower.
12. Please do not touch or cover the drying blower outlet with clothes, or it may lead to burn injury or electric shock.
13. Please do not tightly bend or press the flexible supply hose, as it may lead to water leakage or it may decrease the water pressure.
14. Please clean the product with soft cleaning products.
15. Please do not use any harsh detergents to clean the product.
16. Please do not throw anything other than toilet paper into the toilet,, or it may lead to blockage and indoor flooding.
17. Please be careful not to let objects like a comb, tooth brush, or other stuff fall into the toilet.

WARNINGS

• Do not leave the toilet exposed to the sun. May cause yellowing or color fading.
• Direct sunlight affects the good functioning of the remote.
• Radio or transmitting devices may interfere with the toilet’s remote control functions..
• If the power cuts off during washing and the nozzle is still out: Do not push it back manually, it will revert to its resting position once the power is back ON.
• If power cuts off during nozzle self-cleaning, the water will continue to flow out. Manually close the inlet water valve of the toilet until power comes back ON.
• Be careful not to spill water on the top of the toilet: Electronics are located under the plastic cover.
• To prevent against power surge damage,, make sure the ground is working in the power socket.
• If you do not plan to use the toilet for a long time, close the inlet water valve and unplug the toilet.
• Do not use DC. Only AC 110V with a load capacity over 1500W is accepted.
• Do not expose the toilet to freezing temperatures. This will void the warranty and damage the piping.
• Do not lean on the cover.

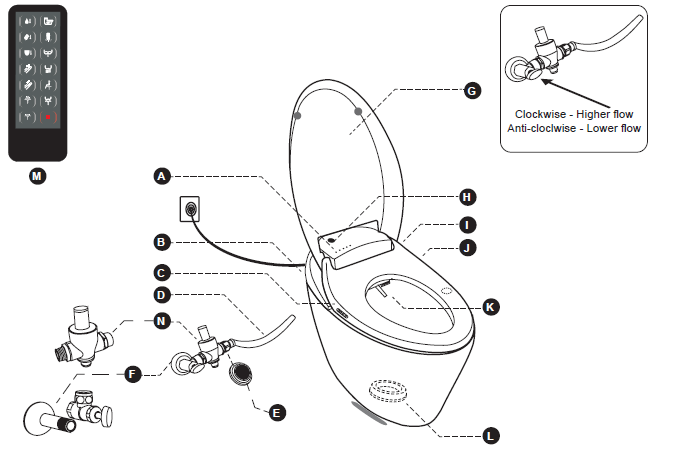

Part List

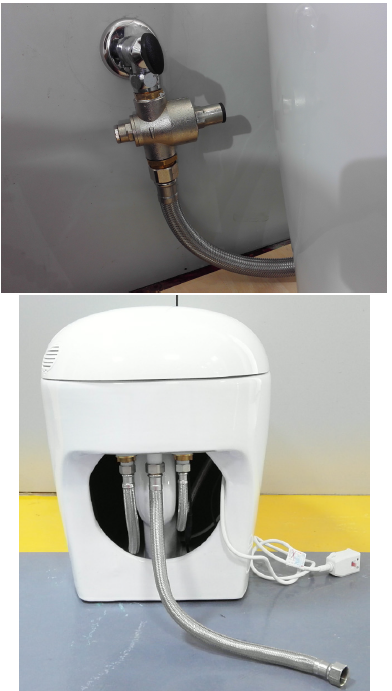

Installation Picture

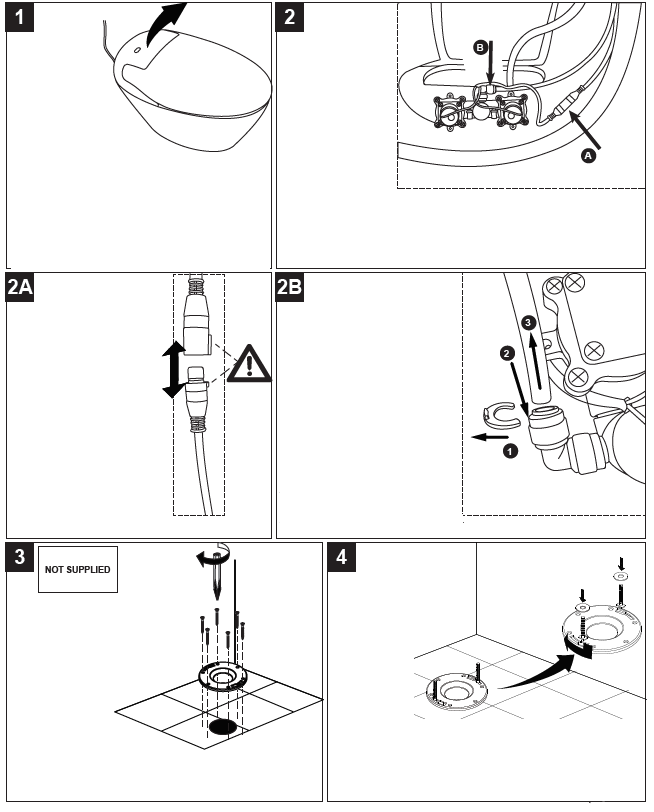

Installation Instruction

1. Remove the seat from the ceramic base. Simply pull the seat up gently. Be careful, some wires need to be disconnected before you can remove the seat completely (see step #2).
2. Unplug the electrical cord and the water tube before completely pulling away the toilet seat.
   • Unplug the cord.
     To unplug the water tube:
     • Remove the blue clip.
     • Push the ring down with your fingernail.
     • While still pushing the ring down, gently pull out the water tube.
3. Install the floor drain cover connector according to the manufacturer’s recommendations.

4. Position correctly the two fixing bolts of the floor drain. Follow the manufacturer’s recommendations.

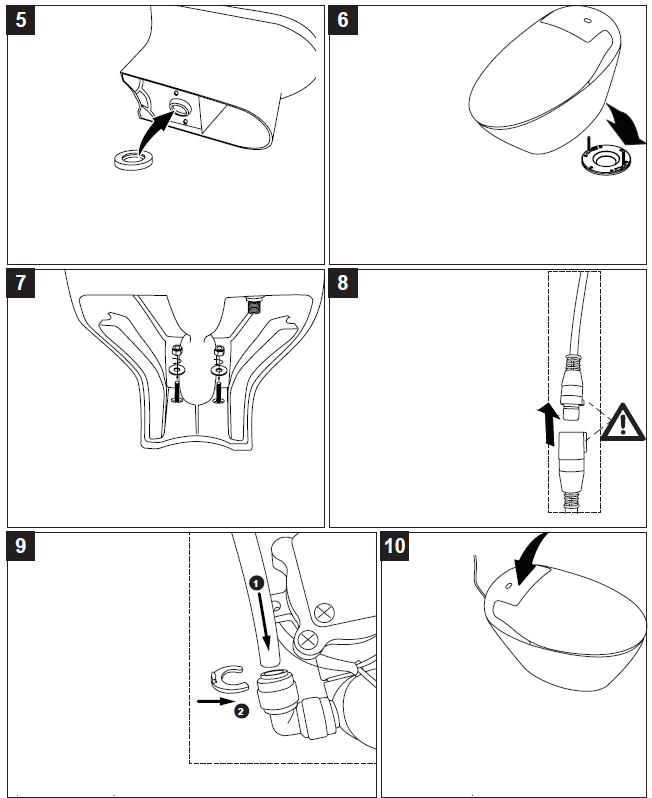

5. Insert the ring gasket under the toilet.
6. Position the toilet on the floor drain, making sure the fixing bolts are aligned with the toilet’s holes.
7. Using a ratchet, tightly screw the nut to the fixing bolts.
8. Reconnect the electrical cord. Make sure both ends are well aligned.
9. Reconnect the water tube:
   • Gently, but firmly, push the tube inside the hole.
   • Re-insert the blue clip.

10. With care, reinstall the seat on the ceramic base. Make sure no wires get squeezed or tangled.

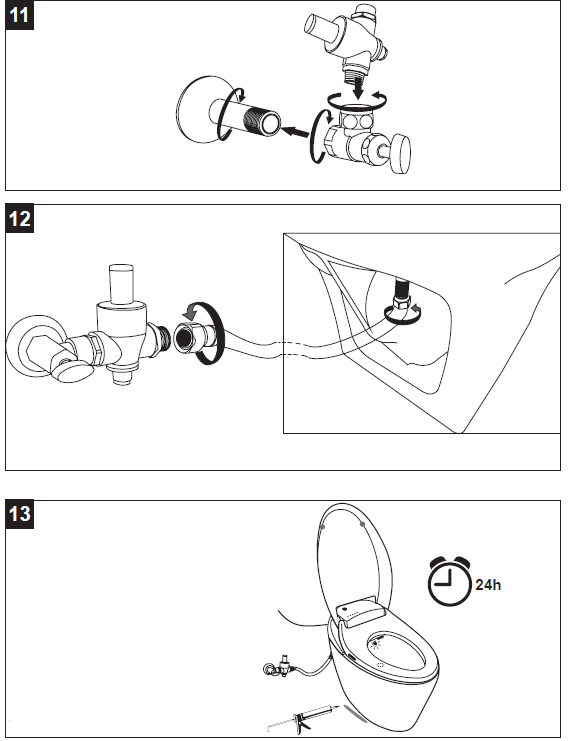

11. Connect the water inlet fitting to the water supply. Then connect the valve. Finally, connect the flow regulator to the valve.
12. Connect the flow regulator outlet to the toilet’s water inlet with the supplied flex-tube.

13. Apply silicone around the base of the toilet. Wait for 24h for it to dry.



Features

SPRAY CLEANING (1 WATER JET)
This function will only work if the user is sitting on the toilet. Press the SPRAY/MOVE button for spray cleaning. Water will spray and clean the user. Press the button again, and the nozzle will move back & forth to ensure the cleanest result. You can use this key stroke to get the best cleaning effect.

BIDET CLEANING (5 JETS OF WATER)
This function will only work if the user is sitting on the toilet. Press the BIDET/MOVE button for bidet cleaning. Water will spray and clean the user. Press the button again, and the nozzle will move back & forth to ensure the cleanest result. You can use this key stroke to get the best cleaning effect.

• If you are not seated on the toilet seat, the toilet seat sensors will prevent water from squirting out of the nozzle or warm air from flowing out of the dryer.
• The nozzle washes itself before and after every use with the programmed automatic nozzle washing cycle.
• The spray function will automatically stop after 2 minutes of continuous use. To start it again, press the button.
• It will take about 10 seconds after pressing the BIDET/MOVE or SPRAY/MOVE button before water starts to spray out of the nozzle. Please be patient.

AIR DRYING
This function will only work if the user is sitting on the toilet. Press the DRYING button for air drying. The air will dry the user. Press the button again,n and the air nozzle will move back & forth to ensure the driest result. You can use this key stroke to get the best drying effect. If you press the DRYING key while the toilet is flushing, you will need to wait about 10 seconds before warm air starts to flow out of the dryer.

STOP
Pressing the stop button at any time will automatically stop any functions.
The toilet will keep spraying for 1-2 seconds after you stand up, so be sure to press the STOP button before standing up from the toilet seat, during the cleaning process.

FLUSHING
Pressing the FLUSHING button before using the intelligent toilet will clean the bowl with water automatically.

LIGHT
Pressing the LIGHT button on the remote control board will turn ON the toilet’s light; pressing the button again will turn it OFF.

Intelligent Features

• ECO MODE
  ECO MODE will cut down the electricity usage of your intelligent toilet during times of non-use. The cleaning water tank will start heating the water only once the user is sitting on the toilet, whereas in normal mode, the cleaning water is kept to your preferences for your instant enjoyment.
• SOFT CLOSE DESIGN
  The toilet seat and seat cover have a soundless soft-close design that prevents them from falling rapidly and denting or scratching the toilet.

• ANTI-MICROBIAL SEAT
  The toilet’s seat is coated with an eco-friendly anti-microbial polymer, preventing the growth of any microbe on the seat. Clean by design, for your peace of mind.



• SUPER SWIRL
  If water keeps oozing out even after the toilet is clean, adjusting the stopcock clockwise can help reach a good flush effect. If the flush effect is still not good, adjusting the stopcock counterclockwise or cleaning the filter may help improve the flush effect.
• AIR PUMP SUPERCHARGED
  Press the AIR PUMP button on the remote control to activate a supercharged water pressure pump.
  This function will temporarily increase the water pressure for maximum cleanness.

• AUTOMATIC ODOR FILTER
  As soon as the user sits on the toilet, a fan sucks the air out of the toilet bowl and through an advanced odor-fighting carbon filter. This prevents the bad smells during the toilet’s usage, ensuring a pleasant experience.

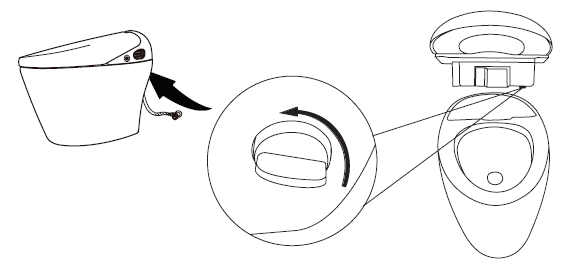

Long Term Storage

In order to prevent from any damage that may be caused by frozen toilet water, please drain away the remaining water according to the following methods.

When leaving for a long time without using this toilet, please make sure to drain all the water from the toilet.

1. Close the water inlet valve.
2. Unfasten and remove the water drain bolt.
3. After draining all the water, please tightly screw the water drain bolt back into place.
4. Make sure to drain all water from the toilet, including the water in the tank for the bidet/spray cleaning, also any water left in the seals or grooves. Dry with a towel.

Battery Maintenance

In order to make sure the function of flushing can works in the event of an electricity blackout, please replace the battery once a year. Take out the battery when not using the toilet for a long time.

1. Open the window shade.
2. Open the battery cover.
3. Take out the battery and replace it.
4. Close the battery cover and window shade.

Troubleshooting

If you encounter any issues with your Ove Decors TUVA Intelligent Toilet, here are some common problems and solutions:

• No Power: Check the power cord and ensure it is properly plugged into a working outlet.
• Malfunctioning Bidet: Clean the nozzle and check for any blockages. Refer to the user manual for detailed cleaning instructions.
• Leakage: Inspect the connections and ensure they are tight. Consult a professional plumber if the issue persists.
• Bluetooth Connectivity Issues: Restart both the toilet and your device, then try pairing again.

Instructions & Warnings: Always follow the manufacturer's guidelines for installation, operation, and maintenance. Avoid using abrasive cleaners or harsh chemicals that could damage the toilet's surfaces.

Limited 1 Year Warranty

• The DISTRIBUTOR warranty is valid for a period of 1 year after purchase. Improper use of this product or any deviations from the general guidance given in the user manual will void the warranty. This non-transferable warranty applies only to the original purchaser, and proof of purchase is required for all claims.
• This warranty applies to the DISTRIBUTOR toilet installed for residential use only.
• The DISTRIBUTOR warrants that, when installed in accordance with the Recognized Plumbing Industry Practice, the toilets are free of manufacturing defects for a period of one (1) year from the date of purchase.
  The DISTRIBUTOR will repair or replace the damaged product or parts only if they were installed and used in a proper way according to this user manual.
• Before accepting to repair or replace the product, the DISTRIBUTOR is entitled to send a representative to inspect the product. We will offer free of charge service for inspecting, repairing, and replacing for the items within this warranty period; However, the freight charges are the customer’s responsibility.

INFORMATION ABOUT YOUR WARRANTY COVERAGE
This warranty does not cover damages or failure attributable to:

• Toilets are installed with obvious visual defects.
• Rough handling or improper operation.
• The presence of sediment or impurity in the water supply system is used.
• Defects or damages to toilets caused by installation that does not comply strictly with the instructions outlined in the Recognized Plumbing Industry Practice.
• Defects or damage to toilets caused by severe accidents (e.g., fire, electric surge, etc.)
• Damage caused by flooding or standing water from leaking pipes, faucets, household appliances, etc.;,  up to and including flooding and any damage caused by acts of God.

NOTES ON WARRANTY
This warranty applies only to the original purchaser and installation site and is not transferable.

FOR WARRANTY SERVICE

• To make a claim, contact the DISTRIBUTOR no later than 30 days following the date of discovery or detection of a defect.
• Proof of purchase, such as the bill of sale, is mandatory when requesting warranty service.
• The DISTRIBUTOR reserves the right to designate a representative to inspect the vanity for analysis.
• No unauthorized person, installer, dealer, agent,t or employee of the DISTRIBUTOR or any representative is entitled to assume any liability on behalf of the DISTRIBUTOR relating to the sale of this product or has the authority to increase or alter the obligations or limitations of this warranty.

Pros & Cons

Pros:

• Advanced Bidet Functionality: Provides enhanced hygiene and comfort.
• Heated Seat: Offers adjustable temperature settings for maximum comfort.
• Energy Efficiency: Low power consumption makes it eco-friendly.
• Modern Design: Sleek and contemporary design that fits well in any bathroom.
• Customizable Settings: Bluetooth connectivity allows for personalized settings via a mobile app.

Cons:

• High Cost: The estimated price of $2,500 may be prohibitive for some users.
• Complex Installation: Requires professional installation to avoid potential issues.
• Dependence on Electricity: Requires a constant power supply, which could be a drawback during power outages.

Customer Reviews

Customers have generally praised the Ove Decors TUVA Intelligent Toilet for its comfort, hygiene, and advanced features. Many users appreciate the heated seat and massaging bidet functions, noting that they significantly enhance their bathroom experience. However, some reviewers have mentioned the high cost and complexity of installation as potential drawbacks.

A common complaint is the requirement for professional installation, which can add to the overall cost. Despite this, most users agree that the benefits of this intelligent toilet far outweigh the initial investment. www.ovedecors.com
