Introduction

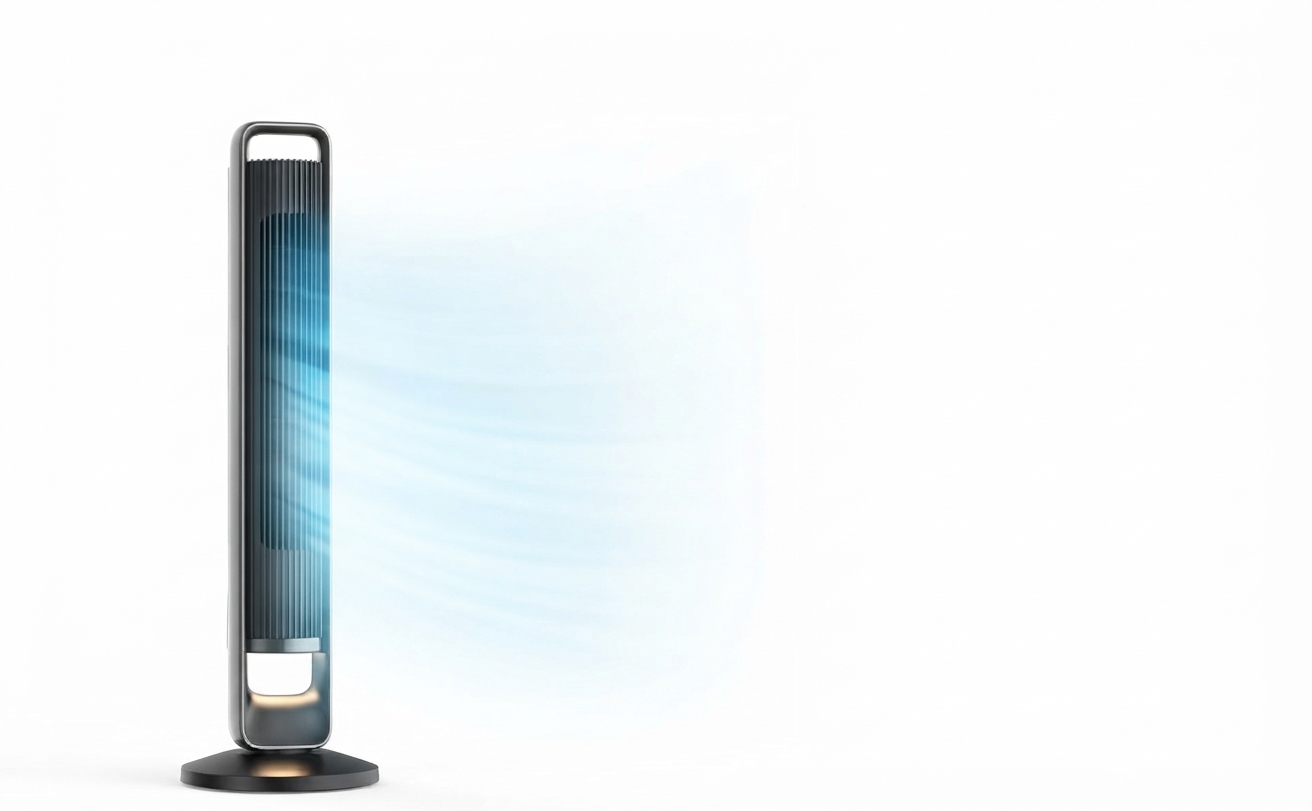

Introducing the Paris-Rhone Tower Fan PE-TF003, a stylish and powerful addition to any room. This tower fan is designed with modern technology and sleek aesthetics, making it a perfect choice for those who want to stay cool and comfortable while adding a touch of elegance to their space. The estimated price of the fan is around $150, and it is now available for purchase in various online and physical stores.

SPECIFICATIONS

1. Model: PE-TF003

2. Input: 120V~ 60Hz

3. Rated Power: 20W

ASSEMBLING YOUR TOWER FAN

Tool-free Assembly

1. Loosen the lock nut on the fan, anticlockwise as shown on the nut.



2. Stagger the front and rear bases at an angle, align them with the holes and snap them together tightly.



3.



   • Put the base on the main body (make sure the base slot towards the rear side).

   • Fasten the nut clockwise as shown on the nut

   • Buckle the power cord into the holes of the base slot, for making sure the base is upright on the level ground.

USING YOUR TOWER FAN

Control Panel

LED Display

Remote Control

For added convenience, the same control buttons can be found on the remote control.

Fan Modes

Additional Features

1. Memory Function
   The fan is designed with power off memory function (except timer setting).
   The memory of each mode is non-interacting and it will always    remember the last settings.

2. Auto Display OFF
   If no operation is done within 1 minute when powered on, the display   will turn off automatically.
   To turn the display back on, press any button to wake it up.

3. Always On Display
   Hold the Night Light Button for 2s, Auto Display OFF disabled and display will be always on. Hold for 2s again to enable Auto Display OFF function.

Description

The Paris-Rhone Tower Fan PE-TF003 is not just a functional appliance but also a stylish addition to any room. It has a sleek and modern design, with a matte black finish that complements any decor. The fan has a compact and space-saving design, making it an ideal choice for small apartments, dorm rooms, and offices. The touch-sensitive control panel is easy to use and has a clear and visible display, allowing you to adjust the fan's settings with ease.

The fan is also designed with safety in mind. It has a sturdy base that prevents it from tipping over, and the blades are covered with a protective grille, ensuring that you and your family are safe from accidents. The fan is also energy-efficient, consuming less electricity than traditional fans, making it an eco-friendly choice for those who want to reduce their carbon footprint.

User Servicing Instructions

This Tower Fan features a fused safety plug which is designed to cut off electric current to the fan if an electrical fault occurs. If your fan loses power and you suspect that the fuse on your fan has blown,

1. Grasp plug and remove from the receptacle or other outlet device. DO NOT unplug by pulling on cord.

2. Open fuse cover. Slide open fuse access cover on top of attachment plug towards blades.

3. Remove fuse carefully. Insert the tip of your tool into fuse slot (close with the terminal), then prize the fuse gradually and slowly, but not overexert. If you feel tight, you can try it at several times and prize the fuse little by little. When one side of the fuse has  been prized, then you can get the fuse out entirely. Risk of fire. Replace fuse only with 2.5 Amp, 125 Volt fuse.

4. Close fuse cover. Slide closed the fuse access cover on top of attachment plug. Risk of fire. DO NOT replace attachment plug. Contains a safety device (fuse) that should not be removed. Discard product if the attachment plug is damaged.

Replacement of Batteries

• Replace with new batteries of the same type when replacement is required.

• When not using the remote control for a long time, please take out the batteries.

• DO NOT attempt to dismantle the batteries.

• DO NOT dispose the batteries in fire, batteries may explode or leak.

• DO NOT use rechargeable batteries.



1. Press the locking button to pop up the battery holder.

2. Replace the battery with the same type (CR2025, 3V), making sure the (+) side facing up.

3. Push in the holder until securely locked into place.

WARNING: Do not ingest battery, Chemical Burn Hazard. This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. The batteries contain materials, which are hazardous to the environment; they must be removed from the appliance before it is scrapped and that they are disposed of safely.

Setup Guide

Setting up the Paris-Rhone Tower Fan PE-TF003 is easy and straightforward. Here are the steps to follow:

1. Remove the fan from its packaging and place it on a flat and stable surface.
2. Plug in the fan's power cord into a nearby outlet.
3. Press the power button on the control panel to turn on the fan.
4. Adjust the fan's settings using the touch-sensitive control panel. You can choose from three fan speeds and set the timer for up to 7.5 hours.
5. Enjoy the cool and refreshing air that the fan provides.,

CLEANING & MAINTENANCE

	Only a soft cloth can be used for cleaning the outer surfaces.
	To remove dust between the grills, a pipe cleaner, flexible dust wand, vacuum cleaner or compressed air are acceptable.

• Always make sure the tower fan is turned off and unplugged before cleaning.

• DO NOT stick any foreign objects or your fingers inside of the unit.

• Never immerse in water or allow water to drip into the motor housing.

• DO NOT clean with abrasive chemicals or flammable cleaning agents.

For storage, you may leave the tower fan covered to protect it from dust. Store it in a cool, dry location and wrap the cord around the cord wrap on the unit so that it will not be tripped over or damaged.

IMPORTANT SAFETY INSTRUCTIONS

DANGER: BEFORE USING THIS APPLIANCE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS IN YOUR USER MANUAL AND ON THE APPLIANCE
READ AND SAVE THESE INSTRUCTIONS

1. DO NOT touch or hold the mains plug with wet hands.



2. DO NOT block or cover air flow to or from the fan while in operation.



3. DO NOT insert fingers or objects through the grille while in operation.



INTENDED USE

• This appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by  person responsible for their safety.

• Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

• Use the appliance only for intended household purposes as described in this User Manual. Any other use is not recommended that may cause fire, electric shock, or injury to people.

ELECTRICITY SAFETY

• This appliance must be provided with correct voltage via a professionally installed power socket. Make sure the voltage indicated on the label of the appliance is the same as your local supply.

• IMPORTANT – This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to rig this safety feature.

• This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation.
  If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product. If the replacement fuse blows, a short circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

• WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

• Include instructions pertaining to a risk of fire, electric shock, or injury to persons, for cleaning and user maintenance, such as lubrication;

• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
  Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

RELATED TO USE

• DO NOT use this fan to ventilate areas where flammable liquids or vapors are used, stored or are present.

• DO NOT attempt to disassemble, repair, modify or replace any part any part of your product.

• Always make sure to place the fan on a flat, level surface before operation.

• Always unplug the appliance before cleaning, making any repairs or servicing, or whenever not in use.

• It is normal that there is noise during operation. If too loud, please set the fan to lower speed.

FOR HOUSEHOLD USE ONLY

Regular Check

HAVE YOUR TOWER FAN CHECKED REGULARLY FOR ANY SIGN OF MALFUNCTION!

Check if plug, cord or appliance is damaged. Stop using, check FAQ and contact Paris Rhône Support Team.

TROUBLESHOOTING

WARRANTY

This product is covered with Paris Rhône product and labor warranty for 12 months from the date of its original purchase.

Pros & Cons

Pros

• Stylish and modern design
• Powerful airflow and 60-degree oscillation
• Touch-sensitive control panel and programmable timer
• Removable and washable air filter
• Space-saving and energy-efficient

Cons

• May be too small for large rooms
• Does not have a remote control

Customer Reviews

Customers who have purchased the Paris-Rhone Tower Fan PE-TF003 have praised its sleek design, powerful airflow, and energy-efficient features. However, some have expressed disappointment that the fan does not come with a remote control. Overall, the fan has received positive reviews and is recommended for those who want a stylish and functional tower fan.
