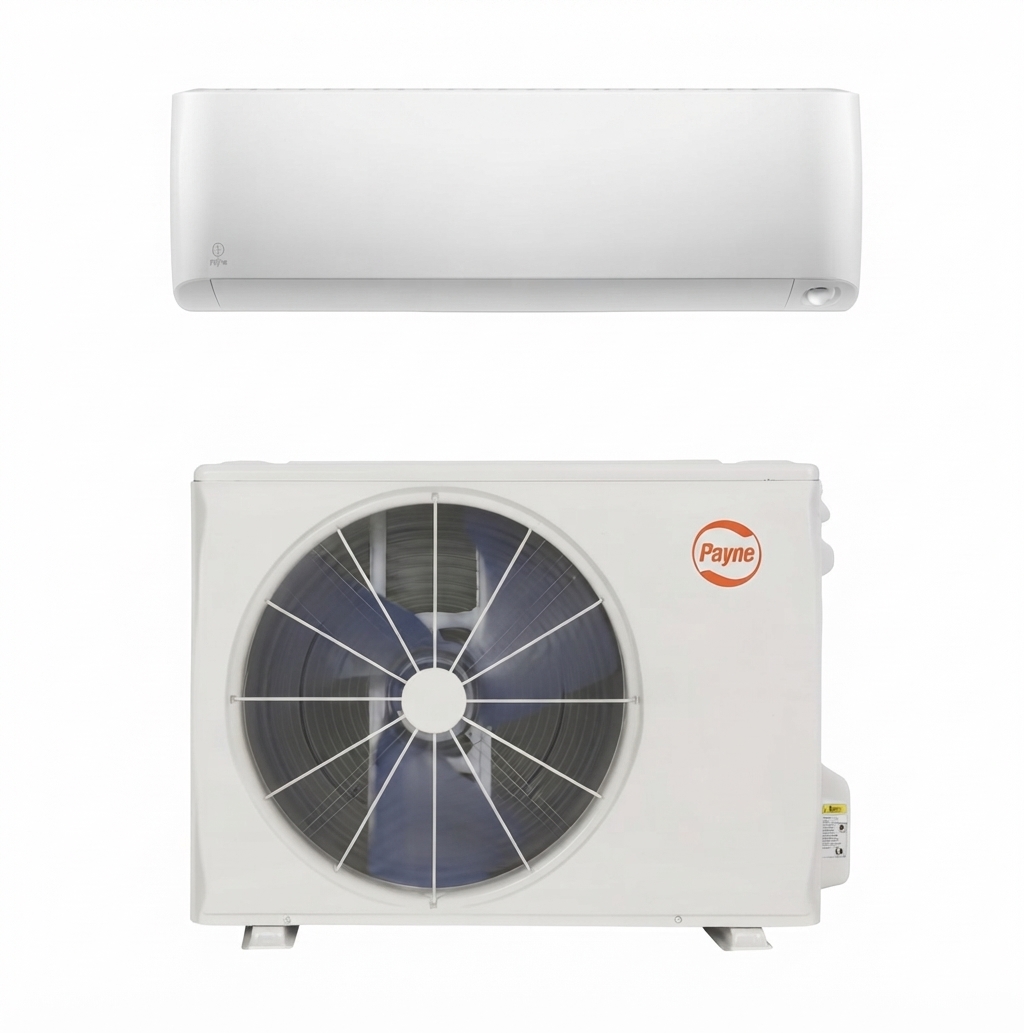

Payne OG-DHMSHA-01 High Wall Ductless System Overview

The Payne OG-DHMSHA-01 High Wall Ductless System is a wall-mounted ductless mini-split solution designed for efficient heating and cooling in homes, additions, apartments, and rooms without existing ductwork. Built around a high-wall indoor fan coil matched to a compatible outdoor heat pump, it delivers targeted comfort, quiet operation, and flexible installation for single-zone applications. The system is available in multiple sizes from 09 to 36, making it suitable for small bedrooms, large living areas, and light commercial spaces that need precise temperature control.

One of the biggest advantages of the Payne OG-DHMSHA-01 High Wall Ductless System is its balance of performance and simplicity. Users get room-by-room comfort, dehumidification, fan-only operation, auto mode, and heat pump heating where applicable, all without the cost or disruption of ductwork. Typical features across the line include wireless remote control, multi-speed fan control, and compatibility with accessories such as Wi-Fi kits and wired remote options on supported configurations. This makes the system appealing to homeowners looking for a ductless HVAC upgrade, contractors working on remodels, and property owners seeking energy-conscious temperature control.

Estimated pricing varies widely by size, outdoor unit pairing, and installation complexity, but a typical installed range is often around $3,500 to $8,500 or more depending on labor and accessories. Availability is generally through authorized HVAC dealers and distributor channels, with stock varying by region and season. For buyers comparing ductless systems, the Payne OG-DHMSHA-01 High Wall Ductless System stands out for practical features, flexible sizing, and dependable comfort in spaces where conventional ducted HVAC is not ideal.

Payne OG-DHMSHA-01 Specifications and Key Features

Product type: High wall ductless indoor unit for single-zone mini-split systems
Model family: DHMSHA high wall ductless series
Capacity range: Sizes 09 to 36, covering roughly 3/4 ton to 3 tons
Electrical options: Common configurations include 115V and 208/230V depending on size and pairing
Operating modes: Cool, Heat, Dry, Fan, and Auto
Comfort functions: Dehumidification, fan-only circulation, and automatic temperature adjustment
Controls: Wireless remote standard on supported setups; optional wired remote on compatible installations
Air distribution: Wall-mounted louver design for directional airflow
Efficiency focus: Designed to pair with high-efficiency outdoor heat pump units
Best use cases: Bedrooms, bonus rooms, sunrooms, garages, home offices, and additions

Compared with traditional ducted systems, this ductless model reduces energy loss through ducts and gives more precise zone control. Compared with larger multi-zone setups, it is simpler to install and often easier to maintain. In performance terms, the system is designed for quiet, efficient comfort rather than whole-house central distribution.

How to Set Up the Payne OG-DHMSHA-01 High Wall Ductless System

Start by confirming that the indoor unit size matches the outdoor heat pump and that the electrical supply, line-set length, and mounting location meet installation requirements. The indoor unit should be mounted on a structurally sound wall with enough clearance for airflow, service access, and condensate drainage. Because the system is refrigerant-based and requires electrical wiring, installation should be handled by a licensed HVAC professional.

Mount the indoor bracket and verify that it is level.
Route refrigerant lines, drain tubing, and communication wiring through the wall opening.
Connect the indoor unit to the matched outdoor unit according to the manufacturer’s wiring diagram.
Vacuum and pressure-test the refrigerant circuit before releasing charge.
Install batteries in the wireless remote and confirm basic mode functions.
Test cooling, heating, fan, dry, and auto modes after startup.
Set airflow direction, temperature limits, and timer preferences as needed.

If the system includes Wi-Fi capability through an accessory kit, follow the app pairing instructions after the unit is powered on and the network is ready. If the unit does not respond, check the remote batteries, breaker position, communication wiring, and condensate drain path. Never power the system with open refrigerant lines, and avoid blocking the indoor air inlet or outlet.

Pros and Cons of the Payne OG-DHMSHA-01

Pros

Efficient ductless comfort for rooms without existing ductwork
Quiet indoor operation is ideal for bedrooms and offices
Multiple size options support small and large zones
Useful operating modes for cooling, heating, fan-only use, and dehumidification
Good value for homeowners wanting targeted comfort without a full HVAC overhaul
More flexible than many window units and often cleaner-looking than portable options

Cons

Requires professional installation and proper refrigerant handling
Upfront cost is higher than basic room cooling solutions
Best performance depends on correct outdoor unit pairing
Not a whole-house replacement unless multiple zones are installed
Accessories such as Wi-Fi kits or wired controls may add cost

For value for money, the Payne OG-DHMSHA-01 High Wall Ductless System is strongest when used in a single zone where ducts would be expensive or impractical. Compared with budget mini-splits, it offers a more established HVAC-oriented platform. Compared with premium brands, it is often appealing for buyers who want reliable performance without paying top-tier pricing.

Customer Reviews and Real-World Feedback

Customer feedback for ductless Payne systems is generally positive, with many users praising quiet operation, fast comfort changes, and the convenience of room-specific temperature control. A common star rating pattern for satisfied owners is around 4 out of 5 stars, especially for installations in bedrooms, workshops, and additions.

Typical praise includes comments such as: “It cools the room quickly and stays very quiet,” and “Perfect for our sunroom where ductwork was impossible.” Common complaints usually focus on installation cost, the need for a qualified installer, and occasional confusion around remote settings or accessory setup. Some buyers also note that performance depends heavily on correct sizing, which makes a proper load calculation important before purchase.

For most homeowners needing a dependable ductless HVAC solution, this system is a strong buy when installed by an experienced contractor. Buyers comparing alternatives should consider similar high wall ductless systems if they want more advanced smart features, but the Payne OG-DHMSHA-01 High Wall Ductless System remains a practical option for comfort, efficiency, and straightforward everyday use.

PDF

Faqs

How do I set up the payne OG-DHMSHA-01 High Wall Ductless System for the first time?

Start by confirming the indoor and outdoor units are installed on a solid, level surface and that the refrigerant lines, drain, and electrical connections meet the installation requirements. Before powering on the payne OG-DHMSHA-01 High Wall Ductless System, check that the air filters are seated correctly and the remote or wall controller has fresh batteries if applicable. After startup, test cooling and heating modes, fan speeds, and louver movement to verify proper operation and catch setup issues early.

Why is my payne OG-DHMSHA-01 High Wall Ductless System not cooling or heating properly?

If the payne OG-DHMSHA-01 High Wall Ductless System is not delivering the expected comfort, first check the mode setting, target temperature, and fan speed. A clogged filter, blocked indoor airflow, or dirty outdoor coil can reduce performance quickly. Also confirm doors and windows are closed and the room size matches the system capacity. If the issue continues, look for error codes, unusual sounds, or ice buildup, as these may indicate a refrigerant, sensor, or airflow problem that needs service.

What features of the payne OG-DHMSHA-01 High Wall Ductless System help improve comfort and efficiency?

The payne OG-DHMSHA-01 High Wall Ductless System is designed to provide targeted comfort without ductwork, which helps reduce energy loss and improve room-by-room control. Key features often include adjustable fan speeds, precise temperature settings, quiet operation, and directional airflow control. These features make it easier to maintain steady comfort while avoiding wasted energy. For best results, use temperature settings consistently and match the operating mode to the season instead of making frequent large adjustments.

What room size and electrical requirements should I check before installing the payne OG-DHMSHA-01 High Wall Ductless System?

Before installation, verify that the payne OG-DHMSHA-01 High Wall Ductless System is sized correctly for the room or zone you want to condition. An undersized unit may run constantly, while an oversized unit can short-cycle and control humidity poorly. Also confirm the electrical supply, breaker size, and disconnect requirements match the unit’s specifications. Proper clearances around the indoor and outdoor units are important too, since restricted airflow can reduce efficiency and shorten equipment life.

How can I improve the performance of my payne OG-DHMSHA-01 High Wall Ductless System during extreme weather?

To improve performance in hot or cold weather, keep the air filters clean, set a stable target temperature, and avoid frequent mode changes. Make sure furniture, curtains, or wall hangings are not blocking the indoor unit’s airflow. On the outdoor side, keep the unit clear of debris, snow, and leaves so it can exchange heat efficiently. Using curtains, shades, and proper insulation can also reduce the load on the payne OG-DHMSHA-01 High Wall Ductless System.

How often should I clean and maintain the payne OG-DHMSHA-01 High Wall Ductless System?

Routine maintenance should include cleaning the indoor air filters every few weeks during heavy use and checking the outdoor unit regularly for dirt, leaves, or snow buildup. The payne OG-DHMSHA-01 High Wall Ductless System should also have its drain line inspected periodically to prevent water leaks or blockages. A professional tune-up at least once a year helps verify refrigerant levels, electrical connections, and overall system health. Regular care keeps efficiency high and reduces unexpected breakdowns.

What should I do if my payne OG-DHMSHA-01 High Wall Ductless System is leaking water indoors?

If water appears indoors, turn the unit off and inspect the air filters first, because restricted airflow can cause icing and overflow. Check the condensate drain line for kinks, clogs, or improper slope, since a blocked drain is a common cause of leaks. Also look for signs of ice on the indoor coil. If the leak returns after cleaning and clearing the drain, the payne OG-DHMSHA-01 High Wall Ductless System may need a technician to inspect the pump, pan, or refrigerant charge.

Can the payne OG-DHMSHA-01 High Wall Ductless System be used with smart controls or a programmable thermostat?

Compatibility depends on the exact control options supported by the payne OG-DHMSHA-01 High Wall Ductless System and the accessories installed with it. Some ductless systems use proprietary remotes or wall-mounted controllers, while others can work with third-party interfaces or smart home add-ons. Before purchasing any accessory, confirm voltage, communication type, and manufacturer compatibility. If smart control is a priority, check whether scheduling, remote access, and temperature automation are supported for this specific model.
