Setup: Pjrobot PJ 20W Air Purifier User Manual

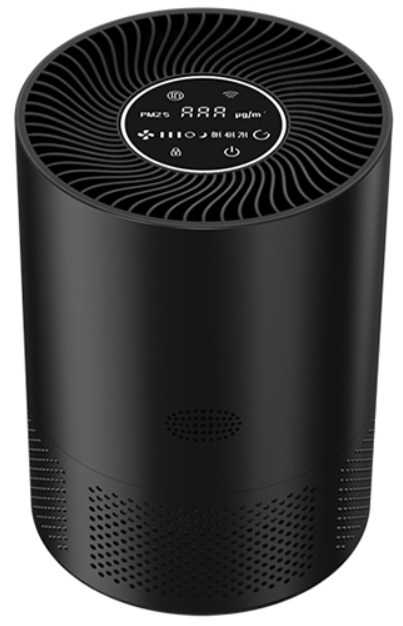

Pjrobot PJ 20W Air Purifier

IntroPJrobot

The PJrobot PJ 20W Air Purifier is a compact yet powerful solution designed to enhance indoor air quality by efficiently removing airborne pollutants. Ideal for small to medium-sized rooms such as bedrooms, offices, and living spaces, this device combines modern filtration technology with user-friendly features to deliver fresh, clean air. Its low power consumption of 20 watts makes it energy-efficient, suitable for continuous operation without a significant impact on electricity bills.

Key benefits include effective filtration of dust, pollen, pet dander, and odors, along with a quiet operation mode that ensures minimal disruption during sleep or work. The purifier is especially suitable for individuals with allergies, asthma, or respiratory sensitivities, as well as those seeking a healthier home environment. Given its sleek design and reliable performance, the PJrobot PJ 20W Air Purifier stands out as an affordable option, typically priced in the range of $60 to $90, available through online retailers and specialty electronics stores.

WHAT’S IN THE BOX

• 1 ×PJ HEPA Air Purifier
• 1 ×HEPA Filter (Pre-installed)
• 1 ×Power Adapter
• 1 ×User Manual

Technical Specifications

• Model: pJ
• Name: Air Purifier
• Power: 20W
• Input: DC24V
• Adaptor Input: 100-240V~50/60Hz 1.0A
• Adaptor Output: 24V 1.0A
• Noise Level: ≤50dB(3-High Speed Level)
• Particles Purification Efficiency: High
• Formaldehyde Purification Efficiency: High
• Product Dimensions: c208*290mm
• Net Weight: 2.3kgs
• Coverage Area: 18~35m
• Operating Condition: -4°C-70°C/25°F-148°F (20%-90%,non-condensing)
• Storage Condition: -4°C-70°C/25°F-148°F (20%-90%, non-condensing)

Compared to similar products in the same price range, the pPJrobotPJ 20W Air Purifier offers a balanced blend of efficiency, quiet operation, and smart features, often surpassing basic models that lack multi-stage filtration or air quality sensors.

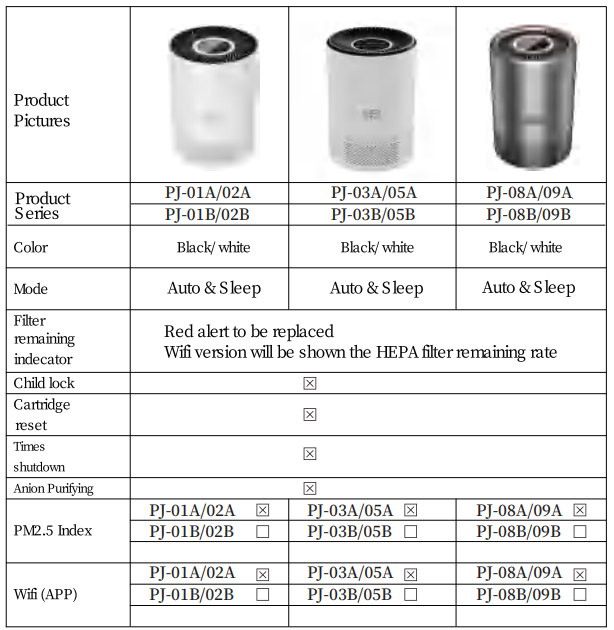

Product Series

SAFETY PRECAUTIONS

READ AND SAVE THESE INSTRUCTIONS

• Include instructions about a risk of fire, or injury to persons, for cleaning and user-maintenance , such as lubrication;
• Warn the user to unplug or disconnect the appliance from the power supply before servicing.

WARNING: NOT SUITABLE FOR USE WITH SOLID-STATE CONTROLS
This product should be used only in accordance with the specifications outlined in this manual.
Usage other than what has been specified here may result in serious injury.

When using electrical appliances ,  basic precautions should always be followed to reduce the risk of fire,  electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
• To avoid fire or shock hazard, plug the appliance directly into a right AC electrical outlet.
• Keep the cord out of heavy traffic areas  . To avoid fire hazards,, rd NEVER put the cord under rugs , near heat registers, radiators,  stoves,  or heaters.
• To protect against electrical hazards , DO NOT immerse in water or other liquids. Do not use near water or in a damp location.
• Children cannot recognize the hazards associated with the use of electrical appliances. For this reason,  always supervise children when they are near the unit.
• Always unplug the air purifier before moving it,  opening the grille, changing filters,  cleaning,, or whenever the air purifier is not in use.
• Be sure to pull by the plug, not the cord.
• NEVER drop or insert any objects into any openings.
• DO NOT run the cord under carpeting.
• DO NOT cover the cord with throw rugs or similar coverings.
• DO NOT route the cord under furniture or appliances. Arrange the cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if the motor fan fails to rotate,  after the appliance malfunctions , or if it has been dropped or damaged in any manner.  Send to Customer Service for assistance.
• Use the appliance only for the intended household purposes as described in this manual. Any other use is not recommended that may cause fire, electric shock, or injury to persons.
• DO NOT use outdoors.
• DO NOT place anything on top of the unit.
• NEVER block the air openings,  grille/outlets, or place the unit on a soft surface such as a bed or sofa, as this could cause the unit to tip over,  blocking the air inlet or outlet.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user-serviceable parts. All servicing should be performed by qualified personnel only.
• Keep the appliance on a level surface.
• Plastic film can be dangerous.  To avoid the danger of suffocation, keep away from children.
• Refer to the safety instructions in the manual for more information.

PRODUCT FEATURES

The air purifier is designed to capture 99.97% of dust, pollen, pet dander, smoke, mold spores, and household odors, allowing you to breathe more healthily.

• Stage Filtration:  Pre-filter captures larger airborne particles such as human hair, pet dander,  der and dust particles ;  activated carbon filter removes large dust particles , pet dander, and household odor; HEPA filter traps to 99.97%  of pollutants as small as 􀀄.􀀆Ultralarge pollen and dust mites, and filters air pollution of PM 2.5.
• 3 Fan Speeds
• 3 Timer Settings
• Child Lock Function
• Smart Control
• Negative ion purifying function
• Auto/Sleep Mode
• Filter Reset

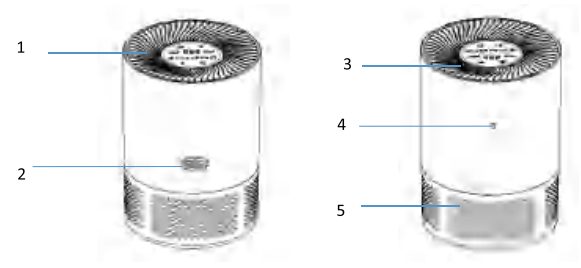

PRODUCT DIAGRAM

1. Touch Control Panel
2. Sensor
3. Air Outlet
4. Power Cord Interface
5. Air Inlet

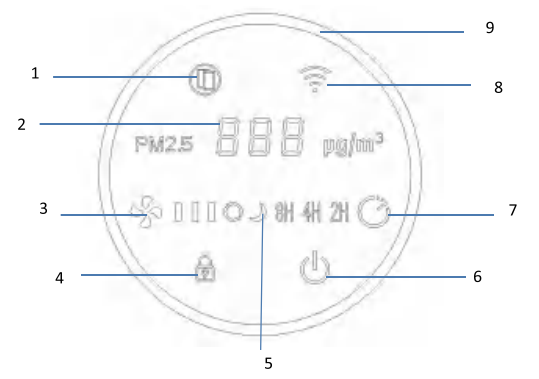

1. Filter Reset
2. PM2.5 Index
3. Fan Speed Button
4. Child Lock
5. Auto/Sleep Mode
6. Switch Button
7. 2/418H Timer Button
8. WIFI
9. Real-time Air Quality Ring Light

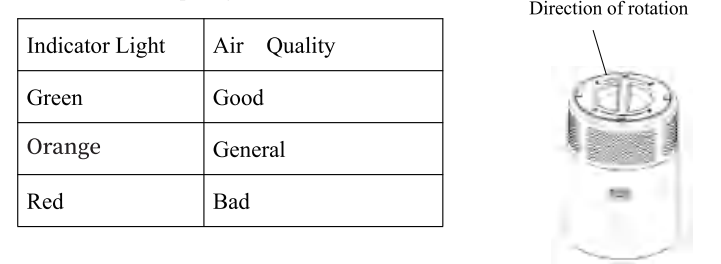

Air Quality Indicator

The tricolor lights alter their hues in accordance with the real-time air quality data.

CLEANING AND CARE

General Maintenance

• Clean the air purifier at least once a month with a clean, dry, soft cloth or a vacuum.
• More frequent cleaning may be required depending on environmental conditions.

Note:

• DO NOT stick any foreign objects or your fingers inside of the unit.
• DO NOT use gasoline, benzene, and other abrasive or harsh cleaners, etc, on and/or in the unit while cleaning , as they will damage the product. NEVER use alcohol or other solvents.

Maintaining the Filter
It’s recommended to clean the pre-filter once each month by lightly brushing off any visible dust or dirt (take care to avoid disturbing the delicate network of interior fibers.

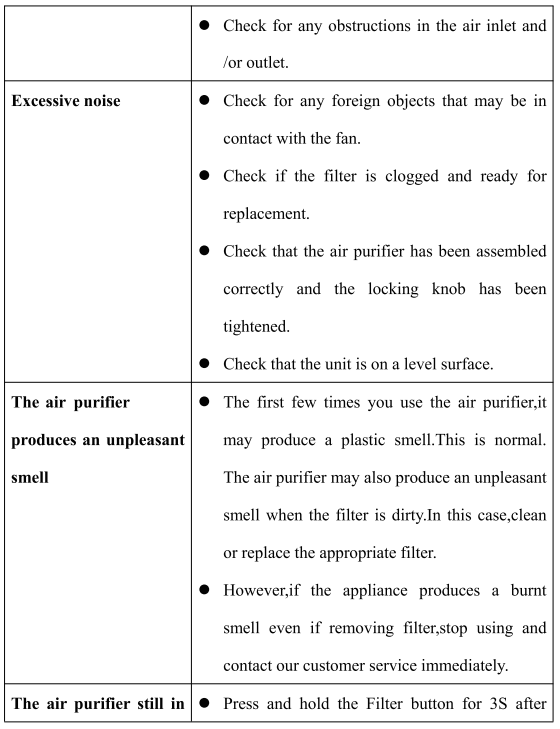

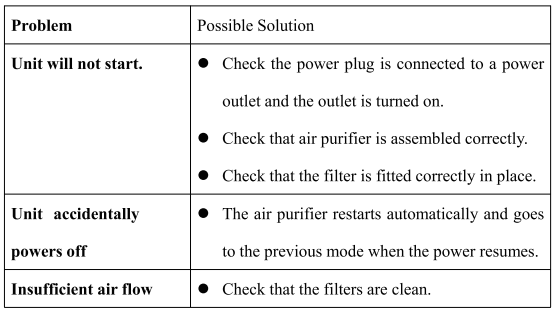

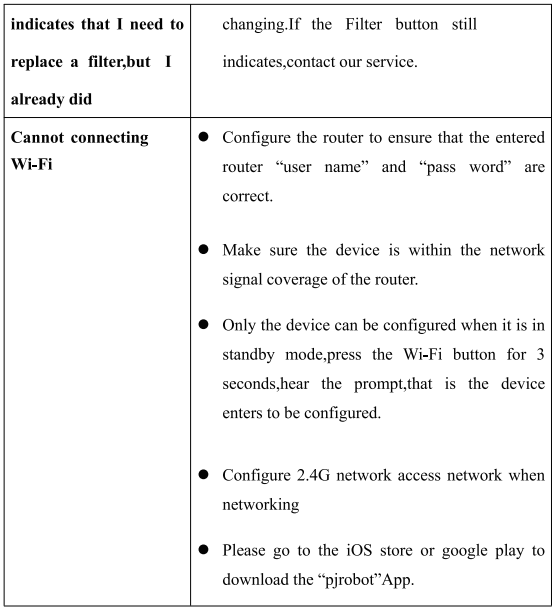

TROUBLESHOOTING

Before carrying out of the following service checks , unplug the unit from the mains.

Limited Warranty

This limited warranty applies only to the repair or replacement of any manufactured or supplied part of this product which, upon inspection by our authorized personnel,  proves to have failed in normal use due to defects in material or workmanship. The sole responsibility of us under this limited warranty is , in our sole discretion, to either repair or replace d duly registered product (or defective part thereof) with the same or a comparable model within a reasonable period of time, subject to the following exclusions, limitations,  statutory rights ,  a  nd warranty claim procedures. This limited warranty is exclusive,  and we expressly disclaim all other or additional warranties,  whether written or oral,  expressed or implied,  including , but not limited to , warranties of merchantability, workmanship, or fitness for a particular purpose.

Customer Reviews and User FPJRobot for pjrobot PJ 20W Air Purifier

Users typically praise the PJRobot PJ 20W Air Purifier highly, with average ratings around 4.3 out of 5 stars. Praise often centers on its quiet operation, compact design, and noticeable improvement in air freshness. Several reviews commend the purifier’s ability to alleviate allergy symptoms and reduce indoor odors.

Common complaints include the need for periodic filter replacements, which some users find costly over time, and occasional concerns about the initial plastic odor that dissipates after first use. Some users also mention that the coverage area is best suited for smaller rooms, so larger spaces may require multiple units or a higher-capacity model.

Overall, buyers recommend the PJRobot PJ 20W Air Purifier for bedrooms, offices, and small apartments, particularly for those seeking an affordable yet effective air purification solution. The filter replacement reminders and quiet sleep mode are frequently cited features enhancing user satisfaction[1][3][4].
