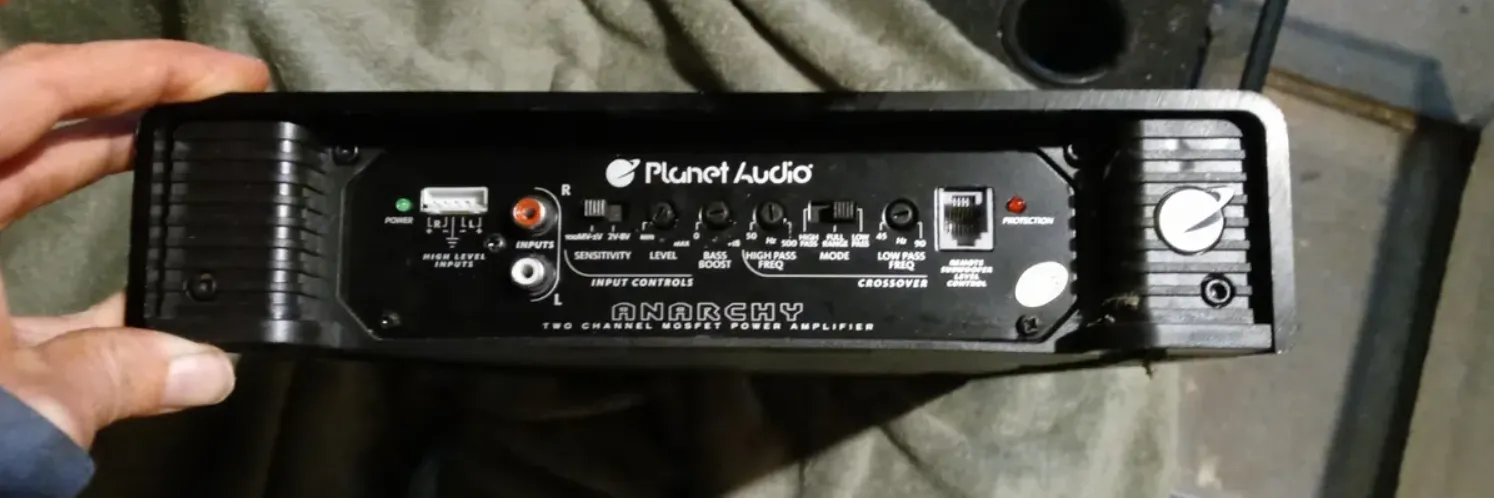

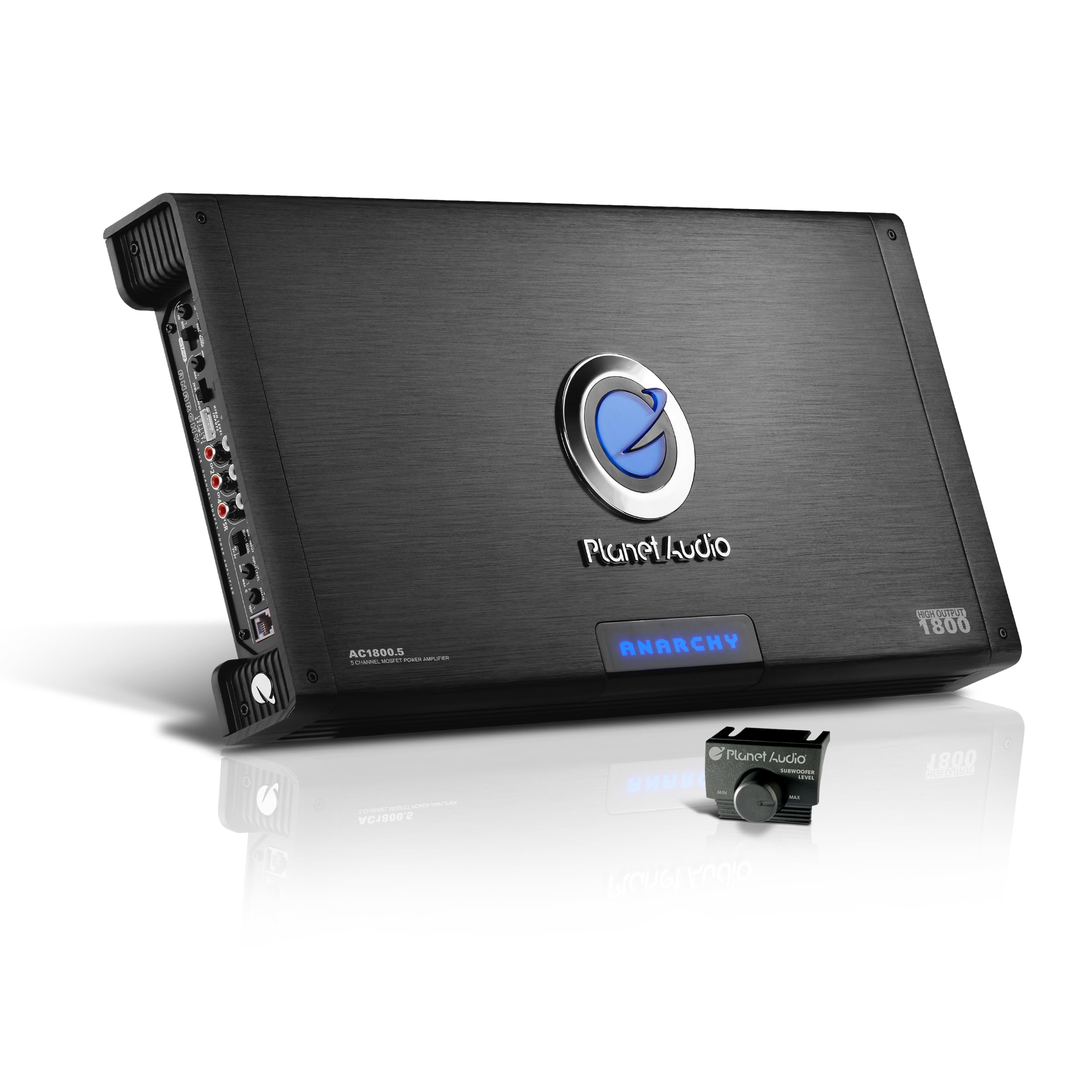

Introduction of Planet Audio Car Amplifiers ANARCHY MOSFET

Get ready to experience an unparalleled sound quality in your vehicle with the Planet Audio Car Amplifiers. This powerful amplifier is designed to deliver a maximum output power of 4500 watts, making it an ideal choice for music enthusiasts who want to take their car audio system to the next level. The estimated price of the product is around $200, and it is now available for purchase in the market.The 2CH, 4CH and SCH ANARCHY models feature variable low pass and high pass crossovers (The monoblocks have low pass crossovers). All amps feature variable input gain controls. They also incorporate an input voltage sensistivity selector for added system flexibility.
For further flexibility in the use of a subwoofer, 0-+ 18dB Bass Boost control has been included on all amplifiers. You can control the subwoofer level with the remote level control module.

Specifications of Car Amplifiers ANARCHY MOSFET

Detailed Description of Planet Audio Car Amplifiers

The Car Amplifiers ANARCHY MOSFET is a Class AB amplifier that features a MOSFET power supply that provides a clean and efficient power output. It has a variable low-pass and high-pass filter that allows you to adjust the frequency response of the amplifier to match your speaker's requirements. The amplifier also has a bass boost control that enhances the low-frequency response, giving your music a more profound and punchy sound.
The Planet Audio Car Amplifiers ANARCHY MOSFET has a compact and rugged design that makes it easy to install in your vehicle. It has a variable input gain control that lets you match the output of your source unit to the input of the amplifier, ensuring optimal performance and preventing distortion. The amplifier also has a thermal protection circuit that prevents it from overheating, ensuring its longevity and reliability.

What is included?

When first unpacking your new amplifier, please check first that the package contains all of the items below. If something is missing, contact the store where you purchased the amplifier.

• ANARCHY amplifier
• Remote subwoofer control
• High input cable with connector
• Four (4) mounting screws

Features

Your new ANARCHY amplifier features the following

• Class A-B Topology
• Bridgeable outputs (except AC1500.1 M and AC2500.1M)
• MOSFET PWM (Pulse Width Modulated) Power Supply
• 2 Ohm stable stereo operation with output power increase
• Thermal and speaker short protection
• Soft turn-on circuit
• Remote turn-on/turn-off circuit
• Variable input gain control
• Variable low pass crossover(s)
• Variable high pass crossover(s)(except AC1500.1 M and AC2500.1M}
• Variable Oto +18dB Bass Boost
• Chrome-plated RCA low level and high level inputs
• LED power and protection indicators
• Black anodized heatsink
• Remote subwoofer control

About 2 Ohm operation of Planet Audio Car Amplifiers

Your ANARCHY amplifier has been designed to operate efficiently at loads down to 2 Ohms. This means that you can install four 8 Ohm speakers per channel, when using parallel wiring.  When operating at 2 Ohms, the amplifiers will increase their output power by approximately 50%. The current draw will also increase by about the same amount, so be sure you have enough current to run the amplifiers into a 2 Ohm load. If you lack adequate current, your music reproduction will be distorted.

Connecting the amplifier

Before doing any wiring, look through this manual and identify the diagrams to follow for power, input and speaker connections for your particular installation. Be sure you understand all the connections before you proceed.

1. Connect the power ground terminal to the closest point on the chassis of the car. Keep this ground wire to less than 39" (100 cm) in length. Use 8 gauge (or heavier) wire.
2. Connect the remote terminal to the remote output of the head unit using 16 gauge (or heavier) wire.
3. Connect an empty fuse holder within 18" (45 cm) of the car battery, and run 8 gauge (or heavier) cable from this fuse to the amplifier location.
4. Check that the fuse holder is empty. Then connect the fuse holder to the "BATT+" connection on the amplifier.
5. If multiple amplifiers are being used in your system, either
   • Run a separate pair of cables from the battery and a chassis ground point to each amplifier. Each (+) cable must have its own inline fuse. - or-
   • Run a #4 cable from the fuse holder at the battery to a distribution block at or near the amplifier's location. Then run separate cables from the amplifier to this distribution block and to independent chassis ground points.
6. Connect all line inputs and outputs (if used) using high-quality cables. Connect all speakers, following the diagrams in this manual. Be sure to observe proper polarity to avoid audio phase problems.
7. Insert fuse(s) into the battery fuse holder(s).
8. Recheck all connections before powering up the amplifier.
9. Set all level controls to minimum position, and set all crossover controls/switches to the desired frequency points.
10. Power up the head unit and the amplifier. Then set the volume control on the head unit to about 3/4 volume, and adjust the amplifier's input level control(s) to just below the level of distortion.
11. Further fine tuning of the various controls may be necessary to obtain best results.

Don't misuse the level control

• Do not mistake the input level control for a volume control! It is designed ONLY to match the output level of your audio source to the input level of your amplifier.
• Do not adjust this input level to maximum unless your input level requires it. Ignoring these instructions will result in an input overload to the amplifier, and excessive audio distortion. It can also cause the protection circuit to engage.

General Precautions
Before installing and using your new Planet Audio amplifier, please become familiar with all the infor­mation contained in this manual. Please keep this manual in a safe place for future reference.

• Do not open or attempt to repair this unit yourself. Dangerous high voltages are present which may result in electric shock. Refer any repairs to a qualified service technician.
• To avoid risk of electronic shock or damage to the amplifier, do not permit any of this equipment to become damp or wet from water or drinks. If this does occur, immediately unplug the power wires and send the amplifier to your local dealer or service center as soon as possible.
• If there is smoke or any peculiar odor present during use or if there is damage to any of the component enclosures, immediately unplug the power wire and send the amplifier to your local dealer or service center as soon as possible .

Installation precautions

• Before you drill or cut any holes, investigate your car's layout very carefully. Take special care when you work near the gas tank, fuel lines, hydraulic lines and electrical wiring.
• Never operate the amplifier when it is unmounted. Attach all audio system components securely to prevent damage, especially in an accident.
• Before making or breaking power connections in your system, disconnect the vehicle battery. Confirm that your head unit or other equipment is turned off while connecting the input jacks and speaker terminals.
• If you need to replace the power fuse, replace it only with a fuse identical to that supplied with the amplifier. Using a fuse of a different type or rating may result in damage to your audio system or your amplifier which is not covered by the manufacturer's warranty.

Mounting the amplifier

1. Find a suitable location in the vehicle in which to mount the amplifier.
2. Make sure there is sufficient air circulation around the intended mounting location.
3. Mark the location for the mounting hole screws by positioning the amplifier where you wish to install it. Use a scribe or mounting screw, inserted through each of the amp's mounting holes, to mark the mounting surface. If the mounting surface is carpeted, measure the hole centers and mark with a felt tip pen.
4. Drill pilot holes in the mounting surface for the mounting screws. Place the amplifier in position, and attach the amplifier to the mounting surface securely using screws.

SHOCK HAZARD: Do not open the case of this product. There are dangerous voltages present within the unit. There are no user-serviceable parts within the unit.

Low-Level Input Wiring of  Planet Audio Car Amplifiers

Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance.
NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time!

2-Channel Amplifiers AC1000.2, AC1200.2, AC2000.2 and AC2600.2

4-Channel Amplifiers AC1600.4 and AC2400.4

5-Channel Amplifier AC1800.5

Monoblock Amplifiers AC1500.1M and AC2500.1M

High-Level Input Wiring

The high-level input(s) should only be used when your head unit lacks RCA outputs. If the RCA outputs are not present, connect the speaker outputs from the receiver to the high-level input connector of the amplifier. Be sure to observe polarity to avoid audio phase problems.
NOTE: Do not connect BOTH the high-level and low-level inputs from your receiver to your amplifier at the same time.

2-Channel Amplifiers AC1000.2, AC1200.2, AC2000.2 and AC2600.2

4-Channel Amplifiers AC1600.4 and AC2400.4

5-Channel Amplifier AC1800.5

Monoblock Amplifiers AC1500.1M and AC2500.1M

Power and Speaker Wiring

2-Channel Amplifiers

2 Channel and Bridged Modes

• Connect the Positive(+) terminal of the subwoofer to the L (+) amplifier terminal.
• Connect the Negative (-) terminal of the subwoofer to the R (-) amplifier terminal.

4-Channel Amplifiers AC1600.4 and AC2400.4

4 Channel and Bridged Modes

• Connect the Negative (-) terminal of the RIGHT subwoofer to the CH2 (-) amplifier terminal.
• Connect the Positive (+) terminal of the RIGHT subwoofer to the CH1 (+) amplifier terminal.

• Connect the Negative (-) terminal of the LEFT subwoofer to the CH4 (-) amplifier terminal.
• Connect the Positive(+) terminal of the LEFT subwoofer to the CH3 (+) amplifier terminal.

5-Channel Amplifier AC1800.5

5 Channel and Bridged Modes

Monoblock Amplifiers AC1500.1M and AC2500.1M

Monoblock Mode

Troubleshooting of Car Amplifiers ANARCHY MOSFET

If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagram on the previous pages. If problems persist, read the following troubleshooting tips which may help eliminate the problems.

Pros & Cons of Planet Audio Car Amplifiers ANARCHY MOSFET

Pros

• Delivers a maximum output power of 4500 watts
• Features a MOSFET power supply that provides a clean and efficient power output
• Variable low-pass and high-pass filter for frequency response adjustment
• Bass boost control for enhanced low-frequency response
• Compact and rugged design for easy installation

Cons

• May require additional wiring and accessories for installation
• May produce noise or interference with other electronic devices in the vehicle
• May consume a significant amount of power, affecting the vehicle's battery life

Customer Reviews about Planet Audio Car Amplifiers ANARCHY MOSFET

Customers who have purchased and installed the Car Amplifiers ANARCHY MOSFET have given it positive reviews, praising its power output, sound quality, and ease of installation. However, some customers have complained about the amplifier's noise and interference with other electronic devices in the vehicle. Overall, the ANARCHY MOSFET has received a rating of 4.2 out of 5 stars based on customer reviews.
