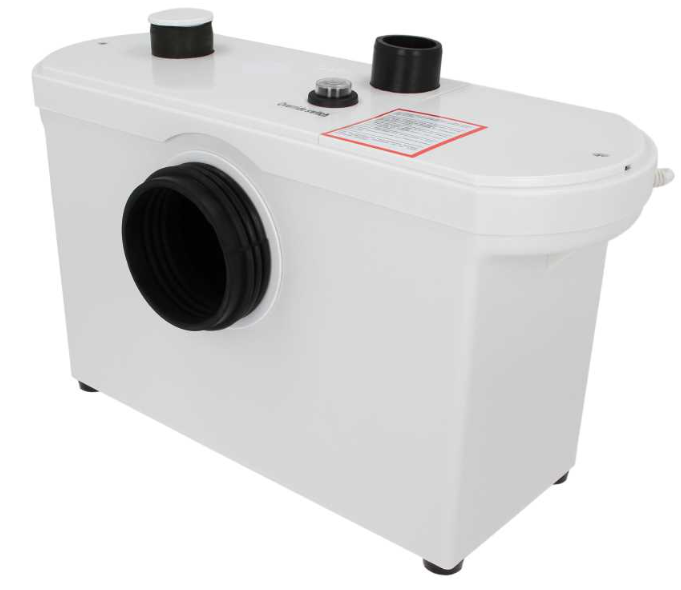

Plumbworld Bathroom 600A Macerator

Introduction

The Plumbworld Bathroom 600A Macerator is a cutting-edge solution designed to facilitate the installation of bathrooms in areas where traditional plumbing might be impractical. This macerator is specifically engineered to handle the disposal of waste from toilets, sinks, showers, and baths, making it an ideal choice for loft conversions, basement bathrooms, or any area where connecting to the main sewage system is challenging.

Launched in recent years, the Plumbworld Bathroom 600A Macerator has quickly gained popularity due to its efficiency, reliability, and ease of installation. With an estimated price range of £400-£600, it offers a cost-effective solution for homeowners and builders alike. The product is widely available through various plumbing and home improvement retailers.

The primary purpose of this macerator is to break down waste into a fine slurry that can be easily pumped through small-diameter pipes to the main sewage system. This eliminates the need for extensive plumbing work, making it a versatile and practical option for a variety of bathroom installations.

Specifications

Water temperature should be a minimum of 1°C, it is important that the unit does not freeze, and a maximum of 40 °C. Maximum vertical discharge 9.5 m. Maximum horizontal discharge 60m.

The Plumbworld Bathroom 600A Macerator comes with several key features that make it a standout in its category:

• Powerful 600W motor for efficient waste processing
• Ability to handle waste from multiple bathroom fixtures (toilet, sink, shower, bath)
• Compact design for easy installation in tight spaces
• High-quality stainless steel and plastic construction for durability
• Easy-to-use control panel with automatic start/stop function
• Quiet operation with a noise level of approximately 50 dB
• Includes all necessary fittings and accessories for installation

Installation Requirements

Electrics: The unit must be installed to comply with current UK electrical regulations, with a fused spur rated at 3 amps. We advise that this be done by a registered electrician.

This appliance must be earthed.
If the supply cord is damaged, it must be replaced by a qualified person. The cable type is H05VV-F,   3G0.75mm2 VDE. The IP rating of this appliance is IP55.

Water: The unit is designed for a horizontal toilet outlet with the standard European 18cm to the outlet centre from the floor. All other inlets must be gravity-fed into the unit. The outlet comes as standard with a 32mm connection; however,r 22mm can be used with a reducer. If using bends in the connecting pipe wo, work to ensure they are smooth curves to avoid blockages.

Inputs
The macerator can be used with multiple inputs, or just one. Blanking plates are provided to help you.

Installation

The electrical installation of this product must be done by qualified persons only.

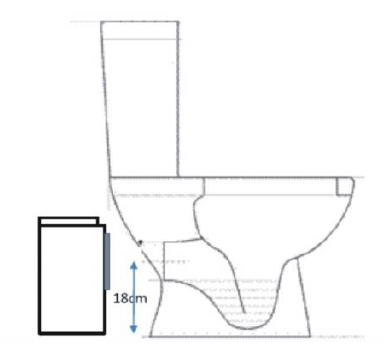

This macerator is only for use with a toilet using a horizontal outlet. The toilet must also have a flushing tank or tap. Note: the horizontal outlet must be 18cm above floor level in accordance with EU standards.

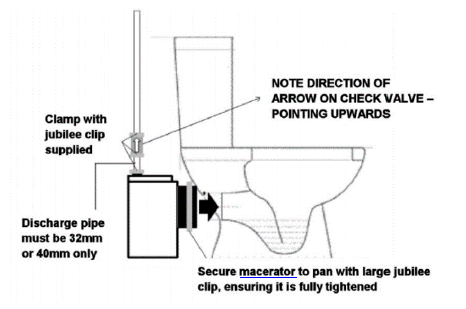

Toilet Only Configuration

• Place this horizontal toilet outlet into the macerator, and clamp the rubber sleeve of the macerator around the pipe using the supplied jubilee clip.
• Repeat for the 32mm or 40mm discharge pipe.

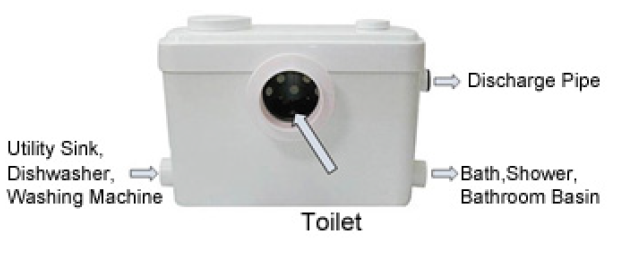

Configuration with Other Appliances

• Connect the discharge pipes of each appliance to the rubber connectors provided and clamp with the supplied jubilee clamps.
• For use with a bath or shower, there must be a gradient of 1cm per metre or greater. If used with a shower, a second check valve must be used. This must be fitted between the macerator and the tray. If other appliances are fitted along the discharge line, check valves must also be used on these.

General Care and Maintenance

Daily Usage:

• This product is suitable for indoor use only.
• Do not put foreign objects, such as but not limited to condoms, sanitary towels, and wet wipes , through the system, as this will cause damage to the unit, and will invalidate your warranty.

Servicing:

• Service and cleaning should be performed once every 6 months by a competent person.
• Before servicing, ensure the electric supply is off.
• Appropriate PPE must be used whilst servicing the unit.

Warranty

Please note the following situations that will invalidate the warranty:

• Failure to install the appliance in accordance with this installation guide.
• Installation by unqualified persons.
• Foreign objects in the system.
• Failure to carry out regular servicing/maintenance as detailed in this guide.

Product Disposal

• This product should not be disposed of with other household wastes.
• To prevent possible harm to the environment or human health from uncontrolled waste disposal, the unit should be disposed of at an appropriate local authority facility.
• The symbol on the appliance states that it meets the new directive  (2012/19/EU) and must be handled in accordance with this standard at the end of its service life.

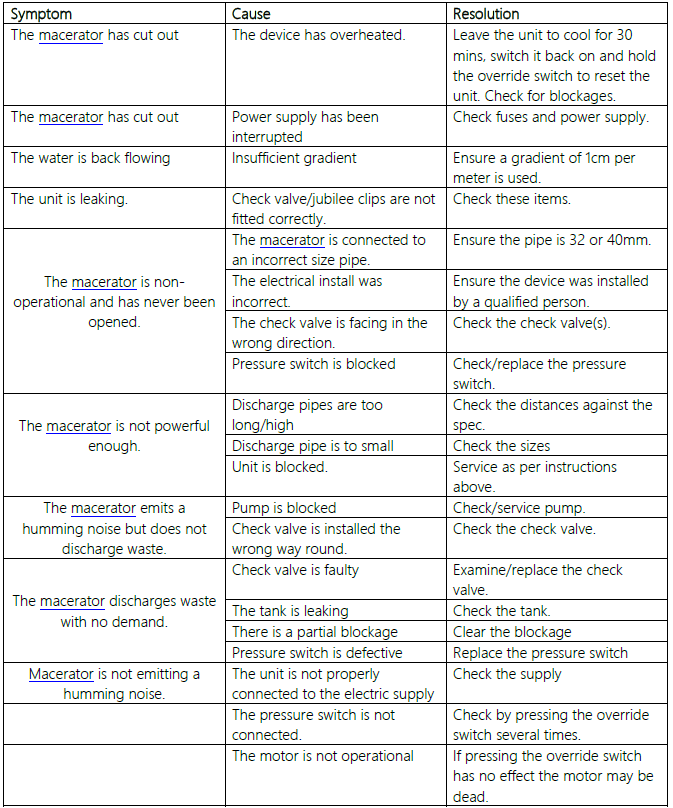

Trouble Shooting
