Introduction

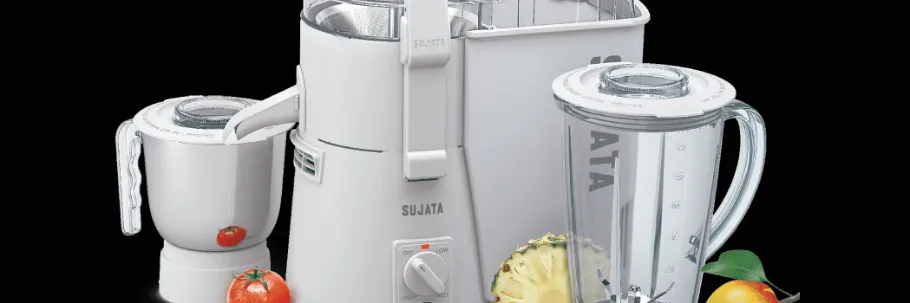

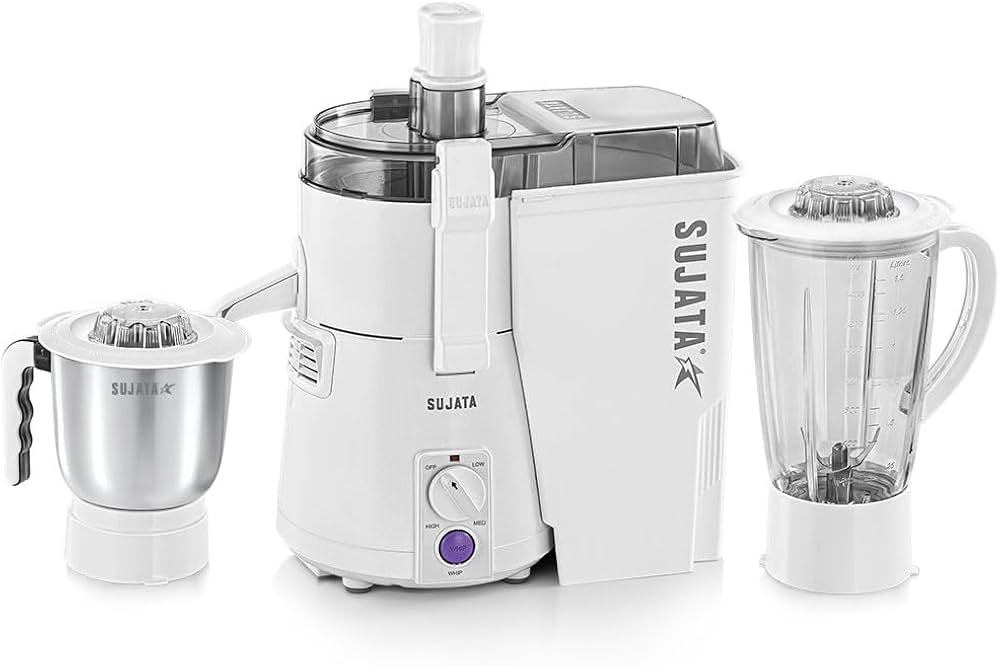

The strong and flexible Sujata Powermatic Plus Juicer Mixer Grinder juices, mixes, and grinds efficiently. High performance and longevity are guaranteed by its 900-watt motor with double ball bearings. A unique honeycomb filter mesh produces finer juice with increased yield, and its 22000 RPM operation preserves juice and food quality. The Sujata Powermatic Plus is ideal for common kitchen duties because to its three-speed settings and shock-proof chassis.

SPECIFICATIONS

• Model Type & No.: SUJATA POWERMATIC
• Motor: Heavy-duty, universal type 900 Watts with double ball bearing.
• Power Supply: 230 to 240 Volts. AC 50 - 60 Hz.
• Power Consumption: 900 Watts on maximum load.
• Rating: 90 minutes.
• Speed Control: 3 Speed with Rotary action switch. Whipper button for momentary motion.
• Motor Speed: No load speed maximum approx. 22000 R.P.M.
• Protection: Class I double insulated.
• Flex Cord: P.V.C. approx. 2.15 meters usable with 5 Amp. 3 pin plug.
• Net Weight with Carton: 5.0 Kg.
• Dimensions (in Cms.): 37 X 36 X 23
• Capacity: Juicer Continuous (90 minutes)

*Due to continuous upgradation in quality, design and specifications can be changed at any time without notice.

IDENTIFICATION OF PARTS

1. Plunger
2. Juicer Cover
   • A. Feeder Opening
   • B. Locks
   • C. Clamps
3. Cutter Spinner (Filter)
4. Juice Container
   • A. Locking Grooves (for Juicer Cover)
   • B. Lock (for Motor Unit)
   • C. Spout

   • D. Spout Cover



5. Motor Unit
   • A. Motor Housing
   • B. Slots for holding Clamps (of Juicer Cover)
   • C. Indicator Light
   • D. Speed Knob
   • E. Whip Button
   • F. Mains Cord

   • G. Driving Coupler made up of (1) Driving Base and (2) Driving Gear (set of teeth)



6. Driving Gear (extra)
7. Cleaning Brush
8. Pulp Container

   • A. Locking Grooves



Description

The Sujata Powermatic Plus Juicer Grinder is a powerful and durable kitchen appliance that can help you make fresh juices, pastes, and purees in no time. Its 550-watt motor and sharp stainless steel blades can handle even the toughest fruits and vegetables, while its overload protection feature ensures that the motor does not get damaged. The juicer grinder also has a 1.5-liter juicing capacity and a 0.5-liter grinding capacity, making it perfect for both small and large batches. The stainless steel blades and jar are easy to clean, and the anti-slip feet ensure that the appliance stays in place while in use.

HOW TO USE

Before using, dismantle each part and learn their disassembly and assembly methods.

DISASSEMBLY

• Remove the pulp container by slightly lifting it to unlock from the juicer cover.



• Pull out the clamps which are on both sides of the motor housing.



• Remove the juicer cover.



• Gently lift the juice container with both hands. The filter will come out with it.



• The filter can be easily separated from the juice container by pushing it up from the base. Dismantle each part. Wash all parts well with water except the motor housing.



ASSEMBLY

• Place the juice container on motor housing. Make sure the locks of the juice container match the locking grooves located at the top of the motor housing.



• Put the filter in the juice container. Lightly press the cutter to ensure that the spinner is properly fixed in position.



• Place the juicer cover ensuring that its locks match the locking grooves.



• Firmly close the clamps at both sides of the motor housing. Put the pulp container in locked position by pushing it.



EXTRACTING THE JUICE

• Place a glass under spout to collect juice.
• Switch the juicer on to 'LOW' speed and put the fruit and vegetable into the feeder opening.
• Use the plunger because most fruits and vegetables need additional help. Never put a finger, knife, etc. inside while the machine is in operation.

• The fruit is completely crushed by the cutter. The juice and pulp are automatically separated. The transparent juicer cover lets you know when it is time to empty the pulp container.



HOW TO CLEAN

• Disconnect the Power Supply.
  • Follow the instructions of Disassembly.
  • Dismantle each part. Wash all parts well with water.

• To clean the motor housing, simply wipe with a damp cloth and dry. Never immerse motor housing in water.



HOW TO CHANGE THE DRIVING GEAR

A spare set of "Driving Gear Teeth and screws" is provided. If proper care is taken to ensure that the motor stops completely before mounting, removing, or replacing the jar, the Driving Gear may never get damaged. If the Driving Gear Teeth get worn off, it can be easily replaced at home.

• Unscrew the three screws located amidst the teeth of Driving Gear.
• Lift up the worn set of teeth from the Driving Base by putting a screwdriver in any of the two grooves provided.

• Clean the top surface of the driving base with a dry cloth. Put a new set of Driving Gear Teeth and tighten with screws. Use either the old screws or the new ones provided. Screws of a different size may damage the unit.



Setup Guide

To set up the Sujata Powermatic Plus Juicer Grinder, follow these steps:

1. Wash and cut the fruits and vegetables into small pieces.
2. Assemble the juicer grinder by attaching the stainless steel blades to the jar and securing the lid.
3. Plug in the appliance and select the desired speed.
4. Add the cut fruits and vegetables to the juicer grinder and switch it on.
5. Collect the juice in a container and serve immediately.

CARE AND MAINTENANCE

• Read all instructions carefully and be familiar with your machine before use.
• Before first use or after long unuse, check to see if the shaft rotates smoothly.
• The air ventilation holes at the bottom of the motor unit may get blocked if the machine is used on any thin plastic sheet, cloth, or paper, etc. They get sucked up, blocking the ventilation holes and causing excessive heating up of the motor.
• For optimum efficiency, the machine should be operated at the specified voltage only. Wide voltage fluctuations affect the processing of food adversely.
• Do not attempt to repair the machine at home or allow any unauthorized person to do it either. In the event of your machine needing attention, take it to your dealer.
• Avoid overloading the machine with an extra heavy load. If after loading the machine and switching on the electric supply, the motor does not start or runs at a very low speed, check if the material being processed is too much. If so, reduce it and proceed again.

Sujata Powermatic Plus Juicer Mixer Grinder Precautions

• Always use a 3-pin plug for connecting the electrical supply. After every use, disconnect the electric supply by turning off the switch and removing the plug from the socket.
• Do not let the cord hang over the edges of tables or counters or touch hot surfaces.
• To protect against electrical hazards, do not immerse the motor unit or cord plug in water or other liquids. Never use outdoors or on wet surfaces.
• Keep away from the moving parts. Do not insert a finger, knife, etc. in the feeder opening while in operation.
• Do not remove or replace any attachment or attachment cover when the motor is on.
• Switch off the motor if it stalls or smoke emanates from the motor.
• Cutters of Cutter Spinner (filter) are sharp, handle carefully while fixing, removing, or cleaning the Cutter Spinner.
• Keep Machine away from direct heat or sun. Never wash the parts in hot water.
• Do not run the machine unless the juice container is in position. Cover and clamps should be firmly placed too.
• Do not run the motor for more than 90 minutes continuously.

WARRANTY

SUJATA POWERMATIC is warranted against manufacturing defects for a period of ONE YEAR from the date of purchase. Within this period any defective unit will be repaired or replaced at the manufacturer's option free of cost subject to the unit being delivered to our authorized service centre at customer's cost. The warranty does not cover wear and tear of plastic/rubber components and bush/ball bearings, etc., and damages resulting from commercial use, accident, mishandling, or negligence on the part of the customer or non-compliance with the instructions in the operating manual or if the mechanism is tampered with by the customer or any unauthorized person other than our service personnel. The warranty card duly stamped and signed by the dealer along with the cash memo should be produced to the authorized service centre, otherwise, the warranty will be treated as invalid. Liability for consequential damages or loss is neither accepted nor implied under the warranty.

Troubleshooting

If the Sujata Powermatic Plus Juicer Grinder is not working properly, here are some common problems and solutions:

• If the appliance is not switching on, check if it is properly plugged in and if the power supply is working.
• If the motor is making a humming noise, it may be overloaded. Unplug the appliance and let it cool down before using it again.
• If the juice is not coming out, make sure that the fruits and vegetables are properly cut and that the blades are sharp.
• If the appliance is shaking or moving while in use, make sure that the anti-slip feet are securely in place.

Pros & Cons

Pros

• Powerful and durable motor
• Sharp stainless steel blades
• Large juicing and grinding capacity
• Overload protection
• Easy to clean

Cons

• May be too loud for some users
• May take up a lot of counter space

Customer Reviews

Customers love the Sujata Powermatic Plus Juicer Mixer Grinder for its power and durability. They appreciate the large juicing and grinding capacity, and the overload protection feature is a big plus. However, some customers find it to be too loud and take up a lot of counter space.
