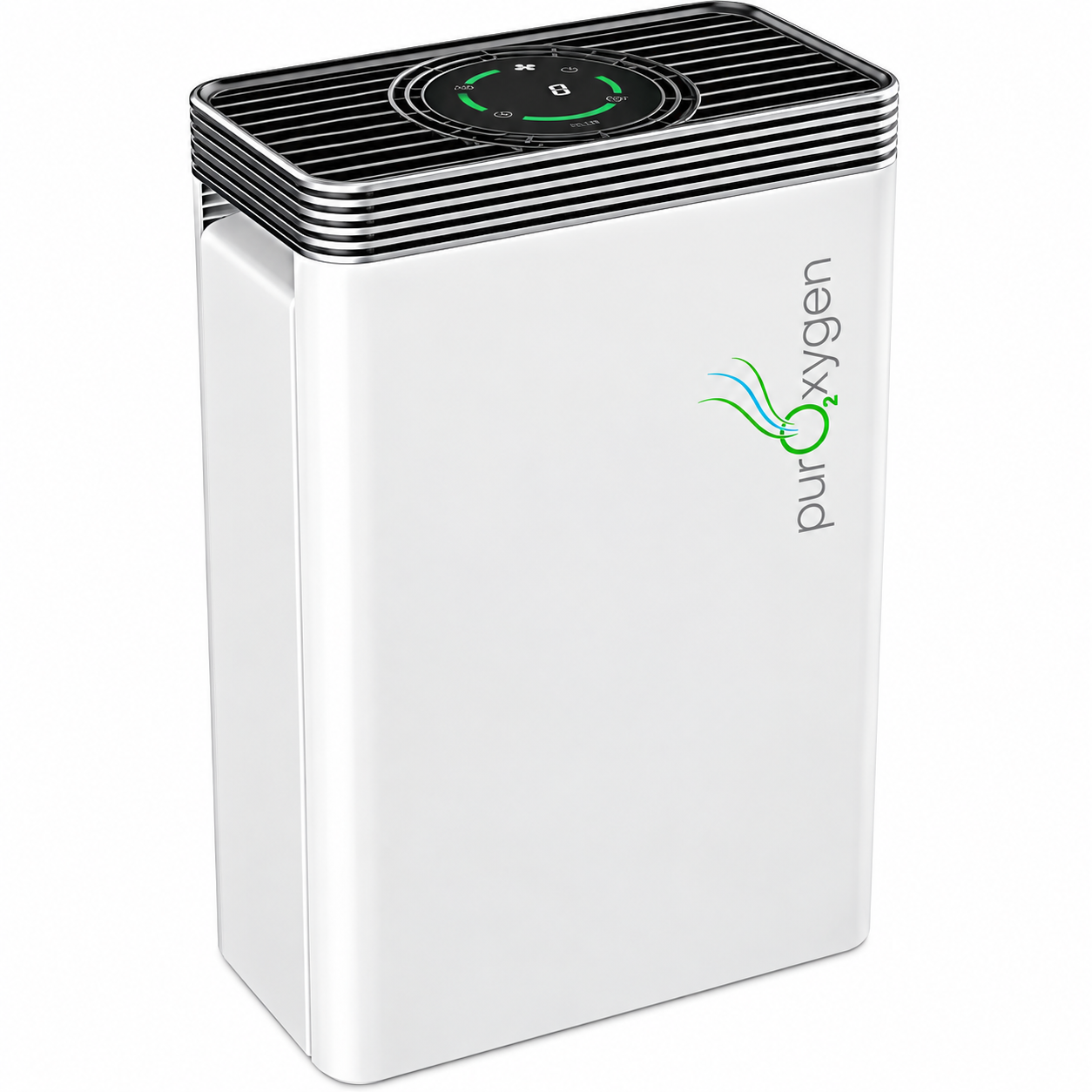

Puroxygen Smart True Hepa Air Purifier P500 User Manual

Content

Puroxygen Smart True Hepa Air Purifier P500 Introduction

Achieving a healthier living environment in your home or business is the goal of the high-performance Puroxygen P500 air purifier. Having a True HEPA filter and an advanced six-stage filtration mechanism, this gadget effectively eliminates 99.97% of airborne particles as small as 0.3 microns. Up to 550 square feet of medium-to-large rooms are ideal for it because it successfully removes smoke, dust, pollen, smells, and pet dander. The price of the P500 is $169.97.

Overview

PSOO True HEPA Air Purifier cleans the air around you from harmful indoor air pollutants, dust, odors and more. As indoor air is becoming increasingly polluted, it is crucial to arm yourself with an air purifier that will protect you and your family against all air contaminants.

Air Purifier
Combination Filter
User’s Guide
Insert card
Remote Control

PRODUCT STRUCTURE

Air outlet
Control Panel/Display Area
Buckle/ Handle
Sensor
Middle frame
Front Panel
Air inlet

Puroxygen Smart True Hepa Air Purifier P500 SPECIFICATIONS

Rated power: 45W
Rated Voltage: ~110-220V 50/60 Hz
CADR (Particles): 123.6 ft³/min
Apartment size: 150 - 400 ft²
Speed modes: 3 speeds
Noise level: ≤ 61dB
Dimensions: 1.67 x 1.08 x 0.56 ft / 510 x 330 x 170 mm
Weight: 9.92 lbs / 4.5 kg

*CADR stands for Clean Air Delivery Rate and is measured in CFM which stands for cubic feet per minute (m3fhour). In general, this value shows exactly how much of the specific particles are removed from the air. In simple words, the CADR rating indicates how fast the air purifier can clean the air within a particular-sized room.

DISPLAY AND TOUCH CONTROL PANEL

POWER - On/Off
SPEED - 3 fan speeds and Auto mode
SLEEP - turn the light off and the machine runs at low speed - low noise
TIMER - choose 1-12 hours to turn the machine off
SLEEP+SPEED - display temperature
SLEEP+TIMER - turn On/Off child Lock mode
POWER+TIMER - 3sec - reset the filter's life management function

REMOTE BUTTONS

POWER – On/Off
SPEED – 3 fan speeds
AUTO – turn on Auto mode
TIMER – choose 1-12 hours to turn off the machine
FUNCTION – UV – UV turn On/Off, temperature indication
SLEEP – turn off the light and the machine runs at low speed – low noise

Description

The Puroxygen Smart True Hepa Air Purifier P500 is a sleek and stylish air purifier that is easy to use and maintain. Its smart air quality sensor constantly monitors the level of pollutants in the air and adjusts the fan speed accordingly, ensuring that your air is always clean and fresh. The three-stage filtration system effectively removes a wide range of particles and odors, while the Wi-Fi connectivity allows you to control the air purifier from anywhere using your smartphone or tablet.

CORE FILTRATION SYSTEM

The PSOO filtration system consists of 5 purification stages with 1 composite filter, UV LED, and negative ION generation.

Pre-filter
Pre-filter effectively removes dust, hair, dander, large matters that often cause itch, red rash, skin redness, sneezing, runny nose and so on.


HEPA Filtration
Advanced HEPA filters are widely used for the strong adsorption of harmful particles PM2.5 in medical equipment and experiments.


Note it is recommended to clean the filter once every 2 months, expose the filter to sunlight for 1 to 3 hours or clean the surface with a vacuum cleaner.)

Activated Carbon Filtration
Activated carbon microparticles distributed evenly can fully contact with the air and improve the purification effect. It is 5-10 times more effective than traditional activated carbon.


Cold Catalyst Filtration
This kind of filtration serves as a disinfectant thanks to the UV light. It has a strong inhibition and killing effect on common pathogenic bacteria and can be used for a long time.


20 million negative ions
Oxygen molecules in the air and minute water molecules form negative ions which enter the blood through the lungs and increase human metabolism.


Noise level
While the PSOO model works on all available fan speeds, PUROXYGEN took care about the low noise level in it.


Professional design, precise calculation can effectively reduce wind noise. Using air fluidics optimizes the design of the airway streamline curve to reduce noise. New designed duct help reduce noise by about 5%.
Surging power originates from the deep control of air flow power and depends on blade impeller and motor mutual power and composition.

Blade Impeller
The whole impeller is made by injection moulding. The fan blades are designed specifically to cut the air sharply. This blade construction reduces noise and makes it more durable.


Effective Noise Reduction Motor
It is safe and reliable and reduces noise easily. The motor also improves insulation performance.


PM2.5 DIGITAL DISPLAY
PUROXYGEN PS00 is equipped with the PM2.5 sensor to inform a user about the concentration of PM in the air. The PM concentration is shown with digits and also divided by 4-color light indications:

Excellent Air Quality - Green light indication.
Good Air Quality - Blue light indication.
Medium Air Quality - Yellow light indication.
Poor Air Quality - Red light indication.


FILTER REPLACEMENT

When the filter indicator turns red, it is necessary to replace the filter. Pie 2.1

Turn down the unit and unplug the power cord. Pie 2.2
Open the filter cover. To make it easy,just take the buckle position of the filter cover and pull it out. Pie 3.3
Please take out the combination filter and pack the used filter into a bag to avoid any second pollution. The combination filter that is out of service cannot be reused even if it is clean. Please consider it as non-burnable waste.
Make sure a new filter matches the filter slot of the purifier and then close the cover.
Press the POWER button to turn it on. Press the POWER+TIMER buttons for 3 seconds to reset the filter time.

NOTE: For a better purification, it is recommended to clean the pre-filter surface of the combination filter. Pie 2.4


Setup Guide

Setting up the Puroxygen Smart True Hepa Air Purifier P500 is quick and easy. Simply unpack the air purifier, plug it in, and press the power button to turn it on. The air purifier will automatically begin monitoring the air quality and adjusting the fan speed as needed. To connect the air purifier to your Wi-Fi network, download the Puroxygen app and follow the on-screen instructions.

SAFETY RULES

Do not use the device without a filter.
Please use the device in a room with a temperature higher than 32° F / 0°C and lower than 104°F / 40°C.
There should be a certain space around the air purifier to allow the wind and ions to flow naturally, thus improving the purification effect.
Do not put your fingers or objects into the air inlet/outlet.
Do not place the device dose to open fire or hot objects.
To avoid surface cracking or sensor failure, do not put in places where black smoke might occur (kitchen, etc.)
Please unplug the power cable from the power socket immediately, if any malfunction happens, such as smoking, bad smell.etc.
Don’t disassemble or modify your purifier for any reason. Doing this may cause the purifier to malfunction or become combustible. The damage to your device can void the manufacturer’s warranty.
To avoid any damage or malfunction of sensor, please clean the device only with a soft cloth.
To avoid any damage, electric shock or fire disasters, please do not clean the device with ethyl alcohol or organic solvents.
To avoid electric shock or fire, please power off and unplug the power cord before cleaning or while not using the device.
Don’t put the device’s LED lights close to humans’ or animals’ eyes.
Device is not intended for use by disabled people, people with mental illness, intellectual disabilities or children.

TROUBLESHOOTING

Problem	Possible Reasons	Solutions
Machine cannot start	1. Unplugged power cable <br> 2. Machine rear cover not in position	1. Reconnect a power plug <br> 2. Place the rear cover in position
Odor in the outlet	1. Too many indoor pollutants such as smoking <br> 2. Filter is polluted severely	1. Air the place out <br> 2. Replace the filter
No obvious dust removal effect, no air quality improvement	1. Filter is not installed into the machine <br> 2. Machine is placed in a narrow space or space with nearby obstacles, which may hinder the purification process <br> 3. Filter is too dirty	1. Install the filter correctly <br> 2. Place the unit at least a foot away from obstacles <br> 3. Replace for a new combination filter
Machine runs with loud noise	1. Installation is not tight <br> 2. Other matters stored in the machine	1. Check the installation, contact the customer support service <br> 2. Clean from other matters
Main buttons do not work	Lock mode is turned on	Press simultaneously the SLEEP+TIMER buttons to turn Lock mode off
Filter cannot be installed	Filter is installed from the opposite side with the pre-filter placed inside with the direction outside	Adjust the filter to the right direction ("Front" labels outside) and install the filter starting from the bottom part of the slot

If the air purifier does not run smoothly, please check out the following guidelines.

Warranty

1 YEAR WARRANTY
Parts and Labor Warranty. Please visit http://www.%20puroxygen.com/ to register your product.

Pros & Cons

Pros

Effective air purification with True HEPA filter
Smart air quality sensor adjusts fan speed automatically
Wi-Fi connectivity for easy control
Quiet and energy-efficient operation

Cons

Higher price point compared to some other air purifiers
May require frequent filter replacements, depending on usage

Customer Reviews

Customers rave about the Puroxygen Smart True Hepa Air Purifier P500, praising its effective air purification, smart air quality sensor, and Wi-Fi connectivity. Some common complaints include the higher price point and the need for frequent filter replacements.

Faqs

What are the steps of the filtering mechanism on the P500?

Puroxygen, an activated carbon filter, a cold catalyst filter, a UV light sterilizer, and an ionizer comprise the six-stage filtering system of the P500.

When is the best time to change the filters?

The average need to replace a Puroxygen Smart True Hepa Air Purifier P500 is every six months, depending on usage and air quality.

Can I operate the P500 from a distance?

Puroxygen Smart True Hepa Air Purifier is indeed remote control capable and, for added convenience, applicably compatible with smartphones.

How energy-efficient is the Puroxygen Smart True Hepa Air Purifier ?

Puroxygen Smart True Hepa Air Purifier P500 has an energy-efficient design and has earned an Energy Star certification.

What is the air Puroxygen Smart True Hepa Air Purifier P500 noise level?

With noise levels that range from 28 dB on the lowest setting to 52 dB on the highest, it runs quietly.

Is the P500 an effective allergy aid?

Indeed, the True HEPA filter on it is quite good at removing allergens such as dust mites, pollen, and pet dander.

How can I determine when to swap out the filters?

When it's time to replace the filters, the Hepa Air Purifier P500 's filter replacement indication lets you know.

What is the Puroxygen Smart True Hepa warranty?

There is a one-year guarantee for the Puroxygen Smart True Hepa Air Purifier P500 covering material and workmanship problems.

What is the Puroxygen Smart True Hepa Air Purifier P500's airflow rate?

The Air Purifier provides efficient air circulation and purification in the assigned area with a maximum airflow rate of about 218 cubic meters per hour.

Is it possible for the Puroxygen Smart to run nonstop day and night?s

Puroxygen Smart True Hepa Air Purifier P500 can operate securely and continuously around-the-clock, which makes it perfect for preserving constant air quality.
