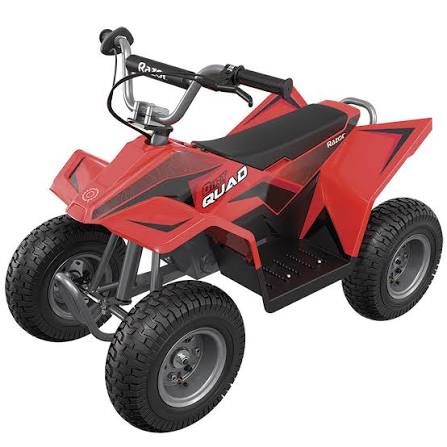

Introduction of Razor Dirt Quad 500

The Razor Dirt Quad is a powerful and versatile off-road vehicle, designed for kids and teenagers who love adventure and excitement. This electric quad bike boasts a high-torque, variable-speed motor that delivers a thrilling riding experience, with a top speed of up to 15 mph. The Razor Dirt Quad 500 features large knobby tires, a durable steel frame, and twist-grip acceleration control, providing superior control and maneuverability on any terrain. With its authentic dirt bike frame geometry and adjustable riser handlebars, this quad is perfect for young riders who want to experience the thrill of off-roading. The estimated price of the Dirt Quad 500 is around $500, and it is available for purchase online and in stores now.

Detailed Specifications of Dirt Quad 500

The Razor Dirt Quad is packed with features that make it a standout off-road vehicle. Here are some of its key specifications

• High-torque, variable-speed motor
• Up to 15 mph top speed
• Authentic dirt bike frame geometry
• Adjustable riser handlebars
• Large knobby tires for superior traction
• Shatter-resistant plastic fairings
• Retractable kickstand
• Hand-operated disc brakes
• Dual suspension system for a smooth ride
• 36V rechargeable battery system

Description of Razor Dirt Quad 500

The Dirt Quad 500 is a high-performance off-road vehicle that is designed to handle any terrain. Its powerful motor and adjustable handlebars make it easy for young riders to maneuver and control, while its durable steel frame and shatter-resistant plastic fairings ensure that it can stand up to even the toughest riding conditions. The large knobby tires provide excellent traction and stability, whether you're riding on dirt, gravel, or grass. And with its retractable kickstand and hand-operated disc brakes, the Dirt Quad 500 is both safe and convenient to use. Whether you're a seasoned off-road enthusiast or just looking for a fun and exciting way to get outside and explore, the Dirt Quad 500 is the perfect choice.

BEFORE YOU BEGIN

Required Tools (Included)
6 mm Allen Wrench
Remove contents from box. Remove the cardboard separators that protect the components from damage during shipping. Inspect the contents of the box for scratches in the paint, dents or kinked cables that may have occurred during shipping. Because the Dirt Quad 500 is 95 percent assembled and packed at the factory, there should not be any problems, even if the box has a few scars or dents.
MAKE SURE POWER SWITCH IS TURNED “OFF” BEFORE CONDUCTING ANY MAINTENANCE PROCEDURES.
Estimated Assembly and Set-Up Time
Razor recommends assembly by an adult.
Allow up to 10 minutes for assembly, not including initial charge time.
Allow up to 12 hours for initial charge (see page 5 for charging information).
WARNING: DO NOT USE NON-RAZOR PRODUCTS WITH YOUR RAZOR DIRT QUAD 500.
The Dirt Quad 500 has been built to certain Razor design specifications. The original equipment supplied at the time of sale was selected on the basis of its compatibility with the frame and all other parts. Certain aftermarket products may not be compatible and will void your warranty.
Product ID Locations

1. Footstep (Right Side)
2. Charger
3. Box (Not Shown)
4. Bottom of the Frame (Underneath the Unit)

Plastic Bag Contents

• Charger
• Allen Wrench
• Owner’s Manual

Setup Guide of Razor Dirt Quad

Setting up the Razor Dirt Quad is easy and straightforward. Here are the steps to follow:

1. Unpack the quad bike from its box and remove all packaging materials.
2. Charge the battery pack for at least 12 hours before use.
3. Install the handlebars by aligning the handlebar stem with the steering stem and turning the handlebar clockwise until it locks into place.
4. Adjust the handlebars to the desired height by loosening the clamp and sliding the handlebars up or down, then tightening the clamp to secure them in place.
5. Install the footrests by sliding them onto the frame and securing them with the provided screws.
6. Insert the battery pack into the frame and secure it with the provided screws.
7. Check that all screws and bolts are tightened securely before use.

DIRT QUAD 500 PARTS

Keep your Dirt Quad 500 running for years with genuine Razor parts. Visit our web site or e-mail us for more information on spare part availability. (Specifications subject to change without notice.)

1. Handlebar Grips (Right/Left)
2. Throttle
3. Handlebar
4. Brake Lever Assembly
5. Handlebar Clamps (x2)
6. Front Wheel Complete (x2)
7. djustable Tie Rod
8. Spindle Arms (Right/Left)
9. Battery (3-12V/7Ah) w/ Fuse
10. Battery Tray 10-    1 Battery Strap
11. Battery Cover
12. Motor (500W)
13. Chain Tensioner
14. Rear Wheel Complete (x2)
15. Chain Guard (Upper/Lower)
16. Sprocket
17. Chain
18. Disc Brake
19. Caliper Brake
20. Plastic Body With Seat
21. Control Module
22. On/Off Switch
23. Charger Port

ASSEMBLY AND SET-UP

Attaching the Handlebars
Tool Required: 6 mm Allen Wrench

1. Using the 6 mm Allen wrench, remove bolts from handlebar clamp.
2. Place handlebars in handlebar clamp in upright, vertical position.

3. Insert bolts and tighten securely. When properly tightened, the handlebars should not move forward or back.



   Note: The gap between the upper clamp and lower clamp should be equal on both sides of handlebar.

WARNING: Failing to properly adjust and tighten the bolts that affix the handlebars can cause you to lose control and crash.

 Inflating the Tires
Tires are inflated when shipped, but they invariably lose some pressure between the point of manufacturing and your purchase. Inflate the tires to the correct PSI before first time use.Lower air pressure can result in a shorter ride time.  Periodically check all four tires. Reinflate when needed.

Using a bicycle tire pump equipped for a Schrader valve, inflate the tires to the PSI indicated on the sidewall of the tire.

 Testing the Brake
To use the brake, squeeze the lever to increase the pressure on the brake. The brake lever is fitted with a cable adjuster to compensate for cable stretch and/or to fine-tune the lever movement to brake engagement. If brake is not engaging properly, follow instructions for adjusting the brakes outlined on page 7.
WARNING: Do not use the Dirt Quad 500 for the first time until you have inflated the tires to the correct PSI. Failure to do so may damage your product and void your warranty.
WARNING: Do not over-inflate, as this could damage the tire or wheel.
Note: The pressurized air supplies found at gasoline stations are designed to inflate high-volume automobile tires. If you decide to use such an air supply to inflate your tires, first make sure the pressure gauge is working, then use very short bursts to inflate to the correct PSI. If you inadvertently over-inflate the tire, release the excess pressure immediately.

CHARGING THE BATTERY

Your Dirt Quad 500 may not have a fully charged battery; therefore you must charge the battery prior to use.

• Initial charge time: 12 hours.
• Recharge time: up to 12 hours, even if the light turns green. The recommended maximum charging time is 24 hours.
• Always charge the battery immediately after riding.
• Fully charge battery before storing for extended periods of time.
• Unplug charger from the wall outlet when not in use.
• Failure to recharge battery periodically may result in a battery that will not accept a charge.
• Make sure the Dirt Quad 500 power switch is turned OFF when unit is not in use. If the power switch is left on for an extended period of time, the battery may reach a stage at which it will no longer hold a charge.
• To ensure long battery life, never store the product in freezing or below-freezing temperatures! Freezing will permanently damage the battery.
• Run time: Up to 60 minutes of continuous ride time. Run time may vary depending on riding conditions, rider weight, climate, and/or proper maintenance.
• Constant stopping and starting may shorten ride time.
• Battery life can vary depending on proper maintenance and usage of the unit.

Make sure the power switch is in the OFF position.

1. Plug the charger plug into wall outlet. The light on the charger should be green.
   Note: If green light (LED) does not turn on, try a different outlet.
2. Slide, do not pull, charger port cover to one side and plug charger into charger port. The light on the charger should turn red during charging. The light will turn green again when charging is complete. Note: Slide cover back over the charger port when charging is complete.

PRE-RIDE CHECKLIST

• Brake
  Check the brake for proper function. When you squeeze the lever, the brake should provide positive braking action. When you apply the brake with the speed control on, the brake cut-off switch will stop the motor.
• Tires
  Periodically inspect the tires for excess wear and replace as needed. Regularly check the tire pressure and inflate as needed. If you get a flat tire, the inner tube can be patched or a new tube can be purchased from Razor or an authorized repair center.
• Frame and Handlebars
  Check for cracks or broken connections. Although broken frames are rare, it is possible for an aggressive rider to run into a curb or object and wreck, bend or break the frame. Get in the habit of inspecting your product on a regular basis.
• Hardware/Loose Parts
  Check and secure all fasteners before every ride. There should not be any unusual rattles or sounds from loose parts or broken components. If the unit is damaged, do not ride.
• Reference
  “Safety Warnings” on pages 1 and 2 of this manual.
• Safety Gear
  Always wear proper protective gear, such as an approved safety helmet. Elbow pads, kneepads, pants and long sleeves are recommended. Always wear closed toe shoes (lace-up with rubber soles) and keep shoelaces tied and out of the way of the wheels, motor and drive system. NEVER RIDE BAREFOOTED OR
  IN SANDALS.
• Laws and Regulations
  Always check and obey any local laws or regulations.
• Insurance
  Do not assume that your existing insurance policies necessarily provide coverage for electric product use. Check with your insurance company for information regarding insurance.

USAGE OF Razor Dirt Quad

• Starting the Dirt Quad 500
  To start unit, while seated on seat, turn on power switch; place both hands on handlebars and apply the throttle with right hand.



• Stopping the Dirt Quad 500
  To stop unit, release the throttle and apply the brake until the four wheeler comes to a complete stop.



REPAIR AND MAINTENANCE OF Razor Dirt Quad 500

Turn the power switch OFF before conducting any maintenance procedures.

• Read the instructions
• Remove charger plug
• Turn the power switch OFF
• Secure the unit under repair
• Exercise caution around exposed parts
• Contact Razor customer service if unsure about any repair  or maintenance

Replacing Battery

1. Carefully stand unit upright as shown above.
2. Locate battery compartment and squeeze metal tabs to gain access to the batteries.

3. Carefully lower battery tray.



4. Carefully lower battery tray.

5. Depress the plastic tab on the battery connector to disconnect the batteries. Using both hands, carefully remove batteries from unit



Adjusting the Brake
Tool Required: 5 mm Allen wrench

1. To adjust the tension, thread the brake lever adjuster in or out 1/4 to 1/2 turn until the desired brake adjustment is attained. Most adjustments are complete at this step. If brake still needs further adjustment, proceed to step 2 for disc brake.
2. Locate the brake caliper and disc brake behind the right rear wheel. The distance of the brake cable between the end of the cable and the anchor bolt should be between 37 and 44 mm. If the disc brake has too much play, loosen the rear anchor bolt with a 5 mm Allen wrench and pull the brake cable tighter (direction indicated with arrow).

3. If the brake pads are rubbing against the disc brake, use your fingers to twist the caliper adjuster in either direction until disc is centered evenly between the pads.



4. Open the fuse box and remove fuse. Replace with a new one of equal amperage. Note: Amperage rating is located on top of fuse.

5. Close the fuse cover.



WARNING: To prevent shock, please follow the instructions accordingly and do not skip or combine any steps.

Replacing the Chain
Tools Required: 5 mm Allen Wrench, 6 mm Allen Wrench, 19 mm Wrench, 10 mm Wrench and Phillips Screwdriver.

1. Using a 6 mm Allen wrench, remove center bolt and washers.
2. Using a 5 mm Allen wrench and 10 mm wrench, remove the nut and bolt from the rear axle on the inside of the rear wheel as shown. Remove wheel.

3. Remove the three (3) Phillips screws from the upper half of the chain guard and remove.



4. Remove the two (2) Phillips screws from the lower half of the chain guard and remove.
5. Spread the chain tensioner apart to loosen chain.

6. Remove the chain around the rear and motor sprockets. Install replacement chain



7. Reset chain tensioner.
8. Position lower half of the chain guard to align mounting holes and re-attach securely to frame.

9. Position upper half of the chain guard to align mounting holes and re-attach securely to frame.



10. Re-insert the bolt through the rear axle on the inside of the rear wheel and securely tighten with nut.

11. Re-insert the hardware removed in step 1 and securely  tighten in place.



Replacing the Wheels
Tools Required: 10 mm Wrench, 19 mm Wrench, 5 mm Allen Wrench, 6 mm Allen Wrench

1. Using a 19 mm wrench, remove center axle nut. Remove wheel.
2. Using a 6 mm Allen wrench, remove center bolt and washers.

3. Using a 5 mm Allen wrench and 10 mm wrench, remove the nut and bolt from the rear axle on the inside of the rear wheel as shown. Remove wheel.



Chain and Sprocket
The chain will typically have a “loose spot” and “tight spot” corresponding with a particular sprocket rotational position. This is normal and common to all chain-driven products due to run-out tolerances of the freewheel and sprocket. Proper chain alignment must be maintained. If the chain is noisy or rough running, check the lubrication, tension and alignment of the sprockets, in that order. The chain tensioner must be aligned and free from binding and the tensioner spring(s) must be operating correctly.

Charger
The charger supplied with the Dirt Quad 500 should be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, the product must not be charged until it has been repaired or replaced.
Use ONLY with the recommended charger.
Wheels
Wheels and drive system are subject to normal wear and tear. It is the responsibility of the user to periodically inspect wheels for excess wear and adjust and replace drive train components as required.

SAFETY WARNINGS Of Razor Dirt Quad 500

WARNING

• This is the “older rider” version of the popular Dirt Quad. It is bigger and faster than the original and it is not intended for riders under 14. Younger riders should not use the Dirt Quad 500, they should ride the original Dirt Quad for ages 8 and up.
• Riding a four-wheeled electric product like the Dirt Quad 500 does present potential risks and caution is required. Like any riding product, the Dirt Quad 500 has inherent hazards associated with its use (for example, falling off or riding it into a hazardous situation). Like any riding product, the Dirt Quad 500 can and is intended to move, and it is therefore possible to lose control or otherwise get into dangerous situations. Both children and adults responsible for supervising them must recognize that if such things occur, a rider can be seriously injured or die, even when using safety equipment and other precautions. RIDE AT YOUR OWN RISK AND USE COMMON SENSE.
• NOT FOR CHILDREN UNDER AGE 14 OR HEAVIER THAN 220 LB (100 KG). Because products, like the Dirt Quad 500, can and do present potential hazards plainly associated with their use, it is well recognized THE NEED to exercise OF PARENTAL RESPONSIBILITY IN SELECTING RIDING PRODUCTS APPROPRIATE TO THE AGE OF A CHILD, or SUPERVISION IN SITUATIONS IN WHICH CHILDREN OF VARIOUS AGES MAY HAVE ACCESS TO THE SAME RIDING PRODUCTS, IS IMPORTANT. Not every product is appropriate for every age or size of child, and different age recommendations are found within this category of product which are intended to reflect the nature of the hazards and the expected mental or physical ability, or both, of a rider to cope with the hazards.
• Razor recommends that children under the age of 14 not be permitted to use this product. This recommendation is based not just on age or weight or height – it reflects consideration of expected maturity and skills as well as physical size. The recommended rider age of 14 years or older is only an estimate and can be affected by the rider’s size, weight, or skills – not every rider 14 years old will be suited to the product. Certainly, any rider unable to fit comfortably on the Dirt Quad 500 should not attempt to ride it, but a parent’s decision to allow his or her child to ride this product should be based on the child’s maturity, skill, and ability to follow rules. Razor emphasizes that adults are strongly advised not to disregard Razor’s recommendations or permit younger children to ride the  Dirt Quad 500.
• Persons with any mental or physical conditions that may make them susceptible to injury, impair their physical dexterity or mental capabilities to recognize, understand, and follow safety instructions and to be able to understand the hazards, should not use or be permitted to use products inappropriate for their abilities. Persons with heart conditions, head, back or neck ailments (or prior surgeries to these areas of the body), or pregnant women, should be cautioned not to operate such products.
• NOTICE: This manual contains many warnings and cautions concerning the consequences of failing to maintain, inspect or properly use your electric ride-on product. Because any incident can result in serious injury or even death, we do not repeat the warning of possible serious injury or death each time such a possibility is mentioned.
• DO NOT EXCEED THE WEIGHT LIMIT OF 220 lb. Rider weight does not necessarily mean a person’s size is appropriate to fit or maintain control of the Dirt Quad 500.
  CHECK AND MAINTAIN PRODUCT CONDITIONS
• Before use, check to confirm that any and all chain guards or other covers and guards are in place and in serviceable condition. Check that the brake is functioning properly, and that tires are inflated properly and  have sufficient tread remaining. The product should be maintained and repaired in accordance with the manufacturer’s specifications, using only the manufacturer’s authorized replacement parts, and should not
  be modified from the manufacturer’s original design and configuration. Replace worn or broken parts immediately.

ACCEPTABLE RIDING PRACTICES AND CONDITIONS

• Always check and obey any local laws or regulations which may affect the locations where the Dirt Quad 500 may be used.
  Ride defensively. Watch out for potential obstacles that could catch your wheel(s) or force you to swerve suddenly or lose control. Be careful to avoid pedestrians, skaters, skateboards, scooters, bikes, children or animals who may enter your path, and respect the rights and property of others.
• The Dirt Quad 500 is meant to be used on private property and on closed courses and not on public streets or sidewalks. Do not ride your electric four wheeler in any areas where pedestrian or vehicle traffic are present.
• Do not activate the speed control on the hand grip unless you are on the electric four wheeler and in a safe, outdoor environment suitable for riding.
• This product was manufactured for performance and durability, but is not impervious to damage. Jumping or other aggressive riding can overstress and damage any product, including the Dirt Quad 500, and the rider assumes all risks associated with high-stress activity.
• Be careful and know your limitations. Risk of injury increases as the degree of riding difficulty increases. The rider assumes all risk associated with aggressive riding activities.
• Maintain a hold on the handlebars at all times.
• Never carry passengers or allow more than one person at a time to ride the electric four wheeler.
• Never use near steps or swimming pools.
• Do not allow hands, feet, hair, body parts, clothing, or similar articles, to come in contact with moving parts of the Dirt Quad 500, including the brake, wheels and drive train, while the motor is on. Do not touch the brakes or electric motor on your electric four wheeler when in use and/or immediately after riding, as they can become very hot.
• Never use headphones or a cell phone to talk or text when riding.
• Never hitch a ride with another product.
• Do not ride the Dirt Quad 500 in wet or icy weather and never immerse the electric four wheeler in water, as the electrical and drive components could be damaged by water or create other possible unsafe conditions.
• Wet, slick, bumpy, uneven or rough surfaces may increase risks of use. Do not ride the electric four wheeler in mud, ice, puddles or water. Avoid excessive speeds that can be associated with downhill rides. Never risk damaging surfaces, such as carpet or flooring, by use of an electric four wheeler indoors.
• Do not attempt or do stunts or tricks on your electric four wheeler. These four wheelers are not made to withstand abuse from misuse, such as jumping, curb grinding or any other type of stunts. Racing, stunt riding,
  or other maneuvers also enhance risk of loss of control, or may cause uncontrolled rider actions or reactions.
• Do not ride at night or when visibility is limited.

PROPER RIDING ATTIRE
Always wear proper protective equipment, such as an approved safety helmet (with chin strap securely buckled), elbow pads and kneepads. A helmet may be legally required by local law or regulation in your area. A long-sleeved shirt, long pants and gloves are recommended. Always wear athletic shoes (lace-up shoes with rubber soles), and keep shoelaces tied and out of the way of the wheels, brake, motor and drive system. Never ride barefooted or in sandals.
USING THE CHARGER

• The charger supplied with the electric four wheeler should be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, the four wheeler must not be charged until the charger has been repaired or replaced.
• Use only with the recommended charger.
• Use caution when charging.
• The charger is not a toy. Charger should be operated by an adult.
• Do not operate charger near flammable materials.
• Unplug charger and disconnect from Dirt Quad 500 when not in use.
• Always disconnect from the charger prior to wiping down and cleaning your Dirt Quad 500 with a damp cloth.

FAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS FURTHER INCREASES RISK OF SERIOUS INJURY. USE AT YOUR OWN RISK AND WITH APPROPRIATE AND SERIOUS ATTENTION TO SAFE OPERATION. USE CAUTION

Troubleshooting of Dirt Quad 500

Here are some common issues that may arise with the Dirt Quad 500 and how to troubleshoot them:

• Quad won't start: Make sure the battery pack is fully charged and securely inserted into the frame. Check that all cables and wires are properly connected.
• Quad is running slowly: Make sure the battery pack is fully charged and that the throttle is not partially engaged. Check that all cables and wires are properly connected.
• The hand brake is not working: Make sure the hand brake is properly engaged by pulling the brake lever fully towards the handlebar.
• Tires are flat: Check for punctures or damage to the tires. If the tires are worn or damaged, replace them with new ones.
