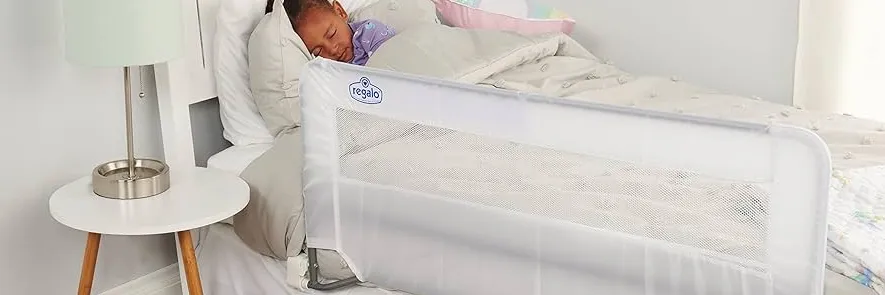

Introducing the Bed Rail 2220

The Regalo Baby Swing Down is an essential safety accessory designed to help toddlers transition from cribs to beds. This extra-long bed rail measures 54 inches in length and features a patented swing-down mechanism, allowing it to pivot down when not in use, making it easy to make the bed or access the sleeping area. With sturdy construction and a simple no-tool setup, the Regalo Bed Rail is priced at approximately $49.99.

Parts Included

Check to make sure you have all of the parts shown:

1. Mesh Wall
2. Right Upper Support Bar
3. Left Upper Support Bar
4. Right Bottom Support Bar
5. Left Bottom Support Bar
6. Right Swing Lock and Strap Assembly
7. Left Swing Lock and Strap Assembly

Specifications

The Regalo Baby Swing 2220 comes with several key features that make it a standout product in its category:

• Adjustable length: Fits mattresses from 52 to 60 inches wide.
• Swing-down mechanism: Allows for easy access to the bed.
• Steel frame: Ensures stability and durability.
• Soft foam padding: Provides comfort and safety.
• Easy installation: Tool-free setup makes it simple to assemble.
• Age suitability: Designed for children aged 2 to 5 years.

Description

The Regalo Baby Swing Down Bed Rail 2220 is designed with both safety and convenience in mind. The rail's swing-down feature makes it easy to lower when you need to tend to your child or when your child needs to get in or out of bed. The sturdy steel frame ensures that the rail stays in place, while the soft foam padding adds a layer of comfort and protection. This bed rail is perfect for parents who want to prevent accidental falls and provide a safe sleeping environment for their toddlers.

Additionally, the tool-free installation process makes setting up the bed rail a breeze. With its adjustable length, it fits seamlessly with most standard mattresses, providing a secure fit that prevents gaps between the mattress and the rail.

Assembly and Installation Instructions

Read and follow all instructions carefully to ensure that your product is properly installed.  Improper installation could result in unstable or unsafe use.  The safety of your child is your responsibility. Please keep these instructions for your reference.

WARNING
IMPORTANT!  KEEP FOR FUTURE REFERENCE!

• Failure to follow these instructions for the assembly and use of your bed rail could result in serious injury or death.
• This bed rail is intended for use with children 2 years to 5 years of age.

WARNING:

SUFFOCATION AND STRANGULATION HAZARD

•
• Gaps in and around bed rails have entrapped young children and killed infants.
• NEVER use with children younger than 2 years old. Use ONLY with older children who can get in and out of adult bed without help. NEVER use in place of crib.
• NEVER use unless bed rail is tight against mattress, without gaps, and at least 9 in. from headboard and footboard. Do not fill gaps with pillows, blankets, or other items that can suffocate children.
• NEVER use on toddler bed, bunk bed, water bed, or bed with inflatable mattress.
• Use ONLY on adult bed.
• Use ONLY on a bed ranging in size from twin size to queen size.
• Discontinue use if damaged, broken or if parts are missing.

Assembling Your Regalo Baby Swing Down

1. Step 1:  Insert Left Upper Support Bar into Left Bottom Support Bar. Make sure the spring pin fits securely into the opposing hole so that the two pieces cannot pull apart.
2. Step 2:  Repeat Step 1 directions to assemble the right side of the bed rail.

3. Step 3: With the left and right sides of the bed rail assembled, connect the two sides.
   NOTE: Make sure that the spring pins are secured into the opposing holes so that the bed rail cannot pull apart.
   Frame assembly should look like the image below.





4. Step 4: To install the mesh wall on the bed rail,  slide the mesh wall over the frame until it reaches the other end and zip it shut to complete the installation.
   NOTE: If the zipper does not close securely, make the necessary adjustments to ensure proper closure. DO NOT use the bed rail without securely zipping the mesh wall properly!



5. Step 5: With the wall of the bed rail completely assembled, you will now connect the Left and Right Swing Lock and Strap Assemblies.



6. Step 6: Insert one side of the wall frame into one of the Swing Lock Assemblies. Press in the metal spring button to fully insert the tube into the hole in the plastic hinge.
   The spring button should line up with the access hole in the plastic sleeve on the Swing Lock Assembly. The spring button will rebound and lock the tube in place.
   Repeat Step 6 to complete the assembly of the other side.
   With the completion of Step 6, the assembly of your bed rail is now complete. It is now ready to be installed on your bed!

Installing Your Bed Rail

Note: The next steps may require the help of a second person.

1. Step 1: Start by placing the bed rail on the side of the bed you have chosen for installation.  The Left and Right Swing Lock and Strap Assemblies should be placed on top of the box spring or platform that will support the mattress.  The ‘T’ shaped anchors and straps should be extended opposite the bedrail and mounted to the outer edge of the box spring or mattress support structure.
   You may need to release the strap locking buckles located on the under side of the plastic hinges.  Ensure the large end of the anchor is pointing up.  The anchor straps should not be twisted.  If twisted, the anchoring straps will not tighten properly.





2. Step 2:  Once the bed rail is placed properly, check to make sure the Left and Right Swing Lock and Strap Assemblies are parallel to one another.  Then, place the mattress on top of the assembly.



   WARNING: In order for the bed rail fabric wall to be firmly held against the side of the mattress you MUST properly tighten the anchoring straps. Please follow the directions below very carefully.

3. Step 3: Tighten the straps to bring the bedrail into it’s  proper position. To tighten the straps, first release the strap locks located on the under side of the plastic hinges Pull the straps towards you  until all the excess slack has been pulled out from under  the mattress.
   CAUTION: When using this bed rail on a foam mattress with little or no internal structure, make sure not to over tighten the mounting straps. If over-tightened, the mattress will likely fold or buckle in the middle and this will cause the bed rail to not provide your child with the highest level of safety. Make slight adjustments to find the best level of tightness on your mattress. The bed rail must be tight but should not buckle or fold.



4. Step 4: If the strap does not pull through smoothly, the strap may be twisted under the mattress. Correct this before continuing with the installation.
   Once you have taken the slack out of the straps, give one final pull on the strap end, hold it, and lock the locking tab on the locking buckle by pushing up on the thumb tab. Use the same procedure for each side to properly secure the bed rail.
   IMPORTANT: After locking both buckles, check to make sure that the mesh wall of the bed rail is firmly up against the side of the mattress. There should be NO GAPS. If the mesh wall is not firmly against the side of the mattress, check to make sure the locking buckle is functioning properly and that the strap is not twisted beneath the mattress. Once this has been checked and corrected if needed, unlock the buckle, pull on the end of the strap to tightly and lock the buckle again.
   NOTE: Store the excess anchoring strap material by tucking it under the mattress.

Operating the Swing Down Feature

• Step 1: With the bed rail side in the ‘up’ position, locate the locking tab on each of the hinges.



• Step 2: Once the locking tabs have been located, flip the tab up to expose the open  side of the lock. This will allow the upper part of the bed rail to move freely.
  NOTE: Be sure to continue to hold the upper part of the bed rail so that it does not fall on its own!



• Step 3: With both locking tabs turned to the ‘open’ position, hold the upper part of the bed rail firmly and swing it down. The bed rail should now be in the ‘down’ position.
  NOTE: To return the bed rail to the ‘up’ position, reverse the previousus instructions.



  IMPORTANT: Make sure that the bed rail is in the ‘up’ position aand the locking tabs are securely closed before leaving a child alone in the bed.

Setup Guide

To set up the Regalo Baby Swing Down Bed Rail 2220, follow these steps:

1. Unpack all components carefully.
2. Place the rail against the mattress, ensuring it is centered.
3. Adjust the length of the rail to fit your mattress size.
4. Securely attach the rail to the bed frame using the provided straps.
5. Test the swing-down mechanism to ensure smooth operation.
6. No tools are required for assembly, making this process quick and hassle-free.

Care And Maintenance

• Periodically check the bed rail for signs of damage, wear and/or for missing components.
• Do not use if any part is missing, worn or damaged.
• Check the bed rail regularly to make sure all hardware and mountings are  tight and secure.
• Do not use abrasive cleaners or bleach when cleaning.
• Proper cleaning of bed rail can be done by sponging it with warm water and mild detergent.

Replacement Parts Available

In the event of any damage or breakage, the following replacement parts are available for order by contacting Regalo Customer Service.

Troubleshooting

If you encounter any issues with your Regalo Baby Swing Down Bed Rail 2220, here are some common problems and solutions:

• Rail not staying in place: Check that the straps are securely attached to the bed frame.
• Swing-down mechanism jammed: Ensure there are no obstructions and lubricate if necessary.
• Gaps between mattress and rail: Adjust the length of the rail to fit your mattress size.

Always follow safety instructions to avoid any potential hazards.

90 Days Warranty

If, during the first 90 days after the consumer purchase of this item, under reasonable and non-commercial use and conditions of maintenance, it fails while owned by the original purchaser because of the quality of materials or workmanship of finish and assembly, Regalo International LLC will replace or repair it at Regalo’s option, PROOF OF PURCHASE REQUIRED.

Regalo Baby Swing Pros & Cons

Pros

• Easy installation: Tool-free setup makes it simple to assemble.
• Adjustable length: Fits various mattress sizes.
• Swing-down feature: Provides easy access to the bed.
• Sturdy and durable: Steel frame ensures long-lasting use.
• Comfortable padding: Soft foam provides added comfort and safety.

Cons

• Limited compatibility: May not fit all mattress types or sizes.
• Material issues: Some users have reported minor issues with foam padding durability.
• Assembly required: While tool-free, some users find the assembly process time-consuming.

Customer Reviews

Customers have generally praised the Regalo Baby Swing for its ease of use and effectiveness. Many have noted that it provides peace of mind knowing their child is safe while sleeping. Some common complaints include minor issues with assembly and occasional problems with the swing-down mechanism. However, these issues are relatively rare and do not detract from the overall value of the product.
