Introduction

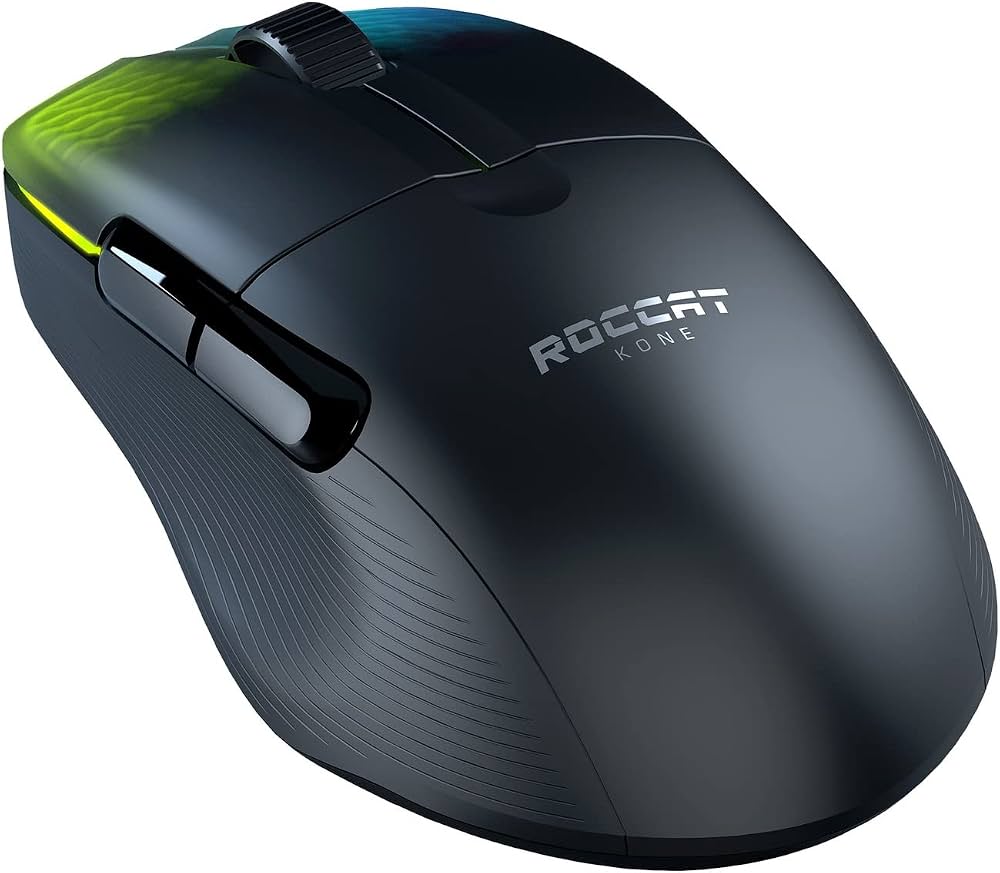

The Roccat Kone Pro Air Mouse 1141001 is a high-performance wireless gaming mouse designed for gamers seeking precision and comfort. Weighing just 75 grams, it features a lightweight design and an ergonomic shape that fits comfortably in the hand. Equipped with a 19K DPI optical sensor and customizable AIMO RGB lighting, this mouse enhances both gameplay and aesthetics. The Kone Pro Air also boasts an impressive battery life of over 100 hours on a single charge, making it ideal for extended gaming sessions. The Roccat Kone Pro Air is priced at approximately $64.99.

PACKAGE CONTAINS

1. Phantom Flex USB-C Charging Cable
2. Wireless Dongle
3. Kone Pro Air Gaming Mouse

DEFAULT BUTTON ASSIGNMENT

(no driver installed)

STANDARD

1. Left mouse button
2. Right mouse button
3. Universal scroll
4. Scroll up
5. Scroll down
6. IE Forward
7. IE Backward
8. Profile cycle button
9. Connection mode slider (2.4GHz/OFF/Bluetooth)
10. Dongle storage

Roccat Kone Pro Air Mouse 1141001 TECHNICAL FACTS

TECH SPECS KONE PRO AIR

• ROCCAT Owl-Eye 19K dpi optical sensor (based on PixArt PAW3370)
• 400 IPS (10.2m/s) maximum speed
• 50g maximum acceleration (stop to maximum speed in 0.03s required to reach limit)
• Default DPI steps: 400, 800 (default), 1200, 1600, 3200
• 2.4GHz frequency
• Bluetooth mode
• 450 mAh battery, 100h+ battery life without RGB
• ROCCAT Phantom Flex™ USB-C charging cable
• 1000Hz polling rate
• Lift-off distance: 1mm, 2mm and surface calibration
• ARM32 M0+ MCU
• ROCCAT Titan Switch Optical, 100 million click life-cycle
• 75g weight

SYSTEM REQUIREMENTS

• Windows 7, 8 and 10 (software support)
• USB 2.0 (or higher)
• Internet connection

Should you need assistance …
Our support team is ready to help you with any technical questions. Just send an e-mail to [email protected]  or visit our website at: https://WWW.ROCCAT.COM/SUPPORT

Description

The Roccat Kone Pro Air is designed with functionality and comfort in mind. Its ergonomic shape ensures a snug fit for various hand sizes, while the textured side grips provide a secure hold even during intense gaming sessions. The mouse features six buttons, including customizable thumb buttons that can be programmed via Roccat’s Swarm software. The OWC sensor provides impeccable accuracy and speed, making it suitable for high-stakes gaming environments. Additionally, the mouse's lightweight design reduces fatigue and allows for more agile movements.

QUICK START GUIDE

1. Plug the wireless dongle* into any free USB port on your PC or laptop. Alternatively, enable Bluetooth®.



   Connecting via dongle is preferrable

2. Select 2.4GHz mode on the connection mode slider underneath the mouse to connect via dongle. Alternatively, select Bluetooth® mode to connect via Bluetooth.



3. Hold down the profile button for 3 seconds to enable pairing mode. If you’re connecting via dongle, the mouse will be paired automatically.
   If you’re connecting via Bluetooth®, you’ll need to pair manually via the Bluetooth settings in your device.



4. Navigate to www.roccat.com/downloads and download the latest driver.

    Complete the installation to get access to all software features and setup.

Setup Guide

To set up your Roccat Kone Pro Air, follow these steps:

1. Unbox and Charge: Remove the mouse from its packaging and charge it via the provided USB-C cable if necessary.
2. Connect Wireless Receiver or Bluetooth: Insert the wireless receiver into a free USB port on your computer or pair the mouse via Bluetooth settings.
3. Install Swarm Software (Optional): Download and install Roccat’s Swarm software to customize button mappings, adjust CPI settings, and monitor battery life.
4. Paring Instructions: If using the wireless receiver, simply turn on the mouse and it will automatically pair with the receiver.

DRIVERLESS SETUP

Press the profile button in combination with the left mouse button for three seconds to enter config mode. The mouse will blink in the color of the active profile. To exit config mode, press the profile button in combination with the left mouse button for three seconds once more.

• Scroll up/scroll down: Change the DPI level from 5 available presets. LEDs will fade into one of the colors listed below to reflect the chosen DPI preset.
  400 DPI – red
  800 DPI – green
  1200 DPI – cyan
  1600 – blue
  3200 – pink
• Forward side button/backward side button: Change polling rate. The right mouse button will blink in one of the colors listed below to reflect the chosen polling rate.
  125Hz – blue
  250Hz – green
  500Hz – yellow
  1000Hz – white (default)
• Wheel click: Swap between 1mm and 2mm lift-off distance.
  The left mouse button will blink in one of the colors listed below to reflect the chosen lift-off distance.
  1mm – red
  2mm – green
• While holding the left mouse button, press forward side button/backward side button: Change LED brightness in steps of 10%.
• While holding the right mouse button, press forward side button/backward side button: Change between Static, Wave, Heartbeat, Breathing or Blinking RGB modes. The effect is immediately shown on the mouse.
• While holding the left or right mouse buttons and wheel up/down: Change the color of the LEDs corresponding to the button held from 16 presets. When both are held at the same time it changes both at once. Changes are immediately shown on the mouse.

Troubleshooting

If you encounter any issues with your Roccat Kone Pro Air, here are some common problems and solutions:

• Connection Issues: Ensure the wireless receiver is properly inserted into a USB port and that the mouse is turned on. For Bluetooth, check that it is correctly paired in your device's settings.
• Low Battery Life: Check if the mouse is in power-saving mode or if it needs to be recharged more frequently.
• Sensor Accuracy Issues: Clean the sensor area and ensure there is no debris or dust affecting accuracy.
• Button Malfunction: Use the Swarm software to reset button mappings or replace worn-out buttons if necessary.

Join the community

Become a ROCCAT member and register your product at: https://www.roccat.com/support/register-your-product

Pros & Cons of Roccat Kone Pro Air Mouse 1141001

Pros:

• Lightweight and Ergonomic Design: Reduces fatigue and provides comfort during long gaming sessions.
• High-Precision Sensor: Offers accurate tracking and fast response times.
• Long-Lasting Battery Life: Up to 100 hours on a single charge.
• Durable Construction: Built with high-quality materials for long-term use.

Cons:

• Premium Pricing: May be out of budget for some users.
• Software Compatibility Issues: Some users may experience issues with the Swarm software on certain operating systems.
• Limited Customization Options for Non-Roccat Users: Full customization features are available only through Swarm software.

Customer Reviews

Customers praise the Roccat Kone Pro Air for its exceptional performance and comfort. Many reviewers highlight its lightweight design and accurate sensor as standout features. However, some users note that the premium price might be a barrier for those on a budget. Common complaints include occasional connectivity issues and limited customization options without using the Swarm software.
