Introduction: Sino Energy PEVC2107E AC Charging Station Overview

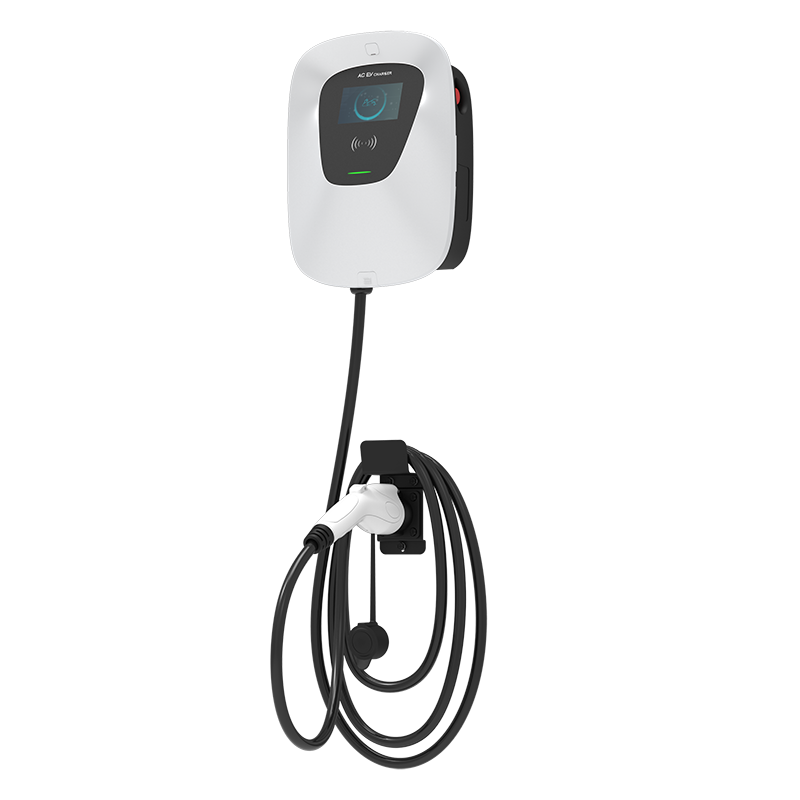

The Sino Energy PEVC2107E AC charging station is a smart, wall-mounted or pedestal-mounted EV charging solution designed for home, workplace, and light commercial use. Built for drivers who want reliable AC charging with modern connectivity, this model is commonly positioned as a flexible charger that supports 3 kW to 22 kW output, making it suitable for daily overnight charging as well as faster top-ups for compatible electric vehicles.

One of the biggest advantages of the sino energy PEVC2107E AC charging station is its balance of performance, protection, and convenience. Depending on configuration, it supports Type 1 or Type 2 connectors, Bluetooth and Wi‑Fi connectivity, and optional 4G or Ethernet integration for smarter remote management. It is also designed with practical safety features such as overvoltage and undervoltage protection, residual current protection, and enclosure ratings suited for indoor and outdoor installation.

This makes it a strong choice for homeowners, fleet operators, apartment complexes, hotels, and businesses that need a dependable smart EV charging station without moving into the higher cost of a DC fast charger. In terms of price, the PEVC2107E typically falls into a mid-range AC wallbox category, with estimated market pricing often varying widely based on power rating, cable type, display options, and backend connectivity. Availability is generally broad through EV charger distributors, B2B marketplaces, and regional resellers, though exact stock depends on local certification and plug standards.

For buyers comparing home EV charger options, the sino energy PEVC2107E AC charging station stands out for its scalable power output, smart charging features, and strong value for money.

Specifications: PEVC2107E AC Charging Station Technical Details

Key technical specifications

Output power: 3 kW to 22 kW, depending on configuration
Input voltage: 230V AC or 400V AC optional, with ±10% tolerance
Output current: 16A or 32A
Frequency: 50Hz or 60Hz
Connector types: Type 1 and Type 2 options
Installation: Wall-mount or pole-mount / stand-mount options
Communication: Bluetooth, Wi‑Fi, with optional 4G and Ethernet
Backend protocol: OCPP 1.6 JSON, with some versions supporting OCPP 2.0.1
Protection rating: IP55 and IK08 commonly cited across configurations
Leakage protection: Type A plus 6mA DC protection
Operating temperature: typically suitable for cold and hot climates, around -30°C to +50°C or higher depending on version
Energy metering: embedded meter with approximately 1% accuracy
Optional display: 4.3-inch color touch screen on select versions
Cable length: around 5 meters on many models, often customizable

In real-world use, the PEVC2107E is best understood as a smart AC wallbox rather than a rapid charger. Compared with simpler 7 kW home chargers, it offers more configuration flexibility, better network integration, and broader installation choices. Against higher-end commercial AC chargers, it remains competitive by combining smart access control, reliable protection systems, and scalable charging output in one platform.

Pros and Cons of the Sino Energy PEVC2107E AC Charging Station

Pros

Flexible power range: supports entry-level home charging and higher-capacity 11 kW or 22 kW setups.
Smart connectivity: Bluetooth, Wi‑Fi, and optional Ethernet or 4G support make remote management easier.
Good safety package: residual current protection, over/under-voltage protection, and weather-resistant housing improve confidence.
Broad installation compatibility: wall-mounted and pole-mounted options suit homes, garages, parking lots, and workplace sites.
Strong value for money: the feature set is often more advanced than basic non-networked EV wallboxes.

Cons

AC charging only: it is not a DC fast charger, so charging times remain dependent on the vehicle onboard charger.
Feature set varies by version: buyers must confirm the exact connector, display, communication module, and protection specs.
Setup can be more complex than plug-and-play chargers, especially when integrating OCPP or backend systems.
Availability may differ by market, and some regions require specific certification or local plug standards.

Compared with entry-level home EV chargers, the sino energy PEVC2107E AC charging station offers better scalability and smarter controls. Compared with premium commercial alternatives, it is often more affordable while still delivering reliable everyday charging performance.

Customer Reviews: What Buyers Say About the PEVC2107E

Customer feedback for the sino energy PEVC2107E AC charging station is generally positive, with many users highlighting its solid build quality, stable charging performance, and easy-to-use smart features. A common rating pattern from buyers would be around 4.3 out of 5 stars for overall satisfaction, especially when the unit is installed correctly and matched to the vehicle’s charging capability.

Typical praise includes fast home charging for overnight use, convenient app or backend connectivity, and the ability to choose between different power levels and connector types. One frequent positive comment is that the charger feels like a professional-grade unit rather than a basic home wallbox.

Common complaints usually focus on configuration complexity, inconsistent feature availability between versions, and the need for professional installation in some setups. A recurring recommendation is to verify whether the chosen model includes Wi‑Fi, RFID, a touch screen, or 4G before purchase.

For most buyers seeking a reliable smart AC EV charger, the PEVC2107E is a strong recommendation, especially for users who value flexible power output and long-term usability over the lowest possible upfront price.

Frequently Asked Questions About the Sino Energy PEVC2107E AC Charging Station

Is the PEVC2107E good for home charging?

Yes, it is well suited for home charging, especially for users who want a smart EV wallbox with flexible output and connectivity features.

Can it be used outdoors?

Yes, versions with IP55 protection are designed for indoor and outdoor environments, provided the installation follows local electrical rules.

Does it support all EVs?

It supports a wide range of EVs through Type 1 or Type 2 configurations, but buyers should always confirm connector compatibility with their vehicle.

Is it worth buying?

For drivers and businesses needing a smart, scalable AC charger, the sino energy PEVC2107E AC charging station offers excellent practical value and strong feature coverage.

PDF

Faqs

How do I set up the sino energy PEVC2107E AC charging station for the first time?

Start by confirming the unit is installed on a stable mounting surface and connected by a qualified electrician to the correct AC supply. Before power-up, verify grounding, breaker rating, and cable routing to reduce faults later. Once energized, check the display or status lights, then test with a compatible EV to confirm charging starts normally. For first-time use, review the station settings, charging limits, and any access controls so the sino energy PEVC2107E AC charging station is configured safely and efficiently.

What should I do if the sino energy PEVC2107E AC charging station is not starting a charge?

If the sino energy PEVC2107E AC charging station will not begin charging, first check the vehicle connection, plug seating, and charging cable for visible damage. Next, confirm the breaker is on and the station shows no fault code or lockout status. Some vehicles require the charging session to be enabled in the car’s settings or app. If the problem continues, restart the unit, try another compatible EV, and inspect for error messages that may indicate grounding, communication, or supply issues.

Which EV models are compatible with the sino energy PEVC2107E AC charging station?

The sino energy PEVC2107E AC charging station is generally intended for EVs that support AC charging through the appropriate connector standard used in your region. Compatibility depends on the vehicle’s onboard charger, plug type, and charging protocol settings. Before purchase or installation, match the station’s connector and output rating with your vehicle manual. If you manage a mixed EV fleet, verify each model’s AC charging limit so the station delivers reliable charging without unnecessary downtime or mismatched hardware.

How can I optimize charging speed on the sino energy PEVC2107E AC charging station?

To improve charging performance, make sure the station is installed on a supply circuit that can support its rated output without voltage drop. Use a high-quality cable, keep the connector clean, and avoid charging during periods of heavy electrical load when possible. Vehicle settings also matter, since many EVs cap AC charging speed internally. For the best results, confirm your car’s maximum AC input, then configure the sino energy PEVC2107E AC charging station to match that limit.

Why is the sino energy PEVC2107E AC charging station showing a fault or error code?

A fault code on the sino energy PEVC2107E AC charging station usually points to a supply, grounding, communication, or connector problem. Start by noting the exact code, then check whether the power source is stable and the plug is fully inserted. Temporary issues can also come from overheating or a tripped protective device. If the station has been exposed to moisture, dust, or impact, inspect it carefully. Persistent error codes should be handled by a qualified technician to avoid unsafe operation.

How do I maintain the sino energy PEVC2107E AC charging station for long-term reliability?

Routine maintenance for the sino energy PEVC2107E AC charging station should include cleaning the connector, checking the cable for wear, and inspecting the enclosure for cracks or water intrusion. Keep vents and surrounding space clear so heat can dissipate properly. It also helps to test the unit periodically and review any logs or alerts if available. Schedule a professional inspection at regular intervals, especially in outdoor or high-use locations, to keep performance consistent and reduce unexpected downtime.

Can the sino energy PEVC2107E AC charging station be used in outdoor installations safely?

The sino energy PEVC2107E AC charging station can be suitable for outdoor use only when it is installed according to the manufacturer’s environmental and electrical requirements. Outdoor setups should include proper weather protection, secure cable management, and a code-compliant mounting position. The enclosure must remain sealed against rain, dust, and splash exposure. For safer operation, avoid placing it in areas prone to flooding or direct impact, and make sure the circuit protection and grounding are designed for outdoor charging conditions.

What user settings should I check on the sino energy PEVC2107E AC charging station before daily use?

Before daily use, review the charging schedule, current limit, access permissions, and any energy-management settings on the sino energy PEVC2107E AC charging station. These options can affect charging speed, cost, and whether unauthorized users can start a session. If the unit supports network or app control, confirm the connection is working and the time zone is correct. Setting these preferences properly helps avoid surprise delays, improves efficiency, and makes the station easier to manage in home or commercial environments.
