Introduction

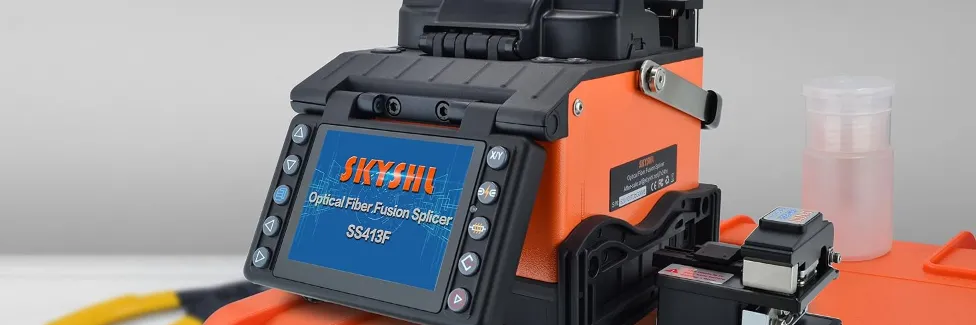

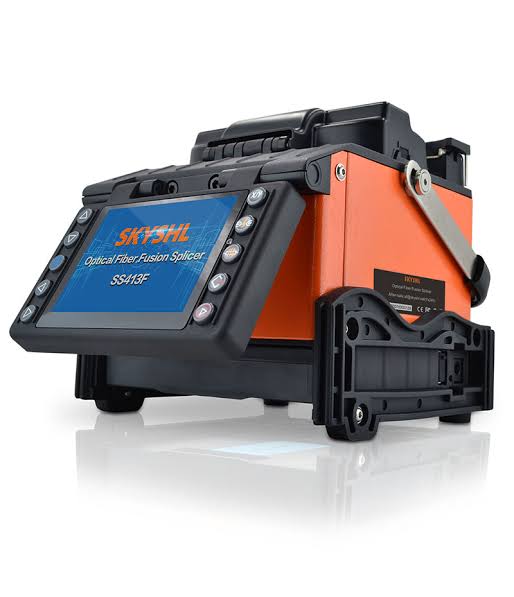

The SkyShl Optical Fiber Fusion Splicer SS413F boasts several key features, including: a cleave length measurement system, a wind protector, a high-resolution camera, and a precision sheath clamp. This splicer also has a large LCD display, making it easy to view and analyze splicing results. Additionally, the SS413F supports various splicing modes, including standard splicing, ribbon splicing, and mass splicing. The device weighs approximately 5 kg, making it portable and convenient to use on-the-go.

The SS413F is a core alignment fusion splicer setting a new standard in the market for fusion splicing. The SS413F fusion splicer is packed with a whole host of new and enhanced features specifically developed with the objective of enabling the user to work faster with higher precision. Overall splice process time has been significantly reduced. This has been achieved with a combination of improvements to the reaction time of the automated wind protectors and automated heater, new fibre retention clamps, improved universal sheath clamps and a redesigned internal structure that matches the protection sleeve to the fusion splice point which enables splicing to be achieved without the need of the user to touch the SS413F once the process has started. The SKYSHL SS413F is an advanced single fiber core alignment fusion splicer which possesses advanced image processing technology, meanwhile, it has high precision CMOS camera, lenses and servos which provide accurate core to core alignment regardless of core-cladding concentricity error [Actual average splice loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)].

Package Include

• 1*Optical Fiber Fusion Splicer
• 4 pairs*Electrodes
• 1*Fiber Cleaver
• 2*Pliers
• 1*ABS box
• 1*5200mah Lithium Battery
• 1*Brush
• 1*Tweezers
• 1*Manual
• 1*Power Adapters
• 1*Alcohol bottle (no alcohol)
• 1*Scissors

Detailed Specifications

Features

• Market leading high precision and accurate core alignment technology with advanced image processing.
• Improved automatic wind protector design which reduces overall splice time but can also be used manually.
• Patented easy splice protector positioning system.
• Fibre Retention clamps.
• Universal sheath clamps for standard 250 um fibre as well as 900 um loose tube fibre types.
• A completely redesigned multi-function carry case and workstation.
• Tool-less replaceable electrodes.
• High capacity lithium-ion battery (up to 300 splices).

Description

Modern core alignment fusion splicer made to set new benchmarks in accuracy and efficiency is the SkyShl Optical Fiber Fusion Splicer SS 413F. With rapid reaction times for automatic wind guards and heaters, high accuracy CMOS cameras, and advanced image processing technology, the SS 413F drastically lowers splice process time. It guarantees flawless splicing operations without human involvement by including patented splice protector positioning system, universal sheath clamps, and creative fiber retention clamps. Designed with an ergonomic multi-function carry case, high capacity lithium-ion battery, and tool-less replaceable electrodes, the SS414F is meant to improve fiber optic splicing dependability and output.

Automatic Fiber Identification
Perfectly compatible with ITU-TG.651 ~653, ITU-TG. 655 and ITU-TG. 657(Include SM,DS,NZ,MM) fiber.

High-Performance Fusion Splicer
6s Splicing Time (standard SM fiber); 16-25s Heating Time(60mm Tube)

Friendly and Durable Design
Auto Splicing,Auto Heating Design,3.5inch LCD Display and Protective case

Large Capacity Battery
10.8V 5200MAH Rechargeable Lithium Battery

Setup Guide

To set up the SkyShl Optical Fiber Fusion Splicer SS413F, follow these steps:

1. Turn on the device and wait for it to initialize.
2. Load the fiber optic cables into the splicer, making sure to align the fibers properly.
3. Use the cleaver tool to cleave the fibers, then insert them into the splicer.
4. Adjust the splicing parameters as necessary, then start the splicing process.
5. Once the splicing is complete, use the built-in camera to inspect the splice for any imperfections.

Troubleshooting

If you encounter any issues with the SkyShl Optical Fiber Fusion Splicer SS413F, try the following solutions:

• If the device is not turning on, check the power cord and make sure it is securely plugged in.
• If the LCD display is not working properly, try adjusting the brightness or contrast settings.
• If the fiber optic cables are not splicing correctly, make sure they are properly aligned and that the cleaver tool is being used correctly.
• If the device is overheating, allow it to cool down before continuing use.

Pros & Cons

• Pros
  • Versatile and suitable for both single and ribbon fiber connections
  • User-friendly interface
  • Several safety features
  • High-resolution camera for accurate splice inspection
• Cons
  • Expensive
  • May be overkill for small-scale projects
  • Heavy and not as portable as some other splicers

SkyShl Fiber Fusion Splicer SS413F Customer Reviews

Customers generally have positive things to say about the SkyShl Fiber Fusion Splicer SS413F, praising its versatility, ease of use, and accuracy. However, some have noted that the device is on the expensive side and may not be the best choice for small-scale projects. The most common complaint is that the device is heavy and not as portable as some other splicers.
