Introduction

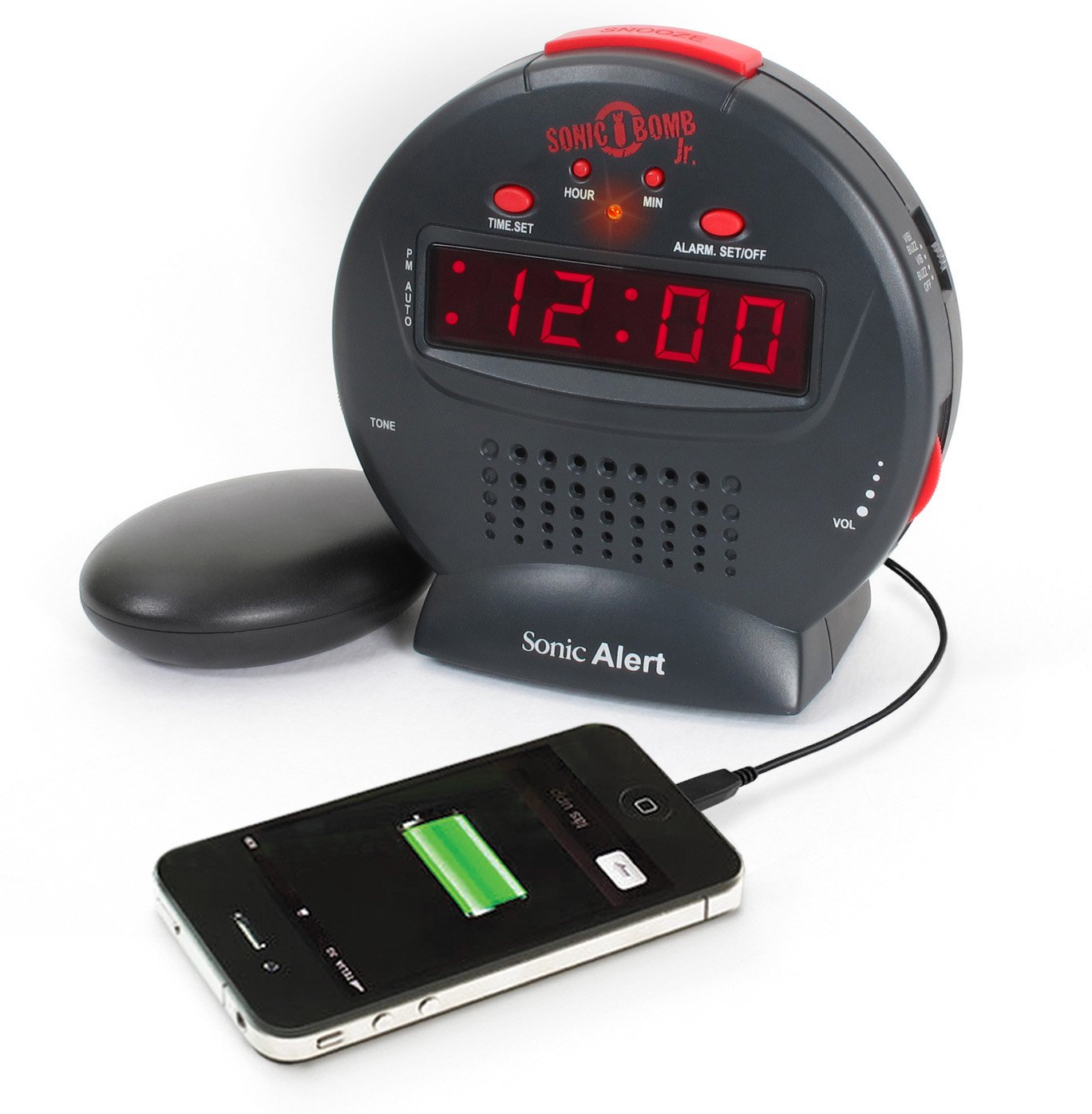

The Sonic Alert Alarm Clock SBJ525SS-v3, also known as the Sonic Bomb Jr., is designed to ensure you wake up on time, every time. This compact alarm clock features an impressive 102 dB volume, a built-in bed shaker, and a pulsating alert light, making it ideal for heavy sleepers and those with hearing impairments. Its user-friendly design includes adjustable tone and volume settings. Priced at approximately $46, it combines functionality with affordability for a reliable wake-up solution.

Detailed Specifications

• Multiple Alert Methods: Includes a powerful bed shaker, bright flashing lights, and an extra-loud alarm.
• Volume Control: Adjustable volume settings to suit different preferences.
• Large Display: Easy-to-read LCD display with clear time and date indicators.
• Backup Battery: Uses 2 AA backup batteries to maintain time during power outages.
• Dimmer Switch: Allows users to adjust the display brightness for better sleep comfort.
• Snooze Function: Convenient snooze button for temporary delay.

Description

The Sonic Alert Alarm Clock SBJ525SS-v3 is built with user convenience in mind. The device features a sleek design with a large LCD display that shows both time and date clearly. The bed shaker attaches easily under a mattress and vibrates strongly when the alarm goes off, ensuring even the heaviest sleeper is roused. The flashing lights provide an additional visual cue, making this alarm clock highly effective for those with hearing impairments.

Sonic Alert Alarm Clock SBJ525SS-v3 Instructions

IMPORTANT – Please read these instructions carefully before use and retain for future reference. See operating instructions on back.

• Use only the supplied or recomended Sonic Alert adaptor to connect the unit.
  Warning: To prevent fire or shock hazard do not expose this appliance to rain or moisture. Before connecting to mains/ power make sure that the\ requirements specified on the apparatus corresponds to the available power supply in that country i.e. AC100-240V~, 56/60 Hz.
• The ventilation should not be impeded by covering the ventilation openings with items such as, newspaper, table cloth, curtains, etc;
• No naked flame sources, such as lighted candles should be placed on the apparatus.
• It shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Do not place the product in closed bookcases or racks without proper ventilation.
• Where the mains/ power plug is used as the disconnect device, the disconnect device shall remain readily operable.

Features show on the diagram above:

1. DC adaptor input
2. Tone
3. Alarm indicator
4. PM indicator
5. Flashing LED
6. Time Set
7. Hour
8. Snooz / Dimmer
9. Minute
10. Alarm Set / Off
11. Function Switch
12. Volume Knob
13. Vibrator out Jack
14. Battery Compartment door
15. USB Charging Port

Test Mode

1. Press and hold the Snooze and Time buttons for 3 seconds to enter the Test Mode. The display will show "7ES7" to indicate it is in TEST Mode.
2. If within 1 minute no button is pressed, then it will exit the Test Mode and return back to the Time Mode.
3. Press any button within 1 minute (except the Snooze & Time buttons, which has no effect), it will exit the Test Mode immediately.
4. While in Test Mode, sliding the Function Switch will demonstrate the different functions of the clock:
   1. Function Switch at OFF, it will have a continuous "Vee" sound to indicate it is in the Test Mode.
   2. Function Switch at BUZZ, it will demonstrate the buzzer sound.
   3. Function Switch at VIB,  it will demonstrate the vibrator.
   4. Function Switch at VIB & BUZZ, it will demonstrate the buzzer sound & the vibrator.
5. After finish with the Test Mode, press any button (except the Snooze & Time buttons, which has no effect) it will exit the Test Mode immediately.

Setting the correct time

1. Press and hold the Time Set Button ( 6 ) at the same time press the Hour Button ( 7 ) to advance the clock display rapidly until the hour is correct.
2. Press and hold the Time Set Button ( 6 ) at the same time press the Minute Button ( 9 ) to advance the clock display rapidly until the minute is correct.

A lighted dot (4 ) in the upper left of the clock display indicated the time is PM. For AM time indication, the dot does not light up.

Setting the alarm time

1. Press and hold the Alarm Set Button (10) at the same time press the Hour Button (7) to advance the alarm display rapidly until the hour is correct.
2. Press and hold the Alarm Set Button (10) at the same time press the Minute Button (9) to advance the alarm display rapidly until the minute is correct.
3. Make sure the alarm time is correctly set for AM or PM, the lighted dot (4) indicated PM. Please be sure to release the HOUR and MIN set buttons before releasing the ALARM button.

Selecting 12 or 24 hours format

Press and hold the Hour button (9) for 6 seconds to enter the hour selection mode, release the Hour button (9) when the display shows "12 H" or "24 H".  Press and release the hour button to toggle between 12 or 24 hours. If no selection is made within 4 seconds, then the last displayed hour format will be chosen and the display will return to the normal Time mode.

Waking to Alarm

1. Set Function Switch ( 11 ) to choose “VIB“, “BUZZ“ or “VIB / BUZZ“.
2. Set desired volume using the Volume knob (12)  for buzzsound.
3. Set alarm wake time per instructions for setting alarm time above.

Adjusting The Alarm Duration Time

The default alarm duration time setting is 30 minutes, you may adjust the alarm duration between 1 minute and 59 minutes as desired. To adjust the alarm duration:

• Press and hold the AL. SET button (5) for six seconds. The clock display will show the default alarm duration as ‘30’, release the AL. SET button.
• Press the “MIN“ button (10) to adjust the alarm duration to the desired setting, from 1 minute to 59 minutes.
• When the display is showing the desired alarm duration time, it will return to the normal clock mode after 3 seconds. The new alarm duration time setting becomes the new default and remains in the memory until you change it again.

Shutting Off Alarm

Alarm can be shut off temporarily for the day or shut off permantently.

1. When the alarm goes off, simply press the AL off button (10) the alarm will shut itself off for the day and come back on the next day at the same time if the alarm setting has not changed.
2. To shut off the alarm permanently, slide Function Switch (11) to of positon. Alarm will not come on until Function Switch (11) is set to “VIB“ or  “BUZZ“ or “VIB/BUZZ“ position.

Snooze Operation

SNOOZE button (8) – press after alarm has sounded. The alarm will be turned off for 9 minutes for extra sleep. The alarm will come back again after 9 minutes. You may repeat many time up to 119 minutes .

Adjusting The Snooze Time

The default snooze time setting is 9 minutes but you may adjust the snooze time between 1 minute and 30 minutes as desired. To adjust the snooze time:

• Press and hold the SNOOZE button (3) for four seconds. The clock display will show the default snooze time ‘9’. Release the Snooze button.
• Press the “MIN” button (10) to adjust the snooze time to the desired setting, from 1 minute to 30 minutes.
• When the display is showing the desired snooze time, it will return to the normal clock mode after 3 seconds. The new snooze time setting becomes the new default and remains in the memory until you change it again.

Volume
To adjust the volume rotate the Volume wheel (12) until you have reach the desired level.
Tone
Adjust the tone by rotating the Tone wheel (2) until you have reach the desired level.
Dimmer Operation

There is a 5-level brightness control for the LED display. Press the SNOOZE button (8) once to change the display brightness. The brightness will cycle from 5-4-3-2-1-2-3-4-5 (from bright to dim then from dim to bright).

NOTE: The dimmer function will not work, when the clock is in snooze mode.

Bed Shaker / Vibrator – Figure B

1. Attach the bed shaker jack to the back of the clock at VIBRATOR input (13).
2. To select vibrator, slide Function Switch (11) to VIB or VIB / BUZZ position.
3. Place vibrator under mattress or pillow.

USB Charging

• This alarm clock is equipped with a convenient USB charging port on the back panel that allows you to recharge many brands of mobile phones, portable music players, and other handheld devices that are supplied with USB charging cables.
• The output rating of the USB charging port is 500mA.
• To charge your device, connect the USB charging cable that was supplied with your handled device to the USB charging port (15) on the back panel of this alarm clock. Observe the charging indicator on your device to confirm that it is charging.

Note: Charging time will vary depending on the charging current that your device requires. Therefore some devices will take longer to charge than others.

Battery Backup

• To use the battery backup, you can install 2 pieces of AA size (UM-03) alkaline battery in the back of the clock located under the battery cover (14).
• Please note the LED display will not show during power failure but the clock will still be running and keeping proper time until the power is restored.
  NOTE: For the best results it is recommended that the battery be changed every 6-8 months. If the clock is not used for a while, it is recommended to remove the battery to aviod leakage.

DC 5V Power Input
Attach the DC power supply input to the back of clock labeled  DC5VIN (1 ).

Important: do not confuse DC input with vibrator input.

GENERAL DATA

• UL listed Power Adaptor: AC100-240V~, 50/60Hz
• Power Consumption: Adaptor Output: DC5V, 800mA
• USB Charging Port Rating: 500mA

The lightning flash and arrowhead within the triangle is a warning sign alerting you of dangerous voltage inside the product.

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE THE COVER (OR BACK) FROM THE PRODUCT. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO YOUR SONIC ALERT DEALER.

The exclamation mark within the triangle is a warning sign alerting you of important instructions accompanying the product.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Setup Guide

1. Unboxing: Carefully remove the alarm clock from its packaging and ensure all components are included (bed shaker, backup batteries).
2. Assembly: Attach the bed shaker to the bottom of your mattress using the provided straps.
3. Configure Settings: Set the time and date using the buttons on the front panel. Adjust volume settings as needed.
4. Power On: Insert 2 AA backup batteries into the battery compartment.
5. Test Alarm: Test each alert method (bed shaker, flashing lights, loud alarm) to ensure they are functioning correctly.

Troubleshooting

1. Alarm Not Working:
   • Check if the bed shaker is properly attached to the mattress.
   • Ensure backup batteries are installed correctly.
   • Verify that all alert methods are turned on.
2. Display Issues:
   • Adjust display brightness using the dimmer switch.
   • Replace backup batteries if the display dims excessively.
3. Instructions Warnings:
   • Do not submerge in water or expose to excessive moisture.
   • Keep out of reach of children to avoid accidental tampering.

SONIC ALERT’S 1 YEAR WARRANTY

The Sonic Boom Alarm Clock Model SBB500ss is warranted against manufacturing defects in materials and workmanship for one (1) year from the date of purchase.

Pros & Cons

Pros

• Effective Alerting: Multiple alert methods ensure reliable wake-up times.
• User-Friendly: Easy setup and configuration process.
• Affordable: Priced competitively compared to similar products.
• Backup Power: Uses backup batteries during power outages.

Cons

• Space Requirements: Bed shaker requires space under the mattress; may not fit all bed types.
• Noise Level: Extra-loud alarm might disturb others if not adjusted properly.
• Limited Customization Options: Fewer customization options compared to some other models.

Customer Reviews

The Sonic Alert Alarm Clock SBJ525SS-v3 has received positive reviews from users who appreciate its effectiveness in waking them up reliably. Many customers have praised its ease of use and robust alerting features. However, some users have noted that the bed shaker can be somewhat bulky and may not fit all mattress types.

Common Complaints

• Some users find it difficult to set up initially due to a lack of detailed instructions.
• A few customers reported issues with display brightness even after adjusting the settings.
