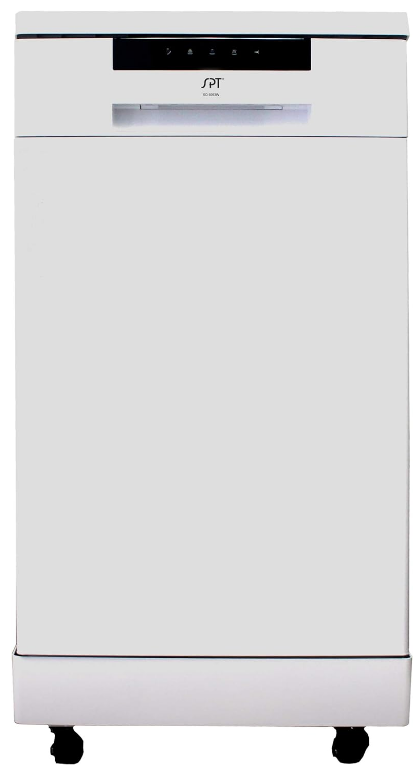

SPT Dishwasher Machine SD-9241W

Introducing the SPT Dishwasher Machine SD-9241W is a compact and efficient appliance designed to simplify dishwashing for small households or kitchens with limited space. This countertop model features multiple wash cycles, including a quick wash option, to accommodate various cleaning needs. With a user-friendly control panel and a sleek design, it seamlessly fits into any kitchen decor. The SD-9241W is energy-efficient, making it an eco-friendly choice for daily use. The exact cost of the SD-9241W is $299.99.

Specifications

The SPT Dishwasher Machine SD-9241W comes with several key features that enhance its performance and usability. Here are some of the detailed specifications:

• Capacity: 18 place settings
• Dimensions: 21.65" W x 19.69" D x 31.75" H
• Weight: Approximately 55 lbs
• Wash Cycles: Heavy Duty, Normal, Light, Rinse
• Energy Efficiency: ENERGY STAR certified
• Noise Level: 52 dB
• Drying System: Residual heat drying

DISHWASHER FEATURES

This electric dishwasher has the common characteristics of other house-hold dishwashers, as well as these unique specialties:

1. Time delay feature
   Allows you to program the operation to begin at a later time, between 1 to 24 hours. Program to run during off- peak hours helps reduce eletricity cost.
2. Error alarm
   Fault codes display would inform the user of abnormal status of the machine.
3. Rinse aid Warning Indicator
   When the rinse aid is running low, a refill reminderwill be displayed on the panel. This ensures the machine continues to operate at optimum performance.
4. Stainless steel tub
5. 6 wash programs
   Choose from 6 wash cycles, based on load and soiled level:All-in-1, Heavy, Normal, Light, Rinse and Speed

PARTS IDENTIFICATION

IMPORTANT!
To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

Dishwasher Features

1. Upper Basket
2. Spray Arms
3. Lower Basket
4. Main Filter
5. Detergent Dispenser
6. Cup Shelf
7. Silverware Basket
8. Coarse Filter
9. Rinse Aid Dispenser
10. Faucet Adapter Assembly (Quick Connect)
11. Power Cord
12. Caster

FAUCET ADAPTER ASSEMBLY (QUICK CONNECT)
Your dishwasher comes equipped with a Faucet Adapter Assembly (#10 above) The faucet adapter is to be installed on the faucet. This adapter is located on the back of the dishwasher. The faucet adapter is compatible with faucets inclusive of either male (outside) or female (inside) threaded faucet connections.

1. Pressure relief valve
2. Faucet adapter connection
3. Locking collar
4. Inlet hose connection
5. Drain hose connection

Description

The SPT SD-9241W dishwasher is engineered to provide superior cleaning results while being gentle on dishes. Its stainless steel interior and tub ensure durability and hygiene. The machine features a user-friendly control panel with LED display, making it easy to select and monitor the wash cycle. Additionally, the dishwasher includes a child safety lock to prevent accidental starts.

The SD-9241W also comes with adjustable upper rack and foldable tines to accommodate various sizes of dishes. The integrated detergent dispenser ensures optimal use of detergent, leading to cleaner dishes and reduced waste.

INSTALLATION

Attention: The installation of the pipes and electrical equipment should be done by professionals.

Warning Bisconical Select Hal power before installing dishwasher. Failure to do so can result in death or electrical shock.

Unpacking
Have at least two people to move and install the dishwasher to prevent personal injuries. Remove all packaging materials: shipping tape, foam pieces, etc. before use. Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners. Check and make sure all parts necessary for installation are included. If parts are missing, please contact Sunpentown at 1-800-330-0388. The dishwasher must be placed on a level and flat surface that can support the weight when the dishwasher is fully loaded.
Positioning
The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. Make sure water supply/faucet connection is within reach of the hose assembly (3 ft).
Electrical Requirements

• Read all safety precautions listed at the beginning of the manual. Make sure the electrical outlet is within reach of the power supply cord. It is recommended to not use receptacles that can be turned on/off by a switch or pull chain.
• Refer to the rating label and be sure the voltage and frequency corresponds to the power supply. Use a dedicated circuit that is rated for 10 amps.
• The dishwasher is equipped with a power supply cord with a 3-prong grounding plug. The cord must be plugged into a mating 3-pronged wall receptacle. If a mating wall receptacle is not available, it is the personal responsibility of the customer to have a properly grounded, 3-pring wall receptacle installed by a certified electrian.

WARNING!

• DO NOT use an extension cord or an adapter plug with this appliance.
• DO NOT, under any circumstances, cut or remove the ground-prong.
• Improper connection of the connection of the equipment grounding conductor can result in electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

Connecting the Dishwasher

Remove the Faucet Adapter by pulling back the locking collar on the Quick Connect; while pulling the Faucet Adapter in the opposite direction.

The Faucet Adapter is compatible with either female (inside) or male (outside) threaded faucet connections:

• If your faucet is "female" type, both rubber washers must be installed inside the faucet adapter.

• If your faucet is "male" type, use only one rubber washer. Remove the second rubber washer.



Installing Quick Connect to faucet

1. Screw the Faucet Adapter onto (or into) the faucet. Check for leaks (use Teflon or plumbers tape to eliminate any leaks if necessary).
2. Attach the Quick Connect assembly onto the Faucet Adapter - pull down on the locking collar, while pushing the Quick Connect upwards onto the Faucet Adapter.
3. Release the locking collar when the Quick Connect Assembly snap onto the Faucet Adapter. Verify connection is secure.
4. Slowing turn on water and check for any signs of water leak. If leak is located, immediately turn off the water supply and repair leak.

IMPORTANT

• Once you turn on the water supply (even if turned off immediately), the inlet hose will be pressurized.
• To relieve the water pressure (make sure water supply is turned off), press and hold the red pressure relief button on the Quick Connect until the flow of water stops.

WARNING
Failure to relieve water pressure before disconnecting the Quick Connect may result in back-pressure over-spray. The temperature of incoming water may be very hot, and back-pressure over-spray can cause severe burns and/or scalding.
Disconnecting the Dishwasher

1. Turn off water supply at the faucet.
2. Disconnect the power supply cord.
3. Release water pressure: press and hold the red Pressure Relief Valve until flow of water stops.
4. Disconnect the Quick Connect by pulling down on the locking collar and release from Faucet Adapter.

OPERATING INSTRUCTIONS

SPT Dishwasher Machine SD-9241W Control Panel

1. Desay ame, dom: Pg indicator, raining time, and etc.
2. Delay Button: Press to program delay start.
3. Program indicator lights: To show the which program you have chosen.
4. Wash Program Selector: Press to select one of the six programs.
5. Rinse aid low warning light.
6. Power indicator light.
7. Power switch: To turn on/off the power supply.
8. Start/Pause button: To start the selected wash the machine is workinhe washing program

Loading the Dishwasher

For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

The following items are not suitable for wash in the dishwasher:

• Cutlery with wooden, horn china or mother-of-pearl handles and wooden platters
• Plastic items that are not heat resistant
• Older cutlery with glued parts, bonded cutlery items or dishes
• Pewter or copper items
• Crystal glass
• Steel items subject to rusting
• Very small items as they may fall out the basket
• Items made from synthetic fibers

Items of limited suitability:

• Silver and aluminum - tends to discolor after washing
• Glazed patterns may fade

CUTLERY BASKET
Flatware should be placed in the cutlery basket with handles at the bottom. Knives and other sharp utensils should be placed with handles up, but make sure the tips do not extend through the bottom. If the rack has side baskets, spoons should be loaded individually into slots. Longer utensils should be placed horizontally at the front of the upper rack.

UPPER RACK
The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water. The upper rack can be lifted (or lowered) by removing and placing the rack into different rails. This makes room for either rack to accomodate different size items.

LOWER RACK
We recommend placing large items which are most difficult to clean into the lower rack: pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

• Pots, serving bowls, etc, must always be placed top down.
• Deep pots should be slanted to allow water to flow out.
• The bottom rack feature fold down tine rows to accomodate larger pots and pans.

FOR BEST PERFORMANCE

• Scrape off food particles before loading.
• Soften remnant of burnt food in pans
• Place cups, glasses, bowls, pots/pans face down.
• Curved items, or those with recesses, should be loaded at a slant so water can furn off.
• Allow sufficient space between items to allow water and detergent to reach each surface.
• Ensure glasses and stemware are secure and balanced.
• Ensure breakable items are not sitting on metal cutlery which can chip the dishes.
• Do not overload the dishwasher.

WARNING
To prevent damage, do not remove glass and cutlery from the dishwasher immediately after end of a program. Allow the dishware to return to room temperature

Detergent Dispenser

• To prevent formation of deposits, do not add too much detergent. This dishwasher has specially designed water softener.
• This unit uses less detergent and rinse aid than most conventional dishwashers. In general, only one tablespoon of detergent is needed for a normal wash load. Add more detergent as needed for heavily soiled loads. The amount of detergent can also vary due to differences in water hardness.
• To determine the water hardness in your area, contact your local water utility company. The harder the water, the more detergent may be needed. Remember, you should adjust the amount of detergent by small amounts until you find the correct amount.
• The dispenser must be refilled before the start of each wash cycle and always add detergent just before starting the dishwasher, otherwise it could get damp and not dissolve properly.
• Use only detergent specifically made for use with dishwashers.

Removing Hard Water Spots

To remove hard water spots, try the following:

1. Remove all metal dishware, such as cutlery, pans, etc., from the dishwasher.
2. Do not add detergent.
3. Pour two cups of vinegar into a bowl and set the bowl face up on the lower rack of the dishwasher.
4. Run the dishes through a normal wash program.
5. If this doesn't work, try the same process with 1 / 4 cup of citric acid crystals instead of vinegar.

WARNING!
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Rinse Aid Dispenser

• To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
• Pour the rinse aid into the dispenser, being careful not to overfill.
• To replace, align cap with "open" arrow and turn clockwise to close
• The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing water to "sheet" off the dishes.
• Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.
• To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The dispenser holds about 100ml of liquid rinse aid.
• Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth .
• Don't forget to replace the cap before you close the dishwasher door.
• If you have soft water, you may not need rinse aid for it may cause a white film to develop on your dishes.

Adjusting Rinse Aid Dispenser

A measured amount of rinse aid is released during the final rinse. As with detergent, the amount of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in lather of foaming and cause cloudiness or steaks on your dishes. If the water in your area is very soft, you may not need rinse aid. If you do, you can dilute the rinse aid with an equal amount of water.
The rinse aid dispenser has four settings. Always start with the dispenser set on " 2". If spots and dand ritating pre late, in the the estill rins dry prepaid by are spot the dissense dial to"4". Refill when the Rinse Aid Warning Light illuminates.

WASH CYCLE TABLE

Starting a wash cycle:
Once the dishwasher is loaded, follow these instructions to start the wash cycle:

1. Ensure the dishwasher is properly connected to power supply.
2. Ensure the water supply is properly connected and is turned on to full pressure.
3. Add detergent and check Rinse Aid is full.
4. Close the door and press the ON/OFF button to turn on the dishwasher.
5. Press the PROG button to select desired program: All-in-1 -> Heavy -> Normal -> Light → Rinse -> Speed.
6. If you wish delay the start time, press the DELAY button to set (1 to 24 hours)
7. Press the START/PAUSE button to begin the wash cycle.

Changing the Wash Program
You can change the wash program if the unit just started and only ran for a short time.
Otherwise, detergent may have been released and water drained. If this is the case, the detergent dispenser must be refilled. Open the door slightly, press and hold the PROG button for 3 seconds. Press PROG button again to select desired mode. Close the door.

Forgot to Add a Dish?
A forgotten dish can be added any time before the detergent cups opens:

1. Open the door slightly to pause the cycle.
2. After the spray arm stops spinning, you can open the door completely.
3. Add forgotten dishes.
4. Close the door and press start/pause button, the dishwasher will work after ten second.

At the End of the Wash Cycle
When wash cycle has finished, the dishwasher will buzz for 8 seconds.

1. Turn the unit off by pressing the ON/OFF button.
2. Shut off water supply and open the door.
3. Leave the door ajar and wait for a few minutes before unloading. This will allow the dishes to cool and assist in the drying process. Dishes that are still hot are more susceptible to breakage.

WARNING!
It is dangerous to open the door when washing, because the hot water may scald you.

How To Use The All in1 Program

Your dishwasher has an "All-in-1 Program" which needs no rinse aid but an "All-in-1" tablet.
NOTE: Only the All in 1 program can be used with Allin tablets. If you use All in 1 tablets with other programs,
The appliance will not achieve a good performance.

1. The figure below shows how to hang the All-in-1 tablet container on the upper basket.
2. Rotate the upper sprayer and change the location of the container to ensure the upper sprayer is not obstructed by the All-i n-1 tablet container. Refer to the figure below for reference.
3. Put the All in1 tablet into the container, then start the All in program.

Setup Guide

To set up the SPT Dishwasher Machine SD-9241W, follow these steps:

1. Unpacking and Placement: Carefully unpack the dishwasher and place it in the desired location, ensuring level ground.
2. Connection to Water Supply: Connect the water supply hose to the back of the dishwasher and secure it properly.
3. Power Connection: Plug the dishwasher into a nearby electrical outlet.
4. Initial Run: Run an empty cycle to test the machine and remove any manufacturing residues.

Refer to the user manual for detailed instructions on assembly and configuration.

MAINTENANCE

Filter System
For your convenience, the drain pump and filtering system are placed within easy reach inside the tub. There are three components of the filter system:

Main Filter, Coarse Filter and Fine filter:

1. Main Filter
   Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.
2. Coarse Filter
   Larger items, such as pieces of bone, that could block the drain are trapped here. To remove items caught in this filter, gently squeeze the tabs on the top and lift out.
3. Fine Filter
   This filter holds soil and food residue in the cylindrical base and prevents it from being redeposited on the dishes.

Cleaning the Filters

The filters efficiently removes food particles so the wash water can be recycled during a wash cycle. For best performance and results, the filter assembly must be cleaned regularly. Remove the filter assembly per instructions below and rinse clean under running water. Use a soft cleaning brush or old toothbrush to clean the Coarse and Fine Filters Reassemble in reverse order

• Step 1: Turn the filter counter-clockwise and lift it upwards
• Step 2: Lift the Main Filter
• Step 3: Lift the Fine Filter

WARNING!

• Inspect filters after each use.
• When cleaning, do not knock or bang the filters to remove residues. This could contort the filters and reduce performance of the dishwasher.
• Never run the dishwasher without filter assembly in place.
• Improper placement of the filter or damaged filter may reduce the unit's performance and may cause damage to dishes and/or utensils.
• The entire filter assembly should be cleaned at least once a week.

Cleaning the Spray Arm
It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arm, screw off the nut to take out the washer on top of the spray arm and remove arm. Wash with soapy and warm water and use a soft brush to clean the jets. Carefully reinstall making sure the rotary movement is not impeded.
Cleaning the Dishwasher

• The control panel can be cleaned by using a slightly dampened cloth. Dry thoroughly with a soft towel.
• The exterior can be wiped with a towel and mild detergent solution. Wipe clean and follow with a good appliance polish wax.
• Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Protect Against Freezing
If your dishwasher is left in an unheated place during the winter months, please follow these procedures after each wash:

1. Turn off the dishwasher.
2. Turn off water supply and disconnect water inlet hose from the water valve.
3. Drain water from the inlet hose and water valve (use a pan to catch the water)
4. Reconnect the water inlet hose to water valve.
5. Remove the plastic sump cover in the bottom of tub and use a sponge (or towel) to soak up water in the sump

Cleaning the Door

Use only a soft damp cloth with warm water to clean the edge around the door. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
WARNING: Abrasive agents and some paper towels may scratch or leave marks on the surface.

Keeping Your Dishwasher in Shape

• After Every Wash
  Turn off the water supply and leave door slightly open so moisture and odors are not trapped inside.
• Remove the Plug
  Before cleaning or performing maintenance, always remove the plug from the socket. Do not take risks.
• No Solvents or Abrasive Cleaning
  Never use abrasive cleaners or solvents to clean the dishwasher. Use only a dampened soft towel with warm water. To remove spots or stains on the interior surface, you may use a cloth dampened with water and a little white vinegar.
• Clean Filters Regularly
  Clean the filters regularly to prevent clogs and odors.
• Clean the Door Seals
  Food that gets trapped in the seals may cause odor to form. Periodic cleaning with a damp sponge will prevent this from occurring.
• Moving the Dishwasher
  If the dishwasher must be moved, try to keep it in the upright position. If absolutely necessary, it can be positioned on its back.
• Storage or Vacation Time
  It is recommended you run a wash cycle with the dishwasher empty. Disconnect from power and turn off water supply. Remove any remaining water in the sump area with a sponge. Leave thedoor slightly open. This will help the door seal to last longer and prevent odors from forming inside the dishwasher.

Troubleshooting Tips

User-Maintenance Instructions Before Calling for service ...
Review the charts on the following pages may make you be free of calling for service.

Here is the combined table written as it is from the images:

ERROR CODES
When unit experiences malfunction, the appliance will display error codes

Your Guarantee

If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge.

SPT Dishwasher Machine SD-9241W Pros & Cons

Pros

• Compact Design: Ideal for small kitchens and apartments.
• Energy Efficient: ENERGY STAR certified, reducing energy and water consumption.
• Quiet Operation: Operates at a noise level of 52 dB, making it suitable for use during the night.
• Multiple Wash Cycles: Offers Heavy Duty, Normal, Light, and Rinse cycles for customized cleaning.

Cons

• Limited Capacity: Can only accommodate 18 place settings, which may not be sufficient for large families.
• No Integrated Dryer: Relies on residual heat drying, which may not be as effective as an integrated drying system.
• No Wi-Fi Connectivity: Does not support smart home integration or remote monitoring.

Customer Reviews

Customers have generally praised the SPT Dishwasher Machine SD-9241W for its compact size, quiet operation, and efficient cleaning capabilities. However, some users have noted that the machine’s limited capacity may not be suitable for larger households.

Common complaints include issues with the drying system and occasional noise during operation, but overall, the product has received positive feedback for its reliability and ease of use.
