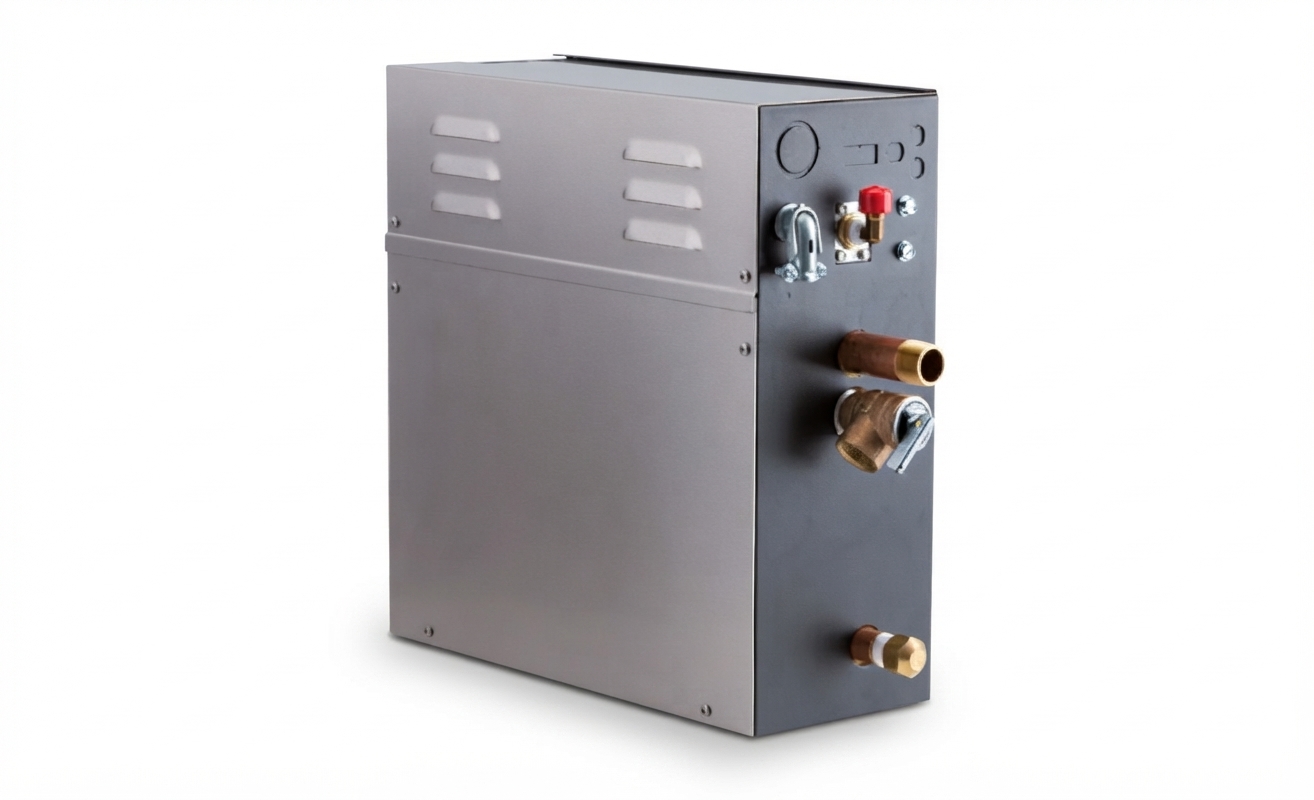

Introduction of Steamist Steam Shower Generators TSG-10

Introducing the Steamist Steam Shower Generators TSG-10, a premium product designed to bring the ultimate spa experience to your home. This generator is perfect for those who want to relax and unwind after a long day, all in the comfort of their own home. With an estimated price range of $2,000 to $2,500 and a launch date of early 2021, this generator is sure to be a popular choice for those looking to upgrade their shower experience.

Detailed Specifications

Description

The Steamist Steam Shower Generators TSG-10 is a high-quality, durable product designed to provide years of reliable performance. With its powerful steam output and easy-to-use control panel, this generator is perfect for those who want to create a spa-like atmosphere in their own home. The built-in ozone generator helps to keep the generator clean and sanitized, while the compact size makes it easy to install in a wide range of showers. The TSG-10 is a great investment for those who want to upgrade their shower experience and enjoy the many benefits of steam therapy.

Steam Bath Important Safety Instructions (Publication No. 199)

This publication includes a Warning label that the contractor must install on the wall near the entrance to the steam room in a highly visible location. This label and its additional safety information are packaged with the generator in the envelope containing the installation instructions. If it is lost or missing, contact Steamist (201-933-0700) for a replacement Publication No. 199. This publication along with all documents must be left with the owner.

NOTE: A “TSC” series control is required to operate the "TSG" generator.
The Steamist “TSG” Generator operates with only “TSC” series controls mounted inside and an optional TSX or TSR remote control located outside the steam room. It’s small enough in size to be tucked away using very little space in a vanity, closet, or basement, but large enough to provide steam for most residential baths.
The Steamist “TSG” Steambath Generator comes factory assembled, carefully wired, and tested.

Pre-Installation

• Proper electrical supply (208 or 240 Volt): See rating label on Steam Generator and Chart on page 4. Determine proper size of wire, voltage, amperage, and phase for the Steam Generator. 90°C copper wire is required for generator connection.
• In-line fuse/circuit breaker required: Fuse/circuit breaker to be installed must be sized in accordance with the chart on the back page. Do NOT install a GFI (Ground Fault Interrupter) to this equipment (per article 210-8 in the National Electric Code).
• Route power supply cable to the location where the Steam Generator will be installed (before walls are closed).

Electrical Rough-in

Route appropriate power cable to the location the Steam Generator will be installed. If a receptacle is desired, mount the box for the receptacle near the location of the Steam Generator.
NOTE: The plug and receptacle require a rating of no less than 250V and proper amperage. Refer to the chart on page 4 for amperage rating.
After the walls are complete, the Steam Generator and Control can be wired.

Steam Generator Electrical Installation

WARNING: All power to the Steam Generator must be turned off.

1. Remove the two screws holding the electrical access cover and remove cover.
2. Locate the supply line knockout. Mount proper strain relief into knockout hole.
3. Strip back power cable’s outer insulation jacket eight inches and insert into Steam Generator. Strip back insulation ½" from the three (3) incoming wires (two power and one ground).
4. Insert ground wire into grounding lug located on the right side of the electrical compartment and secure.
   CAUTION: Be sure the ground wire does not come in contact with a live electrical part.
5. Locate the terminal block in the upper portion of the electrical compartment. Insert power wires into the power lugs on the front of the terminal block and secure.

Optional Auto Drain Valve Connection

• Open knockout for Auto Drain Valve conduit connection.
• Route flexible conduit from valve to knockout and secure.

• Connect two wires from valve to the auto DRAIN connection J11 on the printed circuit board (see Figure 2).



IMPORTANT: The warranty of this product is voided if it is used in a commercial application or for anything other than a residential steambath installation. All electrical connections must be performed by a licensed electrician in accordance with Local and National Electric Codes.

Ganging Multiple Steam Generators

IMPORTANT: When ganging 2 to 4 steam generators together, an additional 3199 steam head and 5370 control cable must be purchased for each additional generator.

• Locate the Control Cable knockout at the top of the steam generator. Mount proper strain relief into knockout hole.
• Route 5370 control cable from any one of the 3 Modular Jacks located on the circuit board to the steam generator to be ganged (see Figure 3).
• Set DIP Switches on each additional Steam Generator's main PCB as shown in the Gangable Generators chart (see Figure 3).

Checklist

Before starting, ensure that the conditions of the following checklist have been met

• The proper size Steam Generator has been selected by using the sizing page in the “Full Line Brochure,” “Pricing Guide,” or “The Generator Sizing Guide” in the Residential Systems/Steambath Product Information section of the Steamist website - www.steamist.com.
  CAUTION: An improperly sized Steam Generator will NOT produce the amount of steam necessary to reach the selected temperature.
• The proper voltage Steam Generator has been selected (i.e., 208V or 240V). A 208V Generator operating on 240V will damage the heating element, and a 240V Generator operating on 208V will result in a 25% loss of power.
• The Steam Generator is installed in an upright position.
• The proper sized 90°C copper wire and circuit breaker have been used.
• The circuit breaker is NOT a GFI (Ground Fault Interrupter) type.
• The Steam Generator is properly grounded.
• The circuit breaker or disconnect switch is on.
• Water supply is open to the Steam Generator.

Internal Electrical Connections

Ganging Steam Generators

(when applicable)

Typical Installation

Setup Guide

Setting up the Steamist Steam Shower Generators TSG-10 is easy. Here's a quick guide to get you started:

1. Install the generator in a convenient location near your shower.
2. Connect the generator to a power source and water supply.
3. Program the generator using the digital touchscreen control panel.
4. Test the generator to ensure it is working properly.

Wiring Diagram

90°C copper wire is required for generator connection. Installation shall be in accordance with applicable electrical codes.

Troubleshooting

If you encounter any problems with your Steamist Steam Shower Generators TSG-10, here are some common solutions:

• If the generator is not producing steam, check the water supply and power connection.
• If the generator is producing steam but not reaching the desired temperature, check the water supply temperature and adjust the settings accordingly.
• If the generator is making unusual noises, check for any blockages in the steam line and clean as necessary.

Pros & Cons

Pros

• Powerful steam output for a spa-like experience
• Easy-to-use digital touchscreen control panel
• Built-in ozone generator for self-cleaning and sanitizing
• Compact size for easy installation

Cons

• Higher price point compared to some other steam shower generators
• May require professional installation

Customer Reviews about Steamist Steam Shower Generators TSG-10

Customers who have purchased the Steamist Steam Shower Generators TSG-10 have praised its powerful steam output, easy-to-use control panel, and compact size. However, some have noted that the higher price point may be a drawback for some buyers. Overall, the TSG-10 has received positive reviews and is a great investment for those who want to upgrade their shower experience.
