swastron FOLDING ELECTRIC SCOOTER

Introduction

The swastron FOLDING ELECTRIC SCOOTER is designed for modern urban commuters seeking a blend of convenience, performance, and portability. Engineered for daily travel, this electric scooter features a lightweight, foldable frame that makes it easy to carry on public transit, store in tight spaces, or stow under a desk. With a powerful electric motor and long-lasting battery, the swastron delivers smooth acceleration and reliable range, helping you navigate city streets with ease.

Key benefits include quick folding mechanisms, intuitive controls, and a robust suspension system for a comfortable ride on various terrains. The swastron FOLDING ELECTRIC SCOOTER also boasts integrated safety features such as LED lighting, responsive brakes, and a clear digital display for speed and battery life. Its compact design does not compromise on durability, making it suitable for adults and teens alike.

Ideal for students, office workers, and urban explorers, the swastron is perfect for short commutes, last-mile travel, or leisurely rides around town. It is available in leading online marketplaces and select electronics retailers, with an estimated price range of $400–$600, positioning it as a competitive option in the mid-range electric scooter market. Whether you’re dodging traffic or exploring your neighborhood, the swastron FOLDING ELECTRIC SCOOTER offers a smart, eco-friendly alternative to traditional transportation.

 FEATURES

• Please read the user manual in its entirety before using the Swagger so that you may fully understand its parts and functions and be able to operate it safely.

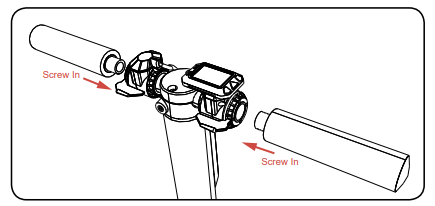

 ASSEMBLY

The Swagger comes mostly assembled within the package. Simply screw each handle into each side of the middle connector bar.

Do not perform assembly when the power is on or the battery is charging. Be extra cautious during assembly, otherwise the carbon fiber stem of the Swagger may be scratched.

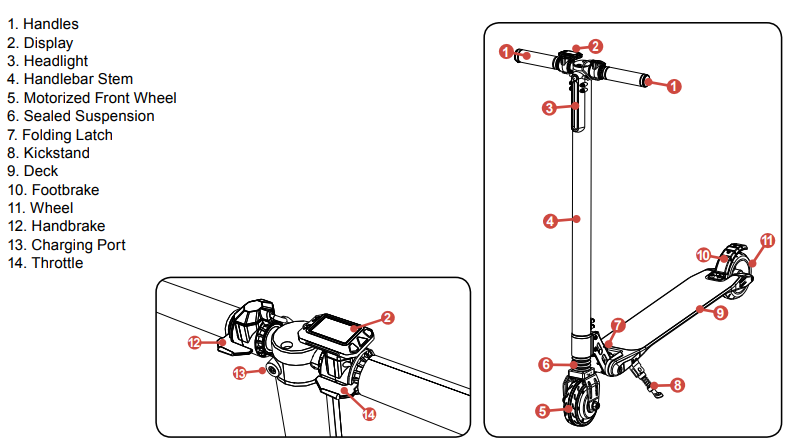

SWAGGER-1 DIAGRAM

USAGE

We sincerely hope every operator can ride the Swagger safely. Think back to when you first learned to ride a bike, a car or skateboard. Note the following information before attempting to ride your Swagger.

• Protective gear including a ASTM F1492-approved helmet must be worn at all times
• The Swagger supports up to 250 lbs. (113 kg)
• Only operate the Swagger where permitted. Local laws may restrict where you may ride.
• The Swagger contains a motor and may be classified as a motor vehicle under your local law. It is your responsibility to understand and abide by any local laws restricting how or where you may ride.

 GETTING STARTED
Assuming you have equipped suitable protective gear and that the Swagger has been placed on a level surface, is well charged, and does not have any issues, follow the steps below. For your safety, please carefully read this entire section before attempting to ride.
The Manual Acceleration Start feature is off by default which means you may use the throttle immediately for powered acceleration. If it is on, you will need to step and kick off the ground to begin Manual Acceleration Start before the throttle may be used.
Regardless of start type, Cruise Control may be used any time after you’ve started using the throttle. See the instructions below.

Powered Acceleration Start

• This is the default start setting. Follow the instructions below.
• Step 1. Press the POWER key for 2 seconds to turn the scooter on.
• Step 2. Carefully step on with one foot and stand upright but relaxed.
• Step 3. Balance with both feet on the scooter and use the throttle to start powered acceleration.
• Step 4. To stop riding, release the throttle and use the handbrake, footbrake, or both to gradually coast to a stop then step off the scooter one foot at a time. Be extra cautions when dismounting for the first time.

Manual Acceleration Start

• To use this start setting, please refer to P 04 in Section 2.5 then follow the instructions below.
• Step 1. Press the POWER key for 2 seconds to turn the scooter on.
• Step 2. Carefully step on with one foot and stand upright but relaxed.
• Step 3. Keep one foot on the ground and kick off to begin accelerating manually.
• Step 4. Once the Swagger reaches approximately 4 mph (6km/h), press the throttle to start powered acceleration.
• Step 5. To stop, release the throttle and use the handbrake, footbrake, or both to gradually coast to a stop then step off the scooter one foot at a time. Be extra cautions when dismounting for the first time.

Cruise Control

• Step 1. Accelerate to reach the desired speed.
• Step 2. Hold the throttle for approximately 6 seconds to turn on Cruise Control and maintain speed.
• Step 3. Use the throttle or the handbrake to turn off Cruise Control.
• While riding, you can use the front headlight to improve visibility if needed. To use the light, simply press the button just above the light to turn it on or off.

MAINTENANCE

CLEANING
The Swagger may need cleaning after riding for extended periods of time. See the following tips below.

• Completely power off the scooter before cleaning.
• Use dry, non-abrasive cloth to gently remove debris or dust.
• The Swagger may not come in contact with it in any kind of liquid.
• Never use alcohol or ammonia-based cleaning solutions.
• Never spray liquid directly onto any part of the scooter.

STORAGE

• The Swagger may be stored easily when not in use. See the following information below.
• Before storing, fully charge the Swagger to prevent battery over-discharge due to non-use.
• Cover the Swagger to protect it from dust. Do not store in a dusty environment as, with all electronic devices, this may cause damage over time
• Store the Swagger indoors at suitable temperatures between -10°F to 113°F (-23°C to 45°C).
• If storing for more than one month, discharge and recharge the battery every three months.
• DO NOT store in an unheated garage, shed, or other location with extreme temperature fluctuations or ranges.
• Do not perform any maintenance when the power is on or the battery is charging. Do not let water or liquids get into the Swagger. It will cause permanent damage to the internal electronic components.

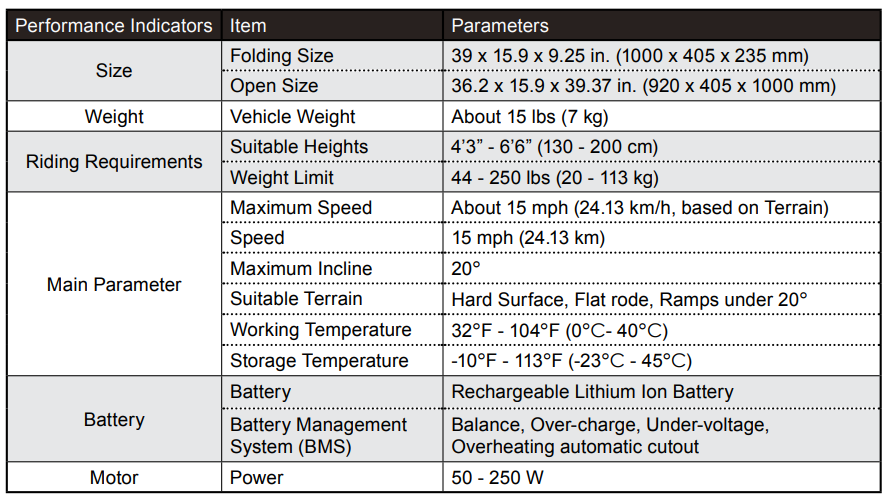

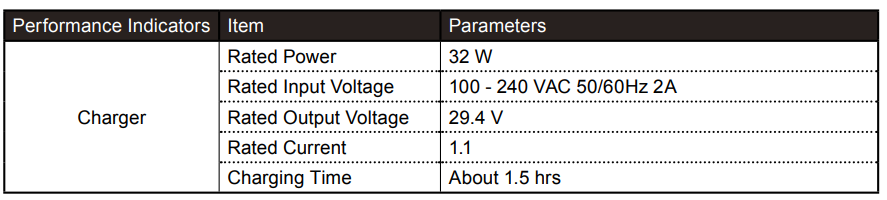

SPECIFICATIONS

WARRANTY INFORMATION

• Your SWAGTRON® Swagger-1 Folding Electric Scooter (“Product”) includes a One Year Limited Hardware Warranty (“Warranty”). The Warranty covers product defects in materials and workmanship under normal
  use.  This Warranty is limited to residents of the United States and Canada only and is available only to original purchasers.  This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.
• This Warranty starts on the date of your purchase and lasts for one year (the “Warranty Period”). The Warranty Period is not extended if the Product is repaired or replaced. We may change the availability of this limited warranty at our discretion, but any changes will not be retroactive.
• Warranty services are provided by SWAGTRON®.  If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, SWAGTRON® will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability; or (2) exchange the Product with a product that is new or refurbished which is substantially equivalent to the original product.
• This Warranty is for one replacement only of like-items and does not cover items out of production if the product is no longer made or stocked.  This Warranty is not assignable or transferable. The original purchaser may call SWAGTRON’s toll-free number at 1-844-299-0625 for service requests.
• When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes SWAGTRON’s property. This warranty only covers technical hardware defectiveness during the warranty period and under normal use conditions. SWAGTRON® does not warrant uninterrupted or error-free operation of this Product.
• This Warranty does not cover any damage due to: (a) transportation; (b) storage; (c) improper use; (d) failure to follow the product instructions or to perform any preventive maintenance; (e) modifications; (f) unauthorized repair; (g) normal wear and tear; or (h) external causes such as accidents, abuse, or other actions or events beyond our reasonable control.
• Important: Do not disassemble the Product. Disassembling the Product will void this Warranty. Only SWAGTRON® or a party expressly authorized by SWAGTRON® should perform service on this Product.
• DISCLAIMER OF WARRANTY:  THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF THIS LIMITED WARRANTY. OUR LIABILITY SHALL UNDER NO CIRCUMSTANCES EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE PRODUCT, NOR SHALL WE UNDER ANY CIRCUMSTANCES BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT.
  SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
• THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY.

Troubleshooting Common Issues with Your swastron FOLDING ELECTRIC SCOOTER

Even the most reliable electric scooters can encounter occasional issues. Below are common problems, their solutions, and preventive tips to keep your swastron FOLDING ELECTRIC SCOOTER running smoothly.

Common Problems and Solutions

• Scooter Won’t Turn On: Check the power switch, ensure the battery is charged, and inspect the charger and charging port for damage. Test the fuse or circuit breaker; a blown fuse often prevents startup and may require professional replacement[2][3][4].
• Motor Runs but Scooter Doesn’t Move: Verify that the drive belt or chain is intact and properly aligned. Inspect the motor gear for wear or stripped teeth. Some models require a kick-start; gently push the scooter forward while engaging the throttle[1][4].
• Error Codes: Refer to your user manual for specific error code meanings. Common codes indicate battery, motor, or controller issues—often resolved by resetting the system or consulting support.
• Slow Speed or Reduced Range: This usually points to a depleted or aging battery. Regularly check battery voltage with a multimeter and avoid over-discharging[3][4].
• Charging Issues: Ensure the charger is snugly connected and the outlet is functioning. Try a different charger if possible, and inspect for loose or damaged wires[3][5].

Preventive Measures

• Charge the battery after each use and avoid leaving it fully discharged for extended periods.
• Regularly inspect wiring, connectors, and mechanical components for wear or damage.
• Store your swastron FOLDING ELECTRIC SCOOTER in a dry, temperate environment to prolong battery life.

Pros & Cons of the swastron FOLDING ELECTRIC SCOOTER

Advantages

• Portability: Lightweight, foldable design makes it easy to carry and store—ideal for commuters and travelers.
• Performance: Reliable motor and battery provide smooth acceleration and sufficient range for daily use.
• Safety Features: Responsive brakes, bright LED lights, and a sturdy frame enhance rider safety.
• Value for Money: Competitive pricing in the mid-range segment offers good features without a premium price tag.
• Ease of Use: Intuitive controls and a clear display make it accessible for beginners and experienced riders alike.

Disadvantages

• Battery Life: Like all electric scooters, battery performance degrades over time and may require replacement after a few years.
• Repair Accessibility: Some components may require professional servicing, especially for electrical or motor issues.
• Ride Comfort: Smaller wheels can make bumps and potholes more noticeable compared to scooters with larger tires.
• Weather Sensitivity: Performance may decline in extreme cold or wet conditions, and riding in heavy rain is not recommended.

Compared to alternatives, the swastron FOLDING ELECTRIC SCOOTER stands out for its balance of price, portability, and features, though premium models may offer longer range or advanced suspension.

Customer Reviews and Feedback

User feedback for the swastron FOLDING ELECTRIC SCOOTER highlights its convenience and reliability for daily commutes. Many customers praise its quick-folding mechanism and sturdy build, awarding it an average rating of 4.2 out of 5 stars. Testimonials frequently mention the ease of carrying the scooter onto buses or trains and its smooth ride on paved surfaces.

Common compliments include the responsive braking system and bright headlight for night riding. Some users note that the battery life meets expectations for short to medium trips, though a few mention reduced range over time. Criticisms occasionally point to the need for occasional troubleshooting, particularly with charging or connectivity issues, but most report positive experiences with customer support.

Frequently mentioned issues include minor assembly out of the box and the desire for even lighter materials. Overall, the swastron FOLDING ELECTRIC SCOOTER is recommended for urban commuters seeking a reliable, portable electric scooter at a reasonable price.
