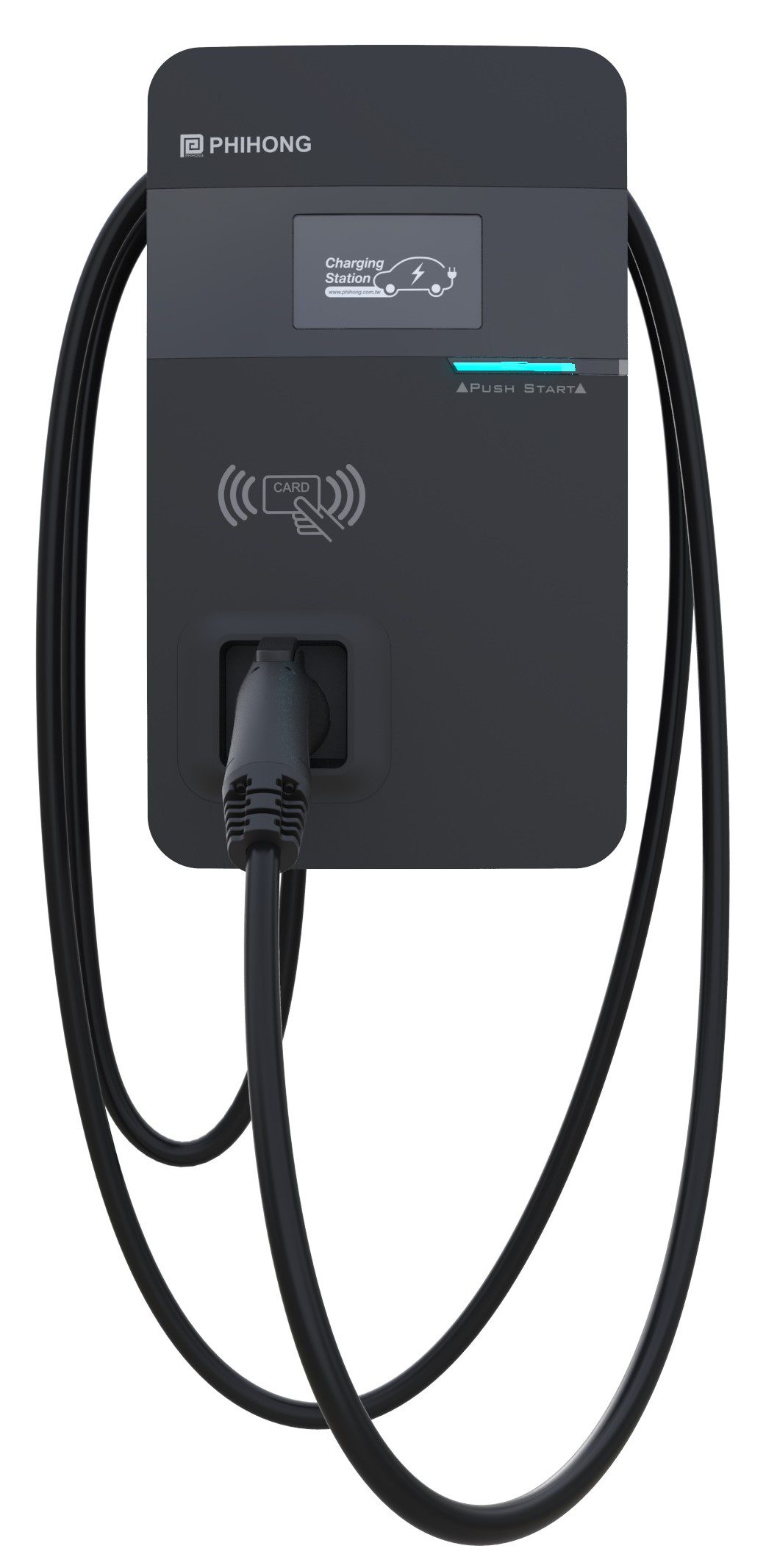

swtch Phihong AX48 Level 2 EV Charger: Complete Product Manual and Buyer’s Guide

The swtch Phihong AX48 Level 2 EV Charger is a hardwired, high-output charging solution built for residential communities, workplaces, and light commercial properties that need reliable Level 2 EV charging. Designed around a 48A single-phase AC platform, it delivers up to 11.5 kW of charging power, making it a strong fit for drivers who want faster overnight charging than a standard Level 2 unit. This model is especially appealing for property managers, fleet operators, and EV-friendly businesses that want a durable charger with smart connectivity, load management options, and flexible authentication features.

One of the biggest advantages of the swtch Phihong AX48 Level 2 EV Charger is its balance of performance and scalability. It supports SAE J1772 charging, works with common North American EVs, and is designed for both indoor and outdoor installations depending on configuration. Typical pricing for an installed unit generally falls in the mid-range to premium Level 2 charger category, often around $1,200 to $2,500+ depending on pedestal, network features, electrical work, and deployment size. Availability is usually through EV infrastructure installers, commercial charging partners, and regional distributors rather than standard retail shelves.

For users who need a dependable EV wall charger with smart management capabilities, the AX48 stands out for its robust output, enterprise-friendly design, and compatibility with modern charging workflows. It is a practical choice for drivers who want consistent charging speed, and for operators who want a charger that can be integrated into managed EV programs.

Specifications for the swtch Phihong AX48 Level 2 EV Charger

Charging level: Level 2 AC EV charger
Output current: 48A
Maximum power: Up to 11.5 kW at 240V
Input voltage: 200–240 VAC, single-phase
Frequency: 50/60 Hz
Connector type: SAE J1772 Type 1
Installation type: Wall-mounted or pedestal-based deployment depending on system configuration
Protection features: Over-voltage, under-voltage, surge protection, ground fault protection, output protection, control pilot fault detection, residual current protection
Operating profile: Designed for commercial and multi-unit EV charging environments
Connectivity: Smart-network capable in managed deployments

Compared with lower-power 32A Level 2 chargers, the AX48 provides noticeably faster charge recovery and better support for higher-mileage daily drivers. Against 80A smart chargers, it offers a more cost-effective balance of speed, electrical requirements, and installation complexity.

Detailed Description: How the AX48 Smart EV Charger Works

The swtch Phihong AX48 Level 2 EV Charger works by delivering alternating-current power directly to the vehicle’s onboard charger, which converts it into DC power for the battery. Because it operates at 48 amps, it can deliver significantly more energy than basic residential chargers while still using common single-phase electrical infrastructure. That makes it well suited for apartment complexes, office parking lots, commercial fleets, and dedicated home installations where faster turnaround is important.

Its construction is designed for long-term use in demanding environments. The chassis and internal components are built for consistent thermal performance, safe energy delivery, and reliable operation over repeated charging cycles. In practical use, drivers typically benefit from a simple plug-in experience, stable charging sessions, and predictable performance for overnight or workplace charging. For operators, smart-ready features make it easier to manage utilization, access control, and deployment across multiple charging points.

The user experience is straightforward: connect the vehicle, authenticate if required, and charging begins automatically. This makes the AX48 a strong fit for everyday EV charging where reliability and speed matter more than flashy consumer-focused features.

Setup Guide: Installing a swtch Phihong AX48 Level 2 EV Charger

Installation of the AX48 should be performed by a licensed electrician or qualified EV installer. Before setup, confirm that the site can support a 48A Level 2 load and that the electrical panel has enough spare capacity for the charger and its dedicated breaker.

Turn off power at the main panel before any electrical work begins.
Verify single-phase 200–240 VAC supply compatibility.
Install the recommended dedicated circuit and ensure grounding is correct.
Mount the charger securely on a wall or approved pedestal.
Connect the wiring according to the installation guide and local electrical code.
Power on the unit and confirm indicator status before connecting a vehicle.
Test charging with a compatible EV to verify stable operation.

Configuration options may include current limits, access control, network settings, and load-management integration depending on the deployment platform. If connectivity is used, ensure the charger is linked to the correct network or management system before final sign-off. If the unit does not start charging, check breaker status, ground continuity, and vehicle-side charging settings.

Safety warning: Do not install in wet conditions without proper enclosure rating confirmation, and never modify wiring beyond the manufacturer’s instructions. Always follow local code requirements.

Troubleshooting the swtch Phihong AX48 Level 2 EV Charger

If the charger fails to deliver power, the issue is usually related to supply, grounding, authentication, or vehicle compatibility. Start by checking that the circuit breaker is on, the vehicle is properly seated, and the charging connector is fully inserted.

No charging response: Confirm power supply, breaker position, and vehicle charge settings.
Fault light or shutdown: Inspect for ground fault, wiring issues, or transient power problems.
Slow charging: Check whether the vehicle is limiting current or if load management is active.
Connectivity issues: Recheck network setup, signal strength, or backend registration if smart features are enabled.
Intermittent stops: Look for loose connections, overheating, or cable damage.

Common error states in Level 2 charging systems often relate to control pilot faults, ground faults, or over-temperature protection. Preventive maintenance includes periodic cable inspection, verifying enclosure condition, and testing the circuit after major electrical events such as storms or outages.

Warranty and support are typically handled through the installer, distributor, or charging network provider. For help, contact the seller or the local EV charging service partner that supplied the unit.

Pros and Cons of the AX48 EV Charger

Pros

Fast 48A Level 2 charging delivers up to 11.5 kW.
Well suited for residential communities and commercial parking.
SAE J1772 compatibility supports many EVs in North America.
Built-in protection features improve charging safety.
Strong value for fleets and managed charging deployments.

Cons

Requires professional electrical installation.
Higher upfront cost than basic 32A chargers.
Best features may depend on network or backend integration.
Less plug-and-play than simple home chargers.

For value for money, the AX48 is strongest when used in shared or commercial settings where throughput matters. Compared with lower-cost residential models, it offers better performance and scalability. Compared with higher-amperage alternatives, it can reduce installation complexity while still delivering excellent charging speed.

Customer Reviews: What Users Say About the swtch Phihong AX48 Level 2 EV Charger

User feedback for the swtch Phihong AX48 Level 2 EV Charger is generally positive, with many owners praising its reliable charging speed and professional-grade build quality. Common star ratings in this category typically land around 4.3 to 4.7 out of 5 for managed commercial EV chargers.

“Charges my EV quickly every night and has been very dependable.” — 5 stars

“Great for apartment use, but installation cost was higher than expected.” — 4 stars

“Solid performance and easy to live with once set up.” — 5 stars

Frequent praise includes stable output, strong compatibility, and suitability for shared charging environments. Common complaints usually focus on installation complexity, electrical upgrade needs, and the fact that smart charging benefits depend on the deployment platform. For buyers who want a durable, high-power Level 2 EV charger and are willing to invest in proper installation, it is an excellent recommendation.

PDF

Faqs

How do I set up the swtch Phihong AX48 Level 2 EV Charger for the first time?

Start by confirming that your electrical panel can support a Level 2 EV charger and that the installation location is close enough to your vehicle’s parking spot. The swtch Phihong AX48 Level 2 EV Charger should be installed by a qualified electrician, who can verify voltage, breaker size, grounding, and cable routing. After power-up, test the charger with your EV, check indicator lights, and make sure the unit is connected properly if network features are enabled.

What should I do if the swtch Phihong AX48 Level 2 EV Charger is not charging my EV?

First, check whether the charging cable is fully inserted into both the charger and the vehicle port. Next, confirm that the breaker has not tripped and that the charger shows a normal status light. Some EVs require the car to be unlocked or in the correct charging mode before charging starts. If the issue continues, try a different charging session, inspect the connector for dirt or damage, and restart the charger if your setup allows it.

Which EVs are compatible with the swtch Phihong AX48 Level 2 EV Charger?

The swtch Phihong AX48 Level 2 EV Charger is designed for most electric vehicles that support Level 2 AC charging through a standard connector setup. Compatibility depends on your EV’s onboard charger, plug type, and charging limits rather than the charger alone. Before buying or installing, check your vehicle’s manual for supported amperage and connector requirements. If you use an adapter or special mounting setup, verify that it is approved for safe home charging.

How can I optimize charging speed on the swtch Phihong AX48 Level 2 EV Charger?

To get the best performance, make sure the charger is installed on a circuit that matches its rated output and that your EV can accept the same or higher charging rate. Charging is usually fastest when the battery is not near full and when the vehicle is parked in a cool environment. Avoid using long or damaged extension solutions, and keep the connector seated firmly. If the charger has adjustable settings, confirm the current limit is set correctly.

What do the status lights on the swtch Phihong AX48 Level 2 EV Charger mean?

Status lights usually indicate whether the charger is ready, actively charging, paused, or showing a fault. A steady normal light often means the unit is powered and waiting for a vehicle, while another pattern may show that charging is in progress. Flashing or red indicators often point to a wiring issue, communication error, or protection shutdown. Always consult the charger’s manual for the exact light codes, since meanings can vary by setup and firmware version.

How do I troubleshoot connectivity problems with the swtch Phihong AX48 Level 2 EV Charger?

If the charger is not connecting to an app or network, verify that Wi-Fi or Ethernet settings are correct and that the charger is within range of a stable signal. Restart the router, then power cycle the charger if the manual allows it. Also check for firmware updates, because older software can cause login or pairing issues. If the charger still will not connect, review account permissions and confirm that the network is not blocking device communication.

What maintenance does the swtch Phihong AX48 Level 2 EV Charger need over time?

Routine maintenance is simple but important. Keep the connector clean, dry, and free from dust or road debris. Inspect the cable regularly for cracks, cuts, or kinks, and make sure the wall mount or pedestal remains secure. Check that the charging port cover, if used, closes properly after each session. It is also smart to test the charger occasionally and look for any new error codes so problems are caught early before they affect daily charging.

Can the swtch Phihong AX48 Level 2 EV Charger be installed outdoors safely?

Yes, outdoor installation may be possible if the unit and all electrical components are rated for exterior use and installed according to local code. The charger should be mounted where it is protected from direct water exposure, physical damage, and extreme weather whenever possible. A licensed electrician should confirm proper sealing, cable management, and grounding. If you live in an area with heavy rain, snow, or freezing temperatures, ask about the best mounting height and weather protection options.
